Toyota Prius: Evaporator Pipe Temperature Sensor

• Removal
• Inspection
• Installation

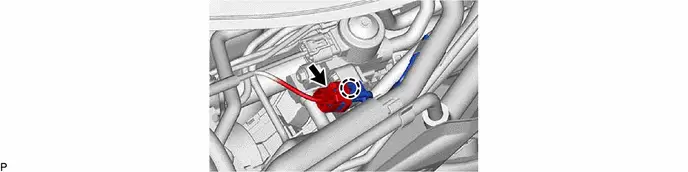

Removal

REMOVAL

CAUTION / NOTICE / HINT

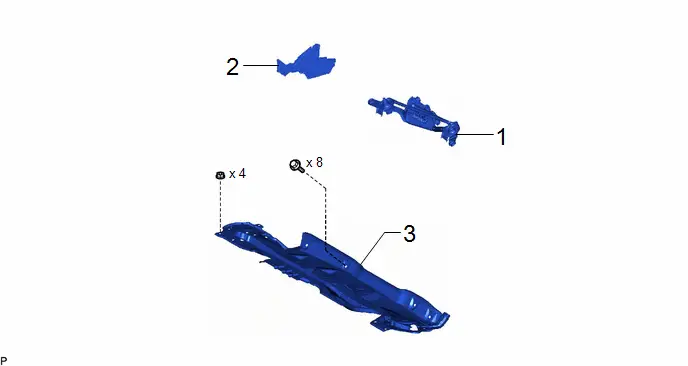

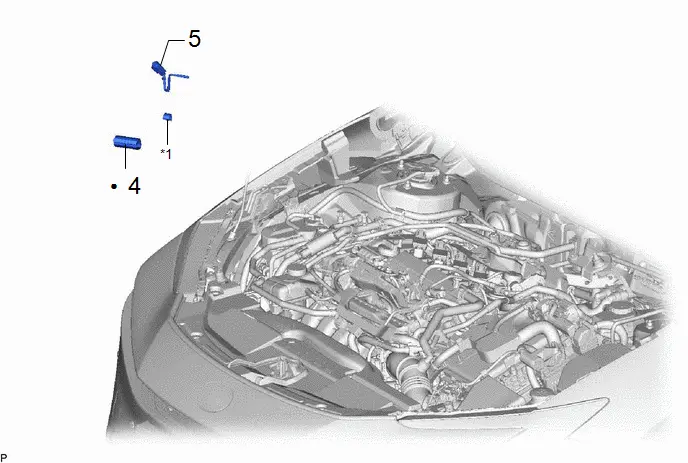

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY	-	-	-	-
2	WATER GUARD PLATE	55734D	-	-	-
3	OUTER COWL TOP PANEL SUB-ASSEMBLY	55701J	-	-	-

Procedure		Part Name Code
4	NO. 2 COOLER PACKING	88E78	-	-	-
5	NO. 2 AIR CONDITIONING THERMISTOR ASSEMBLY	88620R	-	-	-

*1	NO. 1 COOLER CLAMP	-	-
●	Non-reusable part	-	-

PROCEDURE

1. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

Click here

2. REMOVE WATER GUARD PLATE

Click here

3. REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

Click here

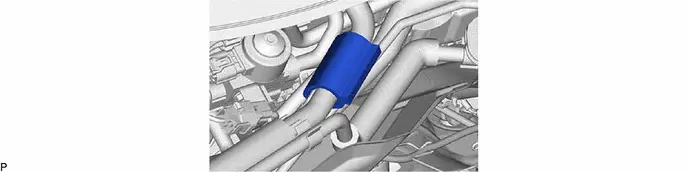

4. REMOVE NO. 2 COOLER PACKING

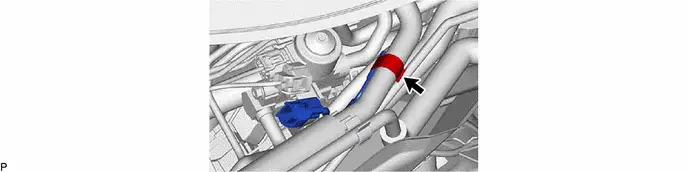

5. REMOVE NO. 2 AIR CONDITIONING THERMISTOR ASSEMBLY

Inspection

INSPECTION

PROCEDURE

1. INSPECT NO. 2 AIR CONDITIONING THERMISTOR ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below. Standard Resistance: Click Location & Routing(A52) Click Connector(A52) Tester Connection Condition Specified Condition Result A52-1(TMP2) - A52-2(-) 10°C (50°F) 3.87 to 3.96 kΩ kΩ A52-1(TMP2) - A52-2(-) 15°C (59°F) 3.15 to 3.23 kΩ kΩ A52-1(TMP2) - A52-2(-) 20°C (68°F) 2.57 to 2.66 kΩ kΩ A52-1(TMP2) - A52-2(-) 25°C (77°F) 2.12 to 2.20 kΩ kΩ A52-1(TMP2) - A52-2(-) 30°C (86°F) 1.75 to 1.83 kΩ kΩ A52-1(TMP2) - A52-2(-) 35°C (95°F) 1.46 to 1.53 kΩ kΩ A52-1(TMP2) - A52-2(-) 40°C (104°F) 1.22 to 1.29 kΩ kΩ A52-1(TMP2) - A52-2(-) 45°C (113°F) 1.03 to 1.09 kΩ kΩ A52-1(TMP2) - A52-2(-) 50°C (122°F) 0.87 to 0.92 kΩ kΩ A52-1(TMP2) - A52-2(-) 55°C (131°F) 0.74 to 0.78 kΩ kΩ A52-1(TMP2) - A52-2(-) 60°C (140°F) 0.63 to 0.67 kΩ kΩ NOTICE: Hold the sensor only by its connector. Touching the sensing portion may change the resistance value. When measuring, the sensor temperature. must be the same as the ambient temperature. HINT: As the temperature increases, the resistance decreases (see the graph). If the result is not as specified, replace the No. 2 air conditioning thermistor assembly.

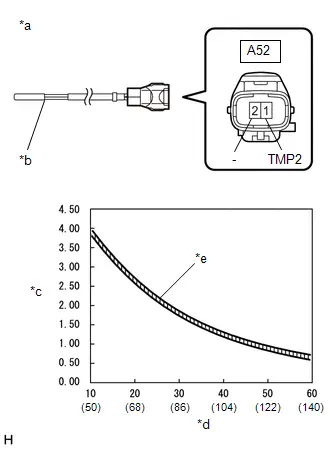

*a Component without harness connected (No. 2 Air Conditioning Thermistor Assembly) *b Sensing Portion *c Resistance (kΩ) *d Temperature (°C (°F)) *e Allowable Range

Installation

INSTALLATION

CAUTION / NOTICE / HINT

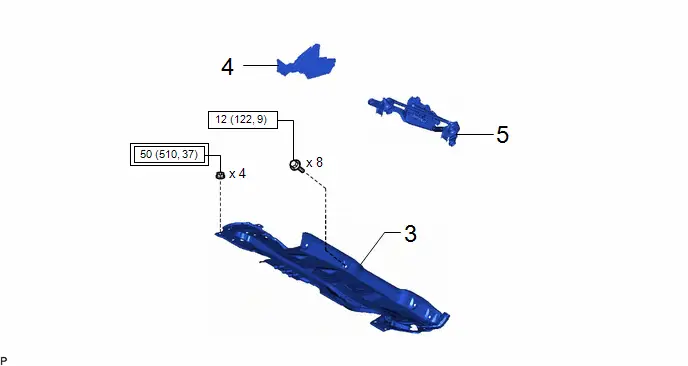

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	NO. 2 AIR CONDITIONING THERMISTOR ASSEMBLY	88620R		-	-
2	NO. 2 COOLER PACKING	88E78		-	-

*1	NO. 1 COOLER CLAMP	-	-
●	Non-reusable part	-	-

Procedure		Part Name Code
3	OUTER COWL TOP PANEL SUB-ASSEMBLY	55701J	-	-	-
4	WATER GUARD PLATE	55734D	-	-	-
5	WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY	-	-	-	-

Tightening torque for "Major areas involving basic Toyota Prius vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

PROCEDURE

1. INSTALL NO. 2 AIR CONDITIONING THERMISTOR ASSEMBLY

*1	NO. 1 SUCTION TUBE	*2	NO. 1 COOLER CLAMP
*3	NO. 2 AIR CONDITIONING THERMISTOR ASSEMBLY	-	-

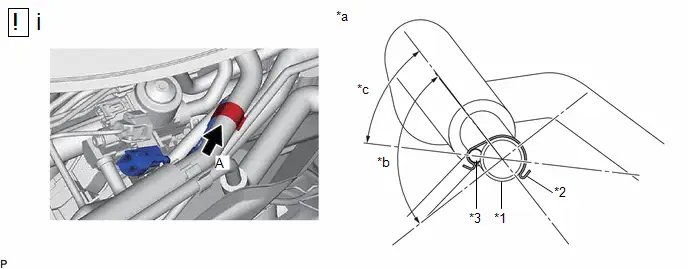

*a	View A	*b	Installation Angle (90°)
*c	Installation Angle (45.6°)	-	-

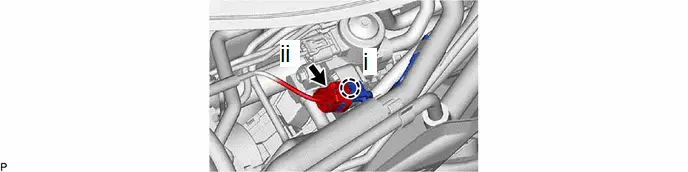

(1) Install the No. 2 air conditioning thermistor assembly with the No. 1 cooler clamp as shown in the illustration.

(1) Engage the claw.

(2) Connect the connector.

2. INSTALL NO. 2 COOLER PACKING

*1	NO. 1 SUCTION TUBE	*2	NO. 1 COOLER CLAMP
*3	NO. 2 AIR CONDITIONING THERMISTOR ASSEMBLY	*4	NO. 2 COOLER PACKING
*a	View A	*b	Installation Angle (90°)
*c	Installation Angle (134.4°)	-	-

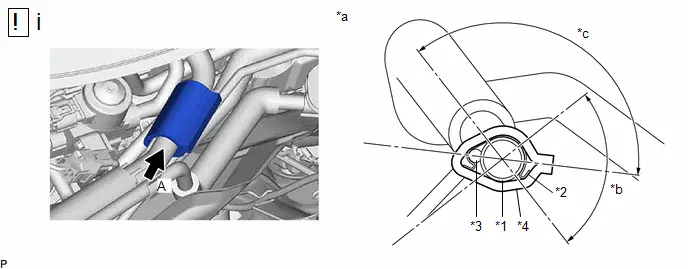

(1) Perform the following procedure to install the No. 2 cooler packing.

1. Remove any remaining No. 2 cooler packing from the No. 2 air conditioning thermistor and No. 1 suction tube.

2. Remove the release paper from a new No. 2 cooler packing.

3. Install the No. 2 cooler packing as shown in the illustration.

3. INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY

Click here

4. INSTALL WATER GUARD PLATE

5. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

Click here
