Toyota Prius: Electrical Key Oscillator (for Outside Luggage Compartment)
Removal
REMOVAL
CAUTION / NOTICE / HINT

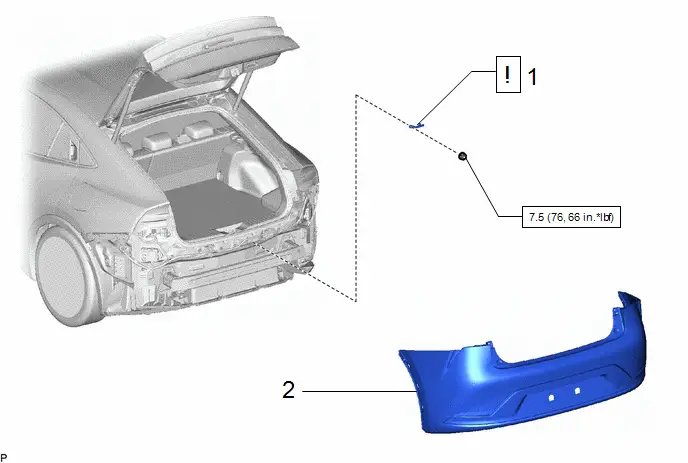

COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | REAR BUMPER ASSEMBLY | - | - | - | - |
| 2 | ELECTRICAL KEY ANTENNA | 89997 |
| - | - |
PROCEDURE
1. REMOVE REAR BUMPER ASSEMBLY
Click here

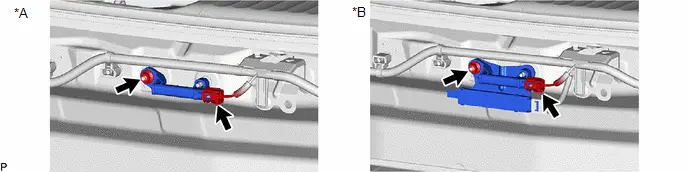

2. REMOVE ELECTRICAL KEY ANTENNA
| NOTICE: Be careful when removing the electrical key antenna. If the electrical key antenna is dropped, replace it with a new one. |
| *A | Models without digital key system | *B | Models with digital key system |
Installation
INSTALLATION
CAUTION / NOTICE / HINT
COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | ELECTRICAL KEY ANTENNA | 89997 |
| - | - |
| 2 | REAR BUMPER ASSEMBLY | - | - | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
PROCEDURE
1. INSTALL ELECTRICAL KEY ANTENNA
| NOTICE: Be careful when installing the electrical key antenna. If the electrical key antenna is dropped, replace it with a new one. |
Torque:
7.5 N·m {76 kgf·cm, 66 in·lbf}
2. INSTALL REAR BUMPER ASSEMBLY
Click here
