Toyota Prius: Electrical Key Oscillator (for Rear Floor)
Removal
REMOVAL
CAUTION / NOTICE / HINT

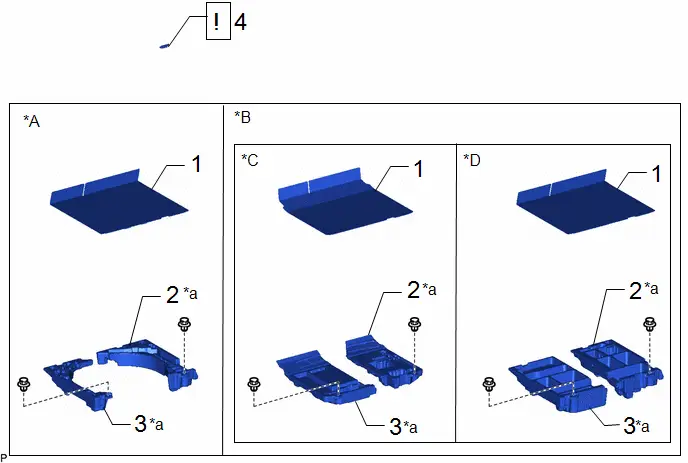

COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | DECK BOARD ASSEMBLY | 58410B | - | - | - |
| 2 | DECK FLOOR BOX RH | 64995 | - | - | - |
| 3 | DECK FLOOR BOX LH | 64997 | - | - | - |
| 4 | NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY | 899A0A |
| - | - |
| *A | w/ Spare Tire | *B | w/o Spare Tire |
| *C | for Type A | *D | for Type B |
| *a | HINT: As the illustration shown is an example, the actual details may differ. | - | - |
PROCEDURE
1. REMOVE DECK BOARD ASSEMBLY
Click here
2. REMOVE DECK FLOOR BOX RH
Click here
3. REMOVE DECK FLOOR BOX LH
Click here
4. REMOVE NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY
| NOTICE: Be careful when removing the No. 2 indoor electrical key antenna assembly. If the No. 2 indoor electrical key antenna assembly is dropped, replace it with a new one. |
Installation
INSTALLATION
CAUTION / NOTICE / HINT
COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY | 899A0A |
| - | - |
| 2 | DECK FLOOR BOX LH | 64997 | - | - | - |
| 3 | DECK FLOOR BOX RH | 64995 | - | - | - |
| 4 | DECK BOARD ASSEMBLY | 58410B | - | - | - |
| *A | w/ Spare Tire | *B | w/o Spare Tire |
| *C | for Type A | *D | for Type B |
| *a | HINT: As the illustration shown is an example, the actual details may differ. | - | - |
PROCEDURE
1. INSTALL NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY
| NOTICE: Be careful when installing the No. 2 indoor electrical key antenna assembly. If the No. 2 indoor electrical key antenna assembly is dropped, replace it with a new one. |
2. INSTALL DECK FLOOR BOX LH
3. INSTALL DECK FLOOR BOX RH
4. INSTALL DECK BOARD ASSEMBLY
