Toyota Prius: Electrical Key Oscillator (for Front Floor)
Removal
REMOVAL
CAUTION / NOTICE / HINT

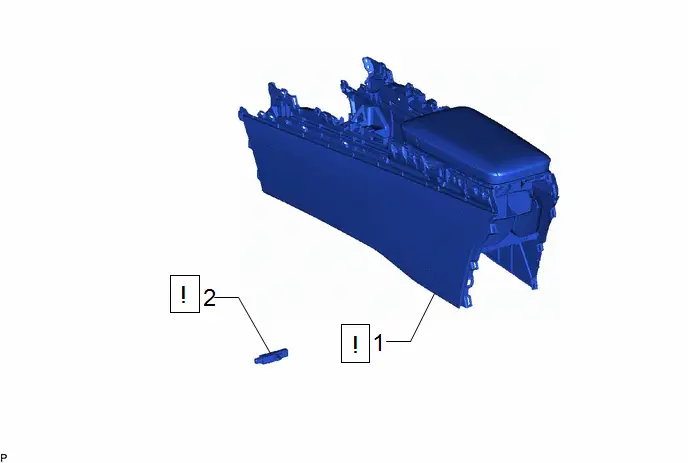

COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | REAR CONSOLE BOX ASSEMBLY | 58910C |
| - | - |
| 2 | NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY | 899A0 |
| - | - |
PROCEDURE
1. REMOVE REAR CONSOLE BOX ASSEMBLY
| Click here
|
2. REMOVE NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY
| NOTICE: Be careful when removing the No. 1 indoor electrical key antenna assembly. If the No. 1 indoor electrical key antenna assembly is dropped, replace it with a new one. |
Installation
INSTALLATION
CAUTION / NOTICE / HINT
COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY | 899A0 |
| - | - |
| 2 | REAR CONSOLE BOX ASSEMBLY | 58910C |
| - | - |
PROCEDURE
1. INSTALL NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY
| NOTICE: Be careful when installing the No. 1 indoor electrical key antenna assembly. If the No. 1 indoor electrical key antenna assembly is dropped, replace it with a new one. |
2. INSTALL REAR CONSOLE BOX ASSEMBLY
| Click here
|
Toyota Prius (XW60) 2023-2025 Service Manual
