Toyota Prius: Driver Monitor Ecu

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during driver monitor ECU assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Driver Monitor ECU Assembly	Software version confirmation	Driver Monitor Camera System Traffic Jam Assist System

CAUTION / NOTICE / HINT

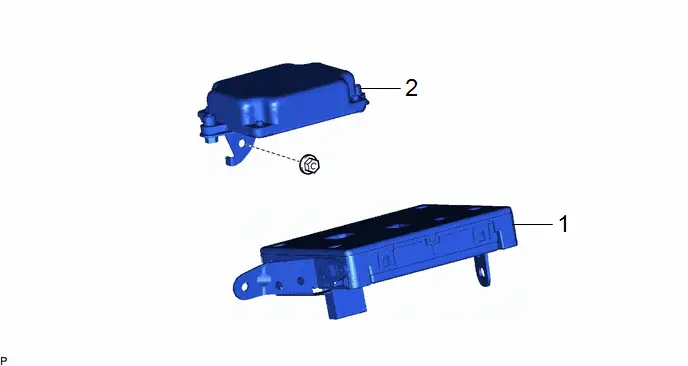

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	DCM (TELEMATICS TRANSCEIVER) WITH BRACKET	-	-	-	-
2	DRIVER MONITOR ECU ASSEMBLY	86470	-	-	-

PROCEDURE

1. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET

Click here

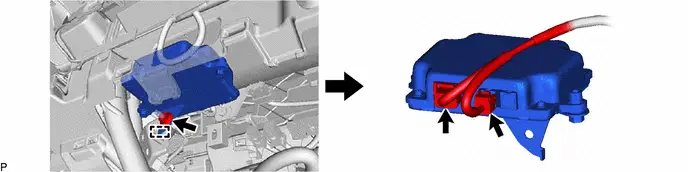

2. REMOVE DRIVER MONITOR ECU ASSEMBLY

Installation

INSTALLATION

CAUTION / NOTICE / HINT

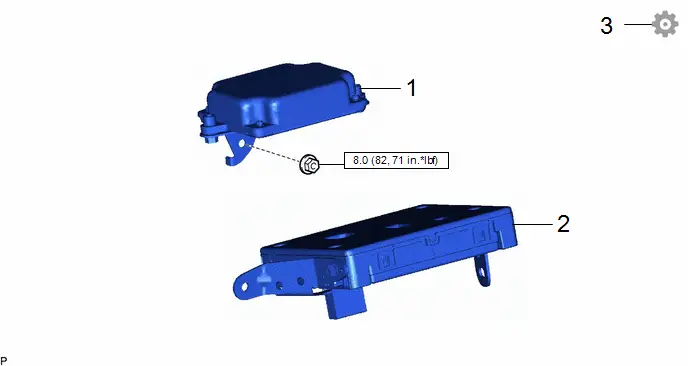

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	DRIVER MONITOR ECU ASSEMBLY	86470	-	-	-
2	DCM (TELEMATICS TRANSCEIVER) WITH BRACKET	-	-	-	-
3	SOFTWARE VERSION CONFIRMATION	-	-	-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

PROCEDURE

1. INSTALL DRIVER MONITOR ECU ASSEMBLY

Torque:

8.0 N·m {82 kgf·cm, 71 in·lbf}

2. INSTALL DCM (TELEMATICS TRANSCEIVER) WITH BRACKET

Click here

3. SOFTWARE VERSION CONFIRMATION

Click here
