Toyota Prius: Door Outside Handle (for Rear Side)

Toyota Prius (XW60) 2023-2025 Service Manual / Vehicle Interior / Door Lock / Door Outside Handle (for Rear Side)

Removal
Inspection
Installation

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during rear door outside handle assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
Rear door glass sub-assembly LH* Rear door glass sub-assembly RH* Rear door glass run LH* Rear door glass run RH*	Initialize power window control system	Auto up and down function Remote control function Key-off operation function Wireless transmitter-linked function Key-linked function Window open warning function Catch protection function Jam protection function

CAUTION / NOTICE / HINT

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when Toyota Prius vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Front Camera System	Drive the Toyota Prius vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
1: w/o Power Back Door System 2: w/ Power Back Door System
Power Door Lock Control System*1 Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Power Back Door System*2	Reset back door close position
Air Conditioning System	for HEV Model: After the ignition switch is turned to ON, the servo motor standard position is recognized. for PHEV Model: After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized.	-

Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.

CAUTION / NOTICE / HINT

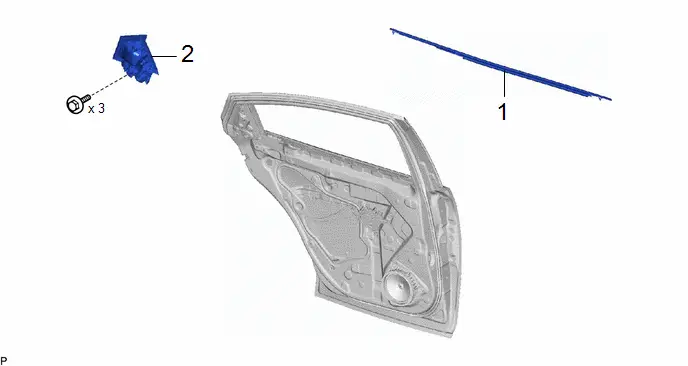

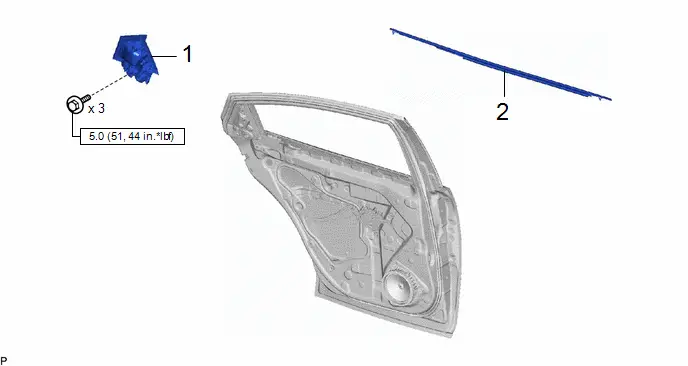

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	REAR DOOR BELT MOULDING ASSEMBLY	75740	-	-	-
2	REAR DOOR OUTSIDE HANDLE ASSEMBLY	69240	-	-	-

PROCEDURE

1. REMOVE REAR DOOR BELT MOULDING ASSEMBLY

Click here

2. REMOVE REAR DOOR OUTSIDE HANDLE ASSEMBLY

Click here

Inspection

INSPECTION

PROCEDURE

1. INSPECT REAR DOOR OUTSIDE HANDLE ASSEMBLY LH

(a) Check the operation of the rear door outside handle assembly LH.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Click Location & Routing(M5) Click Connector(M5)

Tester Connection	Switch Condition	Specified Condition	Result
M5-1 (SWL) - M5-6 (SGL)	Back door opener switch pushed (ON)	Below 55 Ω	Ω
M5-1 (SWL) - M5-6 (SGL)	Back door opener switch not pushed (OFF)	10 kΩ or higher	kΩ

If the result is not as specified, replace the rear door outside handle assembly LH.

Not Pushed (OFF)

Pushed (ON)

Component without harness connected

(Rear Door Outside Handle Assembly LH)

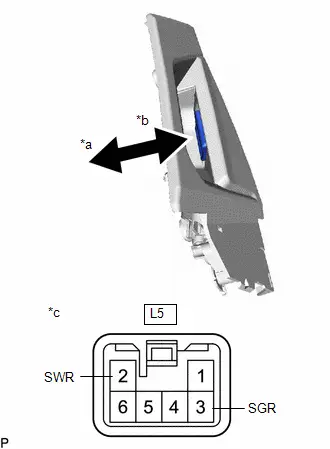

2. INSPECT REAR DOOR OUTSIDE HANDLE ASSEMBLY RH

(a) Check the operation of the rear door outside handle assembly RH.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Click Location & Routing(L5) Click Connector(L5)

Tester Connection	Switch Condition	Specified Condition	Result
L5-2 (SWR) - L5-3 (SGR)	Back door opener switch pushed (ON)	Below 55 Ω	Ω
L5-2 (SWR) - L5-3 (SGR)	Back door opener switch not pushed (OFF)	10 kΩ or higher	kΩ
