Toyota Prius: Door Lock Release Motor (for Rear Side)
Removal
REMOVAL
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
CAUTION / NOTICE / HINT

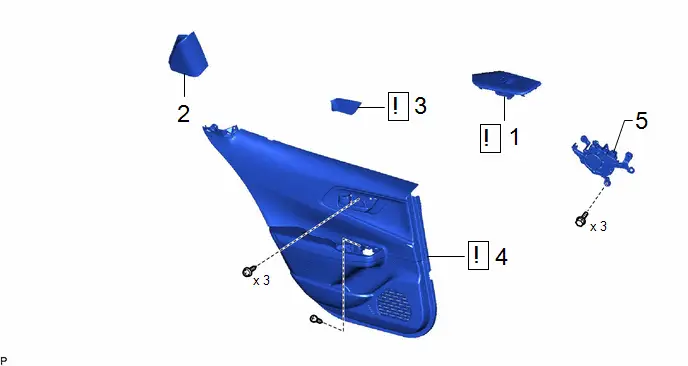

COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL | - |
| - | - |
| 2 | REAR DOOR REAR FRAME BRACKET | 67498 | - | - | - |
| 3 | REAR DOOR TRIM UPPER COVER | 67782D |
| - | - |
| 4 | REAR DOOR TRIM BOARD SUB-ASSEMBLY | 67604 |
| - | - |
| 5 | DOOR LOCK RELEASE MOTOR ASSEMBLY | 85620J | - | - | - |
PROCEDURE
1. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL
| Click here
|
2. REMOVE REAR DOOR REAR FRAME BRACKET
Click here
3. REMOVE REAR DOOR TRIM UPPER COVER
| Click here
|
4. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY
| Click here
|
5. REMOVE DOOR LOCK RELEASE MOTOR ASSEMBLY
Click here
Inspection
INSPECTION
PROCEDURE
1. INSPECT DOOR LOCK RELEASE MOTOR ASSEMBLY LH

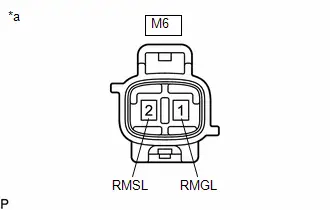

| (a) Apply battery voltage to the door lock release motor assembly LH connector, and check that the door lock release motor assembly LH operates smoothly as follows. OK:  Click Location & Routing(M6) Click Connector(M6)
|
|
2. INSPECT DOOR LOCK RELEASE MOTOR ASSEMBLY RH

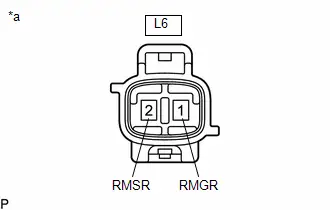

| (a) Apply battery voltage to the door lock release motor assembly RH connector, and check that the door lock release motor assembly RH operates smoothly as follows. OK:  Click Location & Routing(L6) Click Connector(L6)
|
|
Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
CAUTION / NOTICE / HINT

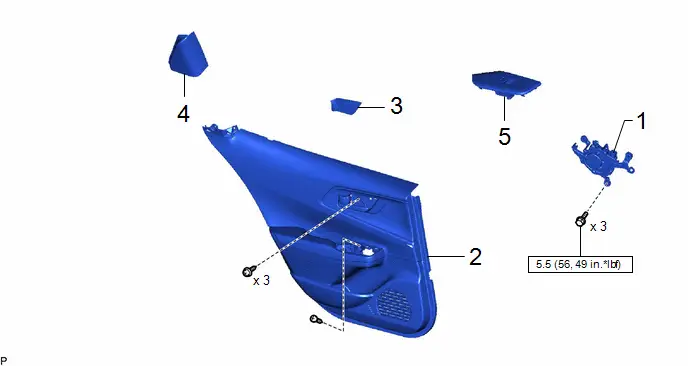

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | DOOR LOCK RELEASE MOTOR ASSEMBLY | 85620J | - | - | - |
| 2 | REAR DOOR TRIM BOARD SUB-ASSEMBLY | 67604 | - | - | - |
| 3 | REAR DOOR TRIM UPPER COVER | 67782D | - | - | - |
| 4 | REAR DOOR REAR FRAME BRACKET | 67498 | - | - | - |
| 5 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL | - | - | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
PROCEDURE
1. INSTALL DOOR LOCK RELEASE MOTOR ASSEMBLY
Click here
2. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY
3. INSTALL REAR DOOR TRIM UPPER COVER
4. INSTALL REAR DOOR REAR FRAME BRACKET
5. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL
Toyota Prius (XW60) 2023-2025 Service Manual
Door Lock Release Motor (for Rear Side)
