Toyota Prius: Condenser (for Phev Model)
On-vehicle Inspection
ON-VEHICLE INSPECTION
PROCEDURE
1. INSPECT COOLER CONDENSER ASSEMBLY
(a) If the cooler condenser assembly fins are dirty, clean them with water and dry them with compressed air.
NOTICE:
Do not damage the cooler condenser assembly fins.
(b) If any cooler condenser assembly fins are bent, straighten them using a screwdriver or pliers.
2. INSPECT FOR REFRIGERANT LEAK
(a) Using a gas leak detector, check the pipe joints for refrigerant leaks.
(b) If a refrigerant leak is detected in a joint, check the torque of the joint.
Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during condenser removal/installation are shown below.
Necessary Procedures After Parts Removed/Installed/Replaced| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| *: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation. | |||
| Front bumper assembly* | Front television camera view adjustment | Panoramic View Monitor System |
|
| Advanced Park |
| ||
CAUTION / NOTICE / HINT

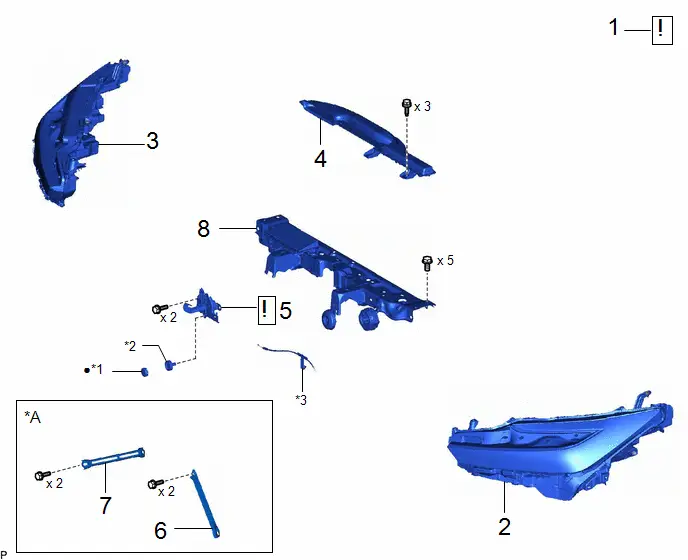

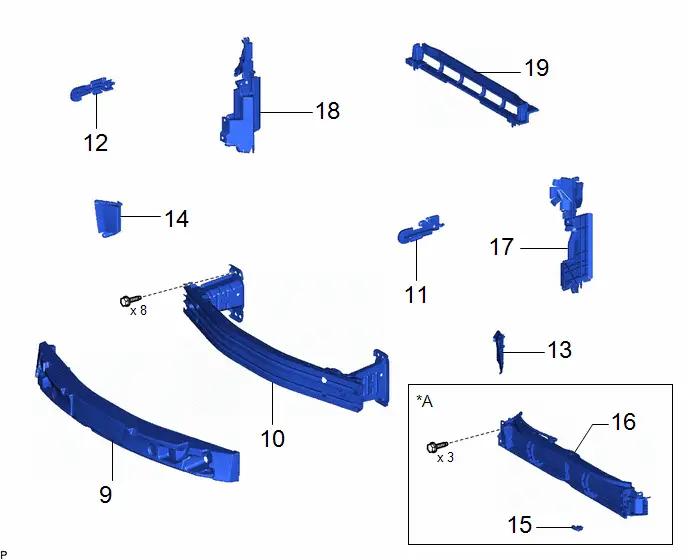

COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM | - |
| - | - |
| 2 | HEADLIGHT ASSEMBLY LH | - | - | - | - |
| 3 | HEADLIGHT ASSEMBLY RH | - | - | - | - |
| 4 | INLET NO. 1 AIR CLEANER | 17751 | - | - | - |
| 5 | HOOD LOCK ASSEMBLY | 53510 |
| - | - |
| 6 | UPPER RADIATOR MOUNTING BRACKET LH | 53254A | - | - | - |
| 7 | UPPER RADIATOR MOUNTING BRACKET RH | 53253D | - | - | - |
| 8 | UPPER RADIATOR SUPPORT SUB-ASSEMBLY | 53205 | - | - | - |
| *A | w/ Bracket | - | - |
| *1 | HOOD LOCK NUT CAP | *2 | HOOD LOCK BOLT |
| *3 | HOOD LOCK CONTROL CABLE ASSEMBLY | - | - |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 9 | FRONT BUMPER ENERGY ABSORBER | 52611 | - | - | - |
| 10 | FRONT BUMPER REINFORCEMENT | - | - | - | - |
| 11 | NO. 3 RADIATOR TO SUPPORT SEAL | 16563C | - | - | - |
| 12 | NO. 2 RADIATOR TO SUPPORT SEAL | 16562K | - | - | - |
| 13 | FRONT RADIATOR SIDE AIR GUIDE PLATE LH | 16695A | - | - | - |
| 14 | FRONT RADIATOR SIDE AIR GUIDE PLATE RH | 16691A | - | - | - |
| 15 | THERMISTOR ASSEMBLY | 88790B | - | - | - |
| 16 | RADIATOR SHUTTER ASSEMBLY | 53180D | - | - | - |
| 17 | NO. 1 RADIATOR AIR GUIDE LH | 16595B | - | - | - |
| 18 | NO. 1 RADIATOR AIR GUIDE RH | 16593B | - | - | - |
| 19 | NO. 2 RADIATOR AIR GUIDE | 16594A | - | - | - |
| *A | w/ Grille Shutter | - | - |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 20 | NO. 1 COOLER REFRIGERANT DISCHARGE HOSE | 88711 |
| - | - |
| 21 | NO. 1 DISCHARGE HOSE SUB-ASSEMBLY | 88703A |
| - | - |
| 22 | COOLER CONDENSER ASSEMBLY | 884A0 |
| - | - |
| ● | Non-reusable part | - | - |
PROCEDURE
1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM
(a) for HFC-134a (R134a):
Click here
(b) for HFO-1234yf (R1234yf):
Click here
2. REMOVE HEADLIGHT ASSEMBLY LH
Click here
3. REMOVE HEADLIGHT ASSEMBLY RH
(a) Use the same procedure as for the LH side.
4. REMOVE INLET NO. 1 AIR CLEANER
Click here
5. REMOVE HOOD LOCK ASSEMBLY
| Click here
|
6. REMOVE UPPER RADIATOR MOUNTING BRACKET LH (w/ Bracket)
Click here
7. REMOVE UPPER RADIATOR MOUNTING BRACKET RH (w/ Bracket)
(a) Use the same procedure as for the LH side.
8. REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY
Click here
9. REMOVE FRONT BUMPER ENERGY ABSORBER
Click here
10. REMOVE FRONT BUMPER REINFORCEMENT
Click here
11. REMOVE NO. 3 RADIATOR TO SUPPORT SEAL
Click here
12. REMOVE NO. 2 RADIATOR TO SUPPORT SEAL
(a) Use the same procedure as for the No. 3 radiator to support seal.
13. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE LH
Click here
14. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE RH
(a) Use the same procedure as for the LH side.
15. REMOVE THERMISTOR ASSEMBLY (w/ Grille Shutter)
Click here
16. REMOVE RADIATOR SHUTTER ASSEMBLY (w/ Grille Shutter)
Click here
17. REMOVE NO. 1 RADIATOR AIR GUIDE LH
Click here
18. REMOVE NO. 1 RADIATOR AIR GUIDE RH
(a) Use the same procedure as for the LH side.
19. REMOVE NO. 2 RADIATOR AIR GUIDE
Click here

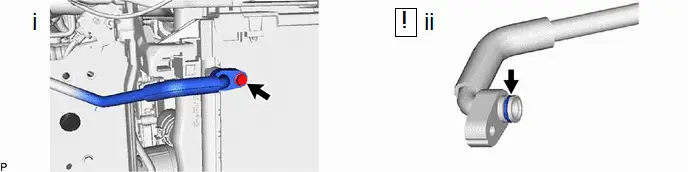

20. DISCONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE
(1) Remove the bolt and disconnect the No. 1 cooler refrigerant discharge hose.
(2) Remove the O-ring from the No. 1 cooler refrigerant discharge hose.
NOTICE:
Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

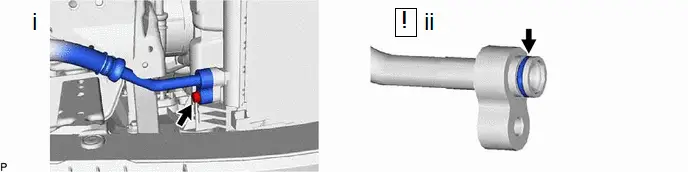

21. DISCONNECT NO. 1 DISCHARGE HOSE SUB-ASSEMBLY
(1) Remove the bolt and disconnect the No. 1 discharge hose sub-assembly.
(2) Remove the O-ring from the No. 1 discharge hose sub-assembly.
NOTICE:
Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

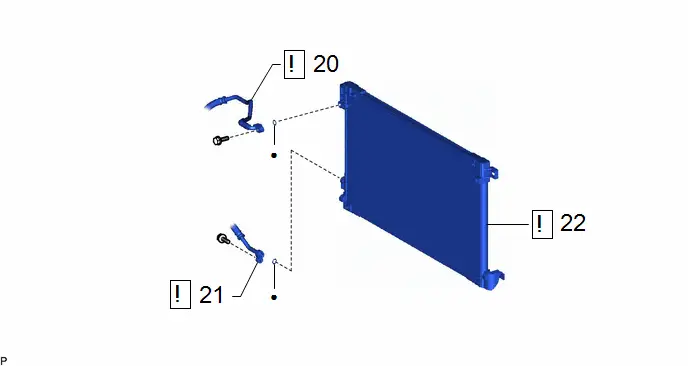

22. REMOVE COOLER CONDENSER ASSEMBLY
| Remove in this Direction | - | - |

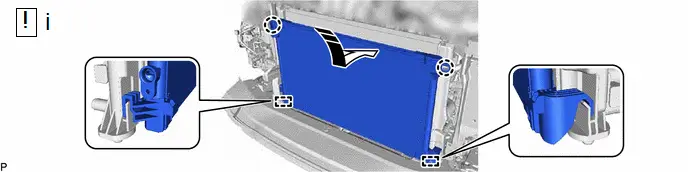

(1) Disengage the 2 claws and 2 guides, and remove the cooler condenser assembly as shown in the illustration.
NOTICE:
Do not damage the cooler condenser assembly and radiator assembly when removing the cooler condenser assembly.
Installation
INSTALLATION
CAUTION / NOTICE / HINT

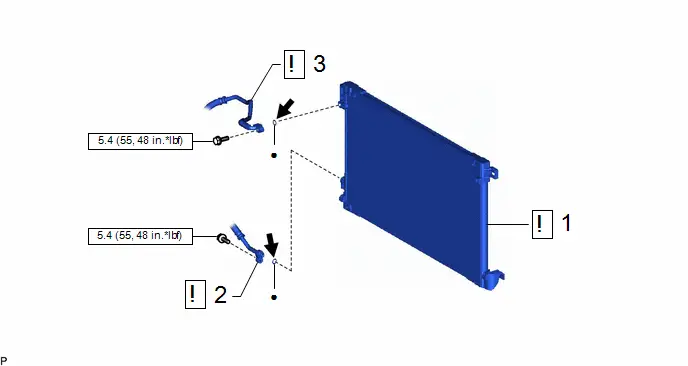

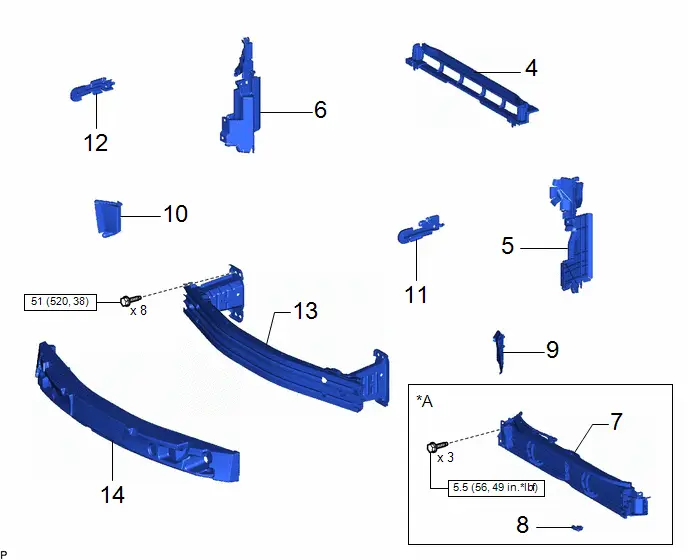

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | COOLER CONDENSER ASSEMBLY | 884A0 |
| - | - |
| 2 | NO. 1 DISCHARGE HOSE SUB-ASSEMBLY | 88703A |
| - | - |
| 3 | NO. 1 COOLER REFRIGERANT DISCHARGE HOSE | 88711 |
| - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| Compressor oil ND-OIL 11 or equivalent | - | - |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 4 | NO. 2 RADIATOR AIR GUIDE | 16594A | - | - | - |
| 5 | NO. 1 RADIATOR AIR GUIDE LH | 16595B | - | - | - |
| 6 | NO. 1 RADIATOR AIR GUIDE RH | 16593B | - | - | - |
| 7 | RADIATOR SHUTTER ASSEMBLY | 53180D | - | - | - |
| 8 | THERMISTOR ASSEMBLY | 88790B | - | - | - |
| 9 | FRONT RADIATOR SIDE AIR GUIDE PLATE LH | 16695A | - | - | - |
| 10 | FRONT RADIATOR SIDE AIR GUIDE PLATE RH | 16691A | - | - | - |
| 11 | NO. 3 RADIATOR TO SUPPORT SEAL | 16563C | - | - | - |
| 12 | NO. 2 RADIATOR TO SUPPORT SEAL | 16562K | - | - | - |
| 13 | FRONT BUMPER REINFORCEMENT | - | - | - | - |
| 14 | FRONT BUMPER ENERGY ABSORBER | 52611 | - | - | - |
| *A | w/ Grille Shutter | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 15 | UPPER RADIATOR SUPPORT SUB-ASSEMBLY | 53205 | - | - | - |
| 16 | UPPER RADIATOR MOUNTING BRACKET LH | 53254A | - | - | - |
| 17 | UPPER RADIATOR MOUNTING BRACKET RH | 53253D | - | - | - |
| 18 | HOOD LOCK ASSEMBLY | 53510 |
| - | - |
| 19 | ADJUST HOOD SUB-ASSEMBLY | - | - | - |
|
| 20 | INLET NO. 1 AIR CLEANER | 17751 | - | - | - |
| 21 | HEADLIGHT ASSEMBLY LH | - | - | - | - |
| 22 | HEADLIGHT ASSEMBLY RH | - | - | - | - |
| 23 | CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT | - | - | - |
|
| 24 | WARM UP COMPRESSOR | - | - | - |
|
| 25 | INSPECT FOR REFRIGERANT LEAK | - | - | - |
|
| *A | w/ Bracket | - | - |
| *1 | HOOD LOCK NUT CAP | *2 | HOOD LOCK BOLT |
| *3 | HOOD LOCK CONTROL CABLE ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque |
| MP grease |
PROCEDURE
1. INSTALL COOLER CONDENSER ASSEMBLY
| Install in this Direction | - | - |
(1) Engage the 2 guides and 2 claws to install the cooler condenser assembly as shown in the illustration.
NOTICE:
Do not damage the cooler condenser assembly and radiator assembly when removing the cooler condenser assembly.
HINT:
If a new cooler condenser assembly is installed, add compressor oil to the cooler condenser assembly as follows.
Capacity:
Add 40 cc (1.35 fl. oz)
Compressor Oil:
ND-OIL 11 or equivalent

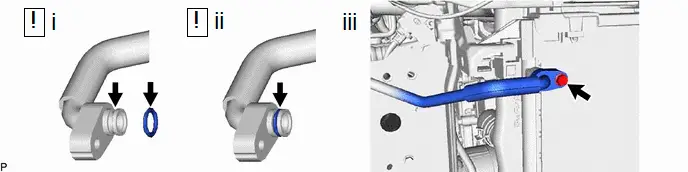

2. CONNECT NO. 1 DISCHARGE HOSE SUB-ASSEMBLY

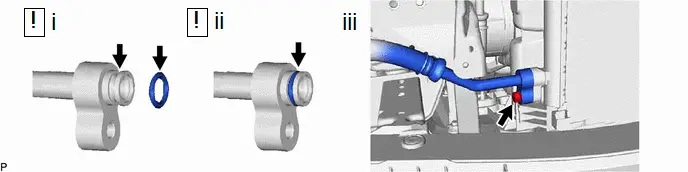

(1) Remove the vinyl tape from the No. 1 discharge hose sub-assembly and cooler condenser assembly, and sufficiently apply compressor oil to a new O-ring and the fitting surface of the No. 1 discharge hose sub-assembly.
Compressor Oil:
ND-OIL 11 or equivalent
(2) Install the O-ring to the No. 1 discharge hose sub-assembly.
NOTICE:
Keep the O-ring and O-ring fitting surface free from foreign matter.
(3) Connect the No. 1 discharge hose sub-assembly to the cooler condenser assembly with the bolt.
Torque:
5.4 N·m {55 kgf·cm, 48 in·lbf}
3. CONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE
(1) Remove the vinyl tape from the No. 1 cooler refrigerant discharge hose and cooler condenser assembly, and sufficiently apply compressor oil to a new O-ring and the fitting surface of the No. 1 cooler refrigerant discharge hose.
Compressor Oil:
ND-OIL 11 or equivalent
(2) Install the O-ring to the No. 1 cooler refrigerant discharge hose.
NOTICE:
Keep the O-ring and O-ring fitting surface free from foreign matter.
(3) Connect the No. 1 cooler refrigerant discharge hose to the cooler condenser assembly with the bolt.
Torque:
5.4 N·m {55 kgf·cm, 48 in·lbf}
4. INSTALL NO. 2 RADIATOR AIR GUIDE
5. INSTALL NO. 1 RADIATOR AIR GUIDE LH
6. INSTALL NO. 1 RADIATOR AIR GUIDE RH
7. INSTALL RADIATOR SHUTTER ASSEMBLY (w/ Grille Shutter)
Click here
8. INSTALL THERMISTOR ASSEMBLY (w/ Grille Shutter)
9. INSTALL FRONT RADIATOR SIDE AIR GUIDE PLATE LH
10. INSTALL FRONT RADIATOR SIDE AIR GUIDE PLATE RH
11. INSTALL NO. 3 RADIATOR TO SUPPORT SEAL
12. INSTALL NO. 2 RADIATOR TO SUPPORT SEAL
13. INSTALL FRONT BUMPER REINFORCEMENT
Click here
14. INSTALL FRONT BUMPER ENERGY ABSORBER
15. INSTALL UPPER RADIATOR SUPPORT SUB-ASSEMBLY
Click here
16. INSTALL UPPER RADIATOR MOUNTING BRACKET LH (w/ Bracket)
Click here
17. INSTALL UPPER RADIATOR MOUNTING BRACKET RH (w/ Bracket)
(a) Use the same procedure as for the LH side.
18. INSTALL HOOD LOCK ASSEMBLY
| Click here
|
19. ADJUST HOOD SUB-ASSEMBLY
Click here
20. INSTALL INLET NO. 1 AIR CLEANER
Click here
21. INSTALL HEADLIGHT ASSEMBLY LH
Click here
22. INSTALL HEADLIGHT ASSEMBLY RH
(a) Use the same procedure as for the LH side.
23. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT
(a) for HFC-134a (R134a):
Click here
(b) for HFO-1234yf (R1234yf):
Click here
24. WARM UP COMPRESSOR
(a) for HFC-134a (R134a):
Click here
(b) for HFO-1234yf (R1234yf):
Click here
25. INSPECT FOR REFRIGERANT LEAK
(a) for HFC-134a (R134a):
Click here
(b) for HFO-1234yf (R1234yf):
Click here
