Toyota Prius: Charge Lid Courtesy Switch

Inspection

INSPECTION

PROCEDURE

1. INSPECT CHARGE LID LOCK WITH MOTOR ASSEMBLY

(a) Check the operation of the charge lid lock with motor assembly.

(1) Measure the resistance according the value(s) in the table below. Standard Resistance: Click Location & Routing(R30) Click Connector(R30) Tester Connection Condition Specified Condition Result R30-1 ( B) - R30-2 (LDSW) Not pushed (ON) Below 1 Ω Ω R30-1 ( B) - R30-2 (LDSW) Pushed (OFF) 10 kΩ or higher kΩ

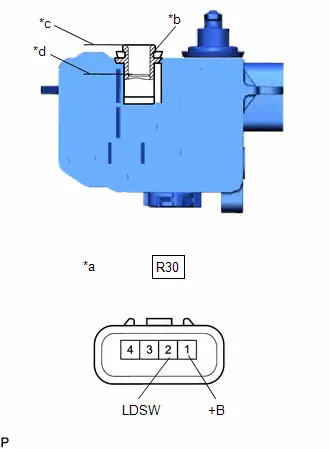

*a Component without harness connected (Charge Lid Lock With Motor Assembly) *b Push Lifter *c Not pushed (ON) *d Pushed (OFF)

(2) If the result is not as specified, replace the charge lid lock with motor assembly.

Inspection

INSPECTION

PROCEDURE

1. INSPECT CHARGE LID LOCK WITH MOTOR ASSEMBLY

(a) Check the operation of the charge lid lock with motor assembly.

(1) Measure the resistance according the value(s) in the table below. Standard Resistance: Click Location & Routing(R30) Click Connector(R30) Tester Connection Condition Specified Condition Result R30-1 ( B) - R30-2 (LDSW) Not pushed (ON) Below 1 Ω Ω R30-1 ( B) - R30-2 (LDSW) Pushed (OFF) 10 kΩ or higher kΩ

*a Component without harness connected (Charge Lid Lock With Motor Assembly) *b Push Lifter *c Not pushed (ON) *d Pushed (OFF)

(2) If the result is not as specified, replace the charge lid lock with motor assembly.
