Toyota Prius: Charge Indicator (for Phev Model)

Removal

REMOVAL

CAUTION / NOTICE / HINT

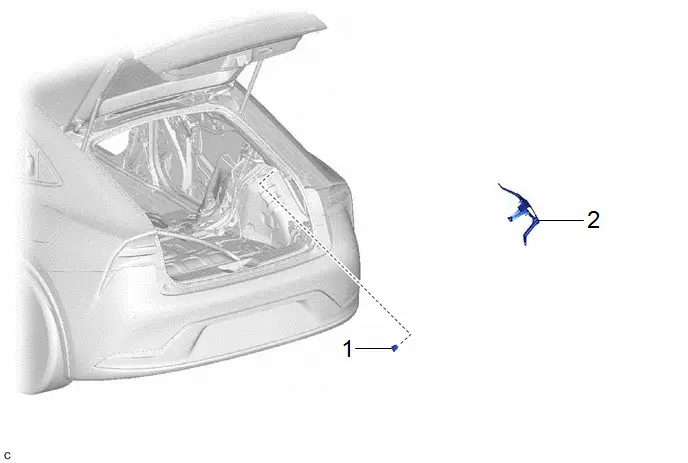

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	FUEL TANK CAP PLATE	-	-	-	-
2	EV CHARGER LID INDICATOR	G90H1	-	-	-

PROCEDURE

1. REMOVE FUEL TANK CAP PLATE

Click here

2. REMOVE EV CHARGER LID INDICATOR

Inspection

INSPECTION

PROCEDURE

1. INSPECT EV CHARGER LID INDICATOR

(a) Inspect illumination

(1) Apply auxiliary battery voltage between the terminals of the indicator, and check the illumination condition of the EV charger lid indicator. OK: Measurement Condition Specified Condition Auxiliary Battery positive ( ) → 1 (PIL) Auxiliary Battery negative (-) → 3 (GND) Illuminates If the result is not as specified, replace the EV charger lid indicator.

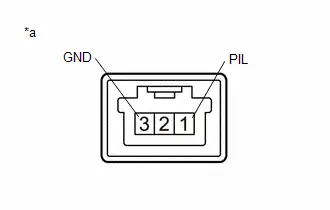

*a Component without harness connected (EV Charger Lid Indicator)

Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	EV CHARGER LID INDICATOR	G90H1	-	-	-
2	FUEL TANK CAP PLATE	-	-	-	-

PROCEDURE

1. INSTALL EV CHARGER LID INDICATOR

2. INSTALL FUEL TANK CAP PLATE

Click here
