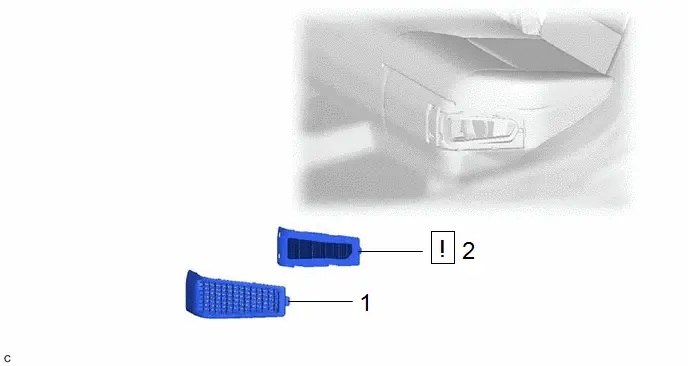

Toyota Prius: Battery Cooling Filter

1

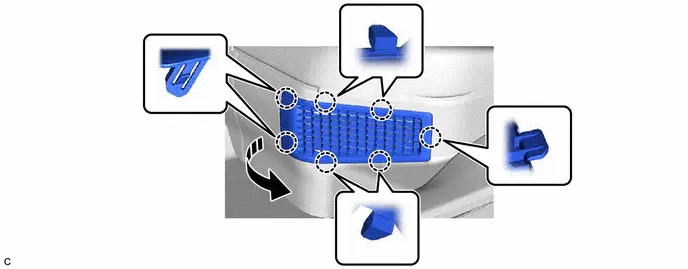

REAR UNDER SIDE COVER LH

76974E

-

-

-

2

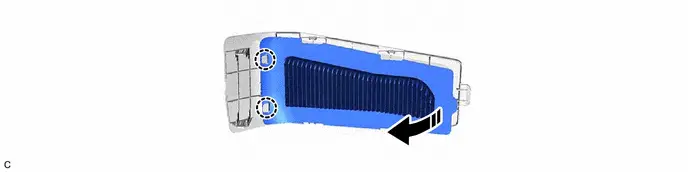

NO. 1 HV BATTERY INTAKE FILTER

G92DH

-

-

HINT:

If the message "Maintenance Required for Traction Battery Cooling Parts See Owner's Manual" is displayed on the multi-information display, inspect the No. 1 HV battery intake filter.

Click here

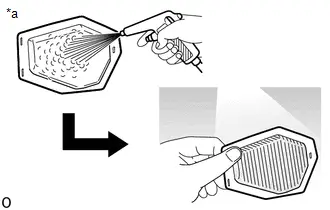

(a) Clean the No. 1 HV battery intake filter by blowing compressed air as shown in the illustration.

NOTICE:

• Do not use water or any other liquids when cleaning the No. 1 HV battery intake filter. Use only compressed air.
• To prevent damage to the No. 1 HV battery intake filter, do not use a wire brush or other tool.
• Do not clean the No. 1 HV battery intake filter with it installed to the vehicle.
• Keep the air blow gun at least 30 mm (1.18 in.) away from the No. 1 HV battery intake filter.
• Blow compressed air through the rear side of No. 1 HV battery intake filter.
• After cleaning the No. 1 HV battery intake filter, check that it can be reliably cleaned by seeing through the light as shown in the figure.

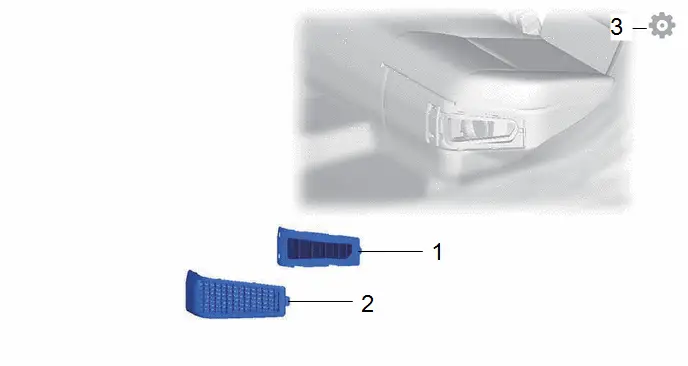

1

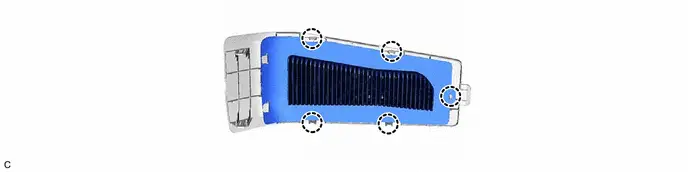

NO. 1 HV BATTERY INTAKE FILTER

G92DH

-

-

-

2

REAR UNDER SIDE COVER LH

76974E

-

-

-

3

CLEAR DTC

-

-

-

HINT:

If the message "Maintenance Required for Traction Battery Cooling Parts See Owner's Manual" is displayed on the multi-information display, clean or replace the No. 1 HV battery intake filter, and clear the DTCs to reset the learning values even if no DTCs are output.

for M20A-FXS: Click here

for 2ZR-FXE: Click here
