Toyota Prius: Ambient Light (for Front Passenger Side)

Toyota Prius (XW60) 2023-2025 Service Manual / Vehicle Interior / Lighting (int) / Ambient Light (for Front Passenger Side)

Removal

REMOVAL

CAUTION / NOTICE / HINT

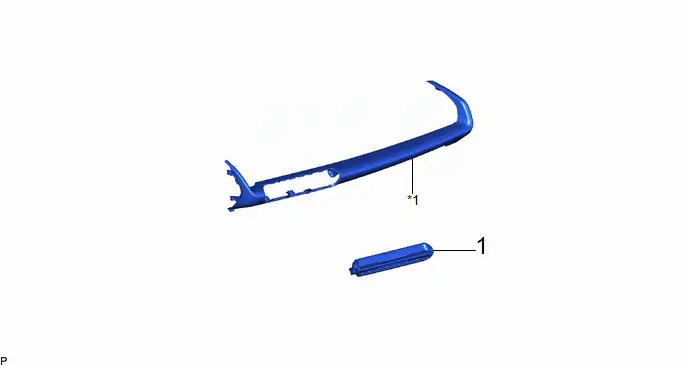

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	AIR CONDITIONING CONTROL ASSEMBLY	55900	-	-	-

NO. 2 INSTRUMENT PANEL LIGHT ASSEMBLY (NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY)

PROCEDURE

1. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

Click here

Inspection

INSPECTION

PROCEDURE

1. INSPECT NO. 2 INSTRUMENT PANEL LIGHT ASSEMBLY (NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY) (for Center)

(a) Apply auxiliary battery voltage to the No. 2 instrument panel light assembly (No. 2 instrument panel garnish sub-assembly) and check that the light illuminates.

OK:

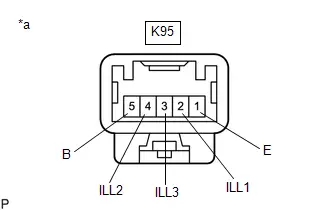

Click Location & Routing(K95) Click Connector(K95)

Tester Connection

Specified Condition

K95-5 ( B) → Auxiliary battery positive( )

K95-2 (ILL1), 3 (ILL3), 4 (ILL2) and 1 (E) → Auxiliary battery negative (-)

Ambient light illuminates

If the result is not as specified, replace the No. 2 instrument panel light assembly (No. 2 instrument panel garnish sub-assembly).

*a	Component without harness connected (No. 2 Instrument Panel Light Assembly (No. 2 Instrument Panel Garnish Sub-assembly))

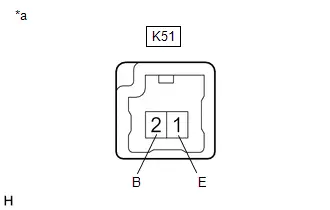

2. INSPECT NO. 2 INSTRUMENT PANEL LIGHT ASSEMBLY (NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY) (for Front Passenger Side)

(a) Apply auxiliary battery voltage to the No. 2 instrument panel light assembly (No. 2 instrument panel garnish sub-assembly) and check that the light illuminates.

OK:
