Toyota Prius: Ambient Light (for Driver Side)
Removal
REMOVAL
CAUTION / NOTICE / HINT

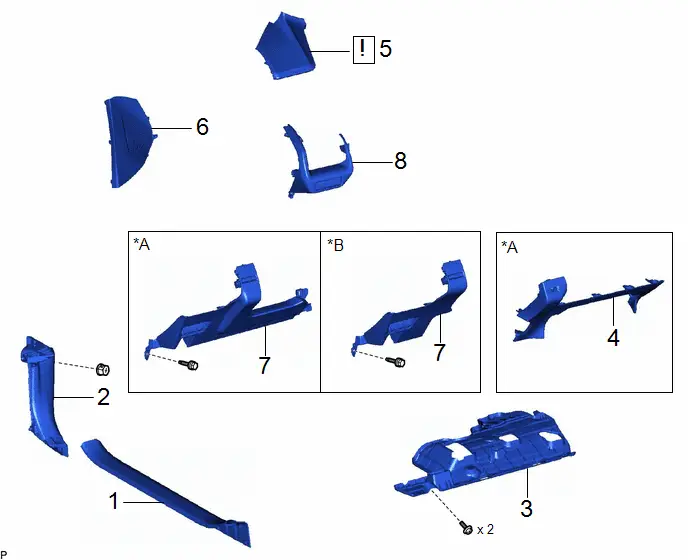

COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | FRONT DOOR SCUFF PLATE LH | 67914 | - | - | - |
| 2 | COWL SIDE TRIM BOARD LH | 62112 | - | - | - |
| 3 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | 55606 | - | - | - |
| 4 | LOWER CENTER INSTRUMENT PANEL FINISH PANEL | 55434B | - | - | - |
| 5 | INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY | 55410C |
| - | - |
| 6 | INSTRUMENT SIDE PANEL LH | 55318C | - | - | - |
| 7 | LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY | 55480D | - | - | - |
| 8 | NO. 1 INSTRUMENT PANEL LIGHT ASSEMBLY (NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY) | 55011A | - | - | - |
| *A | w/o Knee Airbag | *B | w/ Knee Airbag |
PROCEDURE
1. REMOVE FRONT DOOR SCUFF PLATE LH
Click here
2. REMOVE COWL SIDE TRIM BOARD LH
Click here
3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Click here
4. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL
Click here
5. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
| Click here
|
6. REMOVE INSTRUMENT SIDE PANEL LH
Click here
7. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
Click here
8. REMOVE NO. 1 INSTRUMENT PANEL LIGHT ASSEMBLY (NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY)
Click here
Inspection
INSPECTION
PROCEDURE
1. INSPECT NO. 1 INSTRUMENT PANEL LIGHT ASSEMBLY (NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY)

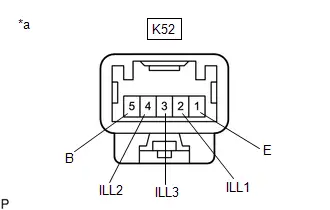

| (a) Apply auxiliary battery voltage to the No. 1 instrument panel light assembly (No. 1 instrument panel garnish sub-assembly) and check that the light illuminates. OK:  Click Location & Routing(K52) Click Connector(K52)
If the result is not as specified, replace the No. 1 instrument panel light assembly (No. 1 instrument panel garnish sub-assembly). |
|
Installation
INSTALLATION
CAUTION / NOTICE / HINT
COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | NO. 1 INSTRUMENT PANEL LIGHT ASSEMBLY (NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY) | 55011A | - | - | - |
| 2 | LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY | 55480D | - | - | - |
| 3 | INSTRUMENT SIDE PANEL LH | 55318C | - | - | - |
| 4 | INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY | 55410C | - | - | - |
| 5 | LOWER CENTER INSTRUMENT PANEL FINISH PANEL | 55434B | - | - | - |
| 6 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | 55606 | - | - | - |
| 7 | COWL SIDE TRIM BOARD LH | 62112 | - | - | - |
| 8 | FRONT DOOR SCUFF PLATE LH | 67914 | - | - | - |
| *A | w/o Knee Airbag | *B | w/ Knee Airbag |
PROCEDURE
1. INSTALL NO. 1 INSTRUMENT PANEL LIGHT ASSEMBLY (NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY)
2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
3. INSTALL INSTRUMENT SIDE PANEL LH
4. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
5. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL
6. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
7. INSTALL COWL SIDE TRIM BOARD LH
8. INSTALL FRONT DOOR SCUFF PLATE LH
Toyota Prius (XW60) 2023-2025 Service Manual
Ambient Light (for Driver Side)
