Toyota Prius: Air Conditioning Panel

• Removal
• Installation

Removal

REMOVAL

CAUTION / NOTICE / HINT

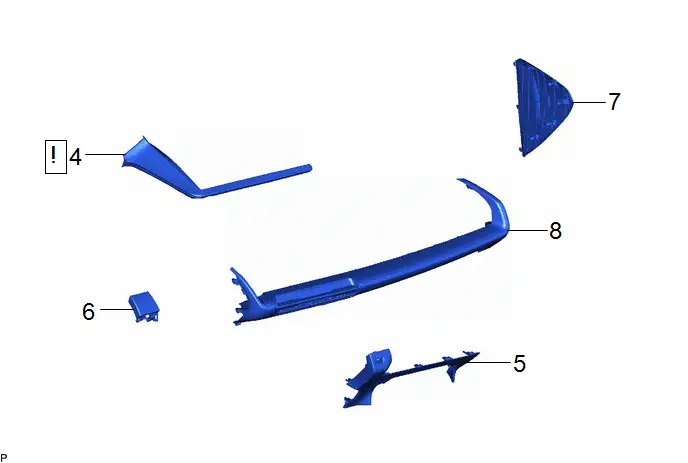

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	FRONT DOOR SCUFF PLATE LH	67914	-	-	-
2	COWL SIDE TRIM BOARD LH	62112	-	-	-
3	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55606	-	-	-

*A

w/ Knee Airbag

-

-

Procedure		Part Name Code
4	CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY	55420A		-	-
5	LOWER CENTER INSTRUMENT PANEL FINISH PANEL	55434B	-	-	-
6	LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY	55406B	-	-	-
7	INSTRUMENT SIDE PANEL RH	55317A	-	-	-
8	NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY WITH AIR CONDITIONING CONTROL ASSEMBLY	-	-	-	-

Procedure		Part Name Code
9	AIR CONDITIONING CONTROL ASSEMBLY	55900	-	-	-

PROCEDURE

1. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Knee Airbag)

Click here

2. REMOVE COWL SIDE TRIM BOARD LH (w/ Knee Airbag)

Click here

3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Knee Airbag)

Click here

4. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

Click here

5. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Click here

6. REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

Click here

7. REMOVE INSTRUMENT SIDE PANEL RH

Click here

8. REMOVE NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY WITH AIR CONDITIONING CONTROL ASSEMBLY

Click here

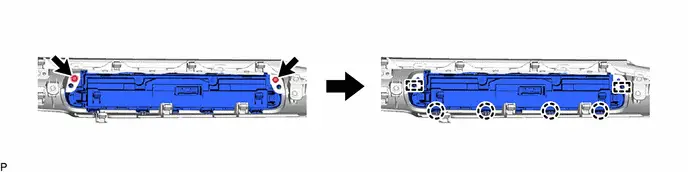

9. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

Installation

INSTALLATION

CAUTION / NOTICE / HINT

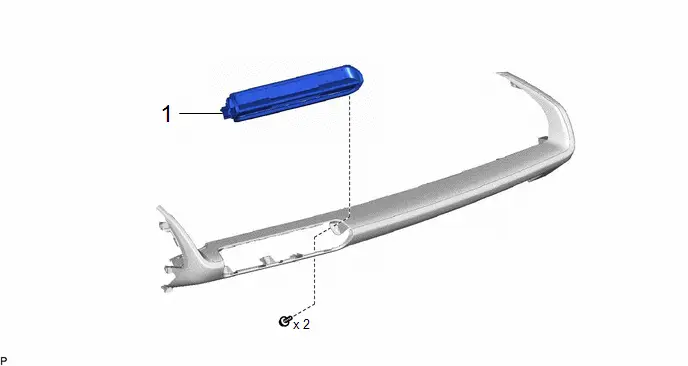

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	AIR CONDITIONING CONTROL ASSEMBLY	55900	-	-	-

Procedure		Part Name Code
2	NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY WITH AIR CONDITIONING CONTROL ASSEMBLY	-	-	-	-
3	INSTRUMENT SIDE PANEL RH	55317A	-	-	-
4	LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY	55406B	-	-	-
5	LOWER CENTER INSTRUMENT PANEL FINISH PANEL	55434B	-	-	-
6	CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY	55420A	-	-	-

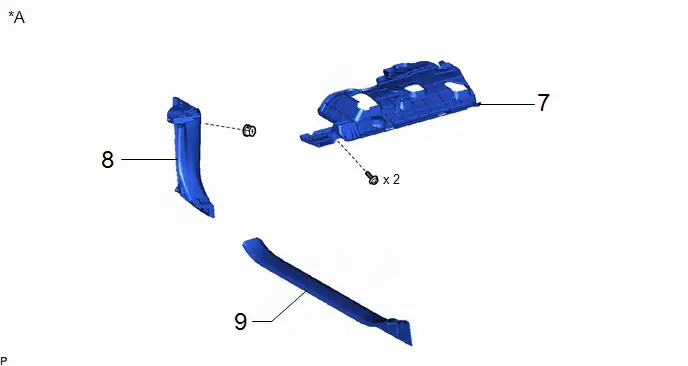

Procedure		Part Name Code
7	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55606	-	-	-
8	COWL SIDE TRIM BOARD LH	62112	-	-	-
9	FRONT DOOR SCUFF PLATE LH	67914	-	-	-

*A

w/ Knee Airbag

-

-

PROCEDURE

1. INSTALL AIR CONDITIONING CONTROL ASSEMBLY

2. INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY WITH AIR CONDITIONING CONTROL ASSEMBLY

3. INSTALL INSTRUMENT SIDE PANEL RH

4. INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

5. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL

6. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

7. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Knee Airbag)

8. INSTALL COWL SIDE TRIM BOARD LH (w/ Knee Airbag)

9. INSTALL FRONT DOOR SCUFF PLATE LH (w/ Knee Airbag)
