Toyota Prius: Vanity Light Switch

Removal

REMOVAL

CAUTION / NOTICE / HINT

HINT:

CAUTION / NOTICE / HINT

COMPONENTS (REMOVAL)

Procedure		Part Name Code

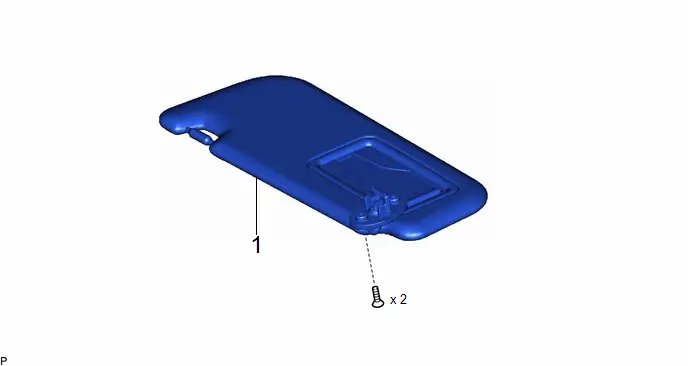

1	VANITY LIGHT SWITCH (VISOR ASSEMBLY)	74320	-	-	-

PROCEDURE

1. REMOVE VANITY LIGHT SWITCH (VISOR ASSEMBLY)

Click here

Inspection

INSPECTION

PROCEDURE

1. INSPECT VANITY LIGHT SWITCH LH (VISOR ASSEMBLY LH)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Click Location & Routing(U9) Click Connector(U9)

Tester Connection	Condition	Specified Condition	Result
U9-1 - U9-2	Visor up	10 kΩ or higher	kΩ
U9-1 - U9-2	Mirror cover fully closed with visor down	10 kΩ or higher	kΩ
U9-1 - U9-2	Mirror cover fully open with visor down	Below 1 Ω	Ω

If the result is not as specified, replace the vanity light switch LH (visor assembly LH).

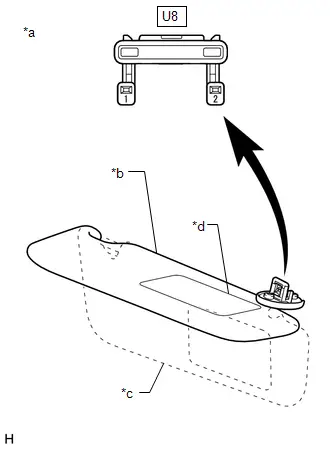

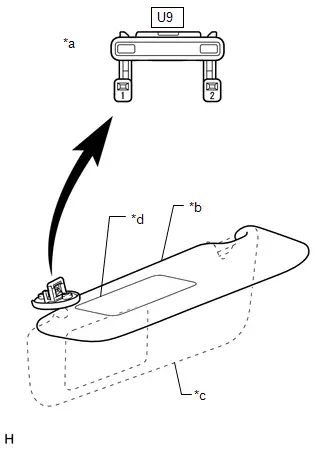

*a	Component without harness connected (Vanity Light Switch LH (Visor Assembly LH))
*b	Visor up
*c	Visor down
*d	Mirror Cover

2. INSPECT VANITY LIGHT SWITCH RH (VISOR ASSEMBLY RH)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Click Location & Routing(U8) Click Connector(U8)

Tester Connection	Condition	Specified Condition	Result
U8-1 - U8-2	Visor up	10 kΩ or higher	kΩ
U8-1 - U8-2	Mirror cover fully closed with visor down	10 kΩ or higher	kΩ
U8-1 - U8-2	Mirror cover fully open with visor down	Below 1 Ω	Ω
