Toyota Prius: Trip Switch
Removal
REMOVAL
CAUTION / NOTICE / HINT

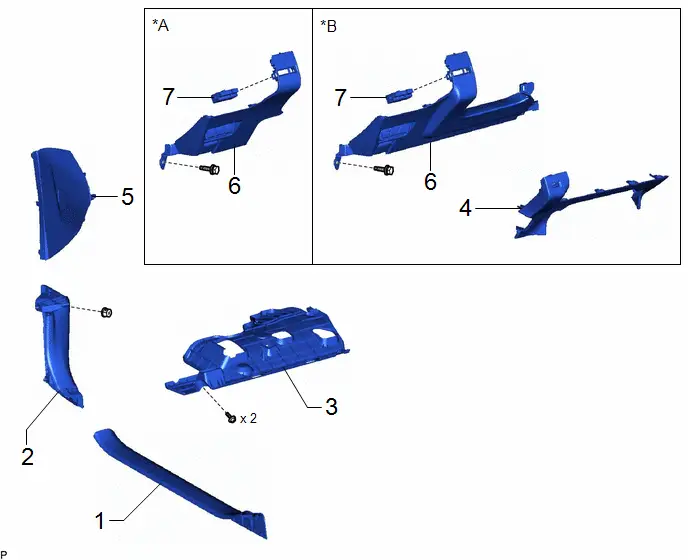

COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | FRONT DOOR SCUFF PLATE LH | 67914 | - | - | - |
| 2 | COWL SIDE TRIM BOARD LH | 62112 | - | - | - |
| 3 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | 55606 | - | - | - |
| 4 | LOWER CENTER INSTRUMENT PANEL FINISH PANEL | 55434B | - | - | - |
| 5 | INSTRUMENT SIDE PANEL LH | 55318C | - | - | - |
| 6 | LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY | 55480D | - | - | - |
| 7 | TRIP SWITCH | 84975 | - | - | - |
| *A | w/ Knee Airbag | *B | w/o Knee Airbag |
PROCEDURE
1. REMOVE FRONT DOOR SCUFF PLATE LH
Click here
2. REMOVE COWL SIDE TRIM BOARD LH
Click here
3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Click here
4. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL (w/o Knee Airbag)
Click here
5. REMOVE INSTRUMENT SIDE PANEL LH
Click here
6. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
Click here

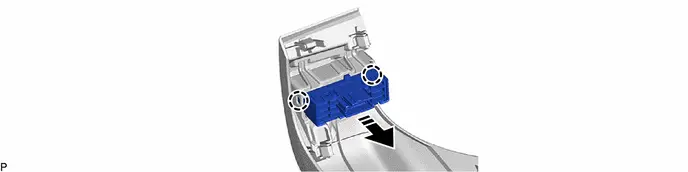

7. REMOVE TRIP SWITCH
| Remove in this Direction | - | - |
Inspection
INSPECTION
PROCEDURE

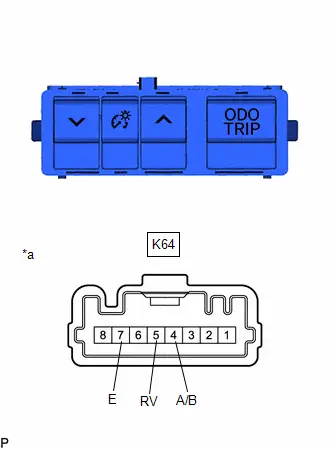

1. INSPECT TRIP SWITCH
| (a) Measure the resistance according to the value(s) in the table below. Standard Resistance:  Click Location & Routing(K64) Click Connector(K64)
If the result is not as specified, replace the trip switch. |
|

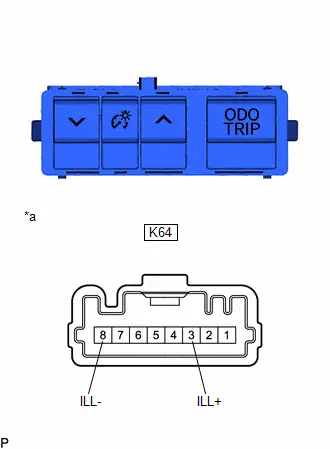

(b) Illumination Inspection
| (1) Apply auxiliary battery voltage to the trip switch and check that it illuminates. OK:  Click Location & Routing(K64) Click Connector(K64)
If the result is not as specified, replace the trip switch. |
|
Installation
INSTALLATION
CAUTION / NOTICE / HINT

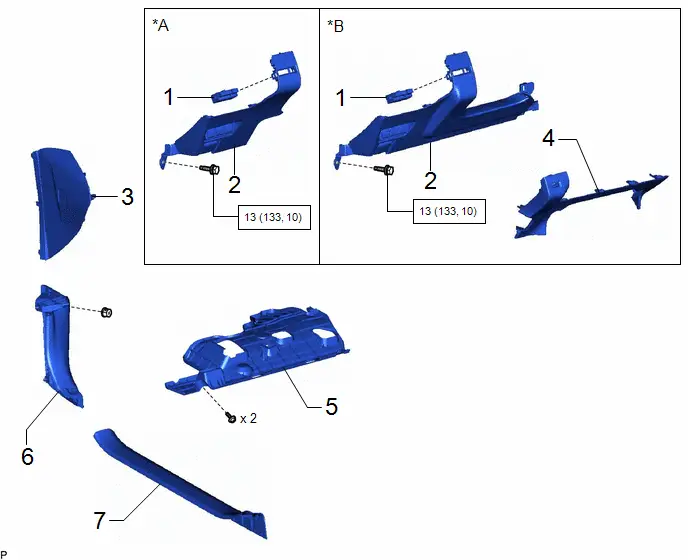

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | TRIP SWITCH | 84975 | - | - | - |
| 2 | LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY | 55480D | - | - | - |
| 3 | INSTRUMENT SIDE PANEL LH | 55318C | - | - | - |
| 4 | LOWER CENTER INSTRUMENT PANEL FINISH PANEL | 55434B | - | - | - |
| 5 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | 55606 | - | - | - |
| 6 | COWL SIDE TRIM BOARD LH | 62112 | - | - | - |
| 7 | FRONT DOOR SCUFF PLATE LH | 67914 | - | - | - |
| *A | w/ Knee Airbag | *B | w/o Knee Airbag |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
PROCEDURE
1. INSTALL TRIP SWITCH
2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
Click here
3. INSTALL INSTRUMENT SIDE PANEL LH
4. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL (w/o Knee Airbag)
5. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
6. INSTALL COWL SIDE TRIM BOARD LH
7. INSTALL FRONT DOOR SCUFF PLATE LH
