Toyota Prius: Side Turn Signal Light Assembly
Removal
REMOVAL
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
CAUTION / NOTICE / HINT

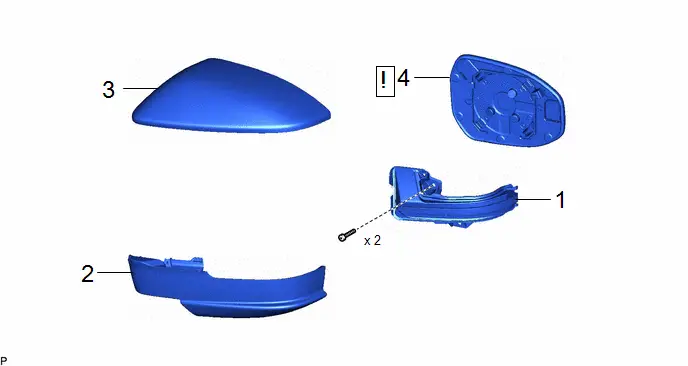

COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | OUTER MIRROR | 87961 |
| - | - |
| 2 | OUTER MIRROR COVER | 87945 | - | - | - |
| 3 | NO. 3 OUTER MIRROR COVER | 8794BA |
| - | - |
| 4 | SIDE TURN SIGNAL LIGHT ASSEMBLY | 81740 | - | - | - |
PROCEDURE
1. REMOVE OUTER MIRROR
| Click here
|
2. REMOVE OUTER MIRROR COVER
Click here
3. REMOVE NO. 3 OUTER MIRROR COVER
| w/o Panoramic View Monitor System: Click here
w/ Panoramic View Monitor System: Click here
|

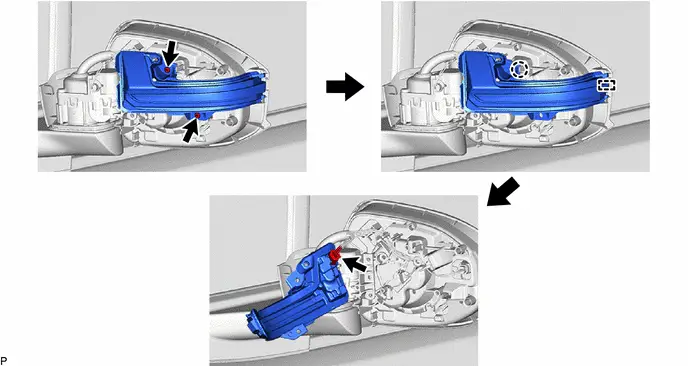

4. REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY
Inspection
INSPECTION
PROCEDURE

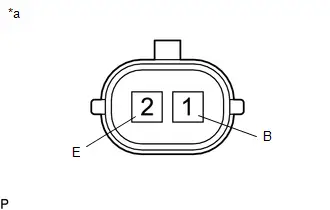

1. INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY LH
(a) Illumination Inspection
| (1) Apply auxiliary battery voltage to the side turn signal light assembly LH and check that the light illuminates. OK:
If the result is not as specified, replace the side turn signal light assembly LH. |
|

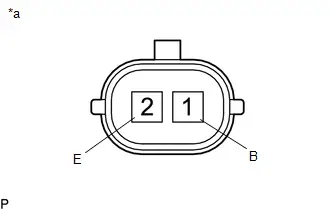

2. INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY RH
(a) Illumination Inspection
| (1) Apply auxiliary battery voltage to the side turn signal light assembly RH and check that the light illuminates. OK:
If the result is not as specified, replace the side turn signal light assembly RH. |
|
Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
CAUTION / NOTICE / HINT
COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | SIDE TURN SIGNAL LIGHT ASSEMBLY | 81740 | - | - | - |
| 2 | NO. 3 OUTER MIRROR COVER | 8794BA | - | - | - |
| 3 | OUTER MIRROR COVER | 87945 | - | - | - |
| 4 | OUTER MIRROR | 87961 |
| - | - |
PROCEDURE
1. INSTALL SIDE TURN SIGNAL LIGHT ASSEMBLY
2. INSTALL NO. 3 OUTER MIRROR COVER
3. INSTALL OUTER MIRROR COVER
4. INSTALL OUTER MIRROR
| Click here
|
Toyota Prius (XW60) 2023-2025 Service Manual
