Toyota Prius: Side Airbag Sensor (for Front Door)

• Removal
• Installation

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during side airbag pressure sensor removal/installation are shown below.

CAUTION / NOTICE / HINT

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when Toyota Prius vehicle is driven

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Front Camera System	Drive the Toyota Prius vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.

Learning completes when vehicle is operated normally

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
*1: w/o Power Back Door System *2: w/ Power Back Door System
Power Door Lock Control System*1 Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Power Back Door System*2	Reset back door close position
Air Conditioning System	for HEV Model: After the ignition switch is turned to ON, the servo motor standard position is recognized. for PHEV Model: After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized.	-

CAUTION / NOTICE / HINT

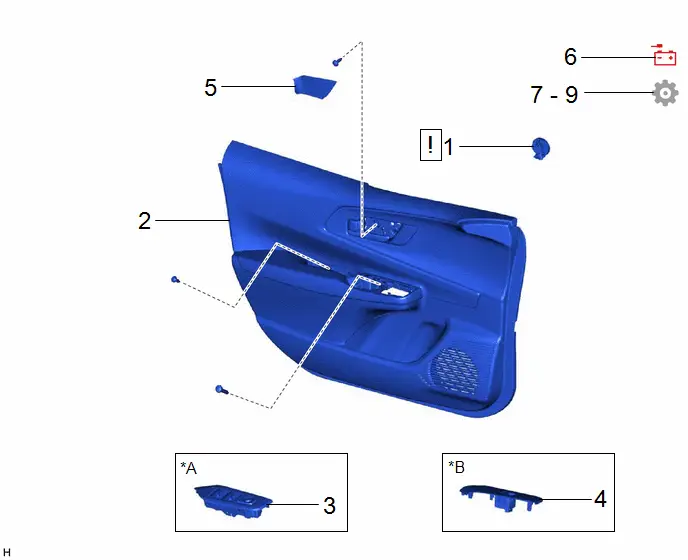

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	PRECAUTION	-		-	-
2	DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL	-		-	-
3	FRONT DOOR TRIM UPPER COVER	67782B	-	-	-
4	MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL	-		-	-
5	POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL	-		-	-
6	FRONT DOOR TRIM BOARD SUB-ASSEMBLY	67602		-	-
7	SIDE AIRBAG PRESSURE SENSOR	8983AA		-	-

*A

for Driver Side

*B

for Front Passenger Side

PROCEDURE

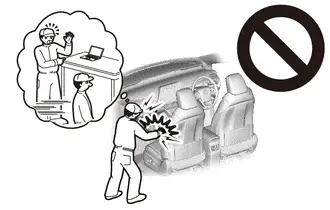

1. PRECAUTION

CAUTION: Be sure to read Precaution thoroughly before servicing. Click here NOTICE: After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal. Click here

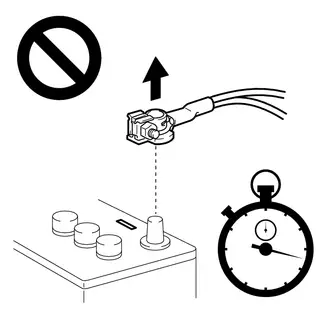

2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

CAUTION: Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

3. REMOVE FRONT DOOR TRIM UPPER COVER

Click here

4. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

Click here

5. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

Click here

6. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

Click here

7. REMOVE SIDE AIRBAG PRESSURE SENSOR

*a

Illumination off

-

-

(1) Check that the ignition switch is off.

(2) Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

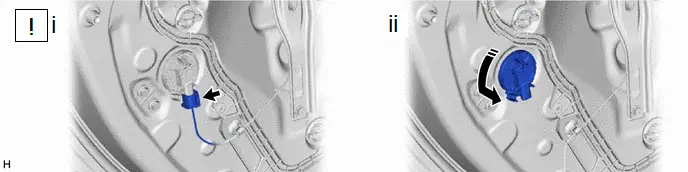

Remove in this Direction

-

-

(1) Disconnect the connector from the side airbag pressure sensor.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:

Refer to How to Connect or Disconnect Airbag Connector.

Click here

(2) Remove the side airbag pressure sensor from the front door panel as shown in the illustration.

Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	SIDE AIRBAG PRESSURE SENSOR	8983AA		-	-
2	FRONT DOOR TRIM BOARD SUB-ASSEMBLY	67602	-	-	-
3	MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL	-	-	-	-
4	POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL	-	-	-	-
5	FRONT DOOR TRIM UPPER COVER	67782B	-	-	-
6	CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL	-		-	-
7	INSPECT SRS WARNING LIGHT	-	-	-
8	INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL	-	-	-
9	INSPECT POWER WINDOW OPERATION	-	-	-

*A

for Driver Side

*B

for Front Passenger Side

PROCEDURE

1. INSTALL SIDE AIRBAG PRESSURE SENSOR

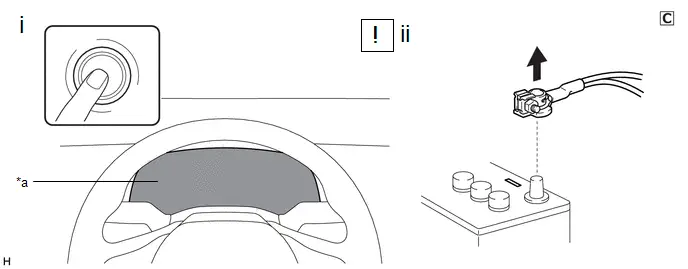

*a

Illumination off

-

-

(1) Check that the ignition switch is off.

(2) Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

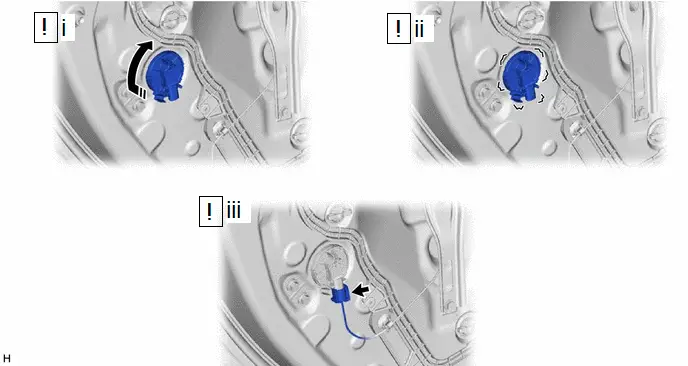

Install in this Direction

-

-

(1) Install the side airbag pressure sensor to the front door panel as shown in the illustration.

(2) Check that there is no looseness in the installed parts of the side airbag pressure sensor.

(3) Connect the connector to the side airbag pressure sensor.

NOTICE:

When connecting any airbag connector, take care not to damage the airbag wire harness.

HINT:

Refer to How to Connect or Disconnect Airbag Connector.

Click here

2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY

3. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

4. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

5. INSTALL FRONT DOOR TRIM UPPER COVER

6. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

7. INSPECT SRS WARNING LIGHT

Click here

8. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click here

9. INSPECT POWER WINDOW OPERATION

Click here
