Toyota Prius: Seat Memory Switch

Removal

REMOVAL

CAUTION / NOTICE / HINT

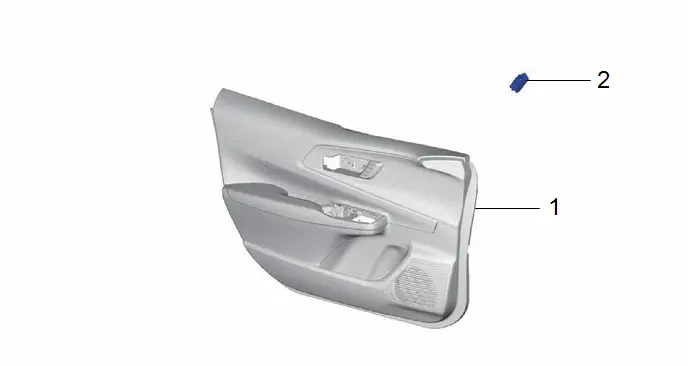

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	FRONT DOOR TRIM BOARD SUB-ASSEMBLY	67602	-	-	-
2	SEAT MEMORY SWITCH	84927	-	-	-

PROCEDURE

1. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

Click here

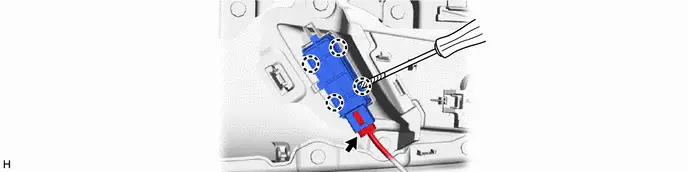

2. REMOVE SEAT MEMORY SWITCH

Protective Tape

-

-

Inspection

INSPECTION

PROCEDURE

1. INSPECT SEAT MEMORY SWITCH

(a) Measure the resistance according to the value(s) in the table below. Standard Resistance: Click Location & Routing(O12) Click Connector(O12) Tester Connection Condition Specified Condition Result If the result is not as specified, replace the seat memory switch. O12-3 (1) - O12-1 (E) M1 switch pressed Below 1 Ω Ω O12-3 (1) - O12-1 (E) M1 switch not pressed 10 kΩ or higher kΩ O12-4 (2) - O12-1 (E) M2 switch pressed Below 1 Ω Ω O12-4 (2) - O12-1 (E) M2 switch not pressed 10 kΩ or higher kΩ O12-2 (MMRY) - O12-1 (E) SET switch pressed Below 1 Ω Ω O12-2 (MMRY) - O12-1 (E) SET switch not pressed 10 kΩ or higher kΩ

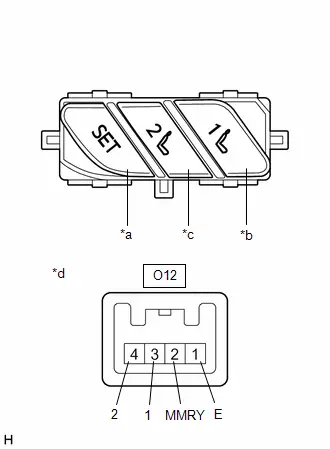

*a SET Switch *b M1 Switch *c M2 Switch *d Component without harness connected (Seat Memory Switch)

Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	SEAT MEMORY SWITCH	84927	-	-	-
2	FRONT DOOR TRIM BOARD SUB-ASSEMBLY	67602	-	-	-

PROCEDURE

1. INSTALL SEAT MEMORY SWITCH

2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY

Click here
