Toyota Prius: Room Temperature Sensor

• Removal
• Inspection
• Installation

Removal

REMOVAL

CAUTION / NOTICE / HINT

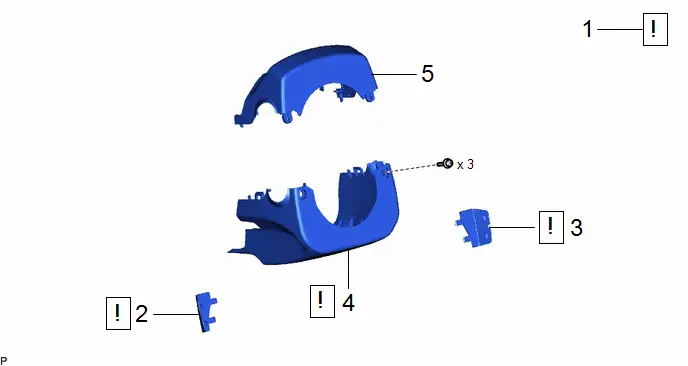

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	STEERING WHEEL POSITION	-		-	-
2	NO. 3 STEERING WHEEL LOWER COVER	45187		-	-
3	NO. 2 STEERING WHEEL LOWER COVER	45186		-	-
4	LOWER STEERING COLUMN COVER	45287		-	-
5	UPPER STEERING COLUMN COVER	45286B	-	-	-

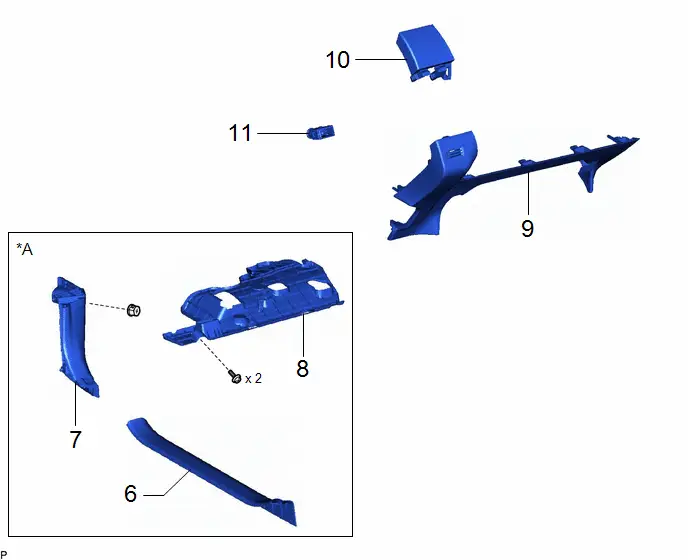

Procedure		Part Name Code
6	FRONT DOOR SCUFF PLATE LH	67914	-	-	-
7	COWL SIDE TRIM BOARD LH	62112	-	-	-
8	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55606	-	-	-
9	LOWER CENTER INSTRUMENT PANEL FINISH PANEL	55434B	-	-	-
10	LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY	55406B	-	-	-
11	COOLER (ROOM TEMP. SENSOR) THERMISTOR	88625Q	-	-	-

*A

w/ Knee Airbag

-

-

PROCEDURE

1. STEERING WHEEL POSITION

Click here

2. REMOVE NO. 3 STEERING WHEEL LOWER COVER

Click here

3. REMOVE NO. 2 STEERING WHEEL LOWER COVER

Click here

4. REMOVE LOWER STEERING COLUMN COVER

Click here

5. REMOVE UPPER STEERING COLUMN COVER

Click here

6. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Knee Airbag)

Click here

7. REMOVE COWL SIDE TRIM BOARD LH (w/ Knee Airbag)

Click here

8. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Knee Airbag)

Click here

9. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Click here

10. REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

Click here

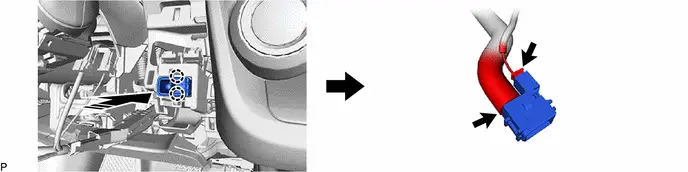

11. REMOVE COOLER (ROOM TEMP. SENSOR) THERMISTOR

Remove in this Direction

-

-

Inspection

INSPECTION

PROCEDURE

1. INSPECT COOLER (ROOM TEMP. SENSOR) THERMISTOR

(a) Measure the resistance according to the value(s) in the table below. Standard Resistance: Click Location & Routing(K67) Click Connector(K67) Tester Connection Condition Specified Condition Result K67-1 - K67-2 10°C (50°F) 3.00 to 3.73 kΩ kΩ K67-1 - K67-2 15°C (59°F) 2.45 to 2.88 kΩ kΩ K67-1 - K67-2 20°C (68°F) 1.95 to 2.30 kΩ kΩ K67-1 - K67-2 25°C (77°F) 1.60 to 1.80 kΩ kΩ K67-1 - K67-2 30°C (86°F) 1.28 to 1.47 kΩ kΩ K67-1 - K67-2 35°C (95°F) 1.00 to 1.22 kΩ kΩ K67-1 - K67-2 40°C (104°F) 0.80 to 1.00 kΩ kΩ K67-1 - K67-2 45°C (113°F) 0.65 to 0.85 kΩ kΩ K67-1 - K67-2 50°C (122°F) 0.50 to 0.70 kΩ kΩ K67-1 - K67-2 55°C (131°F) 0.44 to 0.60 kΩ kΩ K67-1 - K67-2 60°C (140°F) 0.36 to 0.50 kΩ kΩ NOTICE: Hold the sensor only by its connector. Touching the sensing portion may change the resistance value. When measuring, the sensor temperature must be the same as the ambient temperature. HINT: As the temperature increases, the resistance decreases (see the graph). If the result is not as specified, replace the cooler (room temp. sensor) thermistor.

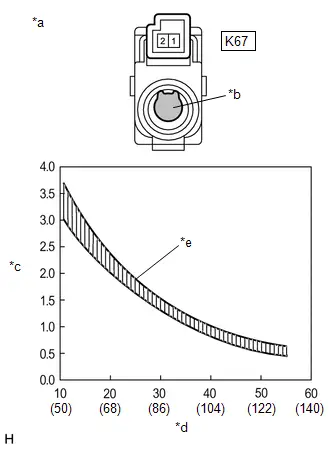

*a Component without harness connected (Cooler (Room Temp. Sensor) Thermistor)) *b Sensing Portion *c Resistance (kΩ) *d temperature (°C (°F)) *e Allowable Range

Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	COOLER (ROOM TEMP. SENSOR) THERMISTOR	88625Q	-	-	-
2	LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY	55406B	-	-	-
3	LOWER CENTER INSTRUMENT PANEL FINISH PANEL	55434B	-	-	-
4	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55606	-	-	-
5	COWL SIDE TRIM BOARD LH	62112	-	-	-
6	FRONT DOOR SCUFF PLATE LH	67914	-	-	-

*A

w/ Knee Airbag

-

-

Procedure		Part Name Code
7	UPPER STEERING COLUMN COVER	45286B	-	-	-
8	LOWER STEERING COLUMN COVER	45287		-	-
9	NO. 2 STEERING WHEEL LOWER COVER	45186	-	-	-
10	NO. 3 STEERING WHEEL LOWER COVER	45187	-	-	-

PROCEDURE

1. INSTALL COOLER (ROOM TEMP. SENSOR) THERMISTOR

2. INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

3. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL

4. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Knee Airbag)

5. INSTALL COWL SIDE TRIM BOARD LH (w/ Knee Airbag)

6. INSTALL FRONT DOOR SCUFF PLATE LH (w/ Knee Airbag)

7. INSTALL UPPER STEERING COLUMN COVER

8. INSTALL LOWER STEERING COLUMN COVER

Click here

9. REMOVE NO. 2 STEERING WHEEL LOWER COVER

10. REMOVE NO. 3 STEERING WHEEL LOWER COVER
