Toyota Prius: Rocker Panel Moulding
Removal
REMOVAL
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
CAUTION / NOTICE / HINT

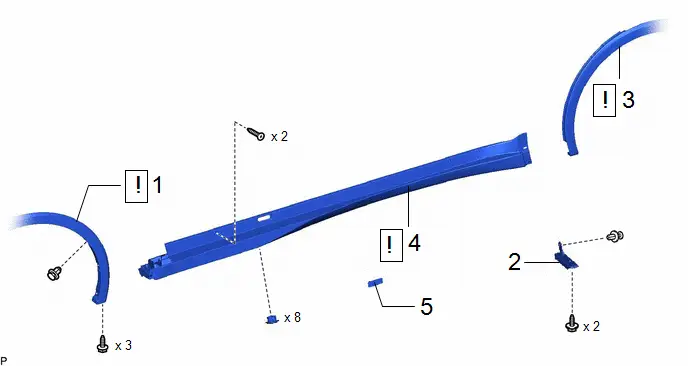

COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | FRONT FENDER MOULDING SUB-ASSEMBLY | 75602A |
| - | - |
| 2 | REAR WHEEL HOUSE FRONT PLATE | 65632D | - | - | - |
| 3 | QUARTER OUTSIDE MOULDING SUB-ASSEMBLY | 75606B |
| - | - |
| 4 | BODY ROCKER PANEL MOULDING ASSEMBLY | 75860A |
| - | - |
| 5 | ROCKER PANEL MOULDING FRONT END COVER | 75862E | - | - | - |
PROCEDURE
1. DISCONNECT FRONT FENDER MOULDING SUB-ASSEMBLY
| Place Hand Here |
| Remove in this Direction (1) |
| Remove in this Direction (2) | - | - |

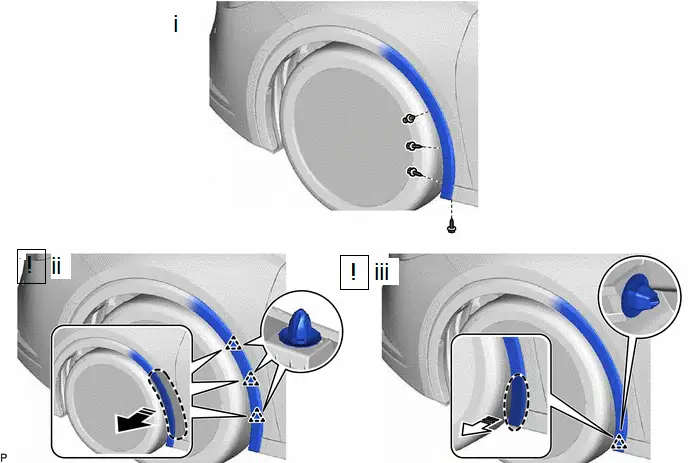

(1) Remove the 3 screws and clip.
(2) Disengage the 3 clips as shown in the illustration.
(3) Disengage the clip as shown in the illustration to disconnect the front fender moulding sub-assembly.
NOTICE:
To prevent damage to the clips, make sure to pull the front fender moulding sub-assembly evenly and straight.
2. REMOVE REAR WHEEL HOUSE FRONT PLATE
Click here
3. DISCONNECT QUARTER OUTSIDE MOULDING SUB-ASSEMBLY
| Place Hand Here |
| Remove in this Direction |

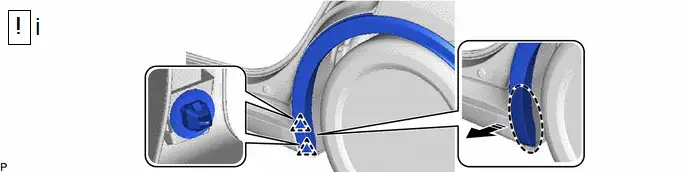

(1) Disengage the 2 clips as shown in the illustration.
NOTICE:
To prevent damage to the clips, make sure to pull the quarter outer side moulding evenly and straight.
| Place Hand Here |
| Remove in this Direction |

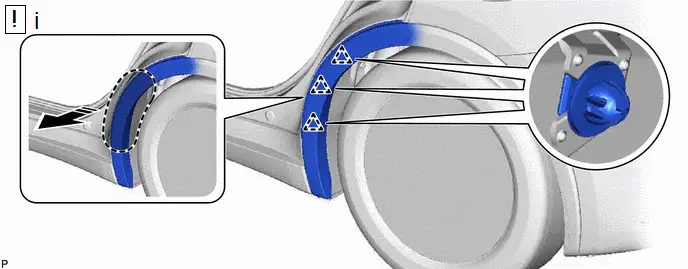

(1) Disengage the 3 clips as shown in the illustration to disconnect the quarter outside moulding sub-assembly.
4. REMOVE BODY ROCKER PANEL MOULDING ASSEMBLY

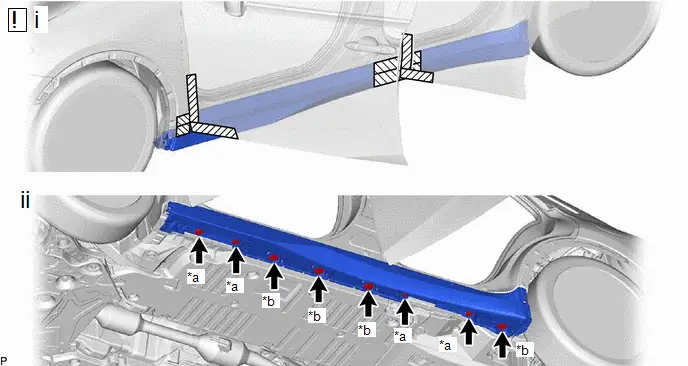

| *a | Clip (A) | *b | Clip (B) |
(1) Apply protective tape around the body rocker panel moulding assembly as shown in the illustration.
(2) Remove the 8 clips.
| Remove in this Direction | - | - |

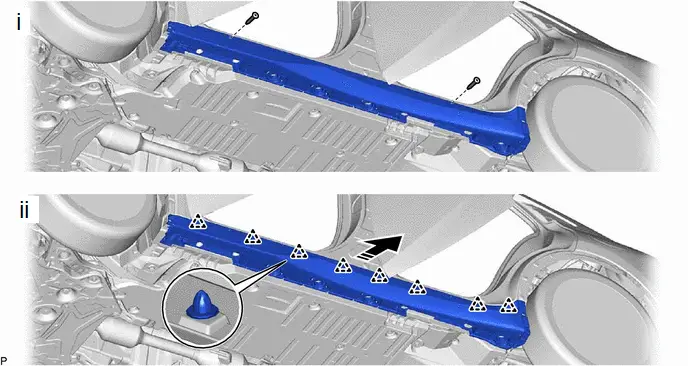

(1) Remove the 2 screws.
(2) Disengage the 8 clips to remove the body rocker panel moulding assembly as shown in the illustration.

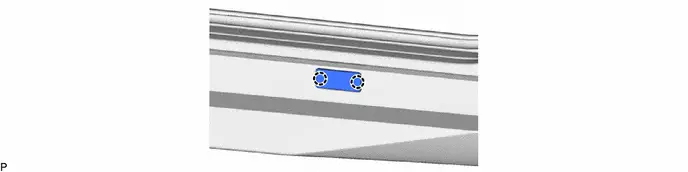

5. REMOVE ROCKER PANEL MOULDING FRONT END COVER
Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
CAUTION / NOTICE / HINT

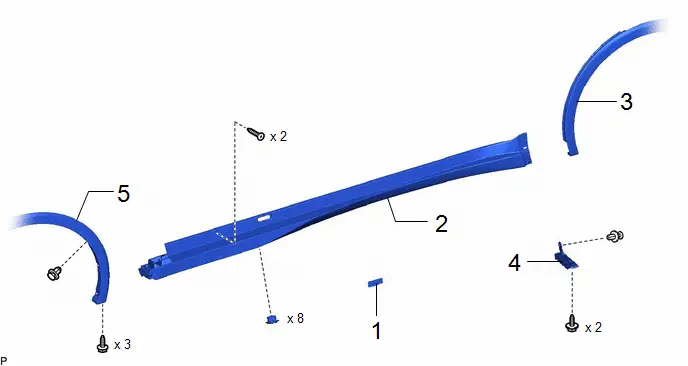

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | ROCKER PANEL MOULDING FRONT END COVER | 75862E | - | - | - |
| 2 | BODY ROCKER PANEL MOULDING ASSEMBLY | 75860A | - | - | - |
| 3 | QUARTER OUTSIDE MOULDING SUB-ASSEMBLY | 75606B | - | - | - |
| 4 | REAR WHEEL HOUSE FRONT PLATE | 65632D | - | - | - |
| 5 | FRONT FENDER MOULDING SUB-ASSEMBLY | 75602A | - | - | - |
PROCEDURE
1. INSTALL ROCKER PANEL MOULDING FRONT END COVER
2. INSTALL BODY ROCKER PANEL MOULDING ASSEMBLY
3. CONNECT QUARTER OUTSIDE MOULDING SUB-ASSEMBLY
4. INSTALL REAR WHEEL HOUSE FRONT PLATE
5. CONNECT FRONT FENDER MOULDING SUB-ASSEMBLY
