Toyota Prius: Relay

On-vehicle Inspection

ON-VEHICLE INSPECTION

PROCEDURE

1. INSPECT IGCT RELAY (IGCT)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
3 - 5	Auxiliary battery voltage not applied between terminals 1 and 2	10 kΩ or higher
3 - 5	Auxiliary battery voltage applied between terminals 1 and 2	Below 1 Ω

If the result is not as specified, replace the IGCT relay (IGCT).

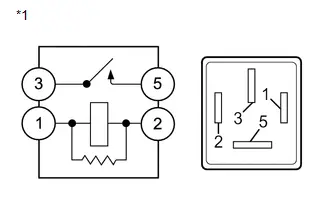

*1	IGCT Relay (IGCT)
