Toyota Prius: Refrigerant Line (for Hev Model)

• Components
• Removal
• Installation

Components

COMPONENTS

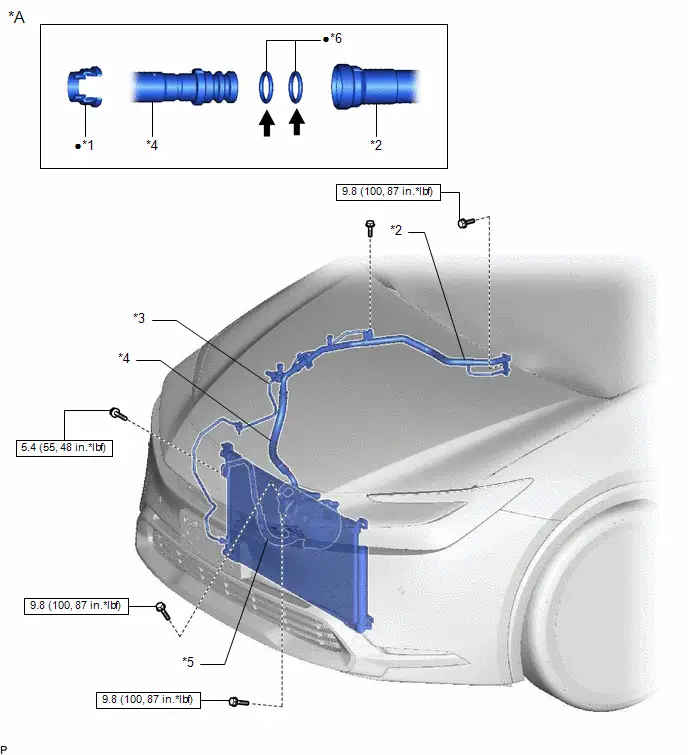

ILLUSTRATION

*A	for M20A-FXS	-	-
*1	PIPING CLAMP	*2	SUCTION PIPE SUB-ASSEMBLY
*3	AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY	*4	SUCTION HOSE SUB-ASSEMBLY
*5	DISCHARGE HOSE SUB-ASSEMBLY	*6	O-RING
	N*m (kgf*cm, ft.*lbf): Specified torque	●	Non-reusable part
	Compressor oil ND-OIL 11 or equivalent	-	-

ILLUSTRATION

*A	for 2ZR-FXE	-	-
*1	PIPING CLAMP	*2	SUCTION PIPE SUB-ASSEMBLY
*3	AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY	*4	SUCTION HOSE SUB-ASSEMBLY
*5	DISCHARGE HOSE SUB-ASSEMBLY	*6	O-RING
	N*m (kgf*cm, ft.*lbf): Specified torque	●	Non-reusable part
	Compressor oil ND-OIL 11 or equivalent	-	-

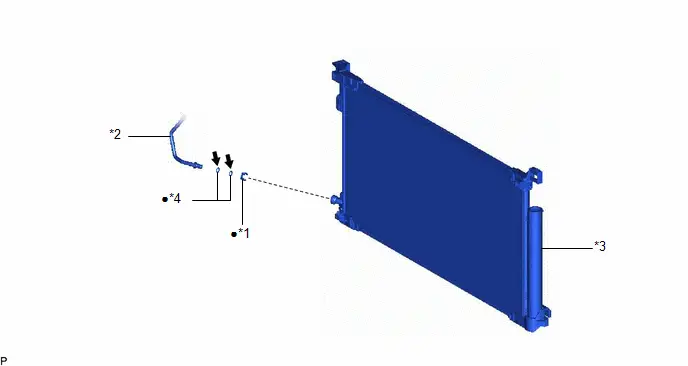

ILLUSTRATION

*1	PIPING CLAMP	*2	AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY
*3	COOLER CONDENSER ASSEMBLY	*4	O-RING
●	Non-reusable part		Compressor oil ND-OIL 11 or equivalent

Removal

REMOVAL

PROCEDURE

1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

(a) for HFC-134a (R134a):

Click here

(b) for HFO-1234yf (R1234yf):

Click here

2. REMOVE PIPING CLAMP (for Suction Hose Sub-assembly Side)

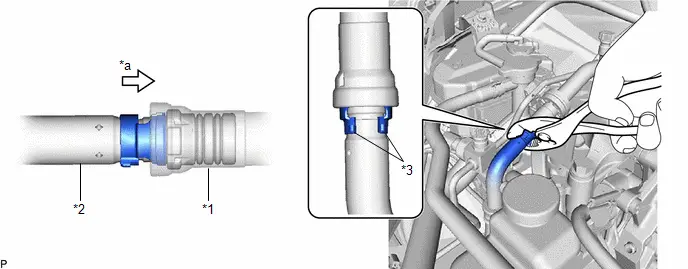

(a) While pressing the end of the suction hose sub-assembly into the end of the suction pipe sub-assembly, use pliers to squeeze together both sides of the piping clamp until it breaks apart.

*1	Suction Pipe Sub-assembly	*2	Suction Hose Sub-assembly
*3	Piping Clamp	-	-
*a	Press In	-	-

(b) Disconnect the suction hose sub-assembly.

NOTICE:

Remove any foreign matter from the connecting parts of the suction hose sub-assembly and suction pipe sub-assembly.

(c) Remove the 2 O-rings from the suction hose sub-assembly.

NOTICE:

Seal the openings of the disconnected parts with vinyl tape to prevent entry of moisture and foreign matter.

(d) Remove the piping clamp.

3. REMOVE PIPING CLAMP (for Air Conditioning Tube And Accessory Assembly Side)

Click here

Installation

INSTALLATION

PROCEDURE

1. INSTALL PIPING CLAMP (for Suction Hose Sub-assembly Side)

(a) Remove the vinyl tape from the suction pipe sub-assembly and suction hose sub-assembly.

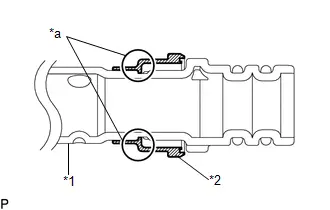

(b) Install a new piping clamp to the suction hose sub-assembly. NOTICE: Securely engage the piping clamp to the groove of the suction hose sub-assembly. Do not open the piping clamp more than the diameter of the suction hose sub-assembly when installing it. Do not install the piping clamp with the large diameter section facing the wrong direction.

*1 Suction Hose Sub-assembly *2 Piping Clamp *a Groove

(c) Sufficiently apply compressor oil to 2 new O-rings and the fitting surfaces of the suction hose sub-assembly.

Compressor Oil:

ND-OIL 11 or equivalent

(d) Install the 2 O-rings to the suction hose sub-assembly.

NOTICE:

Keep the O-rings and O-ring fitting surfaces free from dirt and foreign matter.

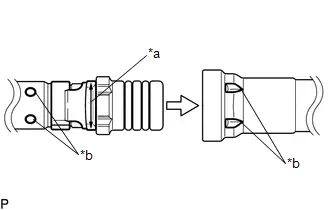

(e) Align the alignment marks and connect the suction pipe sub-assembly and suction hose sub-assembly. NOTICE: Connect the parts by holding the tubes, not the piping clamp.

*a Large Diameter Section of Piping Clamp *b Alignment Mark

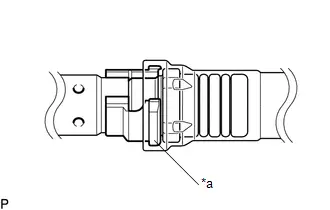

(f) Securely insert the piping clamp to the point where the large diameter section of the piping clamp is covered by the suction pipe sub-assembly. NOTICE: When inserting, make sure that a click sound is heard. Check that the suction hose sub-assembly is securely connected by pulling it.

*a Large Diameter Section of Piping Clamp

2. INSTALL PIPING CLAMP (for Air Conditioning Tube And Accessory Assembly Side)

Click here

3. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT

(a) for HFC-134a (R134a):

Click here

(b) for HFO-1234yf (R1234yf):

Click here

4. WARM UP COMPRESSOR

(a) for HFC-134a (R134a):

Click here

(b) for HFO-1234yf (R1234yf):

Click here

5. INSPECT FOR REFRIGERANT LEAK

(a) for HFC-134a (R134a):

Click here

(b) for HFO-1234yf (R1234yf):

Click here
