Toyota Prius: Rear Seat Side Airbag Assembly

• Removal
• Installation
• Disposal

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during rear seat airbag assembly removal/installation are shown below.

CAUTION / NOTICE / HINT

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when Toyota Prius vehicle is driven

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Front Camera System	Drive the Toyota Prius vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.

Learning completes when vehicle is operated normally

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
*1: w/o Power Back Door System *2: w/ Power Back Door System
Power Door Lock Control System*1 Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Power Back Door System*2	Reset back door close position
Air Conditioning System	for HEV Model: After the ignition switch is turned to ON, the servo motor standard position is recognized. for PHEV Model: After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized.	-

CAUTION / NOTICE / HINT

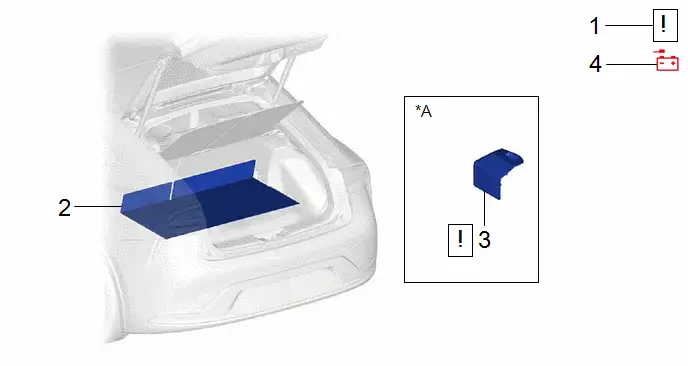

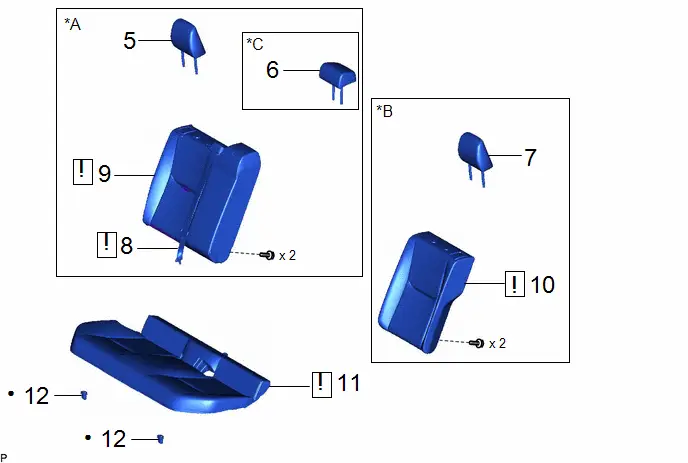

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	PRECAUTION	-		-	-
2	DECK BOARD ASSEMBLY	58410B	-	-	-
3	BATTERY SERVICE HOLE COVER ASSEMBLY	58440		-	-
4	DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL	-		-	-

*A

for M20A-FXS

-

-

Procedure		Part Name Code
5	REAR SEAT HEADREST ASSEMBLY	71940A	-	-	-
6	REAR SEAT CENTER HEADREST ASSEMBLY	71960B	-	-	-
7	REAR SEAT HEADREST ASSEMBLY	71940A	-	-	-
8	REAR CENTER SEAT OUTER BELT ASSEMBLY	73350C		-	-
9	REAR SEATBACK ASSEMBLY RH	-		-	-
10	REAR SEATBACK ASSEMBLY LH	-		-	-
11	REAR SEAT CUSHION ASSEMBLY	-		-	-
12	REAR SEAT CUSHION LOCK HOOK	72693	-	-	-

*A	for RH Side	*B	for LH Side
*C	w/ Center Headrest	-	-
●	Non-reusable part	-	-

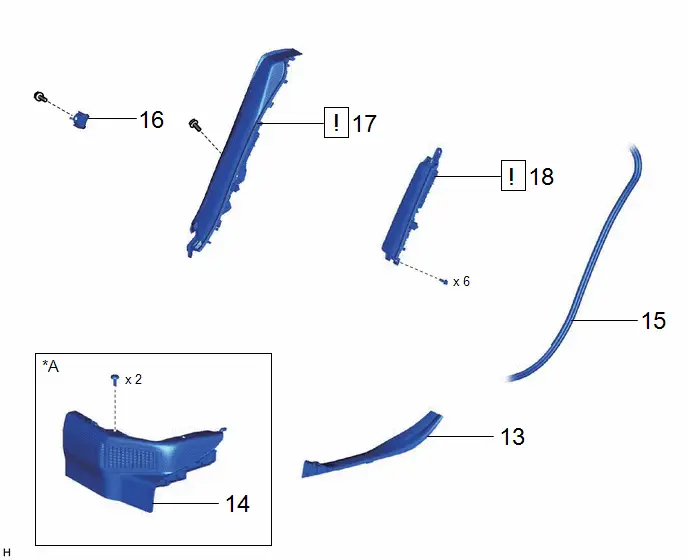

Procedure		Part Name Code
13	REAR DOOR SCUFF PLATE INSIDE	67918F	-	-	-
14	REAR UNDER SIDE COVER	76974E	-	-	-
15	REAR DOOR OPENING TRIM WEATHERSTRIP	62332A	-	-	-
16	REAR SEATBACK HINGE SUB-ASSEMBLY	71304C	-	-	-
17	REAR SEAT SIDE GARNISH	62552F		-	-
18	REAR SEAT AIRBAG ASSEMBLY	73940A		-	-

*A

for HEV Model

-

-

PROCEDURE

1. PRECAUTION

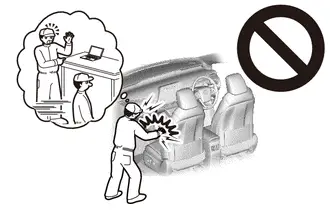

CAUTION: Be sure to read Precaution thoroughly before servicing. Click here NOTICE: After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal. Click here

2. REMOVE DECK BOARD ASSEMBLY

Click here

3. REMOVE BATTERY SERVICE HOLE COVER ASSEMBLY (for M20A-FXS)

Click here

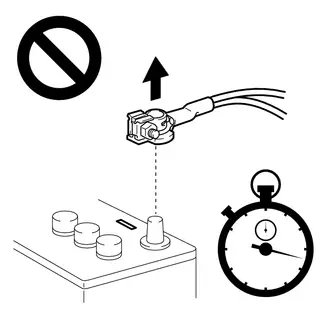

4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

CAUTION: Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

5. REMOVE REAR SEAT HEADREST ASSEMBLY (for RH Side)

Click here

6. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY (for RH Side)

Click here

7. REMOVE REAR SEAT HEADREST ASSEMBLY (for LH Side)

Click here

8. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for RH Side)

Click here

9. REMOVE REAR SEATBACK ASSEMBLY RH (for RH Side)

Click here

10. REMOVE REAR SEATBACK ASSEMBLY LH (for LH Side)

Click here

11. REMOVE REAR SEAT CUSHION ASSEMBLY

Click here

12. REMOVE REAR SEAT CUSHION LOCK HOOK

Click here

13. REMOVE REAR DOOR SCUFF PLATE INSIDE

Click here

14. REMOVE REAR UNDER SIDE COVER (for HEV Model)

Click here

15. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

Click here

16. REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY

Click here

17. REMOVE REAR SEAT SIDE GARNISH

Click here

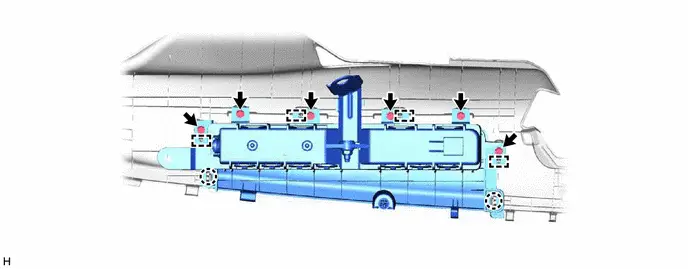

18. REMOVE REAR SEAT AIRBAG ASSEMBLY

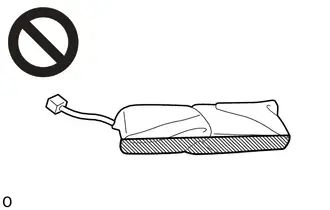

CAUTION: When storing the rear seat airbag assembly LH, keep the airbag deployment side facing upward.

Installation

INSTALLATION

CAUTION / NOTICE / HINT

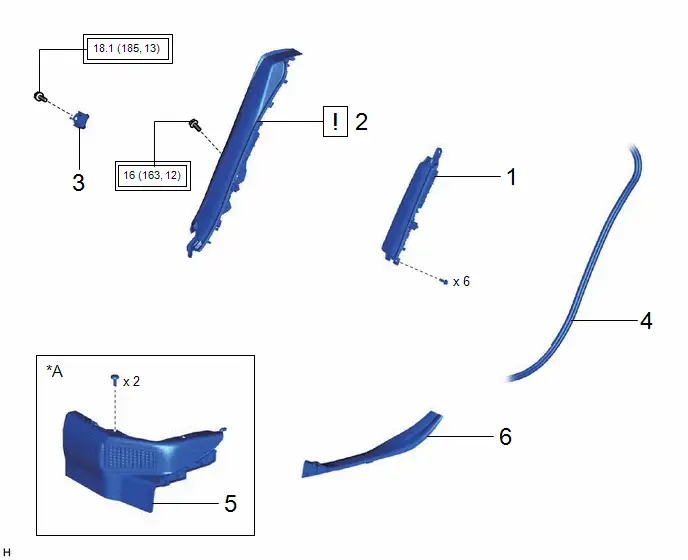

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	REAR SEAT AIRBAG ASSEMBLY	73940A	-	-	-
2	REAR SEAT SIDE GARNISH	62552F		-	-
3	REAR SEATBACK HINGE SUB-ASSEMBLY	71304C	-	-	-
4	REAR DOOR OPENING TRIM WEATHERSTRIP	62332A	-	-	-
5	REAR UNDER SIDE COVER	76974E	-	-	-
6	REAR DOOR SCUFF PLATE INSIDE	67918F	-	-	-

*A	for HEV Model	-	-
	Tightening torque for "Major areas involving basic Toyota Prius vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	-	-

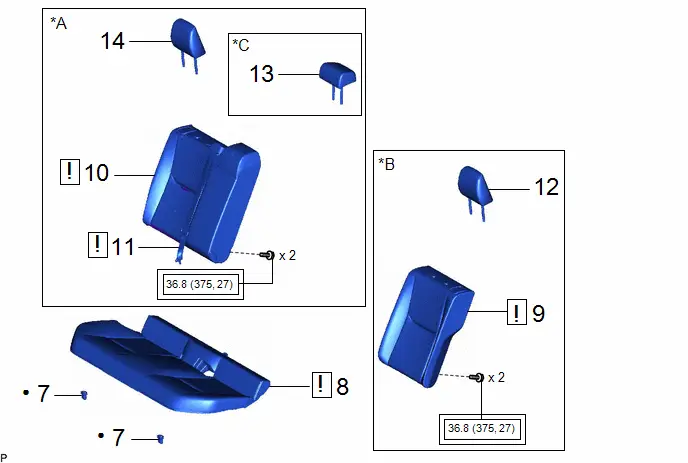

Procedure		Part Name Code
7	REAR SEAT CUSHION LOCK HOOK	72693	-	-	-
8	REAR SEAT CUSHION ASSEMBLY	-		-	-
9	REAR SEATBACK ASSEMBLY LH	-		-	-
10	REAR SEATBACK ASSEMBLY RH	-		-	-
11	REAR CENTER SEAT OUTER BELT ASSEMBLY	73350C		-	-
12	REAR SEAT HEADREST ASSEMBLY	71940A	-	-	-
13	REAR SEAT CENTER HEADREST ASSEMBLY	71960B	-	-	-
14	REAR SEAT HEADREST ASSEMBLY	71940A	-	-	-

*A	for RH Side	*B	for LH Side
*C	w/ Center Headrest	-	-
	Tightening torque for "Major areas involving basic Toyota Prius vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	●	Non-reusable part

Procedure		Part Name Code
15	CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL	-		-	-
16	BATTERY SERVICE HOLE COVER ASSEMBLY	58440		-	-
17	DECK BOARD ASSEMBLY	58410B	-	-	-
18	INSPECT SRS WARNING LIGHT	-	-	-
19	INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL	-	-	-
20	CHECK SEAT HEATER	-	-	-

*A

for M20A-FXS

*B

w/ Seat Heater System

PROCEDURE

1. INSTALL REAR SEAT AIRBAG ASSEMBLY

2. INSTALL REAR SEAT SIDE GARNISH

Click here

3. INSTALL REAR SEATBACK HINGE SUB-ASSEMBLY

4. CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

5. INSTALL REAR UNDER SIDE COVER (for HEV Model)

6. INSTALL REAR DOOR SCUFF PLATE INSIDE

7. INSTALL REAR SEAT CUSHION LOCK HOOK

8. INSTALL REAR SEAT CUSHION ASSEMBLY

Click here

9. INSTALL REAR SEATBACK ASSEMBLY LH (for LH Side)

Click here

10. INSTALL REAR SEATBACK ASSEMBLY RH (for RH Side)

Click here

11. CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for RH Side)

Click here

12. INSTALL REAR SEAT HEADREST ASSEMBLY (for LH Side)

13. INSTALL REAR SEAT CENTER HEADREST ASSEMBLY (for RH Side)

14. INSTALL REAR SEAT HEADREST ASSEMBLY (for RH Side)

15. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

16. INSTALL BATTERY SERVICE HOLE COVER ASSEMBLY (for M20A-FXS)

Click here

17. INSTALL DECK BOARD ASSEMBLY

18. INSPECT SRS WARNING LIGHT

Click here

19. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click here

20. CHECK SEAT HEATER (w/ Seat Heater System)

Click here

Disposal

DISPOSAL

CAUTION / NOTICE / HINT

CAUTION:

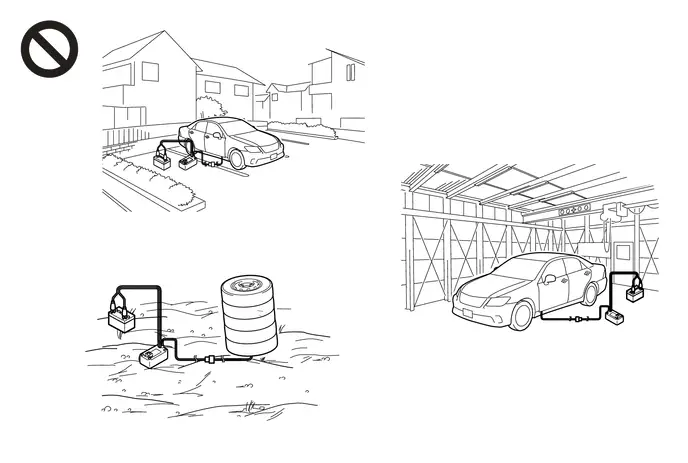

Before performing pre-disposal deployment of any SRS part, review and closely follow all applicable environmental and hazardous material regulations. Pre-disposal deployment may be considered hazardous material treatment.

PROCEDURE

1. PRECAUTION

HINT:

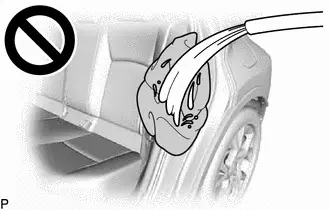

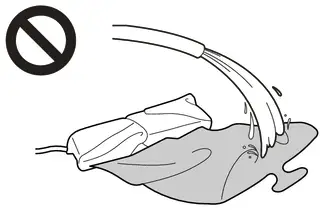

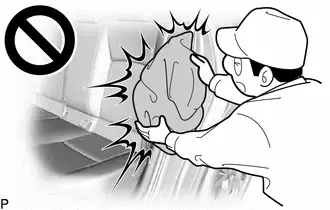

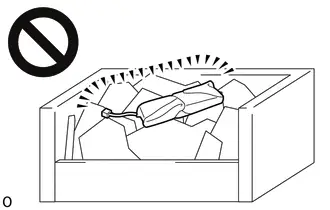

When scrapping a Toyota Prius vehicle equipped with an SRS or disposing of the rear seat airbag assembly, be sure to deploy the airbag first in accordance with the following procedure. If any abnormality occurs with the airbag deployment, contact the Service Department of the distributor.

2. DISPOSE OF REAR SEAT AIRBAG ASSEMBLY (When Installed to Toyota Prius Vehicle)

HINT:

Prepare an auxiliary battery as the power source to deploy the airbag.

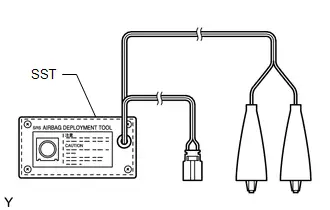

(a) Check the function of SST. Click here SST: 09082-00700

(b) Refer to Precaution.

Click here

(c) Disconnect the cable from the negative (-) auxiliary battery terminal.

CAUTION:

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

(d) Remove the rear seat side garnish.

Click here

(e) Install SST.

(1) After connecting the following SST to each other, connect them to the rear seat airbag assembly. SST: 09082-00700 SST: 09082-00802 09082-10801 09082-20801 NOTICE: To avoid damaging the SST connector or wire harness, do not lock the secondary lock of the twin lock.

(2) Install the rear seat side garnish.

Click here

CAUTION:

Check that there is no looseness in the rear seat airbag assembly.

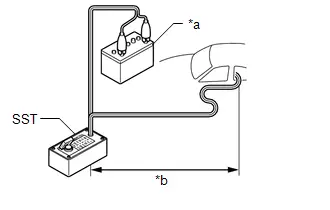

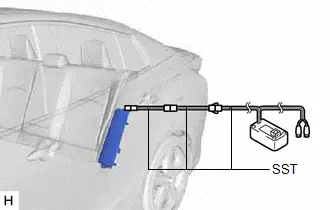

(3) Move SST at least 10 m (32.8 ft.) away from the rear side window of the Toyota Prius vehicle.

*a Auxiliary Battery *b 10 m (32.8 ft.) or more

(4) Maintaining sufficient clearance for the SST wire harness in the rear side window, close all doors and windows of the Toyota Prius vehicle.

NOTICE:

Take care not to damage the SST wire harness.

(5) Connect the red clip of SST to the positive ( ) auxiliary battery terminal and the black clip of SST to the negative (-) auxiliary battery terminal.

(f) Deploy the airbag.

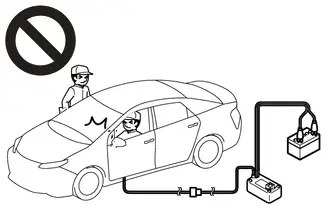

(1) Check that no one is inside the Toyota Prius vehicle or within a 10 m (32.8 ft.) radius of the vehicle.

(2) Press the SST activation switch to deploy the airbag.

HINT:

The airbag is deployed as the LED of the SST activation switch comes on.

3. DISPOSE OF REAR SEAT AIRBAG ASSEMBLY (When not Installed to Toyota Prius Vehicle)

NOTICE:

Be sure to perform the following procedure when deploying the airbag.

HINT:

Prepare an auxiliary battery as the power source to deploy the airbag.

(a) Check the function of SST. Click here SST: 09082-00700

(b) Remove the rear seat airbag assembly.

Click here

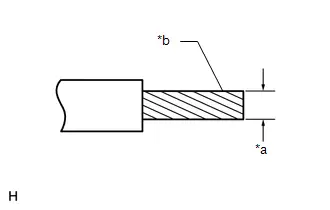

(c) Using braided wire, tie down the rear seat airbag assembly to an unneeded tire.

*a	Wire Diameter
*b	Stripped Wire Cross Sectional Area

Wire:

Stripped Wire Cross Sectional Area

1.25 mm2 (0.0019 in.2) or more

CAUTION:

If the wire is too thin or an alternative object is used to tie down the rear seat airbag assembly, it may snap when the airbag is deployed. Always use a wire for Toyota Prius vehicle use with a cross sectional area of at least 1.25 mm2 (0.0019 in.2).

HINT:

To calculate the cross sectional area of the stripped wire:

Cross sectional area = 3.14 x (Diameter)2 / 4

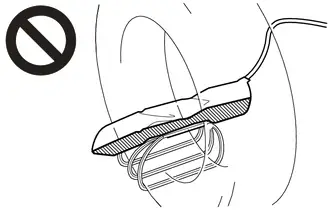

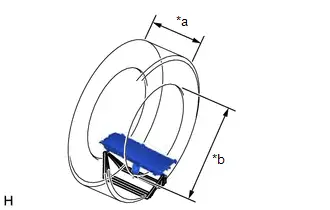

(1) Position the rear seat airbag assembly inside the tire with the airbag deployment side facing inward.

Minimum Tire Size:

Width

185 mm (7.28 in.)

Inner Diameter

360 mm (1.18 ft.)

*a	Width
*b	Inner Diameter

NOTICE:

The tire may be damaged by the airbag deployment, so use an unneeded tire.

(d) Install SST.

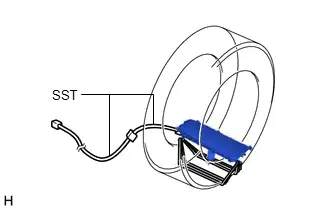

(1) After connecting the following SST to each other, connect them to the rear seat airbag assembly. SST: 09082-00802 09082-10801 09082-20801

(e) Place the tires.

(1) Place at least 2 tires under the tire to which the rear seat airbag assembly is tied. Minimum Tire Size: Width 185 mm (7.28 in.) Inner Diameter 360 mm (1.18 ft.) NOTICE: Do not place the SST connector under the tire because it could be damaged.

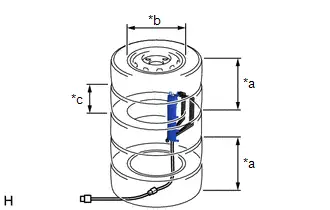

*a Tires (2 or more) *b Inner Diameter *c Width

(2) Place at least 2 tires onto the tire to which the rear seat airbag assembly is tied. The top tire should have a wheel installed.

NOTICE:

The wheel and tires may be damaged by the airbag deployment, so use an unneeded wheel and tires.

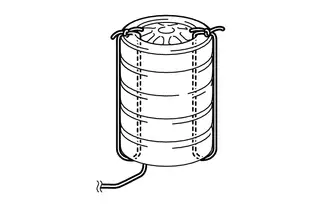

(3) Tie the tires together with 2 wires. CAUTION: Make sure that the wires are tight. Looseness in the wires will result in the tires breaking loose when the airbag is deployed.

(f) Install SST.

(1) Connect the SST connector. SST: 09082-00700 NOTICE: To avoid damaging the SST connector or wire harness, do not lock the secondary lock of the twin lock. Also, secure some slack for the SST wire harness inside the tire.

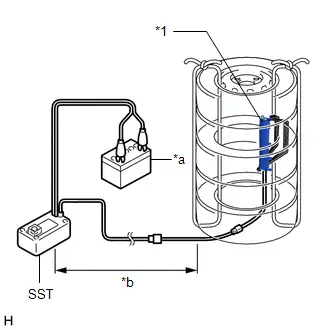

*1 Rear Seat Airbag Assembly *a Auxiliary Battery *b 10 m (32.8 ft.) or more

(2) Move SST at least 10 m (32.8 ft.) away from the airbag tied down to the tire.

(g) Deploy the airbag.

(1) Connect the red clip of SST to the positive ( ) auxiliary battery terminal and the black clip of SST to the negative (-) auxiliary battery terminal.

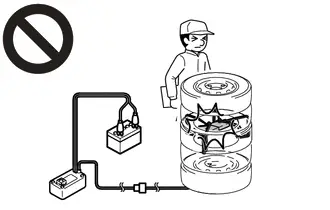

(2) Check that no one is within a 10 m (32.8 ft.) radius of the tire to which the rear seat airbag assembly is tied.

(3) Press the SST activation switch to deploy the airbag.

CAUTION:

Before deployment, make sure that no one is near the airbag.

HINT:

The airbag is deployed as the LED of the SST activation switch comes on.

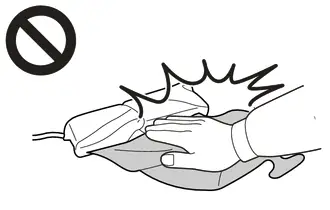

(h) Dispose of the rear seat airbag assembly.

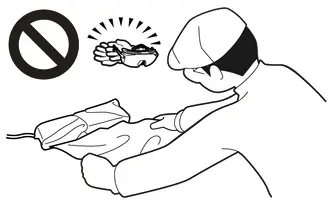

(1) Remove the rear seat airbag assembly from the tire.

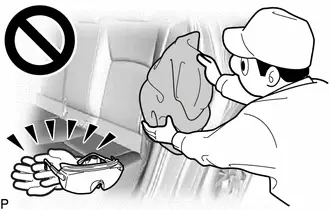

(2) Place the rear seat airbag assembly in a plastic bag, tie it tightly, and dispose of it according to local regulations.
