Toyota Prius: Rear Coil Spring

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear coil spring removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

*1: Also necessary after performing a tire rotation.

*2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.

*3: The Toyota Prius vehicle height changes because of suspension or tire replacement.

Rear wheel alignment adjustment

Perform "Calibration"

  • DTCs are stored
  • ABS warning light illuminates
  • Brake system warning light (yellow indicator) illuminates
  • Slip indicator light illuminates
  • Electronically controlled brake system disabled or malfunctions

Tires

  • Initialization*1*2
  • Tire Position Identification*1*2

Tire Pressure Warning System

Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System)

Rear television camera assembly optical axis (Back camera position setting)*3

Parking Assist Monitor System

Parking assist ECU initialization*3

Panoramic View Monitor System

Advanced Park

Suspension parts

Rear television camera assembly optical axis (Back camera position setting)

Parking Assist Monitor System

Parking assist ECU initialization

Panoramic View Monitor System

Advanced Park

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH and LH sides.
  • The following procedure is for the LH side.

CAUTION / NOTICE / HINT

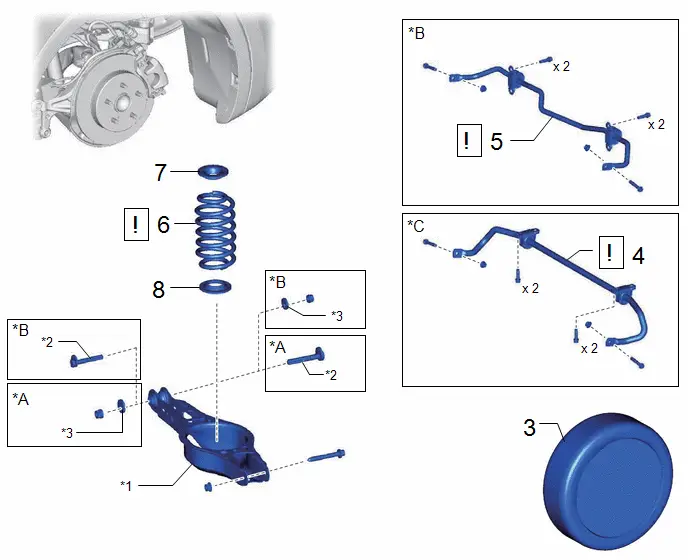

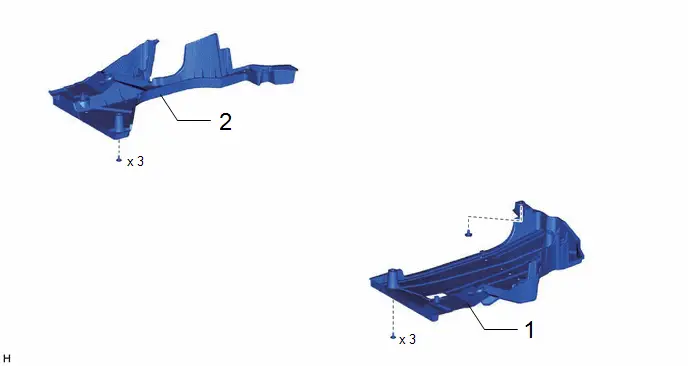

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

REAR FLOOR SIDE MEMBER COVER LH

57628E

-

-

-

2

REAR FLOOR SIDE MEMBER COVER RH

57627G

-

-

-

Procedure

Part Name Code

3

REAR WHEEL

-

-

-

-

4

REAR STABILIZER BAR (for 2WD with Stabilizer Bar)

48812

-

-

5

REAR STABILIZER BAR (for AWD)

48812

-

-

6

REAR COIL SPRING

48231B

-

-

7

REAR UPPER COIL SPRING INSULATOR

48259A

-

-

-

8

REAR LOWER COIL SPRING INSULATOR

48258C

-

-

-

*A

for 2WD

*B

for AWD

*C

for 2WD with Stabilizer Bar

-

-

*1

REAR NO. 2 SUSPENSION ARM ASSEMBLY

*2

REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY

*3

NO. 2 CAMBER ADJUST CAM

-

-

PROCEDURE

1. REMOVE REAR FLOOR SIDE MEMBER COVER LH

Click here

2. REMOVE REAR FLOOR SIDE MEMBER COVER RH

Click here

3. REMOVE REAR WHEEL

Click here

4. REMOVE REAR STABILIZER BAR (for 2WD with Stabilizer Bar)

Click here

5. REMOVE REAR STABILIZER BAR (for AWD)

Click here

6. REMOVE REAR COIL SPRING

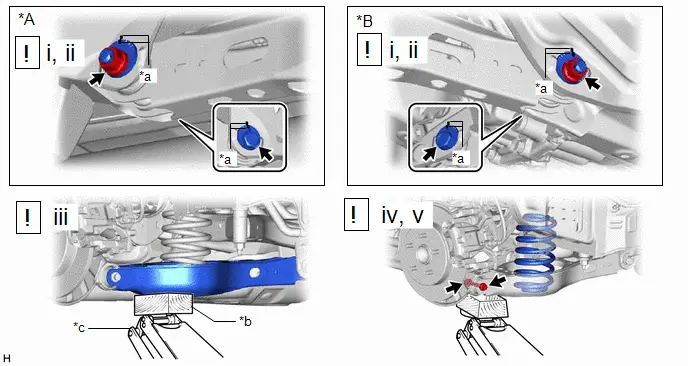

*A

for 2WD

*B

for AWD

*a

Matchmark

*b

Wooden Block

*c

Jack

-

-

(1) Place matchmarks on the No. 2 camber adjust cam, rear suspension toe adjust cam sub-assembly and rear suspension member sub-assembly.

(2) Loosen the nut (rear suspension member sub-assembly side) of the rear No. 2 suspension arm assembly.

NOTICE:

Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.

(3) Using a jack and wooden block, support the rear No. 2 suspension arm assembly.

NOTICE:

  • When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
  • Make sure to perform this operation with the Toyota Prius vehicle kept as low as possible.

(4) Remove the bolt and nut, and separate the rear No. 2 suspension arm assembly from the rear axle carrier sub-assembly.

NOTICE:

Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

(5) Slowly lower the rear No. 2 suspension arm assembly, and then remove the rear coil spring.

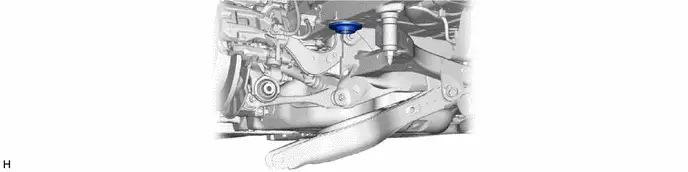

7. REMOVE REAR UPPER COIL SPRING INSULATOR

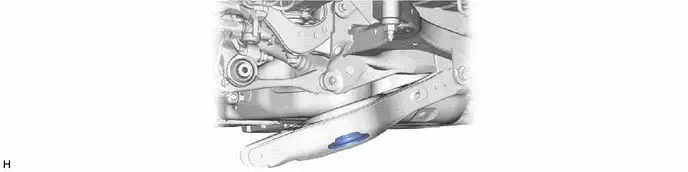

8. REMOVE REAR LOWER COIL SPRING INSULATOR

Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

CAUTION / NOTICE / HINT

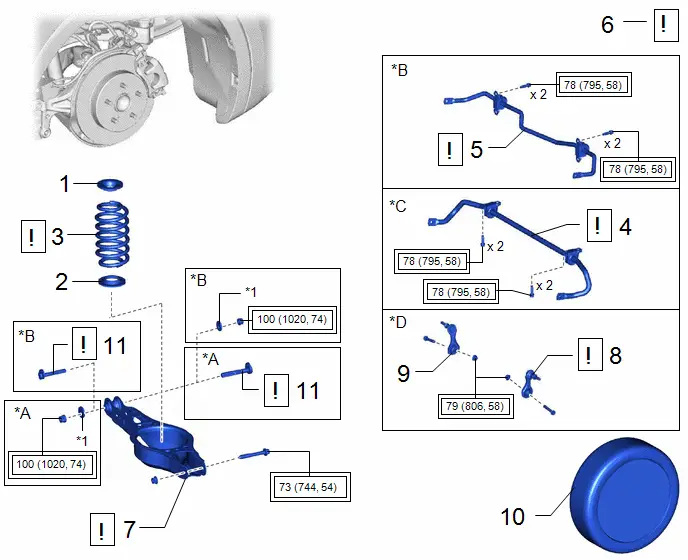

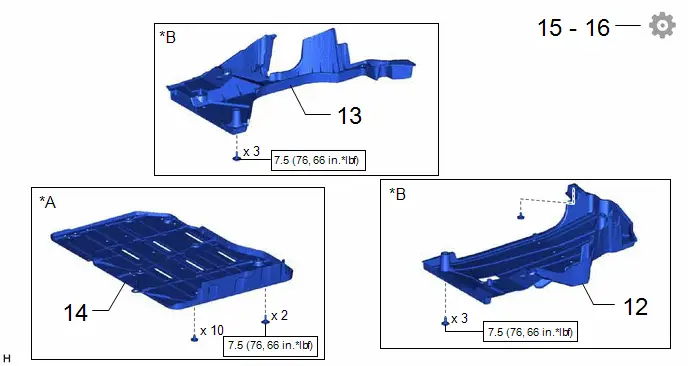

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

REAR UPPER COIL SPRING INSULATOR

48259A

-

-

-

2

REAR LOWER COIL SPRING INSULATOR

48258C

-

-

-

3

REAR COIL SPRING

48231B

-

-

4

REAR STABILIZER BAR (for HEV Model 2WD with Stabilizer Bar)

48812

-

-

5

REAR STABILIZER BAR (for HEV Model AWD, PHEV Model)

48812

-

-

6

STABILIZE SUSPENSION

-

-

-

7

REAR NO. 2 SUSPENSION ARM ASSEMBLY

48740F

-

-

8

REAR STABILIZER LINK ASSEMBLY LH (w/ Stabilizer Bar)

48840A

-

-

9

REAR STABILIZER LINK ASSEMBLY RH (w/ Stabilizer Bar)

48830D

-

-

10

REAR WHEEL

-

-

-

-

11

REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY

48409

-

-

*A

for HEV Model 2WD

*B

for HEV Model AWD, PHEV Model

*C

for HEV Model 2WD with Stabilizer Bar

*D

w/ Stabilizer Bar

*1

NO. 2 CAMBER ADJUST CAM

-

-

Tightening torque for "Major areas involving basic Toyota Prius vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-

Procedure

Part Name Code

12

REAR FLOOR SIDE MEMBER COVER LH

57628E

-

-

-

13

REAR FLOOR SIDE MEMBER COVER RH

57627G

-

-

-

14

BATTERY BOX COVER

58219K

-

-

-

15

INSPECT AND ADJUST REAR WHEEL ALIGNMENT

-

-

-

16

PERFORM INITIALIZATION

-

-

-

*A

for PHEV Model

*B

for HEV Model

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

PROCEDURE

1. INSTALL REAR UPPER COIL SPRING INSULATOR

2. INSTALL REAR LOWER COIL SPRING INSULATOR

3. INSTALL REAR COIL SPRING

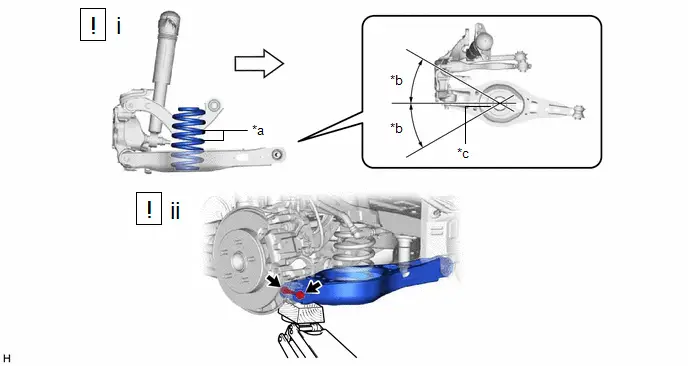

*a

Identification Mark

*b

30° or less

*c

Lower End of Rear Coil Spring

-

-

Inner Side of the Toyota Prius Vehicle

-

-

(1) Set the rear coil spring to the rear No. 2 suspension arm assembly.

NOTICE:

  • Set the rear coil spring so that its lower end is within the range shown in the illustration.
  • Set the rear coil spring so that the identification mark is positioned as shown in the illustration.
  • The smaller diameter end must face upward.

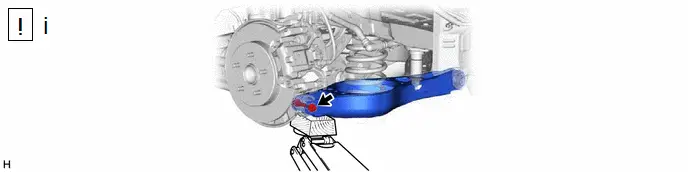

(2) Using a jack and wooden block, slowly jack up the rear No. 2 suspension arm assembly and then install the rear No. 2 suspension arm assembly to the rear axle carrier sub-assembly with the bolt and nut.

CAUTION:

Do not jack up the rear No. 2 suspension arm assembly too high as the Toyota Prius vehicle may fall.

NOTICE:

  • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
  • When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
  • Make sure to perform this operation with the vehicle kept as low as possible.
  • Insert the bolt with the threaded end facing the front of the Toyota Prius vehicle.

4. INSTALL REAR STABILIZER BAR (for HEV Model 2WD with Stabilizer Bar)

Click here

5. INSTALL REAR STABILIZER BAR (for HEV Model AWD, PHEV Model)

Click here

6. STABILIZE SUSPENSION

Click here

7. INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY

(1) Install the rear No. 2 suspension arm assembly (rear axle carrier sub-assembly side) with the bolt.

Torque:

73 N·m {744 kgf·cm, 54 ft·lbf}

NOTICE:

Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

8. INSTALL REAR STABILIZER LINK ASSEMBLY LH (w/ Stabilizer Bar)

Click here

9. INSTALL REAR STABILIZER LINK ASSEMBLY RH (w/ Stabilizer Bar)

10. INSTALL REAR WHEEL

Click here

11. INSTALL REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY

for 2WD: Click here

for AWD LH Side: Click here

for AWD RH Side: Click here

for PHEV: Click here

12. INSTALL REAR FLOOR SIDE MEMBER COVER LH (for HEV Model)

Click here

13. INSTALL REAR FLOOR SIDE MEMBER COVER RH (for HEV Model)

Click here

14. INSTALL BATTERY BOX COVER (for PHEV Model)

Click here

15. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

Click here

16. PERFORM INITIALIZATION

Parking Assist Monitor System

Panoramic View Monitor System

Advanced Park
