Toyota Prius: Purge Valve

• Removal
• Inspection
• Installation

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during purge valve (purge VSV) removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Gas leak from exhaust system is repaired	Inspection after repair	Poor idle, etc. Engine start function, etc.

CAUTION / NOTICE / HINT

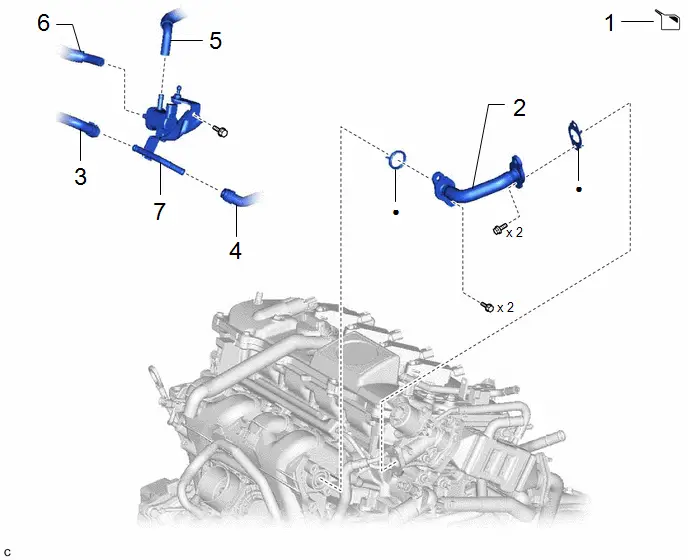

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	DRAIN ENGINE COOLANT (for Engine)	-	-		-
2	EGR PIPE ASSEMBLY	25610	-	-	-
3	NO. 8 WATER BY-PASS HOSE	16296	-	-	-
4	NO. 9 WATER BY-PASS HOSE	16297	-	-	-
5	NO. 1 FUEL VAPOR FEED HOSE	23826	-	-	-
6	NO. 2 FUEL VAPOR FEED HOSE	23827A	-	-	-
7	PURGE VALVE WITH NO. 3 WATER BY-PASS PIPE	-	-	-	-

●

Non-reusable part

-

-

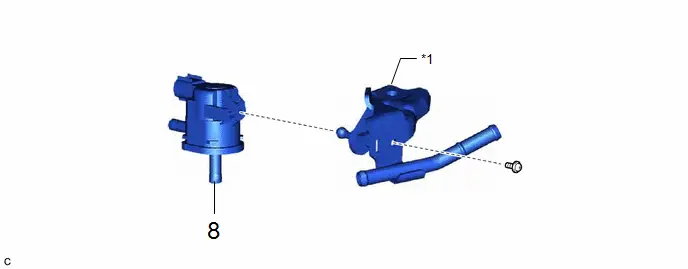

Procedure		Part Name Code
8	PURGE VALVE (PURGE VSV)	17650G	-	-	-

*1

NO. 3 WATER BY-PASS PIPE

-

-

PROCEDURE

1. DRAIN ENGINE COOLANT (for Engine)

Click here

2. REMOVE EGR PIPE ASSEMBLY

Click here

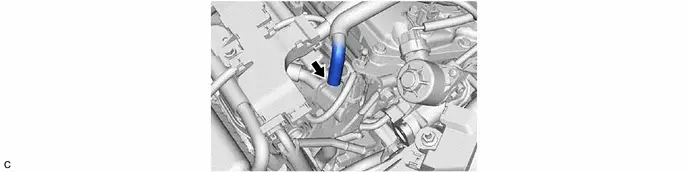

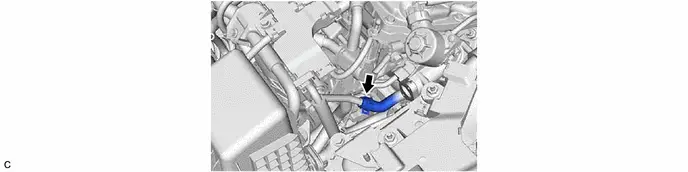

3. DISCONNECT NO. 8 WATER BY-PASS HOSE

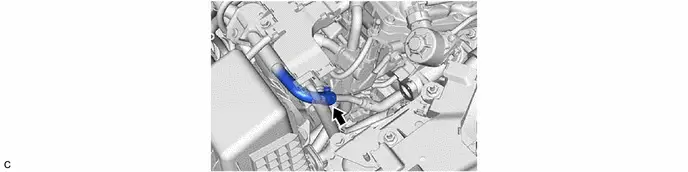

4. DISCONNECT NO. 9 WATER BY-PASS HOSE

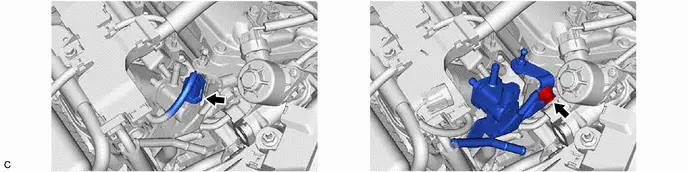

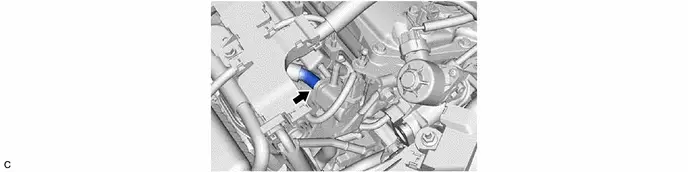

5. DISCONNECT NO. 1 FUEL VAPOR FEED HOSE

6. DISCONNECT NO. 2 FUEL VAPOR FEED HOSE

7. REMOVE PURGE VALVE WITH NO. 3 WATER BY-PASS PIPE

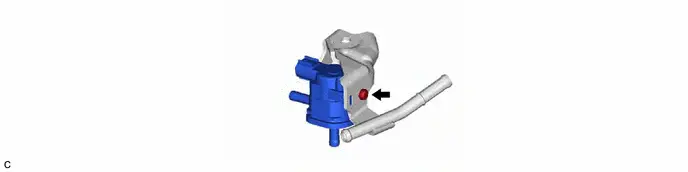

8. REMOVE PURGE VALVE (PURGE VSV)

Inspection

INSPECTION

PROCEDURE

1. INSPECT PURGE VALVE (PURGE VSV)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
1 - 2	20°C (68°F)	23 to 26 Ω

If the result is not as specified, replace the purge valve (purge VSV).

(b) Apply auxiliary battery voltage between the terminals of the purge valve (purge VSV) and check that the following occurs when blowing air into the port (E). Standard: Condition Specified Condition Auxiliary battery voltage applied between terminals 1 and 2 Air flows from port (F) Auxiliary battery voltage not applied between terminals 1 and 2 Air does not flow If the result is not as specified, replace the purge valve (purge VSV).

*a Port (E) *b Port (F) *c Air *d Component without harness connected (Purge Valve (Purge VSV))

Installation

INSTALLATION

CAUTION / NOTICE / HINT

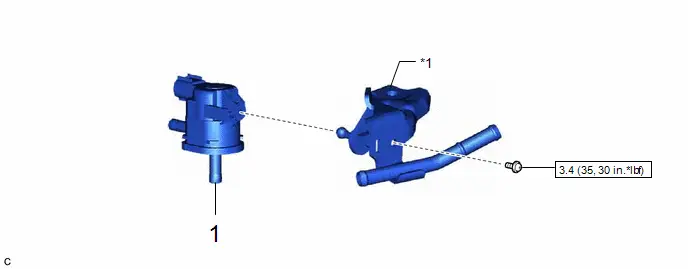

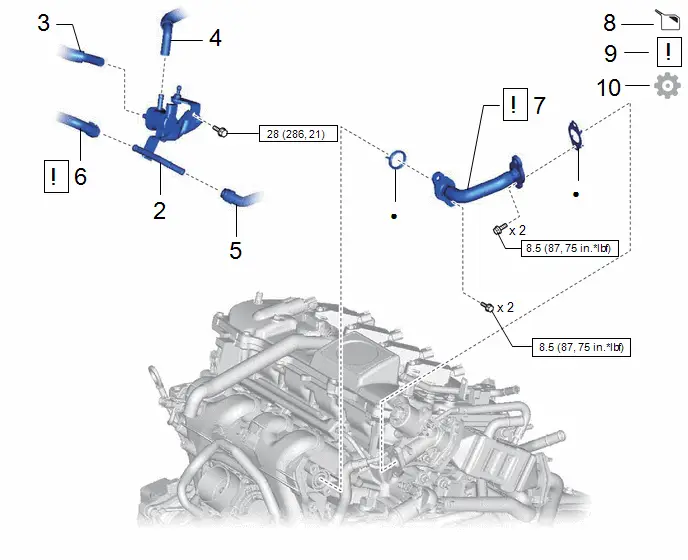

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	PURGE VALVE (PURGE VSV)	17650G	-	-	-

*1	NO. 3 WATER BY-PASS PIPE	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

Procedure		Part Name Code
2	PURGE VALVE WITH NO. 3 WATER BY-PASS PIPE	-	-	-	-
3	NO. 2 FUEL VAPOR FEED HOSE	23827A	-	-	-
4	NO. 1 FUEL VAPOR FEED HOSE	23826	-	-	-
5	NO. 9 WATER BY-PASS HOSE	16297	-	-	-
6	NO. 8 WATER BY-PASS HOSE	16296		-	-
7	EGR PIPE ASSEMBLY	25610		-	-
8	ADD ENGINE COOLANT (for Engine)	-	-		-
9	INSPECT FOR COOLANT LEAK	-		-	-
10	INSPECT FOR EXHAUST GAS LEAK	-	-	-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

PROCEDURE

1. INSTALL PURGE VALVE (PURGE VSV)

Torque:

3.4 N·m {35 kgf·cm, 30 in·lbf}

2. INSTALL PURGE VALVE WITH NO. 3 WATER BY-PASS PIPE

Torque:

28 N·m {286 kgf·cm, 21 ft·lbf}

3. CONNECT NO. 2 FUEL VAPOR FEED HOSE

4. CONNECT NO. 1 FUEL VAPOR FEED HOSE

5. CONNECT NO. 9 WATER BY-PASS HOSE

6. CONNECT NO. 8 WATER BY-PASS HOSE

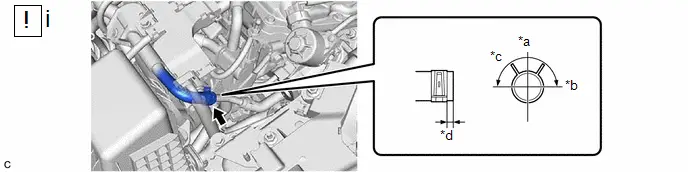

*a	Up	*b	LH
*c	180 deg	*d	2 to 7 mm (0.0787 to 0.276 in.)

(1) Connect the No. 8 water by-pass hose to the No. 3 water by-pass pipe and slide the clip to secure it.

HINT:

Engage the clip within the area shown in the illustration.

7. INSTALL EGR PIPE ASSEMBLY

Click here

8. ADD ENGINE COOLANT (for Engine)

Click here

9. INSPECT FOR COOLANT LEAK (for Engine)

Click here

10. INSPECT FOR EXHAUST GAS LEAK

(a) If gas is leaking, tighten the areas necessary to stop the leak. Replace damaged parts as necessary.

HINT:

Perform "Inspection After Repairs" after repairing or replacing the exhaust system.

Click here
