Toyota Prius: Oil Pan And Oil Level Sensor
Removal
REMOVAL
CAUTION / NOTICE / HINT

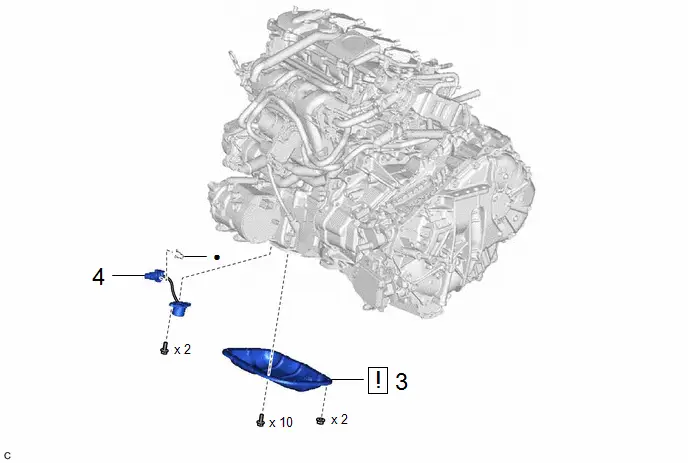

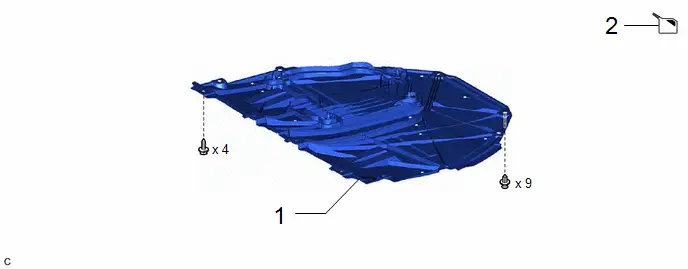

COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
| 1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | 51410 | - | - | - |
| 2 | DRAIN ENGINE OIL | - | - |
| - |
| Procedure | Part Name Code |
|
|
| |
| 3 | NO. 2 OIL PAN SUB-ASSEMBLY | 12102A |
| - | - |
| 4 | ENGINE OIL LEVEL SENSOR | 89491 | - | - | - |
| ● | Non-reusable part | - | - |
PROCEDURE
1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
Click here
2. DRAIN ENGINE OIL
Click here
3. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY
| Click here
|

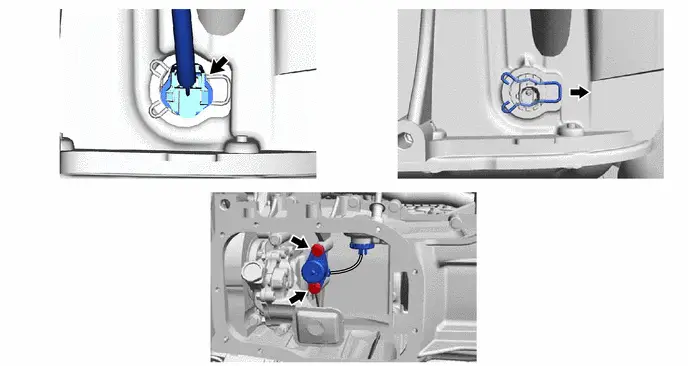

4. REMOVE ENGINE OIL LEVEL SENSOR
Inspection
INSPECTION
PROCEDURE

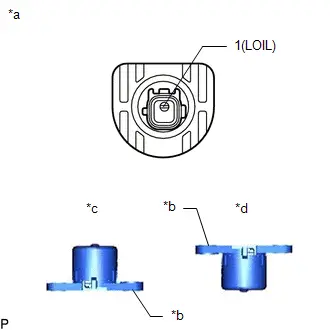

1. INSPECT ENGINE OIL LEVEL SENSOR
| (a) Measure the resistance according to the value(s) in the table below. Standard Resistance:
If the result is not as specified, replace the engine oil level sensor. |
|
Installation
INSTALLATION
CAUTION / NOTICE / HINT

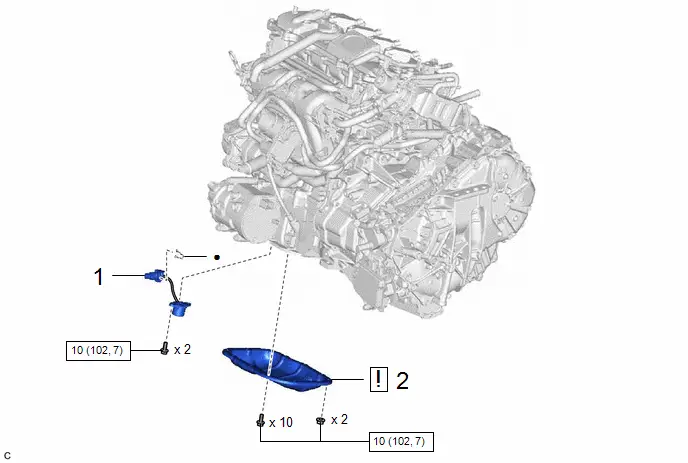

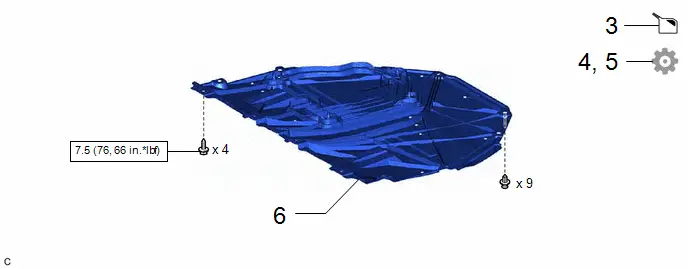

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | ENGINE OIL LEVEL SENSOR | 89491 | - | - | - |
| 2 | NO. 2 OIL PAN SUB-ASSEMBLY | 12102A |
| - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 3 | ADD ENGINE OIL | - | - |
| - |
| 4 | INSPECT FOR ENGINE OIL LEAK | - | - | - |
|
| 5 | CHECK ENGINE OIL LEVEL | - | - | - |
|
| 6 | NO. 1 ENGINE UNDER COVER ASSEMBLY | 51410 | - | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
PROCEDURE
1. INSTALL ENGINE OIL LEVEL SENSOR
Torque:
10 N·m {102 kgf·cm, 7 ft·lbf}
2. INSTALL NO. 2 OIL PAN SUB-ASSEMBLY
| Click here
|
3. ADD ENGINE OIL
Click here
4. INSPECT FOR ENGINE OIL LEAK
Click here
5. CHECK ENGINE OIL LEVEL
Click here
6. INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY
Click here
Toyota Prius (XW60) 2023-2025 Service Manual
Oil Pan And Oil Level Sensor
