Toyota Prius: Instrument Panel Speaker

• Removal
• Inspection
• Installation

Removal

REMOVAL

CAUTION / NOTICE / HINT

CAUTION / NOTICE / HINT

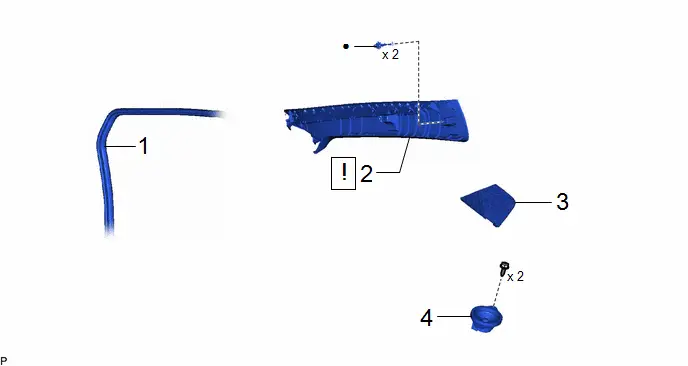

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	FRONT DOOR OPENING TRIM WEATHERSTRIP	62312B	-	-	-
2	FRONT PILLAR GARNISH LH	62212		-	-
3	NO. 1 INSTRUMENT PANEL SPEAKER PANEL	55472C	-	-	-
4	FRONT NO. 3 SPEAKER ASSEMBLY	86160J	-	-	-

●

Non-reusable part

-

-

PROCEDURE

1. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP

Click here

2. REMOVE FRONT PILLAR GARNISH LH

Click here

3. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL

Click here

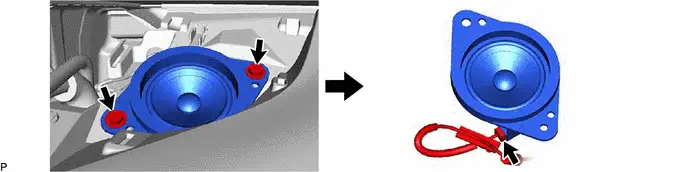

4. REMOVE FRONT NO. 3 SPEAKER ASSEMBLY

Inspection

INSPECTION

PROCEDURE

1. INSPECT FRONT NO. 3 SPEAKER ASSEMBLY (except 8 Speakers)

(a) With the speaker installed, check that there is no looseness or other abnormalities.

(b) Check that there is no foreign matter in the speaker, no tears on the speaker cone or other abnormalities.

(c) When there is a possibility that either the right or left speaker is malfunctioning, interchange the speakers and perform an inspection. If the malfunction disappears after interchanging the speakers, replace the malfunctioning speaker.

HINT:

Connect all connectors to the speakers when performing an inspection. If the result is not as specified, replace the speaker.

2. INSPECT FRONT NO. 3 SPEAKER ASSEMBLY (for 8 Speakers)

Pre-procedure1

(a) With the speaker installed, check that there is no looseness or other abnormalities.

(b) Check that there is no foreign matter in the speaker, no tears on the speaker cone or other abnormalities.

Procedure1

(c) Measure the resistance of the speaker. Standard Resistance: for LH Side: Click Location & Routing(K138) Click Connector(K138) Tester Connection Condition Specified Condition Result K138-1 (-) - K138-2 ( ) Always 3.4 to 5.2 Ω Ω for RH side: Click Location & Routing(K100) Click Connector(K100) Tester Connection Condition Specified Condition Result K100-1 (-) - K100-2 ( ) Always 3.4 to 5.2 Ω Ω If the result is not as specified, replace the speaker.

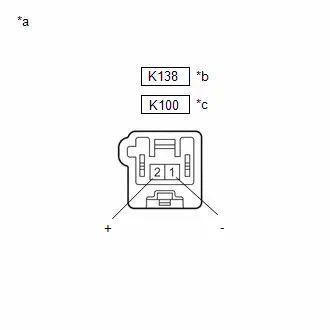

*a Component without harness connected (Front No. 3 Speaker Assembly) *b LH Side *c RH Side

Post-procedure1

(d) None.

Installation

INSTALLATION

CAUTION / NOTICE / HINT

CAUTION / NOTICE / HINT

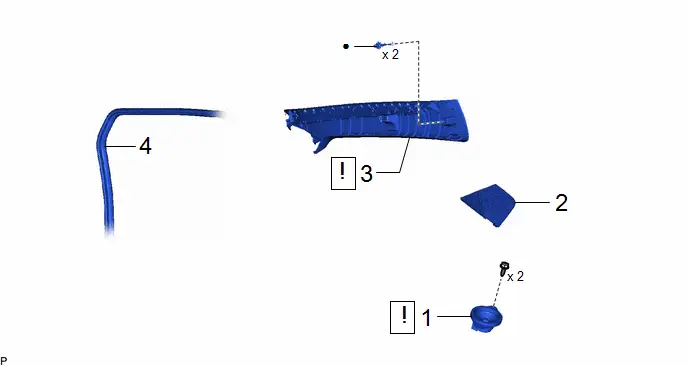

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	FRONT NO. 3 SPEAKER ASSEMBLY	86160J		-	-
2	NO. 1 INSTRUMENT PANEL SPEAKER PANEL	55472C	-	-	-
3	FRONT PILLAR GARNISH LH	622122		-	-
4	FRONT DOOR OPENING TRIM WEATHERSTRIP	62312B	-	-	-

●

Non-reusable part

-

-

PROCEDURE

1. INSTALL FRONT NO. 3 SPEAKER ASSEMBLY

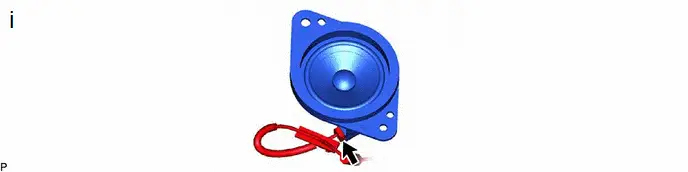

(1) Connect the connector.

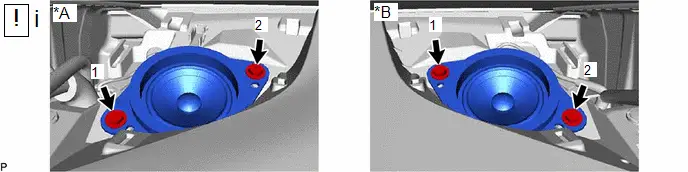

*A

for LH Side

*B

for RH Side

(1) Install the front No. 3 speaker assembly with the 2 screws.

HINT:

Install the screws in the order shown in the illustration.

2. INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL

3. INSTALL FRONT PILLAR GARNISH LH

Click here

4. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP
