Toyota Prius: Inner Rear View Mirror (w/o Ec Mirror)

Removal

REMOVAL

CAUTION / NOTICE / HINT

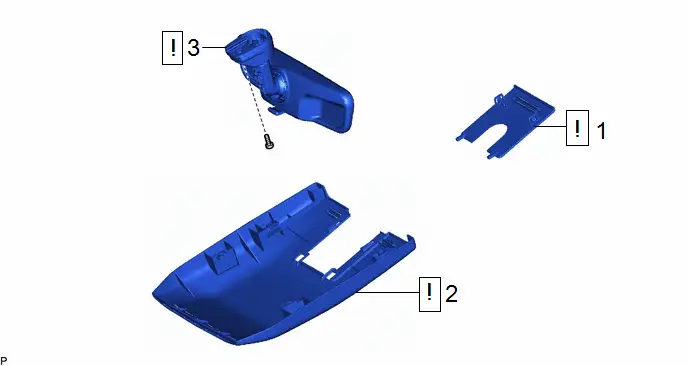

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	NO. 2 FORWARD RECOGNITION COVER	86466E		-	-
2	NO. 1 FORWARD RECOGNITION COVER	86466D		-	-
3	INNER REAR VIEW MIRROR ASSEMBLY	87810		-	-

PROCEDURE

1. REMOVE NO. 2 FORWARD RECOGNITION COVER

Click here

2. REMOVE NO. 1 FORWARD RECOGNITION COVER

Click here

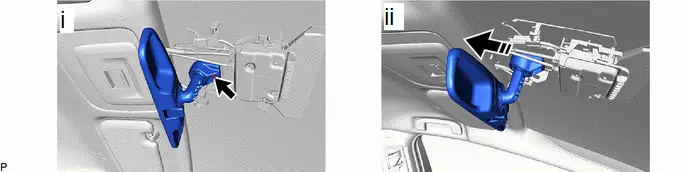

3. REMOVE INNER REAR VIEW MIRROR ASSEMBLY

Remove in this Direction

-

-

(1) Using a T20 "TORX" socket wrench, remove the screw.

(2) Slide the inner rear view mirror assembly as shown in the illustration to remove it.

Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	INNER REAR VIEW MIRROR ASSEMBLY	87810		-	-
2	NO. 1 FORWARD RECOGNITION COVER	86466D	-	-	-
3	NO. 2 FORWARD RECOGNITION COVER	86466E	-	-	-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

PROCEDURE

1. INSTALL INNER REAR VIEW MIRROR ASSEMBLY

Install in this Direction

-

-

(1) Slide and temporarily install the inner rear view mirror assembly as shown in the illustration.

(2) Using a T20 ''TORX'' socket wrench, install the inner rear view mirror assembly with the screw.

Torque:

1.8 N·m {18 kgf·cm, 16 in·lbf}

(3) Check that there is no play in the inner rear view mirror assembly.

2. INSTALL NO. 1 FORWARD RECOGNITION COVER

3. INSTALL NO. 2 FORWARD RECOGNITION COVER
