Toyota Prius: Illumination Light Assembly

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during LED illumination light removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
*1: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
Front bumper assembly*1	Front television camera view adjustment	Panoramic View Monitor System
		Advanced Park
Replacement or removal and installation of 2 or more parts: Front television camera assembly, Radiator grille or Front bumper assembly Rear television camera assembly Side television camera assembly LH, Parking assist light LH or Outer rear view mirror assembly LH Side television camera assembly RH, Parking assist light RH or Outer rear view mirror assembly RH	Television camera view adjustment	Panoramic View Monitor System

CAUTION / NOTICE / HINT

CAUTION / NOTICE / HINT

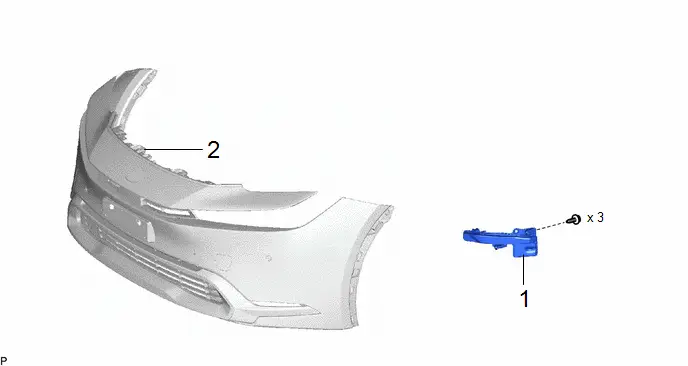

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	FRONT BUMPER ASSEMBLY	-	-	-	-
2	LED ILLUMINATION LIGHT	8122A	-	-	-

PROCEDURE

1. REMOVE FRONT BUMPER ASSEMBLY

Click here

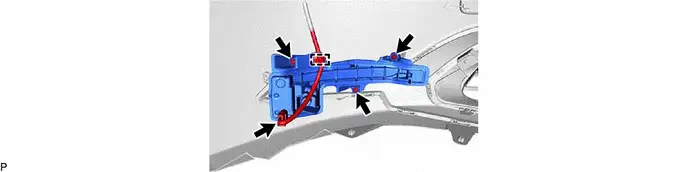

2. REMOVE LED ILLUMINATION LIGHT

Inspection

INSPECTION

PROCEDURE

1. INSPECT LED ILLUMINATION LIGHT LH

(a) Illumination Inspection

(1) Apply auxiliary battery voltage to the LED illumination light LH and check that the light illuminates. OK: Click Location & Routing(B8) Click Connector(B8) Tester Connection Specified Condition Auxiliary battery positive ( ) - B8-1 (B) Auxiliary battery negative (-) - B8-2 (E) LED illumination light illuminates If the result is not as specified, replace the LED illumination light LH.

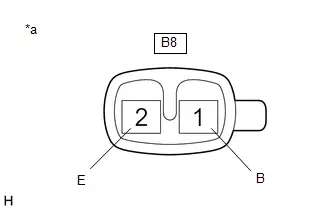

*a Component without harness connected (LED Illumination Light LH)

2. INSPECT LED ILLUMINATION LIGHT RH

(a) Illumination Inspection

(1) Apply auxiliary battery voltage to the LED illumination light RH and check that the light illuminates. OK: Click Location & Routing(B11) Click Connector(B11) Tester Connection Specified Condition Auxiliary battery positive ( ) - B11-1 (B) Auxiliary battery negative (-) - B11-2 (E) LED illumination light illuminates If the result is not as specified, replace the LED illumination light RH.

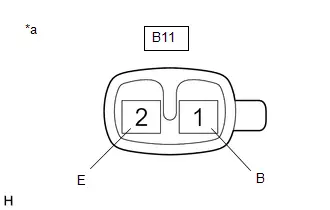

*a Component without harness connected (LED Illumination Light RH)

Installation

INSTALLATION

CAUTION / NOTICE / HINT

CAUTION / NOTICE / HINT

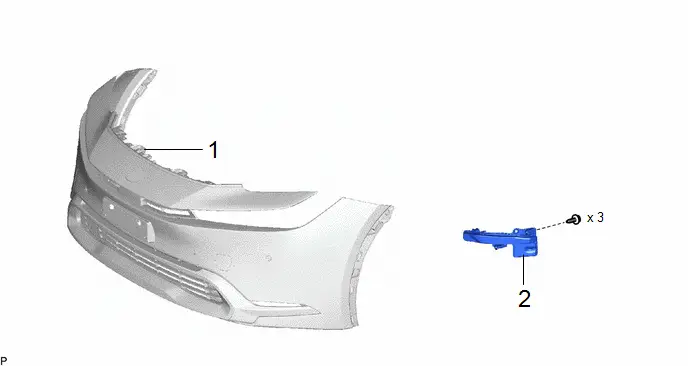

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	LED ILLUMINATION LIGHT	8122A	-	-	-
2	FRONT BUMPER ASSEMBLY	-	-	-	-

PROCEDURE

1. INSTALL LED ILLUMINATION LIGHT

2. INSTALL FRONT BUMPER ASSEMBLY

Click here
