Toyota Prius: Hybrid Vehicle Control Ecu
Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during hybrid vehicle control ECU removal/installation are shown below.
Necessary Procedures After Parts Removed/Installed/Replaced| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Replacement of hybrid Toyota Prius vehicle control ECU | ECU configuration | - |
|
| Update ECU security key | Toyota Prius Vehicle Control History (RoB) are stored |
| |
| Code registration | Hybrid control system cannot be started |
|
NOTICE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.
Click here
HINT:
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
Items for which learning is completed by driving the Toyota Prius vehicle| Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
|---|---|---|
| Front Camera System | Drive the Toyota Prius vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. |
|
| Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
|---|---|---|
|
*1: w/o Power Back Door System
*2: w/ Power Back Door System | ||
| Power Door Lock Control System*1
| Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. |
|
| Power Back Door System*2 | Reset back door close position |
|
| Air Conditioning System | After the ignition switch is turned to ON, the servo motor standard position is recognized. | - |
CAUTION / NOTICE / HINT
COMPONENTS (REMOVAL)

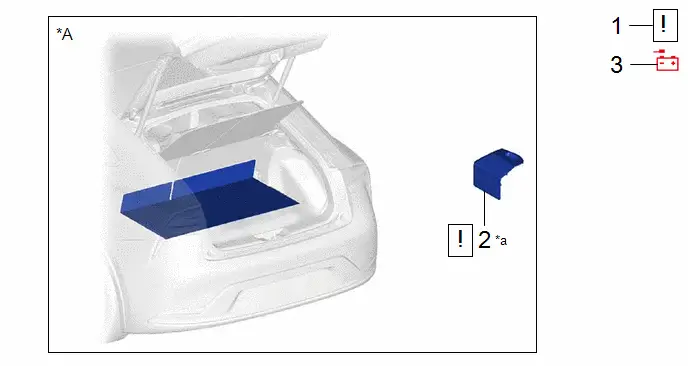

| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | PRECAUTION | - |
| - | - |
| 2 | BATTERY SERVICE HOLE COVER ASSEMBLY | 58440 |
| - | - |
| 3 | DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL | - | - | - | - |
| *A | for M20A-FXS | - | - |
| *a | HINT: As the illustration shown is an example, the actual details may differ. | - | - |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|

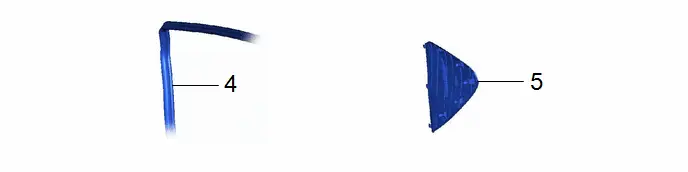

| 4 | FRONT DOOR OPENING TRIM WEATHERSTRIP RH | 62311B | - | - | - |
| 5 | INSTRUMENT SIDE PANEL RH | 55317A | - | - | - |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 6 | FRONT DOOR SCUFF PLATE LH | 67914 | - | - | - |
| 7 | COWL SIDE TRIM BOARD LH | 62112 | - | - | - |
| 8 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | 55606 | - | - | - |
| *A | w/ Knee Airbag | - | - |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|

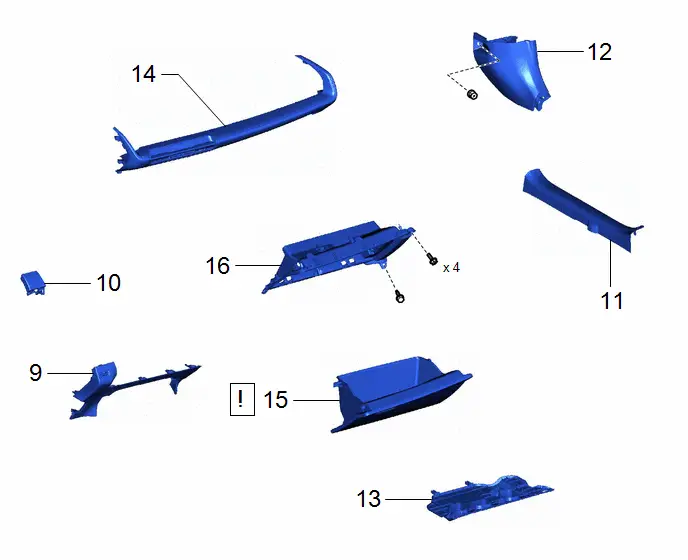

| 9 | LOWER CENTER INSTRUMENT PANEL FINISH PANEL | 55434B | - | - | - |
| 10 | LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY | 55406B | - | - | - |
| 11 | FRONT DOOR SCUFF PLATE RH | 67913 | - | - | - |
| 12 | COWL SIDE TRIM BOARD RH | 62111C | - | - | - |
| 13 | NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | 55607 | - | - | - |
| 14 | NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY WITH AIR CONDITIONING CONTROL ASSEMBLY | - | - | - | - |
| 15 | GLOVE COMPARTMENT DOOR ASSEMBLY | 55550 |
| - | - |
| 16 | LOWER INSTRUMENT PANEL SUB-ASSEMBLY | 55303B | - | - | - |

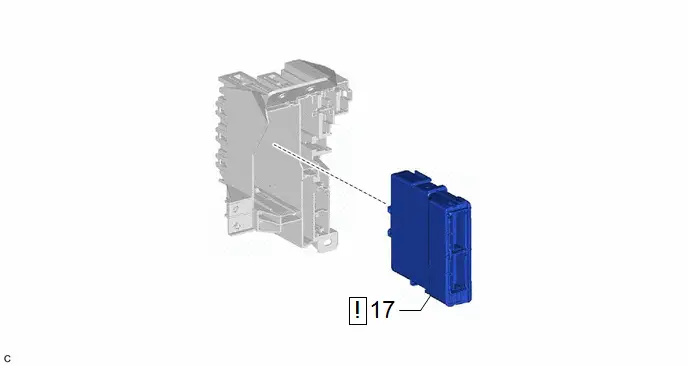

| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 17 | HYBRID Toyota Prius Vehicle CONTROL ECU | 89980B |
| - | - |
PROCEDURE
1. PRECAUTION
| Click here
|
2. REMOVE BATTERY SERVICE HOLE COVER ASSEMBLY (for M20A-FXS)
| Click here
|
3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
(a) for M20A-FXS:
Click here
(b) for 2ZR-FXE:
Click here
4. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH
Click here
5. REMOVE INSTRUMENT SIDE PANEL RH
Click here
6. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Knee Airbag)
Click here
7. REMOVE COWL SIDE TRIM BOARD LH (w/ Knee Airbag)
Click here
8. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Knee Airbag)
Click here
9. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL
Click here
10. REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
Click here
11. REMOVE FRONT DOOR SCUFF PLATE RH
(a) Use the same procedure as for the LH side.
Click here
12. REMOVE COWL SIDE TRIM BOARD RH
(a) Use the same procedure as for the LH side.
Click here
13. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Click here
14. REMOVE NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY WITH AIR CONDITIONING CONTROL ASSEMBLY
Click here
15. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
| Click here
|
16. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY
Click here

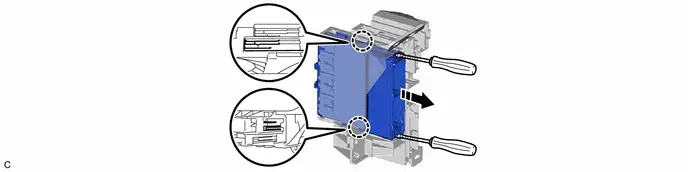

17. REMOVE HYBRID Toyota Prius Vehicle CONTROL ECU
| NOTICE: Do not bend the 2 claws more than necessary. |

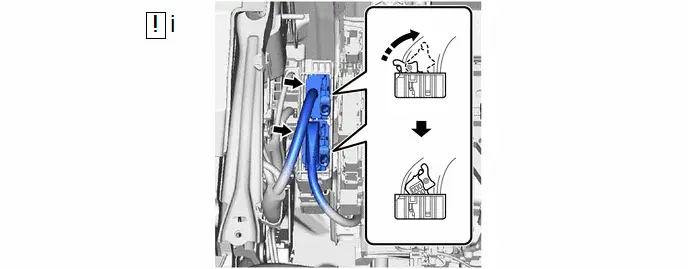

(1) Disconnect the 2 hybrid Toyota Prius vehicle control ECU connectors as shown in the illustration.
| Remove in this Direction | - | - |
Installation
INSTALLATION
CAUTION / NOTICE / HINT
NOTICE:
- After replacing the hybrid vehicle control ECU, make sure to perform update ECU security key.
- After performing the update ECU security key procedure, make sure to perform the initialization procedure for when the cable has been disconnected and reconnected to the negative (-) auxiliary battery terminal.
CAUTION / NOTICE / HINT
COMPONENTS (INSTALLATION)

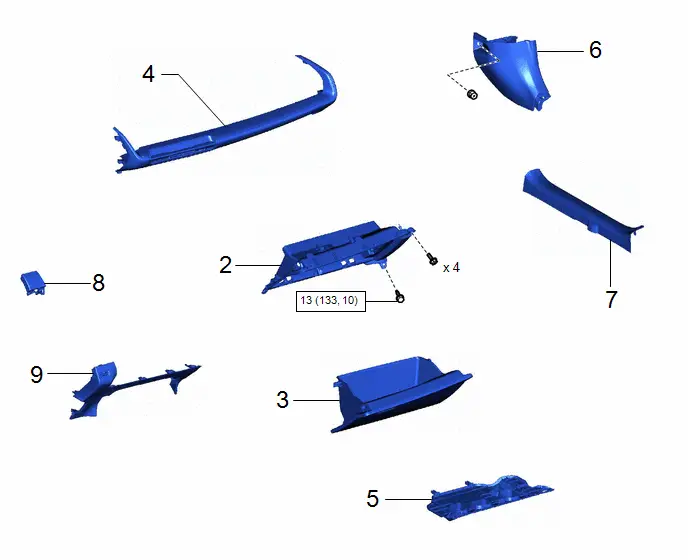

| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | HYBRID Toyota Prius Vehicle CONTROL ECU | 89981 |
| - | - |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 2 | LOWER INSTRUMENT PANEL SUB-ASSEMBLY | 55303B | - | - | - |
| 3 | GLOVE COMPARTMENT DOOR ASSEMBLY | 55550 | - | - | - |
| 4 | NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY WITH AIR CONDITIONING CONTROL ASSEMBLY | - | - | - | - |
| 5 | NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | 55607 | - | - | - |
| 6 | COWL SIDE TRIM BOARD RH | 62111C | - | - | - |
| 7 | FRONT DOOR SCUFF PLATE RH | 67913 | - | - | - |
| 8 | LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY | 55406B | - | - | - |
| 9 | LOWER CENTER INSTRUMENT PANEL FINISH PANEL | 55434B | - | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

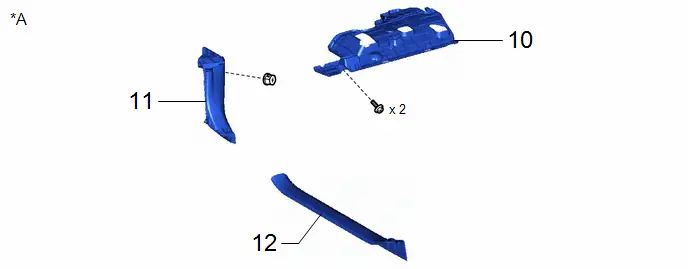

| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 10 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | 55606 | - | - | - |
| 11 | COWL SIDE TRIM BOARD LH | 62112 | - | - | - |
| 12 | FRONT DOOR SCUFF PLATE LH | 67914 | - | - | - |
| *A | w/ Knee Airbag | - | - |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|

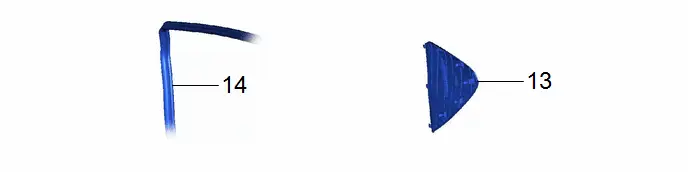

| 13 | INSTRUMENT SIDE PANEL RH | 55317A | - | - | - |
| 14 | FRONT DOOR OPENING TRIM WEATHERSTRIP RH | 62311B | - | - | - |

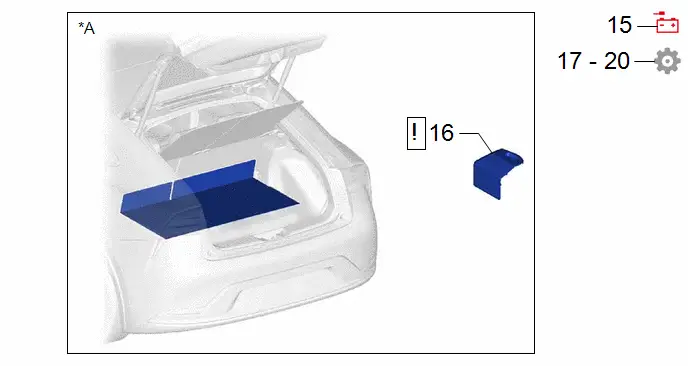

| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 15 | NEGATIVE AUXILIARY BATTERY TERMINAL | - | - | - | - |
| 16 | BATTERY SERVICE HOLE COVER ASSEMBLY | 58440 |
| - | - |
| 17 | ECU CONFIGURATION | - | - | - |
|
| 18 | UPDATE ECU SECURITY KEY | - | - | - |
|
| 19 | PERFORM REGISTRATION | - | - | - |
|
| 20 | INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL | - | - | - |
|
| *A | for M20A-FXS | - | - |
PROCEDURE

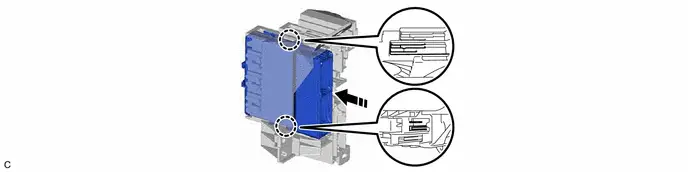

1. INSTALL HYBRID Toyota Prius Vehicle CONTROL ECU
| Install in this Direction | - | - |

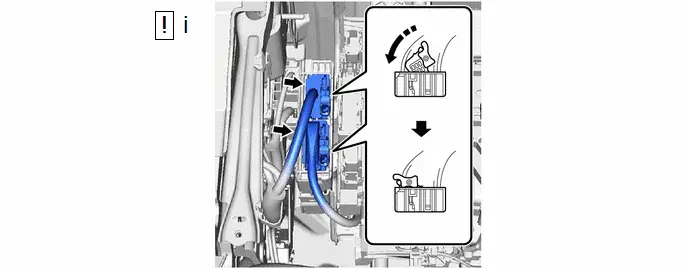

(1) Connect the 2 hybrid Toyota Prius vehicle control ECU connectors as shown in the illustration.
2. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY
Click here
3. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
4. INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY WITH AIR CONDITIONING CONTROL ASSEMBLY
5. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
6. INSTALL COWL SIDE TRIM BOARD RH
7. INSTALL FRONT DOOR SCUFF PLATE RH
8. INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
9. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL
10. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Knee Airbag)
11. INSTALL COWL SIDE TRIM BOARD LH (w/ Knee Airbag)
12. INSTALL FRONT DOOR SCUFF PLATE LH (w/ Knee Airbag)
13. INSTALL INSTRUMENT SIDE PANEL RH
14. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH
15. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
-
for M20A-FXS:
Click here
-
for 2ZR-FXE:
Click here
16. INSTALL BATTERY SERVICE HOLE COVER ASSEMBLY (for M20A-FXS)
| Click here
|
17. ECU CONFIGURATION
(a) If the hybrid Toyota Prius vehicle control ECU has been replaced, perform ECU configuration.
Click here
18. UPDATE ECU SECURITY KEY
Click here
19. PERFORM REGISTRATION
HINT:
After replacing the hybrid Toyota Prius vehicle control ECU, make sure to perform code registration.
Click here
20. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
HINT:
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
Click here
