Toyota Prius: Hybrid Transaxle Side Gear Oil Seal

Toyota Prius (XW60) 2023-2025 Service Manual / Drivetrain / Q810 (hybrid Transmission / Transaxle) / Hybrid Transaxle Side Gear Oil Seal

Components

COMPONENTS

ILLUSTRATION

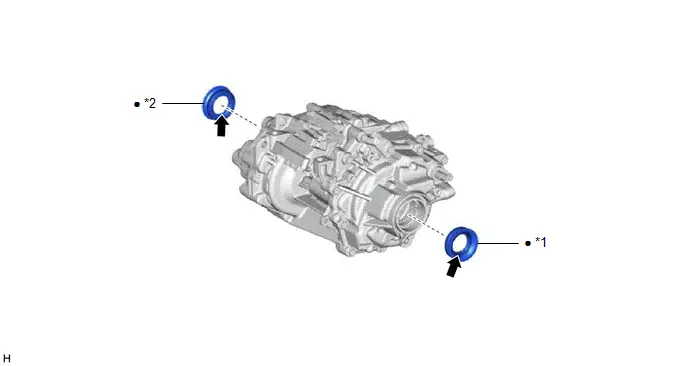

*1	DIFFERENTIAL SIDE GEAR SHAFT TYPE T OIL SEAL LH	*2	DIFFERENTIAL SIDE GEAR SHAFT TYPE T OIL SEAL RH
●	Non-reusable part		MP grease

Replacement

REPLACEMENT

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during differential side gear shaft type T oil seal LH or differential side gear shaft type T oil seal RH removal/installation are shown below.

Necessary Procedures after parts removed/installed/replaced

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
1: Also necessary after performing a tire rotation. 2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.
Suspension parts	Rear television camera assembly optical axis (Back camera position setting)	Parking Assist Monitor System
	Parking assist ECU initialization	Panoramic View Monitor System
	Parking assist ECU initialization	Advanced Park
Tires	Initialization12 Tire Position Identification12	Tire Pressure Warning System	Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System) table below
	Rear television camera assembly optical axis (Back camera position setting)	Parking Assist Monitor System
	Parking assist ECU initialization	Panoramic View Monitor System
	Parking assist ECU initialization	Advanced Park
Rear wheel alignment adjustment	Perform "Calibration"	DTCs are stored ABS warning light illuminates Brake system warning light (yellow indicator) illuminates Slip indicator light illuminates Electronically controlled brake system disabled or malfunctions

PROCEDURE

1. REMOVE DIFFERENTIAL SIDE GEAR SHAFT SUB-ASSEMBLY LH

Click here

2. REMOVE DIFFERENTIAL SIDE GEAR SHAFT SUB-ASSEMBLY RH

Click here

3. REMOVE DIFFERENTIAL SIDE GEAR SHAFT TYPE T OIL SEAL LH

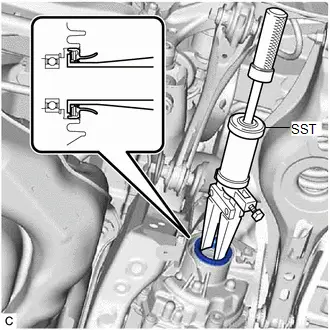

(a) Using SST, remove the differential side gear shaft type T oil seal LH from the rear traction motor with transaxle assembly.

SST: 09308-00010

NOTICE:

Do not damage the rear traction motor with transaxle assembly.

4. REMOVE DIFFERENTIAL SIDE GEAR SHAFT TYPE T OIL SEAL RH

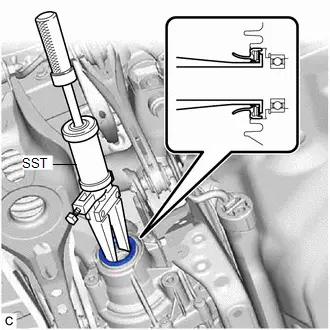

(a) Using SST, remove the differential side gear shaft type T oil seal RH from the rear traction motor with transaxle assembly.

SST: 09308-00010

NOTICE:

Do not damage the rear traction motor with transaxle assembly.

5. INSTALL DIFFERENTIAL SIDE GEAR SHAFT TYPE T OIL SEAL LH

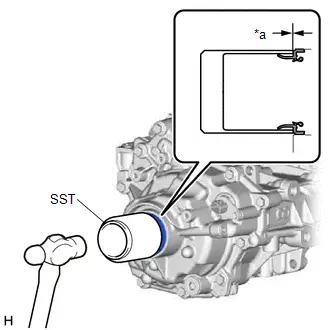

(a) Using SST and a hammer, install a new differential side gear shaft type T oil seal LH to the rear traction motor with transaxle assembly.

SST: 09223-00010

Standard Depth:

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

NOTICE:

Evenly tap in the differential side gear shaft type T oil seal LH to prevent it from being installed at an angle.
Be careful not to damage the lip of the differential side gear shaft type T oil seal LH.

Depth

(b) Coat the lip of the differential side gear shaft type T oil seal LH with a small amount of MP grease.

6. INSTALL DIFFERENTIAL SIDE GEAR SHAFT TYPE T OIL SEAL RH

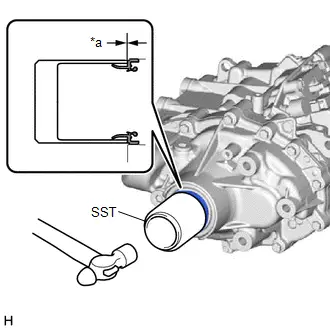

(a) Using SST and a hammer, install a new differential side gear shaft type T oil seal RH to the rear traction motor with transaxle assembly.

SST: 09223-00010

Standard Depth:

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

NOTICE:

Evenly tap in the differential side gear shaft type T oil seal RH to prevent it from being installed at an angle.
Be careful not to damage the lip of the differential side gear shaft type T oil seal RH.
