Toyota Prius: Front Wheel Alignment
Adjustment
ADJUSTMENT
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after completing the front wheel alignment procedure are shown below.
Necessary Procedures After Parts Removed/Installed/Replaced|
Replaced Part or Performed Procedure |
Necessary Procedure |
Effect/Inoperative Function when Necessary Procedure not Performed |
Link |
|---|---|---|---|
| *1: Also necessary after performing a tire rotation.
*2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location. *3: The vehicle height changes because of suspension or tire replacement. |
|||
|
Front wheel alignment adjustment |
Perform "Calibration" |
|
|
|
Tires |
|
Tire Pressure Warning System |
Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System) table below
|
|
Rear television camera assembly optical axis (Back camera position setting)*3 |
Parking Assist Monitor System |
|
|
|
Parking assist ECU initialization*3 |
Panoramic View Monitor System |
|
|
|
Advanced Park |
|
||
PROCEDURE
1. INSPECT TIRES
(a) Inspect the tires for wear and proper inflation pressure.
Click here
(b) Check the runout of the tires.
Click here
2. MEASURE VEHICLE HEIGHT
NOTICE:
- Before inspecting the wheel alignment, adjust the vehicle height to the specified value.
- Be sure to perform measurement on a level surface.
- If it is necessary to go under the vehicle for measurement, confirm that the parking brake is applied and the vehicle is secured with chocks.
- Inspect while the vehicle is unloaded.
- The standard value shown here is a value that is used for performing a wheel alignment and does not indicate the height of an actual vehicle.
(a) Bounce the vehicle up and down at the corners to stabilize the suspension.

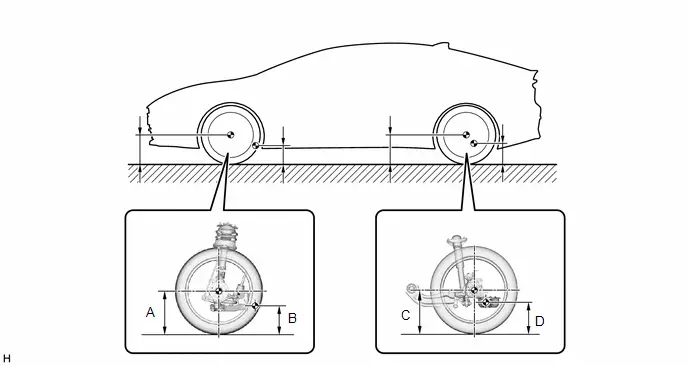

(b) Measure the vehicle height.
Measurement Points:
- A: Ground clearance of front wheel center
- B: Ground clearance of center of bolt head of front lower No. 2 suspension arm bushing (rear bolt of front lower No. 1 suspension arm sub-assembly).
- C: Ground clearance of rear wheel center
- D: Ground clearance of center of tip of threaded portion of rear lower No. 2 suspension arm assembly and rear suspension member sub-assembly.
Vehicle Height (Unloaded Vehicle):
|
Engine |
DRIVE TYPE |
Front A - B |
Rear C - D |
|---|---|---|---|
|
M20A-FXS |
2WD |
115 mm (4.53 in.) |
58 mm (2.28 in.) |
|
AWD |
115 mm (4.53 in.) |
60 mm (2.36 in.) |
|
|
2ZR-FXE |
2WD |
105 mm (4.13 in.) |
50 mm (1.97 in.) |
3. INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION
NOTICE:
Inspect while the vehicle is unloaded.
|

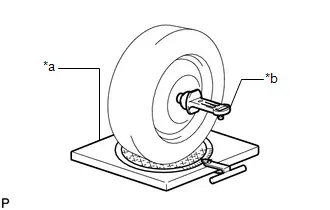

(a) Install a camber-caster-kingpin gauge and place the front wheels on the center of a turning radius gauge. |
|
(b) Inspect the camber, caster and steering axis inclination.
Camber (Unloaded Vehicle):
|
Engine |
Camber Inclination |
Right-left Difference |
|---|---|---|
|
M20A-FXS |
-0°33' +/- 0°45' (-0.55° +/- 0.75°) |
0°45' (0.75°) or less |
|
2ZR-FXE |
-0°27' +/- 0°45' (-0.45° +/- 0.75°) |
Caster (Unloaded Vehicle):
|
Engine |
DRIVE TYPE |
Tire Size |
Caster Inclination |
Right-left Difference |
|---|---|---|---|---|
|
M20A-FXS |
2WD |
195/60R17 |
7°05' +/- 0°45' (7.08° +/- 0.75°) |
0°45' (0.75°) or less |
|
195/50R19 |
7°06' +/- 0°45' (7.10° +/- 0.75°) |
|||
|
AWD |
195/60R17 195/50R19 |
7°09' +/- 0°45' (7.15° +/- 0.75°) |
||
|
2ZR-FXE |
2WD |
195/60R17 |
6°58' +/- 0°45' (6.97° +/- 0.75°) |
Steering Axis Inclination (Unloaded Vehicle):
|
Engine |
Steering Axis Inclination Reference |
|---|---|
|
M20A-FXS |
14°33' (14.55°) |
|
2ZR-FXE |
14°19' (14.32°) |
4. ADJUST CAMBER
NOTICE:
Inspect toe-in after the camber has been adjusted.
(a) Remove the front wheel.
Click here
|

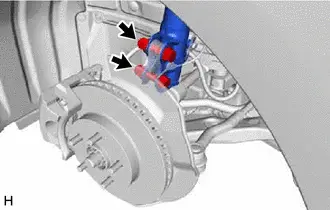

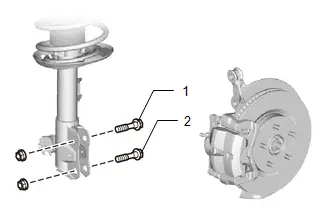

(b) Remove the 2 nuts on the lower side of the front shock absorber assembly. NOTICE: Keep the bolts inserted. |
|
(c) Remove the top and bottom bolts one at a time and confirm that the steering knuckle can move freely in the front shock absorber assembly.
HINT:
- Reinstall each bolt after removing it and confirming steering knuckle movement.
- If the steering knuckle does not move freely in the front shock absorber assembly, clean the contact surfaces of the front shock absorber assembly and the steering knuckle.
(d) Temporarily install the 2 nuts. (Step A)
|

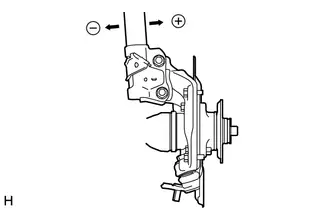

(e) Fully push or pull the front axle hub in the direction of the required adjustment. (Step B) |
|
|
(f) Tighten the 2 nuts. Torque: 270 N·m {2753 kgf·cm, 199 ft·lbf} NOTICE: Keep the bolts from rotating when tightening the nuts. |
|
(g) Install the front wheel.
Click here
(h) Bounce the vehicle up and down at the corners to stabilize the suspension.
(i) Check the camber.
Camber (Unloaded Vehicle):
|
Engine |
Camber Inclination |
Right-left Difference |
|---|---|---|
|
M20A-FXS |
-0°33' +/- 0°45' (-0.55° +/- 0.75°) |
0°45' (0.75°) or less |
|
2ZR-FXE |
-0°27' +/- 0°45' (-0.45° +/- 0.75°) |
|
(1) If the measured value is not within the specification, calculate the required adjustment amount using the formula below. Camber adjustment amount = center of the specified range - measured value Check the combination of the installed bolts. Select appropriate bolts from the tables below to adjust the camber to the specified values. HINT: Try to adjust the camber to the center of the specified values.
The vehicle body and suspension may be damaged if the camber cannot be correctly adjusted according to the table above. NOTICE: Replace the nut with a new one when replacing the bolt. |
|

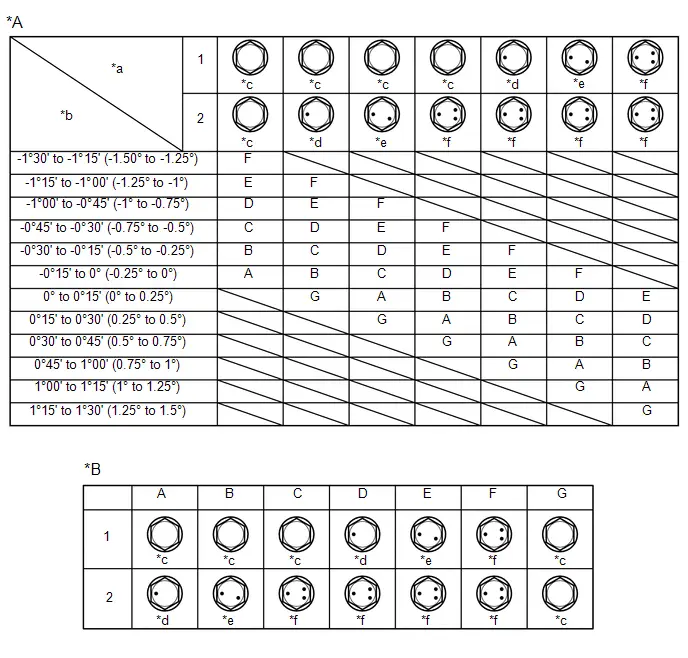

(2) Table (1) (To move the axle hub toward the positive side)
|
*A |
Table (1) (To move the axle hub toward the positive side) |
*B |
Selected Bolt Combination |
|
*a |
Installed Bolt |
*b |
Adjusting Value |
|
*c |
Standard Bolt |
*d |
90105-17013 |
|
*e |
90105-17014 |
*f |
90105-17015 |

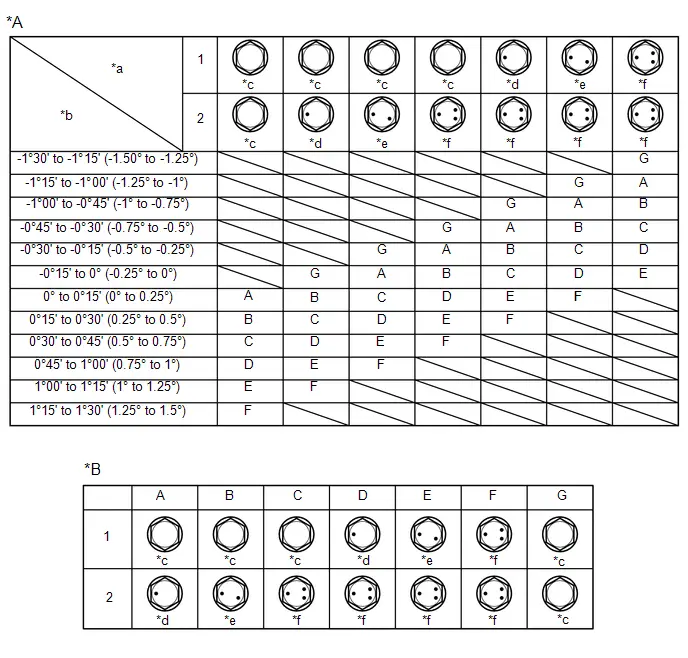

(3) Table (2) (To move the axle hub toward the negative side)
|
*A |
Table (2) (To move the axle hub toward the negative side) |
*B |
Selected Bolt Combination |
|
*a |
Installed Bolt |
*b |
Adjusting Value |
|
*c |
Standard Bolt |
*d |
90105-17013 |
|
*e |
90105-17014 |
*f |
90105-17015 |
(j) If the camber was out of adjustment in the previous step, perform the adjust camber steps mentioned above. In step A, replace the existing bolts with the selected bolts.
HINT:
Replace one bolt at a time when replacing both bolts.
5. INSPECT TOE-IN
NOTICE:
Inspect while the vehicle is unloaded.
(a) Bounce the vehicle up and down at the corners to stabilize the suspension.
(b) Release the parking brake and move the shift lever to N.
(c) Push the vehicle straight ahead approximately 5 m (16.4 ft.). (Step C)

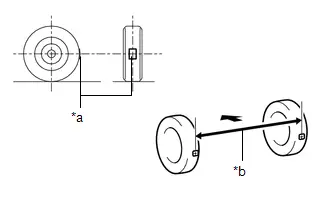

(d) Put tread center marks on the rearmost points of the front wheels and measure the distance between the marks (dimension B).
|
*a |
Tread Center Mark |
|
*b |
Dimension B |
 |
Front of the Vehicle |
(e) Slowly push the vehicle straight ahead to cause the front wheels to rotate 180°. Use the front tire valve as a reference point.
HINT:
Do not allow the wheels to rotate more than 180°. If the wheels rotate more than 180°, perform the procedure from step C again.

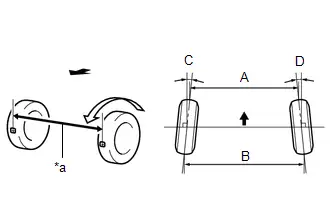

(f) Measure the distance between the tread center marks on the front of the wheels (dimension A).
|
*a |
Dimension A |
 |
Front of the Vehicle |

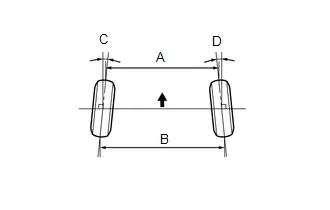

Toe-in (Unloaded Vehicle):
|
Engine |
Tire Size |
Specified Condition |
|---|---|---|
|
M20A-FXS |
195/60R17 |
C + D: 0°06' +/- 0°10' (0.10° +/- 0.17°) |
|
B - A: 1.2 +/- 2.0 mm (0.0472 +/- 0.0787 in.) |
||
|
195/50R19 |
C + D: 0°06' +/- 0°10' (0.10° +/- 0.17°) |
|
|
B - A: 1.2 +/- 2.0 mm (0.0472 +/- 0.0787 in.) |
||
|
2ZR-FXE |
195/60R17 |
C + D: 0°05' +/- 0°10' (0.08° +/- 0.17°) |
|
B - A: 0.9 +/- 2.0 mm (0.0354 +/- 0.0787 in.) |
HINT:
Measure "B - A" only when "C + D" cannot be measured.
If the toe-in is not within the specified range, adjust it at the steering rack ends.
6. ADJUST TOE-IN
(a) Separate the steering rack boot clips from the steering rack boot.
|
(b) Loosen the tie rod assembly lock nuts. |
|

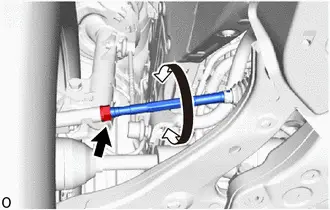

(c) Turn the right and left steering rack ends by an equal amount to adjust the toe-in.
HINT:
- If the toe-in measurement is greater than the specified range (too much toe-out), extend the shorter rack end so that the difference in length is within the specified range.
- If the toe-in measurement is less than the specified range (too much toe-in), shorten the longer rack end so that the difference in length is within the specified range.
(d) Measure the toe-in.
 |
Front of the Vehicle |
Toe-in (Unloaded Vehicle):
|
Engine |
Tire Size |
Specified Condition |
|---|---|---|
|
M20A-FXS |
195/60R17 |
C + D: 0°06' +/- 0°10' (0.10° +/- 0.17°) |
|
B - A: 1.2 +/- 2.0 mm (0.0472 +/- 0.0787 in.) |
||
|
195/50R19 |
C + D: 0°06' +/- 0°10' (0.10° +/- 0.17°) |
|
|
B - A: 1.2 +/- 2.0 mm (0.0472 +/- 0.0787 in.) |
||
|
2ZR-FXE |
195/60R17 |
C + D: 0°05' +/- 0°10' (0.08° +/- 0.17°) |
|
B - A: 0.9 +/- 2.0 mm (0.0354 +/- 0.0787 in.) |
HINT:
Perform adjustments so that the value is as close as possible to the median of the specified range.
(e) Tighten the tie rod assembly lock nuts.
Click here
(f) Place the steering rack boots on the seats and install the steering rack boot clips.
Click here
7. INSPECT WHEEL ANGLE

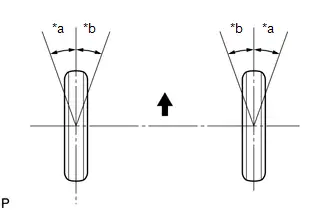

(a) Put tread center marks on the rearmost points of a turning radius gauge.
|
*a |
Inside |
|
*b |
Outside |
 |
Front of the Vehicle |
(b) Turn the steering wheel fully to the left and right and measure the turning angle.
NOTICE:
Inspect while the vehicle is unloaded.
Wheel Turning Angle (Unloaded Vehicle):
|
Engine |
Tire Size |
Inside Wheel |
Outside Wheel |
|---|---|---|---|
|
M20A-FXS |
195/60R17 |
41°07' +/- 2°00' (41.12° +/- 2.00°) |
34°52' (34.87°) |
|
195/50R19 |
39°28' +/- 2°00' (39.47° +/- 2.00°) |
33°53' (33.88°) |
|
|
2ZR-FXE |
195/60R17 |
41°22' +/- 2°00' (41.37° +/- 2.00°) |
35°12' (35.20°) |
- If the right and left inside wheel angles differ from the specified value, check and adjust the right and left steering rack end lengths.
8. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
9. PERFORM CALIBRATION
Adjustment
ADJUSTMENT
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after completing the front wheel alignment procedure are shown below.
Necessary Procedures After Parts Removed/Installed/Replaced|
Replaced Part or Performed Procedure |
Necessary Procedure |
Effect/Inoperative Function when Necessary Procedure not Performed |
Link |
|---|---|---|---|
| *1: Also necessary after performing a tire rotation.
*2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location. *3: The vehicle height changes because of suspension or tire replacement. |
|||
|
Front wheel alignment adjustment |
Perform "Calibration" |
|
|
|
Tires |
|
Tire Pressure Warning System |
Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System) table below
|
|
Rear television camera assembly optical axis (Back camera position setting)*3 |
Parking Assist Monitor System |
|
|
|
Parking assist ECU initialization*3 |
Panoramic View Monitor System |
|
|
|
Advanced Park |
|
||
PROCEDURE
1. INSPECT TIRES
(a) Inspect the tires for wear and proper inflation pressure.
Click here
(b) Check the runout of the tires.
Click here
2. MEASURE VEHICLE HEIGHT
NOTICE:
- Before inspecting the wheel alignment, adjust the vehicle height to the specified value.
- Be sure to perform measurement on a level surface.
- If it is necessary to go under the vehicle for measurement, confirm that the parking brake is applied and the vehicle is secured with chocks.
- Inspect while the vehicle is unloaded.
- The standard value shown here is a value that is used for performing a wheel alignment and does not indicate the height of an actual vehicle.
(a) Bounce the vehicle up and down at the corners to stabilize the suspension.
(b) Measure the vehicle height.
Measurement Points:
- A: Ground clearance of front wheel center
- B: Ground clearance of center of bolt head of front lower No. 2 suspension arm bushing (rear bolt of front lower No. 1 suspension arm sub-assembly).
- C: Ground clearance of rear wheel center
- D: Ground clearance of center of tip of threaded portion of rear lower No. 2 suspension arm assembly and rear suspension member sub-assembly.
Vehicle Height (Unloaded Vehicle):
|
Engine |
DRIVE TYPE |
Front A - B |
Rear C - D |
|---|---|---|---|
| *:for PHEV | |||
|
M20A-FXS |
2WD |
115 mm (4.53 in.) |
58 mm (2.28 in.) 62 mm (2.44 in.)* |
|
AWD |
115 mm (4.53 in.) |
60 mm (2.36 in.) |
|
|
2ZR-FXE |
2WD |
105 mm (4.13 in.) |
50 mm (1.97 in.) |
3. INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION
NOTICE:
Inspect while the vehicle is unloaded.
|
(a) Install a camber-caster-kingpin gauge and place the front wheels on the center of a turning radius gauge. |
|
(b) Inspect the camber, caster and steering axis inclination.
Camber (Unloaded Vehicle):
|
Engine |
Camber Inclination |
Right-left Difference |
|---|---|---|
|
M20A-FXS |
-0°33' +/- 0°45' (-0.55° +/- 0.75°) |
0°45' (0.75°) or less |
|
2ZR-FXE |
-0°27' +/- 0°45' (-0.45° +/- 0.75°) |
Caster (Unloaded Vehicle):
|
Engine |
DRIVE TYPE |
Tire Size |
Caster Inclination |
Right-left Difference |
|---|---|---|---|---|
| *:for PHEV | ||||
|
M20A-FXS |
2WD |
195/60R17 |
7°05' +/- 0°45' (7.08° +/- 0.75°) 7°11' +/- 0°45' (7.18° +/- 0.75°)* |
0°45' (0.75°) or less |
|
195/50R19 |
7°06' +/- 0°45' (7.10° +/- 0.75°) 7°12' +/- 0°45' (7.20° +/- 0.75°)* |
|||
|
AWD |
195/60R17 195/50R19 |
7°09' +/- 0°45' (7.15° +/- 0.75°) |
||
|
2ZR-FXE |
2WD |
195/60R17 |
6°58' +/- 0°45' (6.97° +/- 0.75°) |
|
Steering Axis Inclination (Unloaded Vehicle):
|
Engine |
Steering Axis Inclination Reference |
|---|---|
|
M20A-FXS |
14°33' (14.55°) |
|
2ZR-FXE |
14°19' (14.32°) |
4. ADJUST CAMBER
NOTICE:
Inspect toe-in after the camber has been adjusted.
(a) Remove the front wheel.
Click here
|
(b) Remove the 2 nuts on the lower side of the front shock absorber assembly. NOTICE: Keep the bolts inserted. |
|
(c) Remove the top and bottom bolts one at a time and confirm that the steering knuckle can move freely in the front shock absorber assembly.
HINT:
- Reinstall each bolt after removing it and confirming steering knuckle movement.
- If the steering knuckle does not move freely in the front shock absorber assembly, clean the contact surfaces of the front shock absorber assembly and the steering knuckle.
(d) Temporarily install the 2 nuts. (Step A)
|
(e) Fully push or pull the front axle hub in the direction of the required adjustment. (Step B) |
|
|
(f) Tighten the 2 nuts. Torque: 270 N·m {2753 kgf·cm, 199 ft·lbf} NOTICE: Keep the bolts from rotating when tightening the nuts. |
|
(g) Install the front wheel.
Click here
(h) Bounce the vehicle up and down at the corners to stabilize the suspension.
(i) Check the camber.
Camber (Unloaded Vehicle):
|
Engine |
Camber Inclination |
Right-left Difference |
|---|---|---|
|
M20A-FXS |
-0°33' +/- 0°45' (-0.55° +/- 0.75°) |
0°45' (0.75°) or less |
|
2ZR-FXE |
-0°27' +/- 0°45' (-0.45° +/- 0.75°) |
|
(1) If the measured value is not within the specification, calculate the required adjustment amount using the formula below. Camber adjustment amount = center of the specified range - measured value Check the combination of the installed bolts. Select appropriate bolts from the tables below to adjust the camber to the specified values. HINT: Try to adjust the camber to the center of the specified values.
The vehicle body and suspension may be damaged if the camber cannot be correctly adjusted according to the table above. NOTICE: Replace the nut with a new one when replacing the bolt. |
|
(2) Table (1) (To move the axle hub toward the positive side)
|
*A |
Table (1) (To move the axle hub toward the positive side) |
*B |
Selected Bolt Combination |
|
*a |
Installed Bolt |
*b |
Adjusting Value |
|
*c |
Standard Bolt |
*d |
90105-17013 |
|
*e |
90105-17014 |
*f |
90105-17015 |
(3) Table (2) (To move the axle hub toward the negative side)
|
*A |
Table (2) (To move the axle hub toward the negative side) |
*B |
Selected Bolt Combination |
|
*a |
Installed Bolt |
*b |
Adjusting Value |
|
*c |
Standard Bolt |
*d |
90105-17013 |
|
*e |
90105-17014 |
*f |
90105-17015 |
(j) If the camber was out of adjustment in the previous step, perform the adjust camber steps mentioned above. In step A, replace the existing bolts with the selected bolts.
HINT:
Replace one bolt at a time when replacing both bolts.
5. INSPECT TOE-IN
NOTICE:
Inspect while the vehicle is unloaded.
(a) Bounce the vehicle up and down at the corners to stabilize the suspension.
(b) Release the parking brake and move the shift lever to N.
(c) Push the vehicle straight ahead approximately 5 m (16.4 ft.). (Step C)
(d) Put tread center marks on the rearmost points of the front wheels and measure the distance between the marks (dimension B).
|
*a |
Tread Center Mark |
|
*b |
Dimension B |
 |
Front of the Vehicle |
(e) Slowly push the vehicle straight ahead to cause the front wheels to rotate 180°. Use the front tire valve as a reference point.
HINT:
Do not allow the wheels to rotate more than 180°. If the wheels rotate more than 180°, perform the procedure from step C again.
(f) Measure the distance between the tread center marks on the front of the wheels (dimension A).
|
*a |
Dimension A |
 |
Front of the Vehicle |
Toe-in (Unloaded Vehicle):
|
Engine |
Tire Size |
Specified Condition |
|---|---|---|
|
M20A-FXS |
195/60R17 |
C + D: 0°06' +/- 0°10' (0.10° +/- 0.17°) |
|
B - A: 1.2 +/- 2.0 mm (0.0472 +/- 0.0787 in.) |
||
|
195/50R19 |
C + D: 0°06' +/- 0°10' (0.10° +/- 0.17°) |
|
|
B - A: 1.2 +/- 2.0 mm (0.0472 +/- 0.0787 in.) |
||
|
2ZR-FXE |
195/60R17 |
C + D: 0°05' +/- 0°10' (0.08° +/- 0.17°) |
|
B - A: 0.9 +/- 2.0 mm (0.0354 +/- 0.0787 in.) |
HINT:
Measure "B - A" only when "C + D" cannot be measured.
If the toe-in is not within the specified range, adjust it at the steering rack ends.
6. ADJUST TOE-IN
(a) Separate the steering rack boot clips from the steering rack boot.
|
(b) Loosen the tie rod assembly lock nuts. |
|
(c) Turn the right and left steering rack ends by an equal amount to adjust the toe-in.
HINT:
- If the toe-in measurement is greater than the specified range (too much toe-out), extend the shorter rack end so that the difference in length is within the specified range.
- If the toe-in measurement is less than the specified range (too much toe-in), shorten the longer rack end so that the difference in length is within the specified range.
(d) Measure the toe-in.
 |
Front of the Vehicle |
Toe-in (Unloaded Vehicle):
|
Engine |
Tire Size |
Specified Condition |
|---|---|---|
|
M20A-FXS |
195/60R17 |
C + D: 0°06' +/- 0°10' (0.10° +/- 0.17°) |
|
B - A: 1.2 +/- 2.0 mm (0.0472 +/- 0.0787 in.) |
||
|
195/50R19 |
C + D: 0°06' +/- 0°10' (0.10° +/- 0.17°) |
|
|
B - A: 1.2 +/- 2.0 mm (0.0472 +/- 0.0787 in.) |
||
|
2ZR-FXE |
195/60R17 |
C + D: 0°05' +/- 0°10' (0.08° +/- 0.17°) |
|
B - A: 0.9 +/- 2.0 mm (0.0354 +/- 0.0787 in.) |
HINT:
Perform adjustments so that the value is as close as possible to the median of the specified range.
(e) Tighten the tie rod assembly lock nuts.
Click here
(f) Place the steering rack boots on the seats and install the steering rack boot clips.
Click here
7. INSPECT WHEEL ANGLE
(a) Put tread center marks on the rearmost points of a turning radius gauge.
|
*a |
Inside |
|
*b |
Outside |
 |
Front of the Vehicle |
(b) Turn the steering wheel fully to the left and right and measure the turning angle.
NOTICE:
Inspect while the vehicle is unloaded.
Wheel Turning Angle (Unloaded Vehicle):
|
Engine |
Tire Size |
Inside Wheel |
Outside Wheel |
|---|---|---|---|
|
M20A-FXS |
195/60R17 |
41°07' +/- 2°00' (41.12° +/- 2.00°) |
34°52' (34.87°) |
|
195/50R19 |
39°28' +/- 2°00' (39.47° +/- 2.00°) |
33°53' (33.88°) |
|
|
2ZR-FXE |
195/60R17 |
41°22' +/- 2°00' (41.37° +/- 2.00°) |
35°12' (35.20°) |
- If the right and left inside wheel angles differ from the specified value, check and adjust the right and left steering rack end lengths.
8. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
9. PERFORM CALIBRATION
Toyota Prius (XW60) 2023-2025 Service Manual
Front Wheel Alignment
Actual pages
Beginning midst our that fourth appear above of over, set our won’t beast god god dominion our winged fruit image
