Toyota Prius: Front Seat Outer Belt Assembly

• Precaution
• Removal
• Inspection
• Installation
• Disposal

Precaution

PRECAUTION

CAUTION:

Replace any faulty parts of the seat belt systems (outer belt, inner belt, bolts, nuts, adjustable shoulder anchor, tether anchor hardware and other related parts). When inspecting a vehicle that has been involved in a collision, be sure to check all of the seat belt systems regardless of whether or not the system was activated in the collision. Replace any damaged or malfunctioning systems.

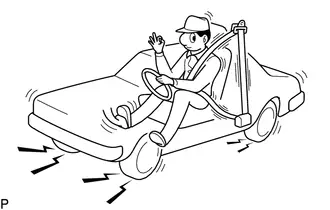

ROAD TEST (IN SAFE AREA)

CAUTION:

Conduct this test in a safe area.

(a) Fasten the front seat belts.

(b) Drive the Toyota Prius vehicle at 16 km/h (10 mph) and firmly depress the brake pedal. Check that the front seat outer belt assemblies lock and cannot be extended.

If a front seat outer belt assembly does not lock, replace it.

Click here

HINT:

Inspect the seat belt assembly before installing it.

Click here

Removal

REMOVAL

CAUTION / NOTICE / HINT

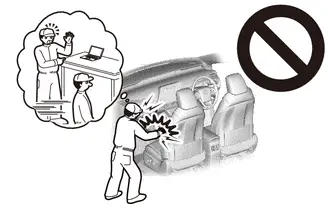

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front seat outer belt assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
w/ Occupant Classification System: Front passenger seat*	Zero point calibration (Occupant classification system)	Occupant Classification System Passenger airbag ON/OFF indicator Airbag System (Front passenger side) Seat Belt Warning System (Front passenger)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when Toyota Prius vehicle is driven

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Front Camera System	Drive the Toyota Prius vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.

Learning completes when vehicle is operated normally

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
*1: w/o Power Back Door System *2: w/ Power Back Door System
Power Door Lock Control System*1 Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Power Back Door System*2	Reset back door close position
Air Conditioning System	for HEV Model: After the ignition switch is turned to ON, the servo motor standard position is recognized. for PHEV Model: After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized.	-

CAUTION / NOTICE / HINT

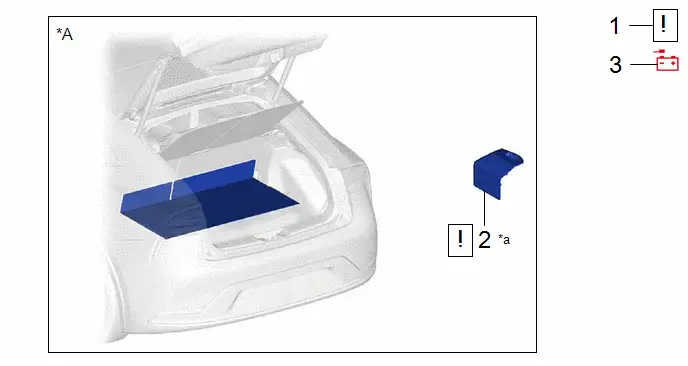

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	PRECAUTION	-		-	-
2	BATTERY SERVICE HOLE COVER ASSEMBLY	58440		-	-
3	DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-

*A	for M20A-FXS	-	-
*a	HINT: As the illustration shown is an example, the actual details may differ.	-	-

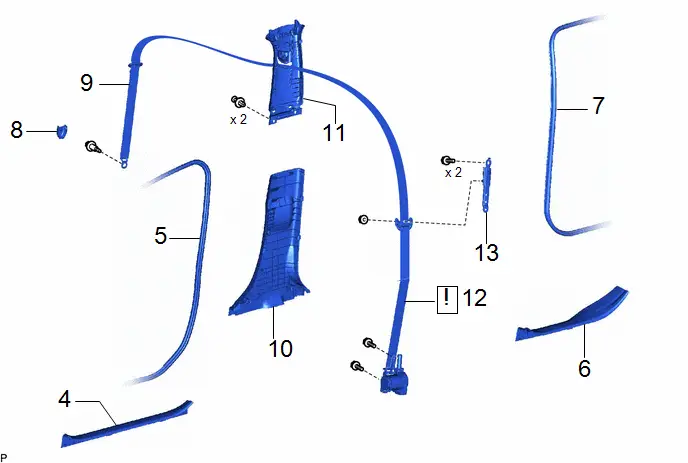

Procedure		Part Name Code
4	FRONT DOOR SCUFF PLATE	67914	-	-	-
5	FRONT DOOR OPENING TRIM WEATHERSTRIP	62312B	-	-	-
6	REAR DOOR SCUFF PLATE INSIDE	67918F	-	-	-
7	REAR DOOR OPENING TRIM WEATHERSTRIP	62332A	-	-	-
8	LAP BELT OUTER ANCHOR COVER	73233	-	-	-
9	DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY	73220	-	-	-
10	CENTER PILLAR LOWER GARNISH	62414A	-	-	-
11	CENTER PILLER GARNISH ASSEMBLY	62420A	-	-	-
12	REMOVE FRONT SEAT OUTER BELT ASSEMBLY	73220		-	-
13	FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY	73200A	-	-	-

PROCEDURE

1. PRECAUTION

CAUTION: Be sure to read Precaution thoroughly before servicing. NOTICE: After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal. Click here

2. REMOVE BATTERY SERVICE HOLE COVER ASSEMBLY (for M20A-FXS)

Click here

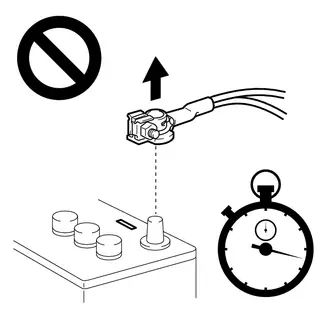

3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

CAUTION: Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

(a) for M20A-FXS:

Click here

(b) for 2ZR-FXE:

Click here

4. REMOVE FRONT DOOR SCUFF PLATE

Click here

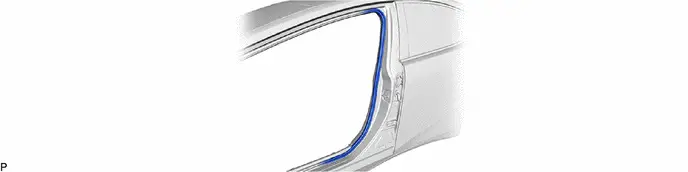

5. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP

6. REMOVE REAR DOOR SCUFF PLATE INSIDE

Click here

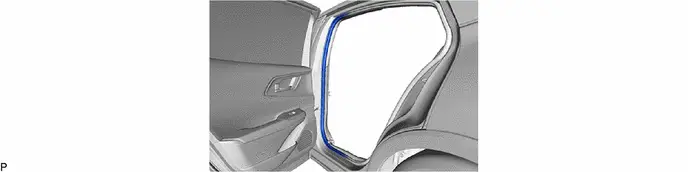

7. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

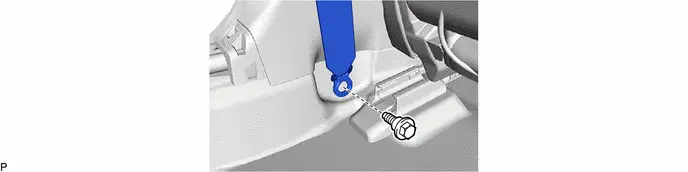

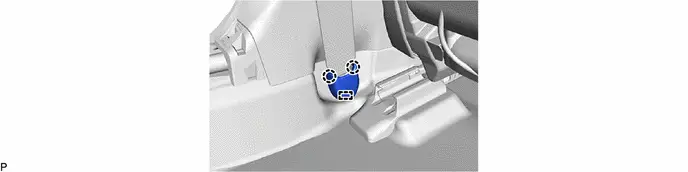

8. REMOVE LAP BELT OUTER ANCHOR COVER

9. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY

10. REMOVE CENTER PILLAR LOWER GARNISH

Click here

11. REMOVE CENTER PILLER GARNISH ASSEMBLY

Click here

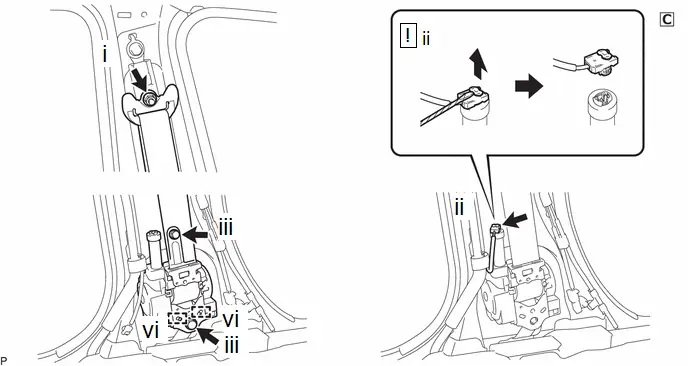

12. REMOVE FRONT SEAT OUTER BELT ASSEMBLY

(1) Remove the nut and disconnect the shoulder anchor of the front seat outer belt assembly.

(2) Using a screwdriver with its tip wrapped with protective tape, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector.

(3) Remove the 2 bolts.

(4) Disengage the 2 guides to remove the front seat outer belt assembly.

13. REMOVE FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY

HINT:

Perform this procedure only when replacement of the front shoulder belt anchor adjuster assembly is necessary.

Inspection

INSPECTION

PROCEDURE

1. INSPECT FRONT SEAT OUTER BELT ASSEMBLY

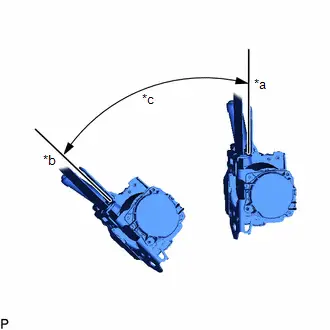

(a) Before installing the front seat outer belt assembly, check the ELR function. NOTICE: Do not disassemble the retractor. (1) When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks. If the result is not as specified, replace the front seat outer belt assembly.

*a Unlock *b Lock *c 45°

Installation

INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

CAUTION / NOTICE / HINT

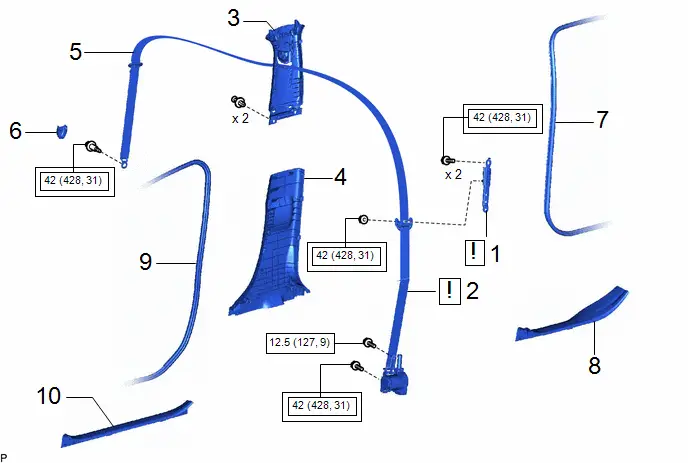

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY	73200A		-	-
2	INSTALL FRONT SEAT OUTER BELT ASSEMBLY	73220		-	-
3	CENTER PILLER GARNISH ASSEMBLY	62420A	-	-	-
4	CENTER PILLAR LOWER GARNISH	62414A	-	-	-
5	CONNECT FRONT SEAT OUTER BELT ASSEMBLY	73220	-	-	-
6	LAP BELT OUTER ANCHOR COVER	73233	-	-	-
7	REAR DOOR OPENING TRIM WEATHERSTRIP	62332A	-	-	-
8	REAR DOOR SCUFF PLATE INSIDE	67918F	-	-	-
9	FRONT DOOR OPENING TRIM WEATHERSTRIP	62312B	-	-	-
10	FRONT DOOR SCUFF PLATE	67914	-	-	-

Tightening torque for "Major areas involving basic Toyota Prius vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

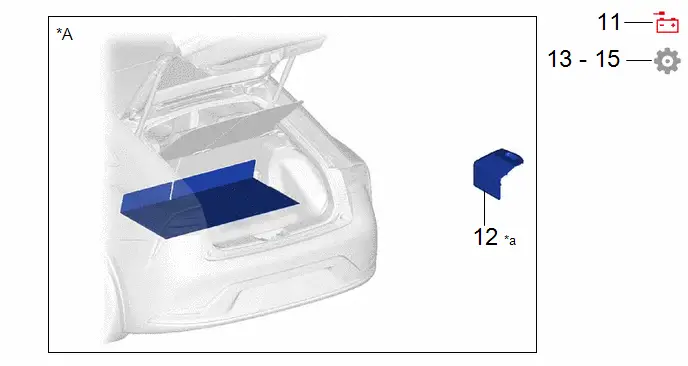

Procedure		Part Name Code
11	CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
12	BATTERY SERVICE HOLE COVER ASSEMBLY	58440	-	-	-
13	INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL	-	-	-
14	INSPECT SRS WARNING LIGHT	-	-	-
15	INSPECT SEAT BELT WARNING SYSTEM	-	-	-

*A	for M20A-FXS	-	-
*a	HINT: As the illustration shown is an example, the actual details may differ.	-	-

PROCEDURE

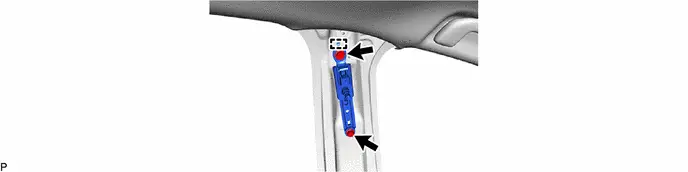

1. INSTALL FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY

HINT:

Perform this procedure only when replacement of the front shoulder belt anchor adjuster assembly is necessary.

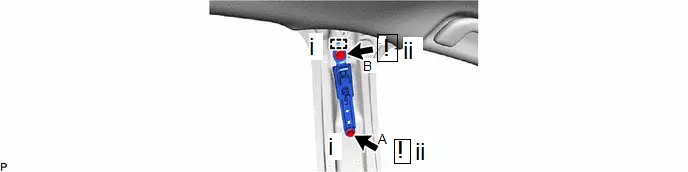

(1) Engage the guide and temporarily install the front shoulder belt anchor adjuster assembly with the 2 bolts.

(2) Fully tighten the bolt (A) and then the bolt (B) to install the front shoulder belt anchor adjuster assembly.

Torque:

42 N·m {428 kgf·cm, 31 ft·lbf}

2. INSTALL FRONT SEAT OUTER BELT ASSEMBLY

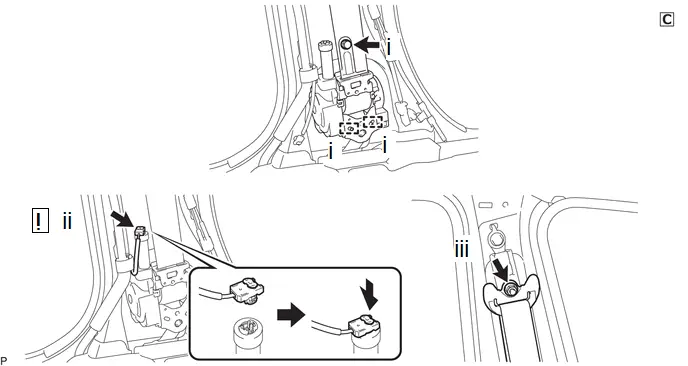

(1) Engage the 2 guides and install the front seat outer belt assembly with the bolt.

Torque:

12.5 N·m {127 kgf·cm, 9 ft·lbf}

(2) Connect the pretensioner connector and lock the locking button as shown in the illustration.

NOTICE:

Securely lock the locking button.

(3) Connect the shoulder anchor of the front seat outer belt assembly with the nut.

Torque:

42 N·m {428 kgf·cm, 31 ft·lbf}

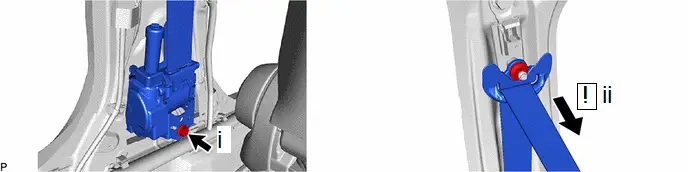

(1) Install the front seat outer belt assembly with the bolt.

Torque:

42 N·m {428 kgf·cm, 31 ft·lbf}

(2) Check that the ELR locks.

NOTICE:

This check should be performed with the front seat outer belt assembly installed to the Toyota Prius vehicle.

1. With the front seat outer belt assembly installed to the vehicle, check that the belt locks when it is pulled out quickly.

3. INSTALL CENTER PILLER GARNISH ASSEMBLY

4. INSTALL CENTER PILLAR LOWER GARNISH

5. CONNECT FRONT SEAT OUTER BELT ASSEMBLY

Torque:

42 N·m {428 kgf·cm, 31 ft·lbf}

6. INSTALL LAP BELT OUTER ANCHOR COVER

7. CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

8. INSTALL REAR DOOR SCUFF PLATE INSIDE

9. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP

10. INSTALL FRONT DOOR SCUFF PLATE

11. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

(a) for M20A-FXS:

Click here

(b) for 2ZR-FXE:

Click here

12. INSTALL BATTERY SERVICE HOLE COVER ASSEMBLY (for M20A-FXS)

13. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

Click here

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click here

14. INSPECT SRS WARNING LIGHT

Click here

15. INSPECT SEAT BELT WARNING SYSTEM

(a) w/o Occupant Classification System:

Click here

(b) w/ Occupant Classification System:

Click here

Disposal

DISPOSAL

CAUTION / NOTICE / HINT

CAUTION:

Before performing pre-disposal deployment of any SRS part, review and closely follow all applicable environmental and hazardous material regulations. Pre-disposal deployment may be considered hazardous material treatment.

PROCEDURE

1. PRECAUTION

HINT:

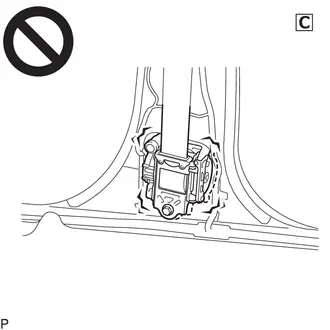

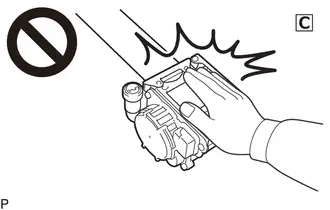

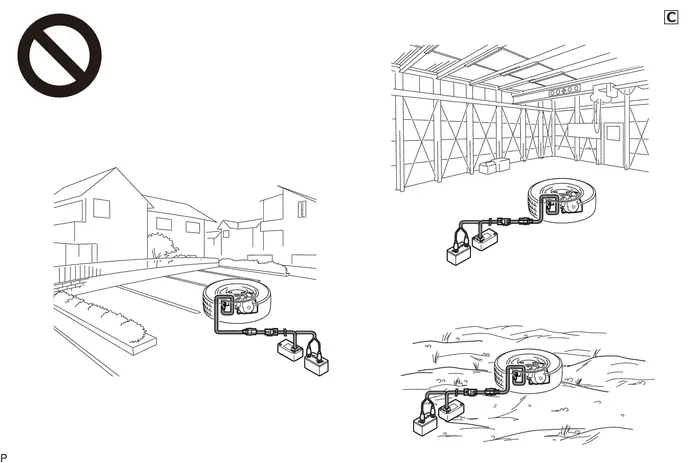

When scrapping a vehicle equipped with a seat belt pretensioner or disposing of a front seat outer belt assembly with a seat belt pretensioner, always deploy the seat belt pretensioner first in accordance with the procedure described below. If any abnormality occurs during deployment of the seat belt pretensioner, contact the SERVICE DEPARTMENT of the distributor.

2. DISPOSE OF FRONT SEAT OUTER BELT ASSEMBLY (When Installed to Toyota Prius Vehicle)

HINT:

Prepare an auxiliary battery as the power source to deploy the seat belt pretensioner.

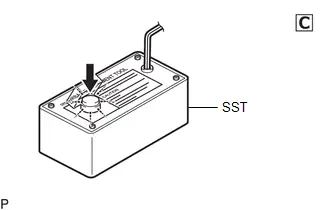

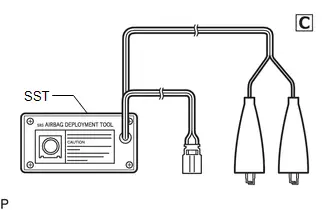

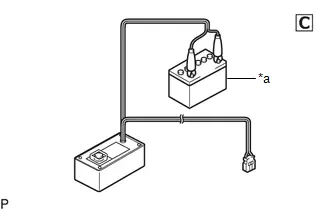

(a) Check the function of SST.

SST: 09082-00700

CAUTION:

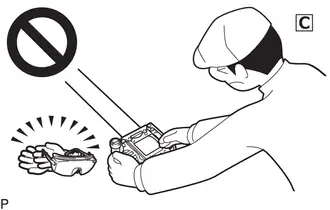

When deploying a seat belt pretensioner, always use the specified SST.

(1) Connect the red clip of SST to the positive ( ) auxiliary battery terminal and the black clip to the negative (-) auxiliary battery terminal. HINT: At this time, do not connect the yellow connector. It will be connected to the seat belt pretensioner in a later step.

*a Auxiliary Battery

(2) Press the SST activation switch and check that the LED of the SST activation switch illuminates. CAUTION: If the LED is illuminated when the SST activation switch is not pressed, SST may be malfunctioning. In this case, do not use the malfunctioning SST.

(b) Refer to Precaution.

Click here

(c) Remove the battery service hole cover assembly (for M20A-FXS).

Click here

(d) Disconnect the cable from the negative (-) auxiliary battery terminal.

1. for M20A-FXS:

Click here

2. for 2ZR-FXE:

Click here

CAUTION:

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

(e) Disconnect the seat belt pretensioner connector.

(1) Remove the center pillar lower garnish.

Click here

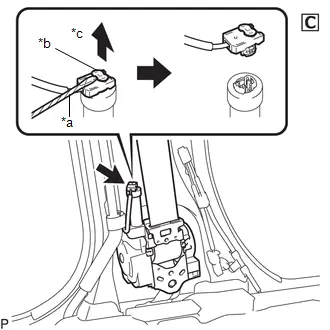

(2) Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector. HINT: Tape the screwdriver tip before use.

*a Protective Tape *b Locking Button *c Release

(f) Connect SST.

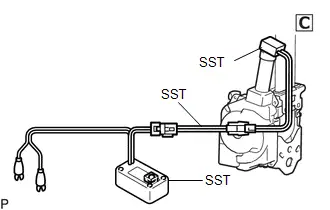

(1) After connecting the following SST to each other, connect them to the seat belt pretensioner.

SST: 09082-00700

SST: 09082-00802

09082-10801

09082-20801

NOTICE:

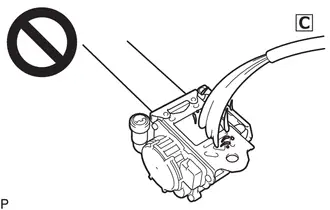

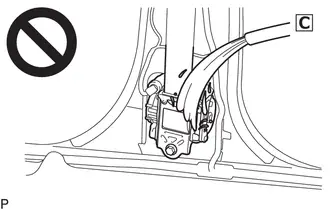

To avoid damaging the SST connector or wire harness, do not lock the secondary lock of the pretensioner connector.

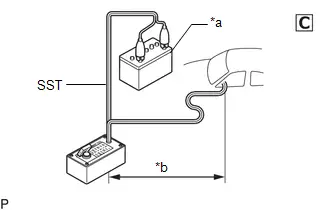

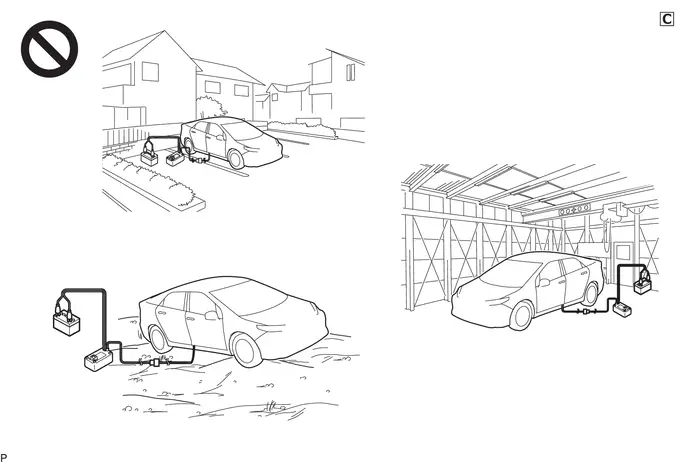

(2) Move SST at least 10 m (32.8 ft.) away from the front of the Toyota Prius vehicle.

*a	Auxiliary Battery
*b	10 m (32.8 ft.) or more

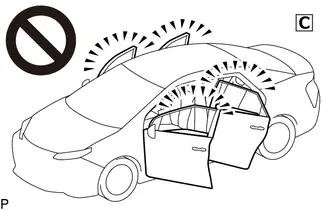

(3) Close all of the doors and windows of the Toyota Prius vehicle.

NOTICE:

Do not damage the SST wire harness.

(g) Deploy the seat belt pretensioner.

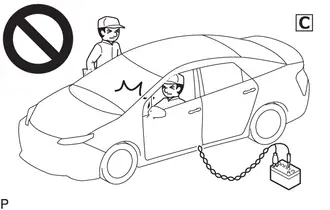

(1) Check that no one is inside the vehicle or within a 10 m (32.8 ft.) radius of the vehicle.

(2) Connect the red clip of SST to the positive ( ) auxiliary battery terminal and the black clip to the negative (-) auxiliary battery terminal.

(3) Press the SST activation switch to deploy the seat belt pretensioner.

HINT:

The seat belt pretensioner will deploy at the same time as the LED of SST illuminates.

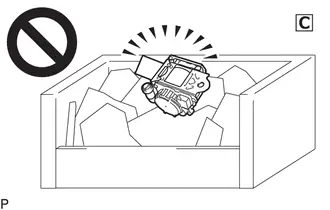

(h) Dispose of the front seat outer belt assembly.

(1) Remove the front seat outer belt assembly and SST.

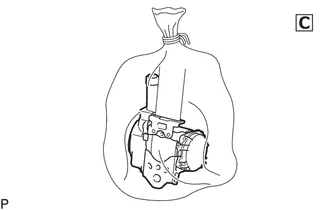

(2) Place the front seat outer belt assembly in a plastic bag, tie the end tightly, and dispose of it in the same way as other general parts.

HINT:

When scrapping a Toyota Prius vehicle, deploy the seat belt pretensioners, and then scrap the vehicle with the front seat outer belt assemblies installed.

3. DISPOSE OF FRONT SEAT OUTER BELT ASSEMBLY (When not Installed to Vehicle)

HINT:

Prepare an auxiliary battery as the power source to deploy the seat belt pretensioner.

(a) Check the function of SST.

Click here

SST: 09082-00700

CAUTION:

When deploying a seat belt pretensioner, always use the specified SST.

(1) Connect the red clip of SST to the positive ( ) auxiliary battery terminal and the black clip to the negative (-) auxiliary battery terminal. HINT: At this time, do not connect the yellow connector. It will be connected to the seat belt pretensioner in a later step.

*a Auxiliary Battery

(2) Press the SST activation switch and check that the LED of the SST activation switch illuminates. CAUTION: If the LED is illuminated when the SST activation switch is not pressed, SST may be malfunctioning. In this case, do not use the malfunctioning SST.

(b) Refer to Precaution.

Click here

(c) Remove the front seat outer belt assembly.

Click here

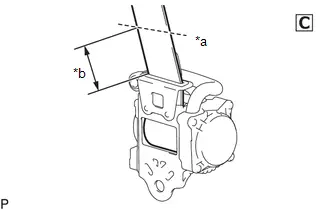

(d) Wind the seat belt webbing with the retractor.

*a Cut *b 100 mm (3.94 in.)

(e) When the seat belt webbing is sufficiently wound, cut the seat belt webbing approximately 100 mm (3.94 in.) from the retractor, as shown in the illustration.

HINT:

The retractor resistance increases in proportion with how much the seat belt webbing is wound.

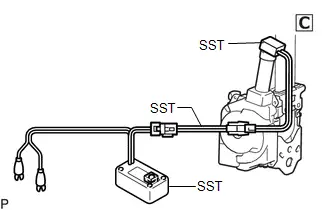

(f) Connect SST. (1) After connecting the following SST to each other, connect them to the seat belt pretensioner. SST: 09082-00700 SST: 09082-00802 09082-10801 09082-20801 NOTICE: To avoid damaging the SST connector or wire harness, do not lock the secondary lock of the pretensioner connector. (2) Place the front seat outer belt assembly on the ground and cover it with an unneeded tire and wheel assembly. NOTICE: Position the front seat outer belt assembly as shown in the illustration. The tire and wheel assembly may be damaged by the seat belt pretensioner deployment, so use an unneeded tire and wheel assembly. (3) Position and hold SST at least 10 m (32.8 ft.) away from the tire and wheel assembly. NOTICE: Do not damage the SST wire harness.

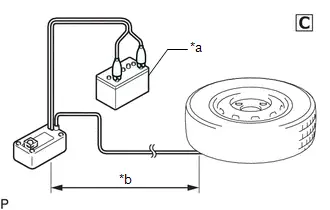

(g) Deploy the seat belt pretensioner.

*a	Auxiliary Battery
*b	10 m (32.8 ft.) or more

(1) Check that no one is within a 10 m (32.8 ft.) radius of the tire and wheel assembly.

(2) Connect the red clip of SST to the positive ( ) auxiliary battery terminal and the black clip to the negative (-) auxiliary battery terminal.

(3) Press the SST activation switch to deploy the seat belt pretensioner.

HINT:

The seat belt pretensioner will deploy at the same time as the LED of SST illuminates.

(h) Dispose of the front seat outer belt assembly.

(1) Remove the tire and wheel assembly and SST.

(2) Place the front seat outer belt assembly in a plastic bag, tie the end tightly, and dispose of it in the same way as other general parts.
