Toyota Prius: Front Seat Assembly (for Power Seat)

Toyota Prius (XW60) 2023-2025 Service Manual / Vehicle Interior / Seat / Front Seat Assembly (for Power Seat)

Removal
Disassembly
Inspection
Reassembly
Installation

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front seat assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
Position control ECU assembly LH* Front seatback frame sub-assembly LH* Front seat adjuster assembly LH* Power seat lifter motor assembly LH* Power seat tilt motor assembly LH* Upper seat track rail sub-assembly LH	Initialize position control ECU	Front Power Seat Control System (w/ Memory)

CAUTION:

Be sure to read Precaution thoroughly before servicing.
Click here
Wear protective gloves. Sharp areas on the parts may injure your hands.

NOTICE:

If the front seat airbag assembly has been deployed, replace the front seat airbag assembly, front seatback frame sub-assembly, separate type front seatback pad, separate type front seatback cover with the necessary parts in accordance with the extent of the collision damage.

CAUTION / NOTICE / HINT

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when Toyota Prius vehicle is driven

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Front Camera System	Drive the Toyota Prius vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.

Learning completes when vehicle is operated normally

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
1: w/o Power Back Door System 2: w/ Power Back Door System
Power Door Lock Control System*1 Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Power Back Door System*2	Reset back door close position
Air Conditioning System	for HEV Model: After the ignition switch is turned to ON, the servo motor standard position is recognized. for PHEV Model: After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized.	-

CAUTION / NOTICE / HINT

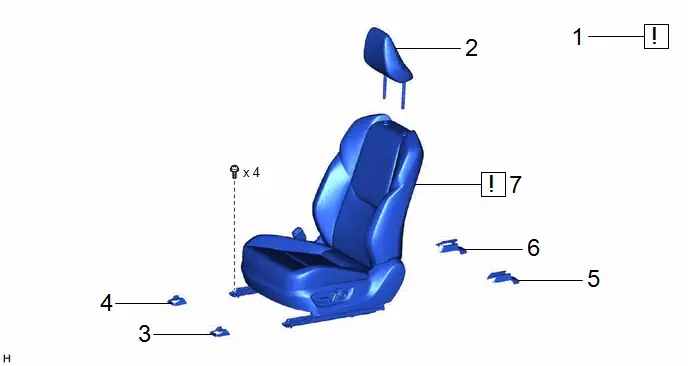

COMPONENTS (REMOVAL)

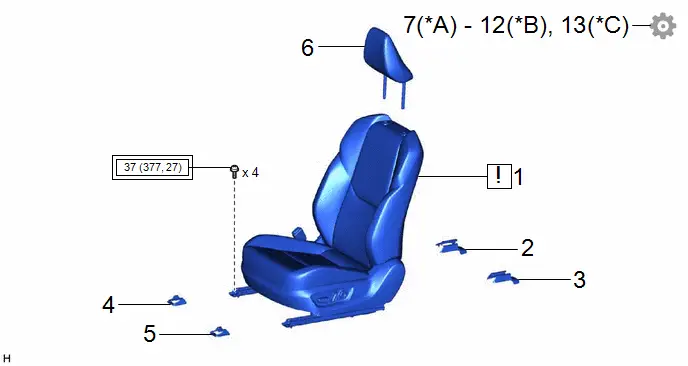

Procedure		Part Name Code
1	PRECAUTION	-		-	-
2	FRONT SEAT HEADREST ASSEMBLY	71910A	-	-	-
3	FRONT OUTER SEAT TRACK BRACKET COVER	72124	-	-	-
4	FRONT INNER SEAT TRACK BRACKET COVER	72128A	-	-	-
5	REAR OUTER SEAT TRACK BRACKET COVER	72138N	-	-	-
6	INNER SEAT TRACK BRACKET COVER	72158	-	-	-
7	FRONT SEAT ASSEMBLY	-		-	-

PROCEDURE

1. PRECAUTION

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click here

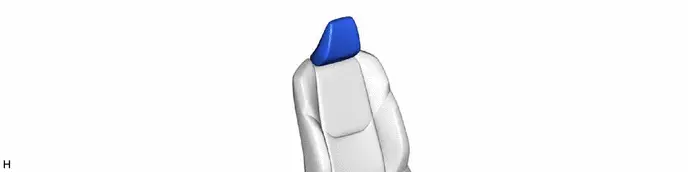

2. REMOVE FRONT SEAT HEADREST ASSEMBLY

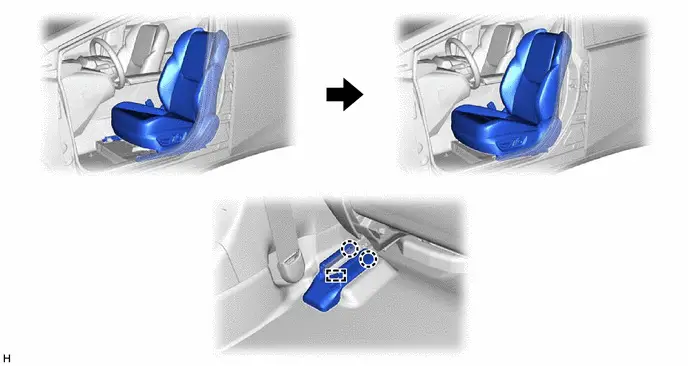

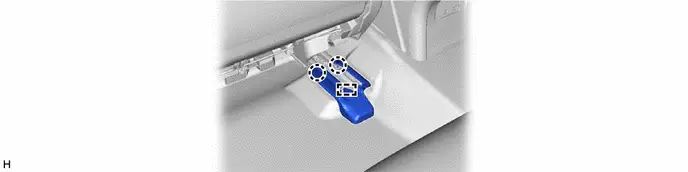

3. REMOVE FRONT OUTER SEAT TRACK BRACKET COVER

4. REMOVE FRONT INNER SEAT TRACK BRACKET COVER

5. REMOVE REAR OUTER SEAT TRACK BRACKET COVER

6. REMOVE INNER SEAT TRACK BRACKET COVER

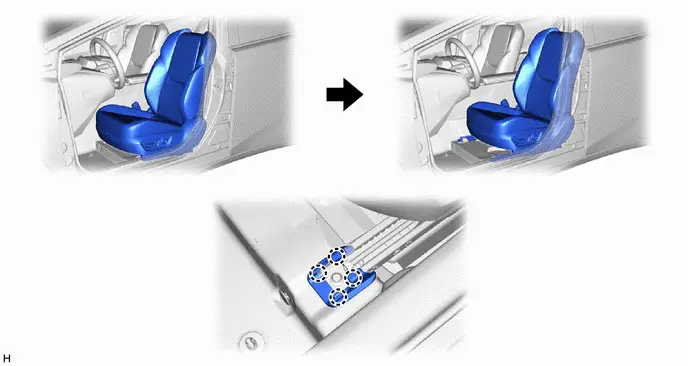

7. REMOVE FRONT SEAT ASSEMBLY

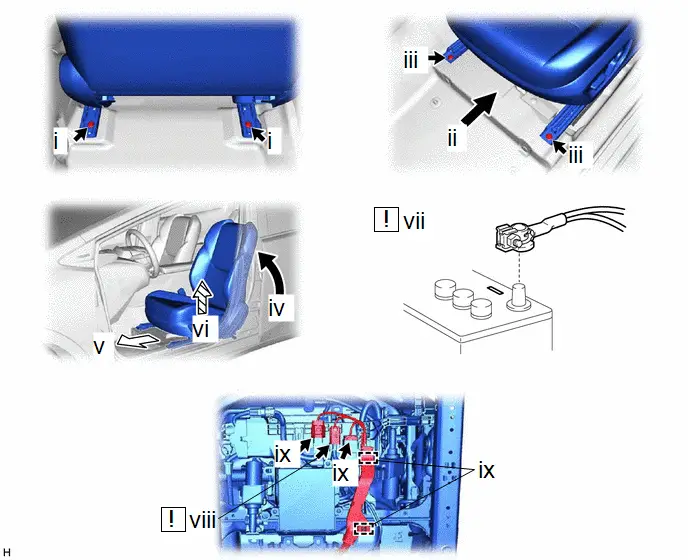

(1) Using a T50 "TORX" socket wrench, remove the 2 bolts on the rear side of the front seat assembly.

(2) Operate the slide and vertical power seat switch knob and move the front seat assembly to the rearmost position.

(3) Using a T50 "TORX" socket wrench, remove the 2 bolts on the front side of the front seat assembly.

(4) Operate the reclining power seat switch knob and move the seatback to the upright position.

(5) Operate the slide and vertical power seat switch knob and move the front seat assembly to the center position.

(6) Operate the slide and vertical power seat switch knob and move the front seat assembly to the uppermost position.

(7) Disconnect the cable from the negative (-) auxiliary battery terminal.

M20A-FXS: Click here

2ZR-FXE: Click here

CAUTION:

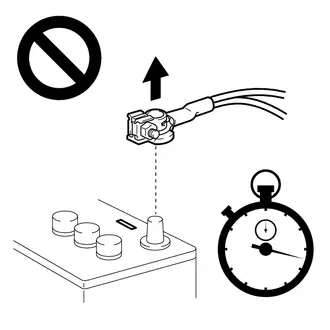

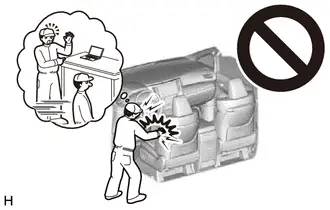

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

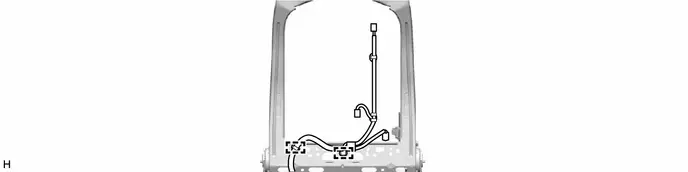

(8) Disconnect the front seat airbag assembly connector under the front seat assembly.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:

Refer to How to Connect or Disconnect Airbag Connector.

Click here

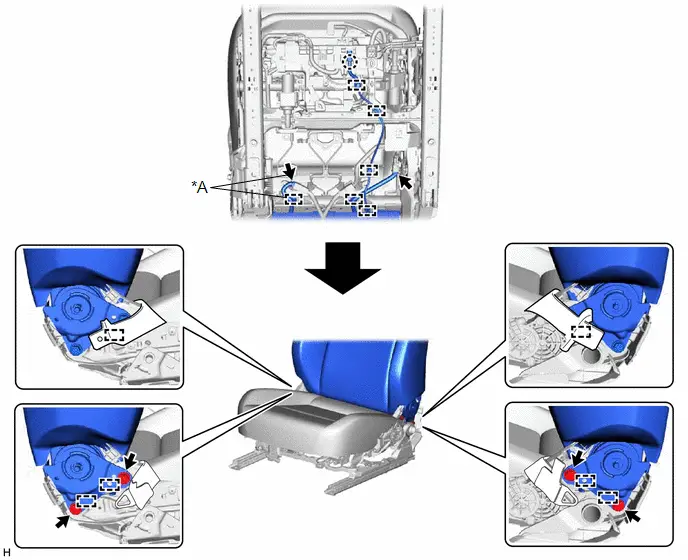

(9) Disconnect each connector and disengage each clamp under the front seat assembly.

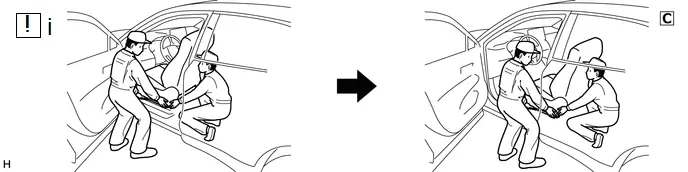

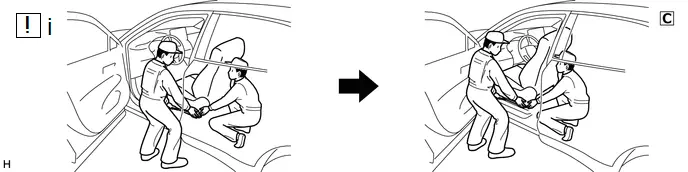

(1) Remove the front seat assembly.

NOTICE:

Be careful not to damage the Toyota Prius vehicle body.

Disassembly

DISASSEMBLY

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

CAUTION / NOTICE / HINT

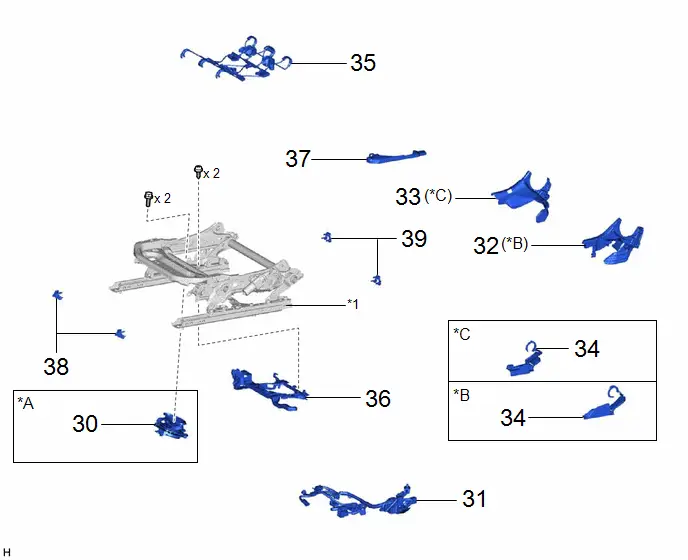

COMPONENTS (DISASSEMBLY)

Procedure		Part Name Code

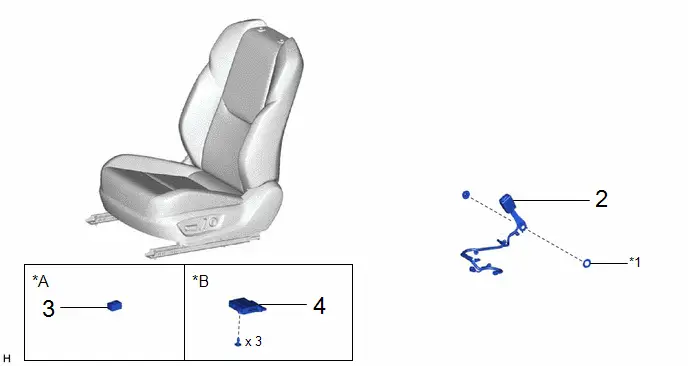

1	DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER	71074S	-	-	-

Procedure		Part Name Code
2	FRONT SEAT INNER BELT ASSEMBLY	73240	-	-	-
3	SEAT HEATER CONTROL SUB-ASSEMBLY	87501B	-	-	-
4	POSITION CONTROL ECU ASSEMBLY	89710D	-	-	-

*A	w/ Seat Heater System	*B	w/ Seat Position Memory System
*1	FRONT SEAT BELT ANCHOR PLATE	-	-

Procedure		Part Name Code

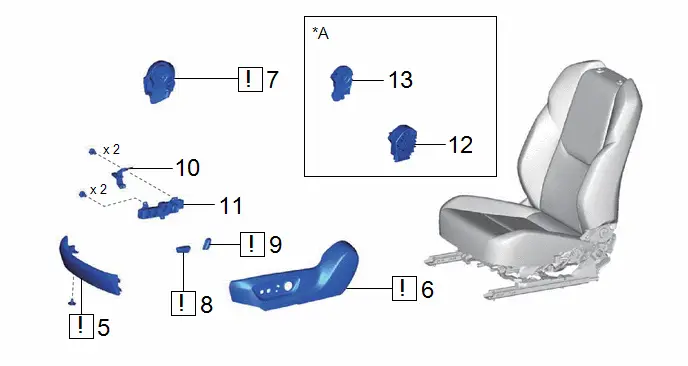

5	FRONT SEAT FRONT CUSHION SHIELD	71868N		-	-
6	FRONT SEAT CUSHION SHIELD	71812D		-	-
7	FRONT SEAT INNER CUSHION SHIELD	71862		-	-
8	SLIDE AND VERTICAL POWER SEAT SWITCH KNOB	-		-	-
9	RECLINING POWER SEAT SWITCH KNOB	-		-	-
10	SEAT ADJUSTER SHIELD CLAMP BRACKET	72714	-	-	-
11	FRONT POWER SEAT SWITCH	84922C	-	-	-
12	NO. 3 LOWER SEAT TRACK SPACER	72136B	-	-	-
13	NO. 4 LOWER SEAT TRACK SPACER	72136C	-	-	-

w/ Occupant Classification System

Procedure		Part Name Code

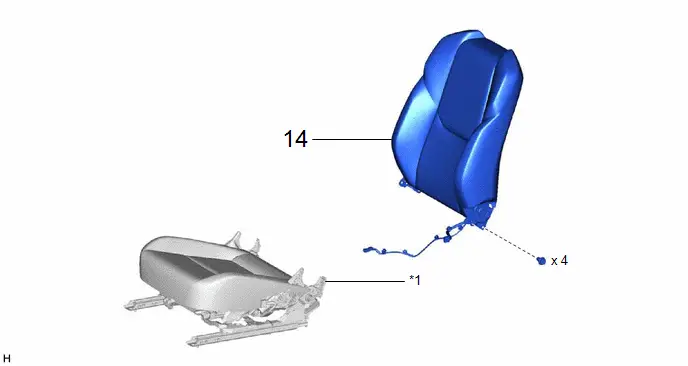

14	SEPARATE TYPE FRONT SEATBACK ASSEMBLY	-	-	-	-

SEPARATE TYPE FRONT SEAT CUSHION ASSEMBLY

Procedure		Part Name Code

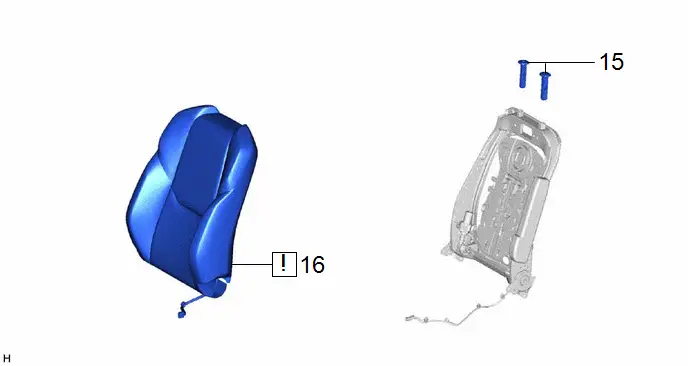

15	FRONT SEAT HEADREST SUPPORT	71931	-	-	-
16	SEPARATE TYPE FRONT SEATBACK COVER WITH PAD	-		-	-

Procedure		Part Name Code

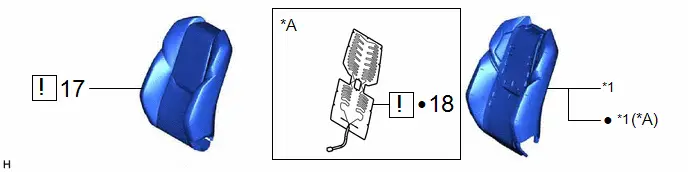

17	SEPARATE TYPE FRONT SEATBACK COVER	71074S		-	-
18	FRONT SEATBACK HEATER ASSEMBLY	87510N		-	-

*A	w/ Seat Heater System	-	-
*1	SEPARATE TYPE FRONT SEATBACK PAD	-	-
●	Non-reusable part	-	-

Procedure		Part Name Code

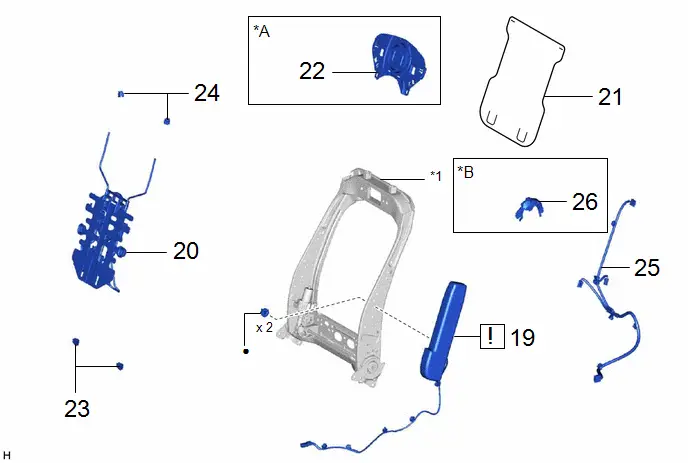

19	FRONT SEAT AIRBAG ASSEMBLY	73920A		-	-
20	LUMBAR SUPPORT ADJUSTER ASSEMBLY	72760D	-	-	-
21	FRONT SEATBACK FELT	79977H	-	-	-
22	SEATBACK CLIMATE CONTROL BLOWER	85867A	-	-	-
23	FRONT NO. 2 SEATBACK EDGE PROTECTOR	71588	-	-	-
24	FRONT NO. 2 SEATBACK HOOK	71759D	-	-	-
25	FRONT SEAT NO. 2 WIRE	8219B	-	-	-
26	NO. 2 RECLINING COVER PROTECTOR	72554M	-	-	-

*A	w/ Climate Control Seat System	*B	w/ Occupant Classification System
*1	FRONT SEATBACK FRAME SUB-ASSEMBLY	-	-
●	Non-reusable part	-	-

Procedure		Part Name Code
27	SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD	-	-	-	-

SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY

Procedure		Part Name Code

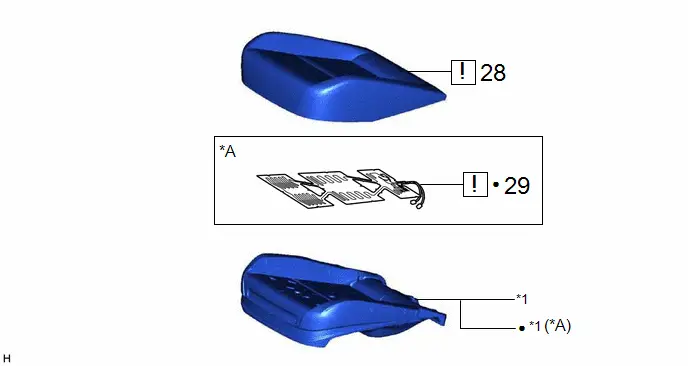

28	SEPARATE TYPE FRONT SEAT CUSHION COVER	71072S		-	-
29	FRONT SEAT CUSHION HEATER ASSEMBLY	87510L		-	-

*A	w/ Seat Heater System	-	-
*1	SEPARATE TYPE FRONT SEAT CUSHION PAD	-	-
●	Non-reusable part	-	-

Procedure		Part Name Code
30	SEAT CUSHION CLIMATE CONTROL BLOWER ASSEMBLY	85860A	-	-	-
31	FRONT SEAT WIRE	82192	-	-	-
32	LH SEAT RECLINING ADJUSTER INSIDE COVER	71876G	-	-	-
33	LH SEAT RECLINING ADJUSTER INSIDE COVER	71875G	-	-	-
34	FRONT SEAT LOWER CUSHION SHIELD	71874A	-	-	-
35	FRONT SEAT CUSHION SPRING SUB-ASSEMBLY	71052A	-	-	-
36	FRONT SEAT CUSHION WIRE HARNESS HOLDER	7181B	-	-	-
37	FRONT SEAT LOWER CUSHION SHIELD LH	71874U	-	-	-
38	SEAT TRACK UPPER RAIL COVER	72266	-	-	-
39	UPPER NO. 3 SEAT TRACK COVER	72125M	-	-	-

*A	w/ Climate Control Seat System	*B	for LH Side
*C	for RH Side	-	-
*1	FRONT SEAT ADJUSTER ASSEMBLY	-	-

Procedure		Part Name Code

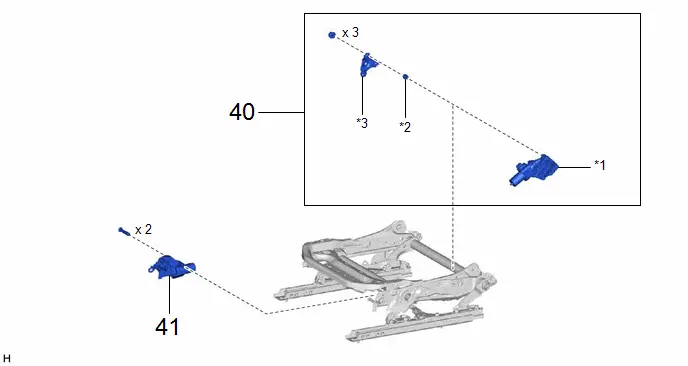

40	POWER SEAT LIFTER MOTOR ASSEMBLY	-	-	-	-
41	POWER SEAT TILT MOTOR ASSEMBLY	-	-	-	-

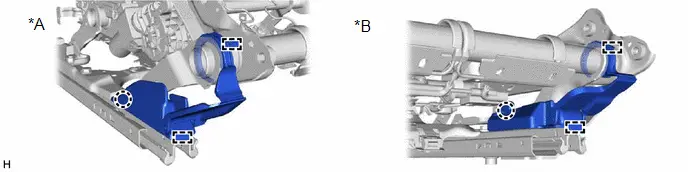

*1	FRONT SEAT VERTICAL HOUSING SUB-ASSEMBLY	*2	VERTICAL ADJUSTER SPACER
*3	FRONT SEAT ADJUSTER PLATE	-	-

Procedure		Part Name Code

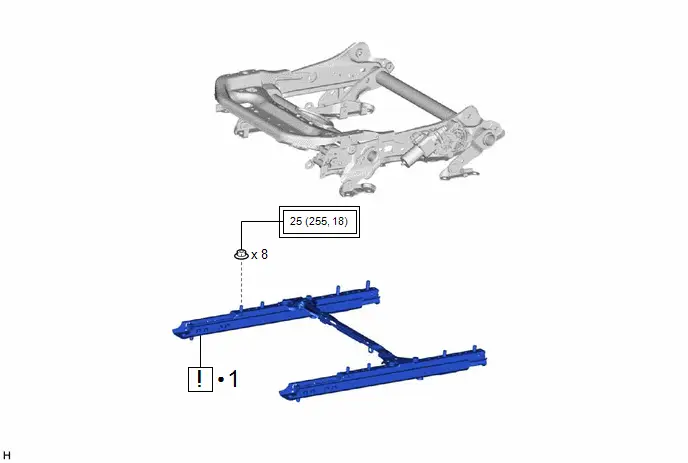

42	UPPER SEAT TRACK RAIL SUB-ASSEMBLY	-	-	-	-

●

Non-reusable part

PROCEDURE

1. DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER

2. REMOVE FRONT SEAT INNER BELT ASSEMBLY

Click here

3. REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY (w/ Seat Heater System)

Click here

4. REMOVE POSITION CONTROL ECU ASSEMBLY (w/ Seat Position Memory System)

Click here

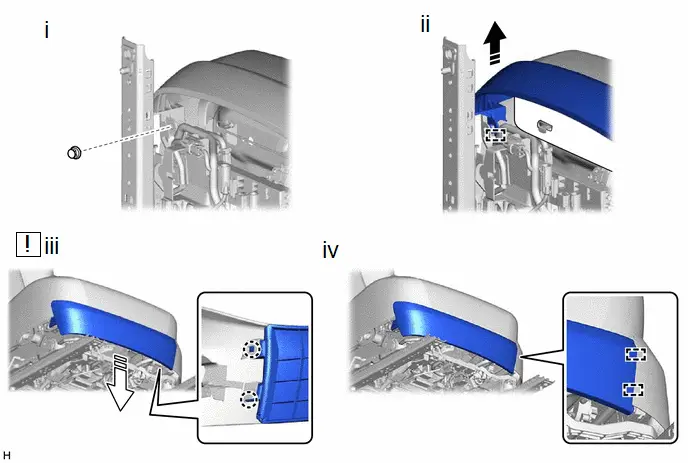

5. REMOVE FRONT SEAT FRONT CUSHION SHIELD

Remove in this Direction (1)

Remove in this Direction (2)

(1) Remove the clip.

(2) Disengage the guide as shown in the illustration.

(3) Disengage the 2 claws as shown in the illustration.

(4) Disengage the 2 guides to remove the front seat front cushion shield.

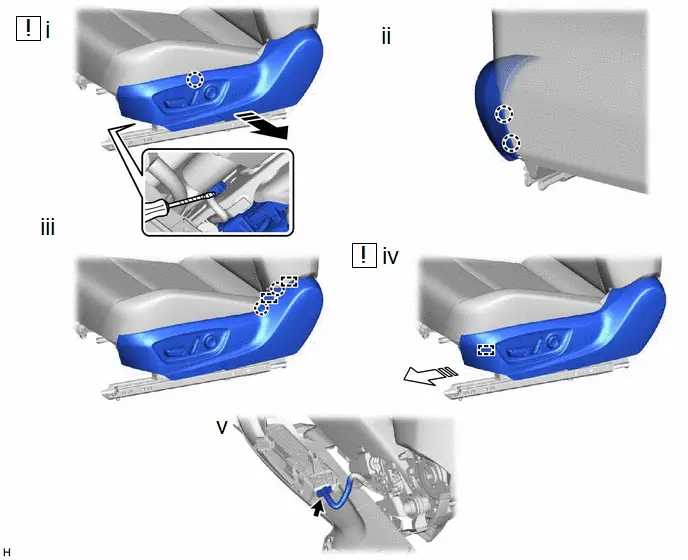

6. REMOVE FRONT SEAT CUSHION SHIELD

Remove in this Direction (1)

Remove in this Direction (2)

(1) Using a screwdriver with its tip wrapped with protective tape, disengage the claw and slightly pull the front seat cushion shield as shown in the illustration.

(2) Disengage the 2 claws.

(3) Disengage the 2 claws and 2 guides.

(4) Disengage the guide as shown in the illustration.

(5) Disconnect the front power seat switch connector to remove the front seat cushion shield.

7. REMOVE FRONT SEAT INNER CUSHION SHIELD

Remove in this Direction (1)

Remove in this Direction (2)

(1) Disengage the 2 claws and 2 guides as shown in the illustration.

(2) Disengage the 2 claws to remove the front seat inner cushion shield as shown in the illustration.

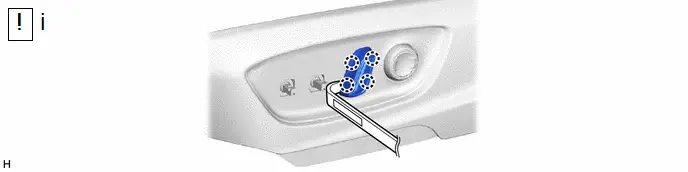

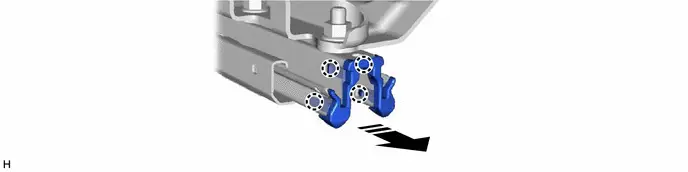

8. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

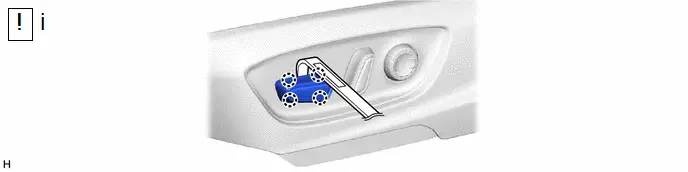

(1) Using a moulding remover, disengage the 4 claws to remove the slide and vertical power seat switch knob.

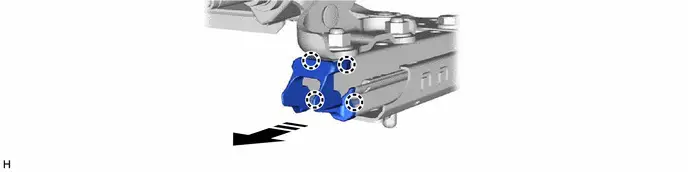

9. REMOVE RECLINING POWER SEAT SWITCH KNOB

(1) Using a moulding remover, disengage the 4 claws to remove the reclining power seat switch knob.

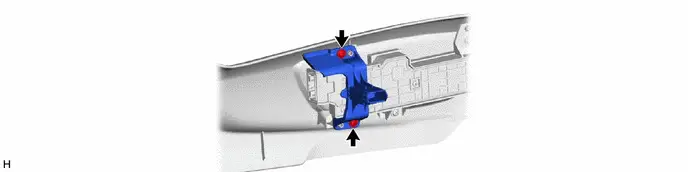

10. REMOVE SEAT ADJUSTER SHIELD CLAMP BRACKET

11. REMOVE FRONT POWER SEAT SWITCH

Click here

12. REMOVE NO. 3 LOWER SEAT TRACK SPACER (w/ Occupant Classification System)

13. REMOVE NO. 4 LOWER SEAT TRACK SPACER (w/ Occupant Classification System)

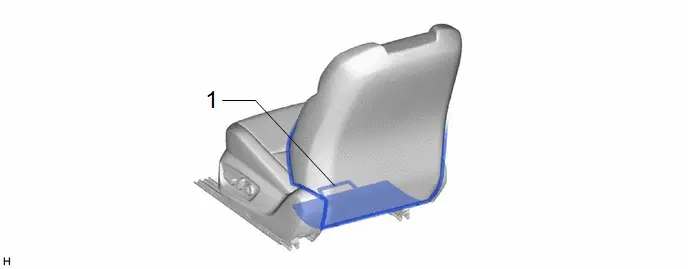

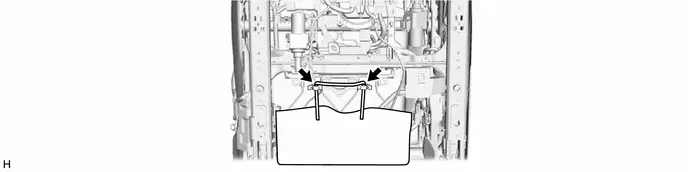

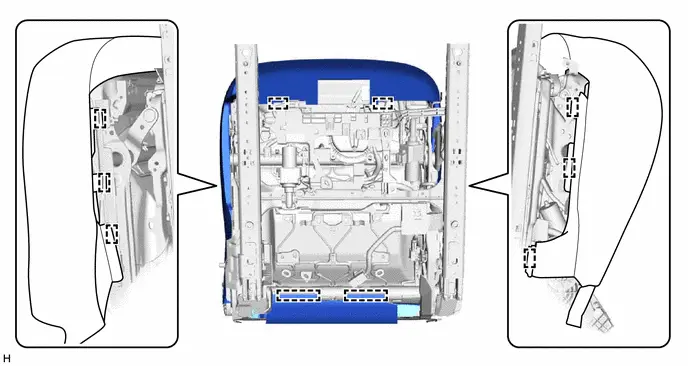

14. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

HINT:

As the illustration shown is an example, the actual details may differ.

w/ Seat Heater System

15. REMOVE FRONT SEAT HEADREST SUPPORT

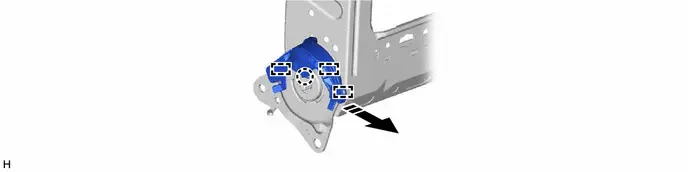

Remove in this Direction

16. REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

*A	w/ Seat Heater System	-	-
	Remove in this Direction	-	-

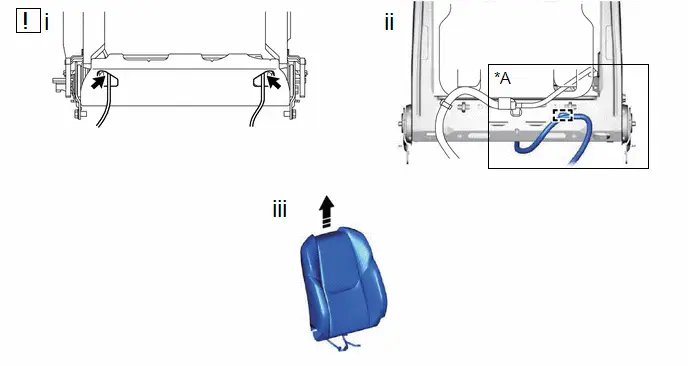

(1) Pass each wire harness through the holes of the separate type front seatback cover as shown in the illustration.

(2) Disengage the clamp. (w/ Seat Heater System)

(3) Remove the separate type front seatback cover with pad as shown in the illustration.

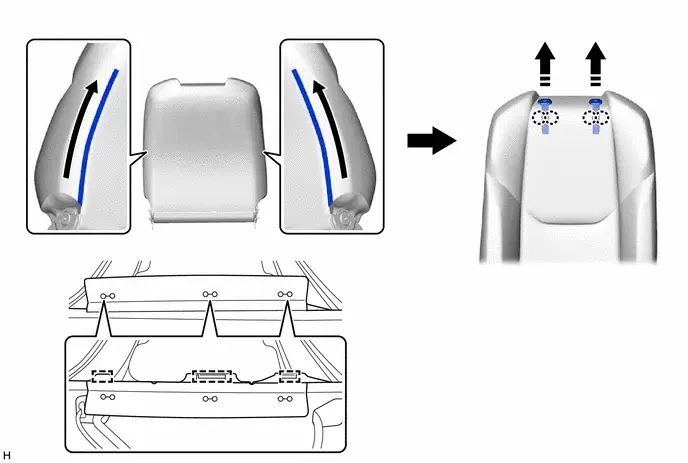

17. REMOVE SEPARATE TYPE FRONT SEATBACK COVER

Screwdriver

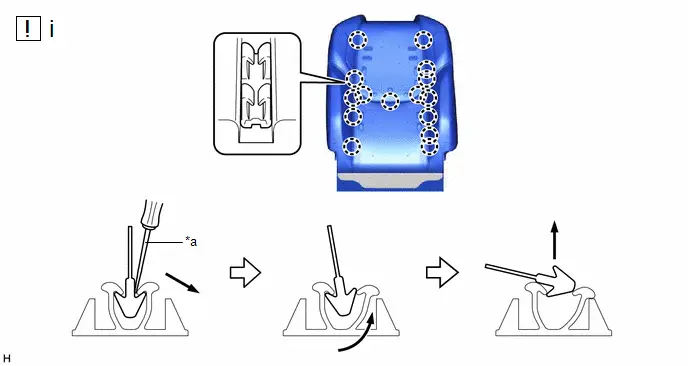

(1) Using a screwdriver, disengage the 15 claws and remove the separate type front seatback cover from the separate type front seatback pad as shown in the illustration.

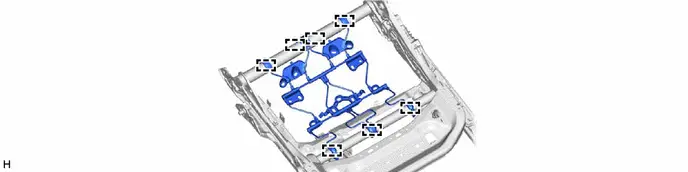

18. REMOVE FRONT SEATBACK HEATER ASSEMBLY (w/ Seat Heater System)

Click here

19. REMOVE FRONT SEAT AIRBAG ASSEMBLY

Click here

20. REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY

Click here

21. REMOVE FRONT SEATBACK FELT

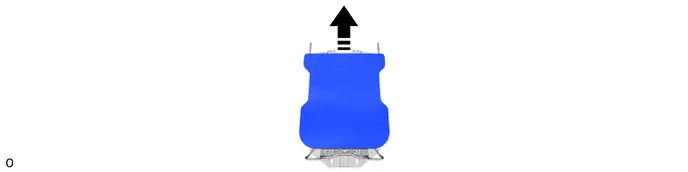

Remove in this Direction

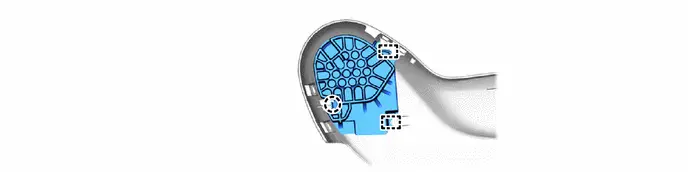

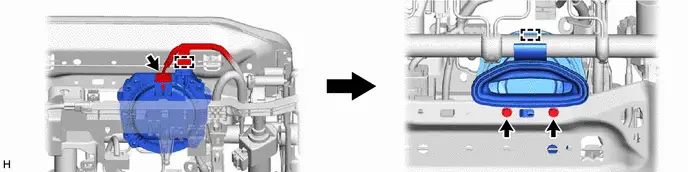

22. REMOVE SEATBACK CLIMATE CONTROL BLOWER (w/ Climate Control Seat System)

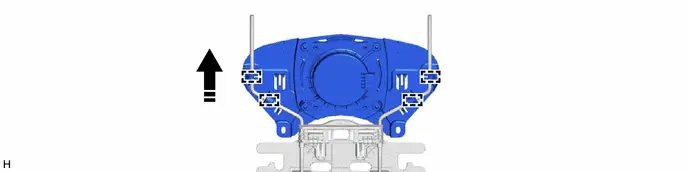

Remove in this Direction

23. REMOVE FRONT NO. 2 SEATBACK EDGE PROTECTOR

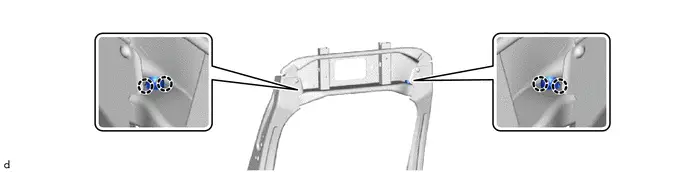

24. REMOVE FRONT NO. 2 SEATBACK HOOK

25. REMOVE FRONT SEAT NO. 2 WIRE

HINT:

As the illustration shown is an example, the actual details may differ.

26. REMOVE NO. 2 RECLINING COVER PROTECTOR (w/ Occupant Classification System)

Remove in this Direction

27. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

HINT:

As the illustration shown is an example, the actual details may differ.

(a) w/ Seat Heater System:

28. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER

Screwdriver

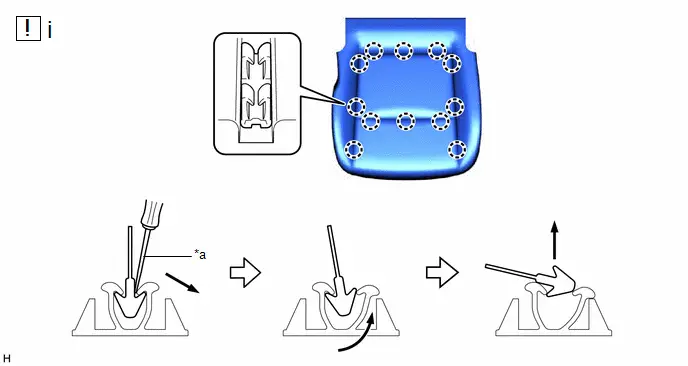

(1) Using a screwdriver, disengage the 12 claws and remove the separate type front seat cushion cover from the separate type front seat cushion pad as shown in the illustration.

29. REMOVE FRONT SEAT CUSHION HEATER ASSEMBLY (w/ Seat Heater System)

Click here

30. REMOVE SEAT CUSHION CLIMATE CONTROL BLOWER ASSEMBLY (w/ Climate Control Seat System)

31. REMOVE FRONT SEAT WIRE

HINT:

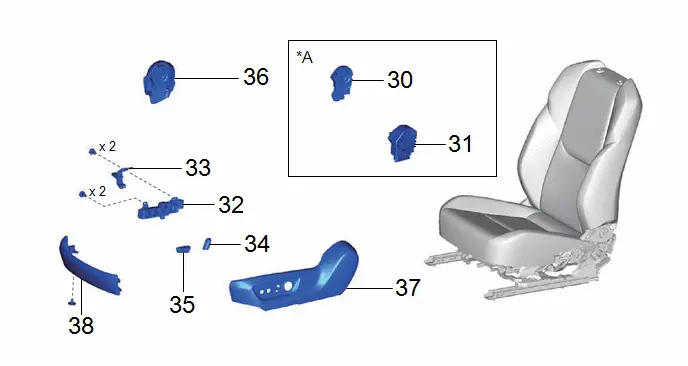

As the illustration shown is an example, the actual details may differ.

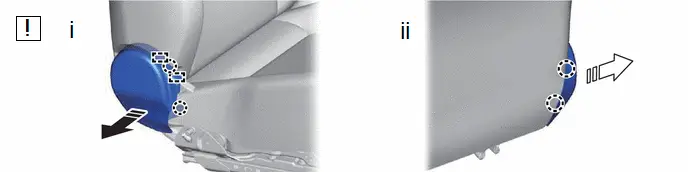

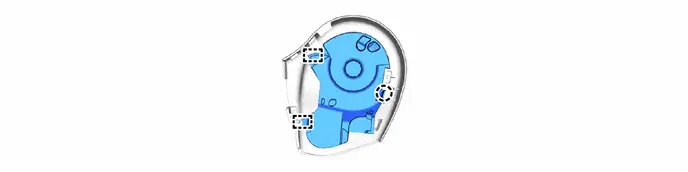

32. REMOVE LH SEAT RECLINING ADJUSTER INSIDE COVER (for LH Side)

33. REMOVE LH SEAT RECLINING ADJUSTER INSIDE COVER (for RH Side)

34. REMOVE FRONT SEAT LOWER CUSHION SHIELD

for LH Side

for RH Side

35. REMOVE FRONT SEAT CUSHION SPRING SUB-ASSEMBLY

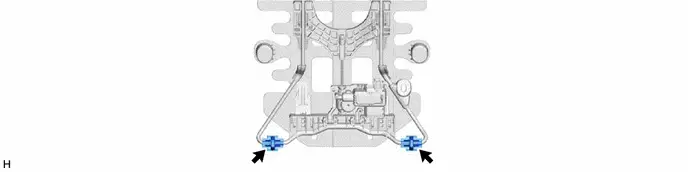

36. REMOVE FRONT SEAT CUSHION WIRE HARNESS HOLDER

Remove in this Direction

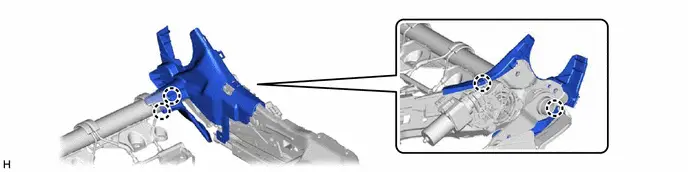

37. REMOVE FRONT SEAT LOWER CUSHION SHIELD LH

Remove in this Direction

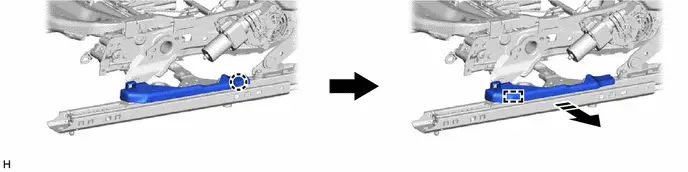

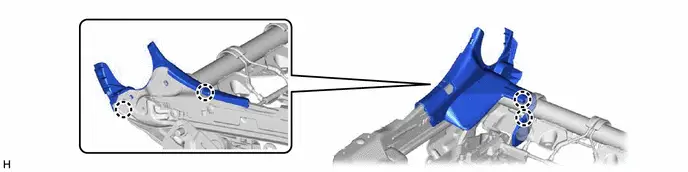

38. REMOVE SEAT TRACK UPPER RAIL COVER

Remove in this Direction

39. REMOVE UPPER NO. 3 SEAT TRACK COVER

Remove in this Direction

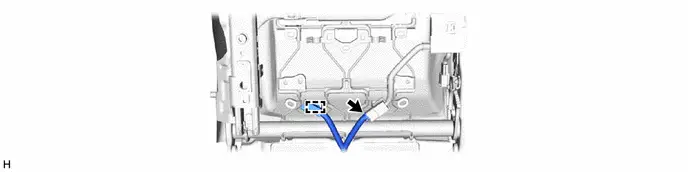

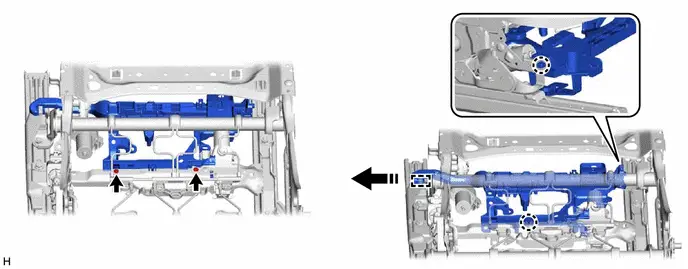

40. REMOVE POWER SEAT LIFTER MOTOR ASSEMBLY

Click here

41. REMOVE POWER SEAT TILT MOTOR ASSEMBLY

Click here

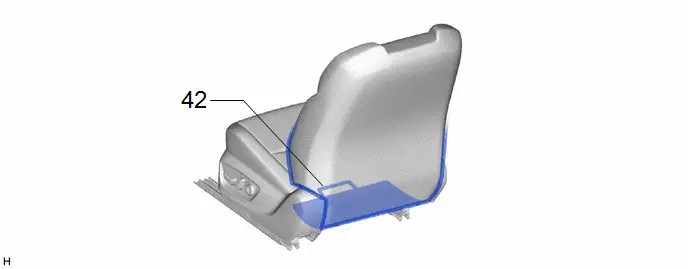

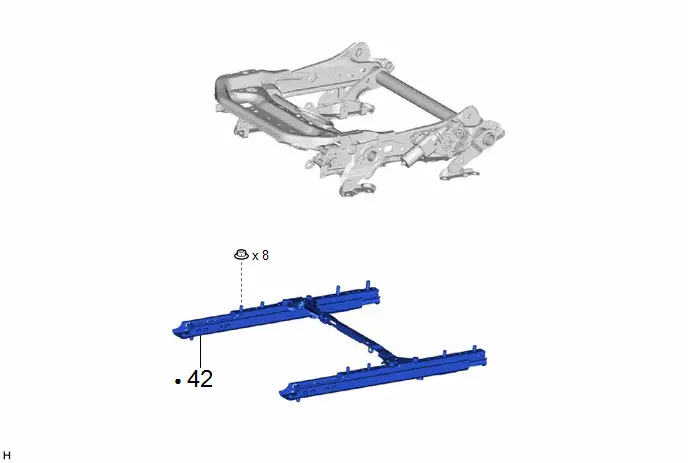

42. REMOVE UPPER SEAT TRACK RAIL SUB-ASSEMBLY

Click here

Inspection

INSPECTION

PROCEDURE

1. INSPECT FRONT SEAT ADJUSTER ASSEMBLY LH

(a) Check the operation of the slide motor.

(1) Check that the seat cushion moves forward and backward smoothly when the auxiliary battery is connected to the slide motor connector terminals.

OK:

w/ Memory

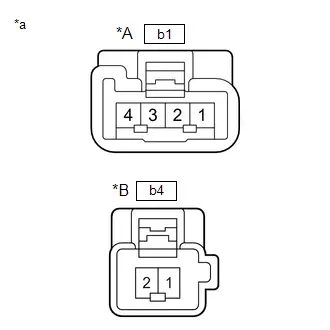

Click Location & Routing(b1) Click Connector(b1)

Tester Connection

Operational Direction

b1-4 - Auxiliary battery positive ( )

b1-1 - Auxiliary battery negative (-)

Seat cushion moves forward

b1-1 - Auxiliary battery positive ( )

b1-4 - Auxiliary battery negative (-)

Seat cushion moves backward

w/o Memory

Click Location & Routing(b4) Click Connector(b4)

Tester Connection

Operational Direction

b4-2 - Auxiliary battery positive ( )

b4-1 - Auxiliary battery negative (-)

Seat cushion moves forward

b4-1 - Auxiliary battery positive ( )

b4-2 - Auxiliary battery negative (-)

Seat cushion moves backward

If the result is not as specified, replace the front seat adjuster assembly LH.

w/ Memory

w/o Memory

Component without harness connected

(Slide Motor (Front Seat Adjuster Assembly LH))

2. INSPECT FRONT SEATBACK FRAME SUB-ASSEMBLY LH

(a) Check the operation of the reclining motor.

(1) Check that the seatback moves forward and backward smoothly when the auxiliary battery is connected to the reclining motor connector terminals.

OK:

w/ Memory

Click Location & Routing(d2) Click Connector(d2)

Tester Connection

Operational Direction

d2-4 - Auxiliary battery positive ( )

d2-1 - Auxiliary battery negative (-)

Seatback moves forward

d2-1 - Auxiliary battery positive ( )

d2-4 - Auxiliary battery negative (-)

Seatback moves backward

w/o Memory

Click Location & Routing(d4) Click Connector(d4)

Tester Connection

Operational Direction

d4-2 - Auxiliary battery positive ( )

d4-1 - Auxiliary battery negative (-)

Seatback moves forward

d4-1 - Auxiliary battery positive ( )

d4-2 - Auxiliary battery negative (-)

Seatback moves backward

If the result is not as specified, replace the front seatback frame sub-assembly LH.

w/ Memory

w/o Memory

Component without harness connected

(Reclining Motor (Front Seatback Frame Sub-assembly LH))

Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

CAUTION:

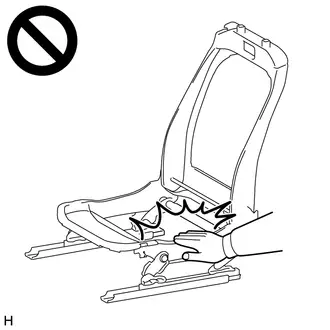

Wear protective gloves. Sharp areas on the parts may injure your hands.

CAUTION / NOTICE / HINT

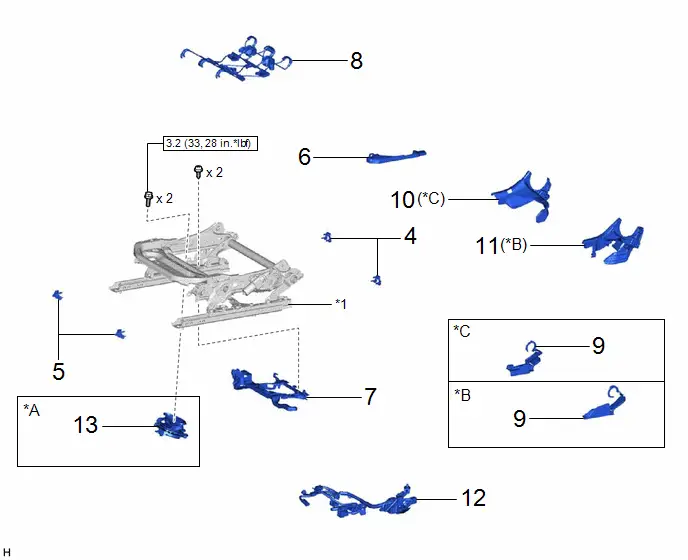

COMPONENTS (REASSEMBLY)

Procedure		Part Name Code
1	UPPER SEAT TRACK RAIL SUB-ASSEMBLY	-		-	-

Tightening torque for "Major areas involving basic Toyota Prius vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

●

Non-reusable part

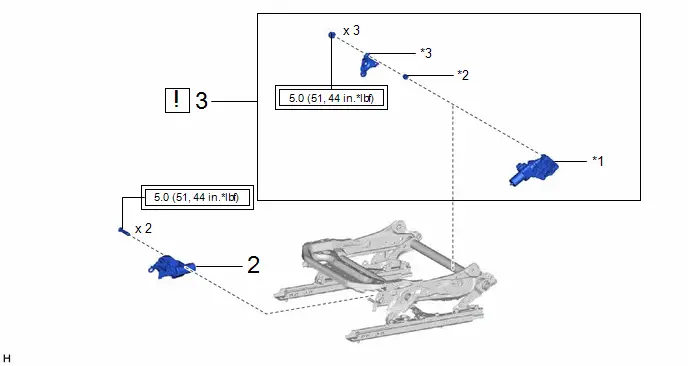

Procedure		Part Name Code
2	POWER SEAT TILT MOTOR ASSEMBLY	-	-	-	-
3	POWER SEAT LIFTER MOTOR ASSEMBLY	-		-	-

*1	FRONT SEAT VERTICAL HOUSING SUB-ASSEMBLY	*2	VERTICAL ADJUSTER SPACER
*3	FRONT SEAT ADJUSTER PLATE	-	-
	Tightening torque for "Major areas involving basic Toyota Prius vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-

Procedure		Part Name Code
4	UPPER NO. 3 SEAT TRACK COVER	72125M	-	-	-
5	SEAT TRACK UPPER RAIL COVER	72266	-	-	-
6	FRONT SEAT LOWER CUSHION SHIELD LH	71874U	-	-	-
7	FRONT SEAT CUSHION WIRE HARNESS HOLDER	7181B	-	-	-
8	FRONT SEAT CUSHION SPRING SUB-ASSEMBLY	71052A	-	-	-
9	FRONT SEAT LOWER CUSHION SHIELD	71874A	-	-	-
10	LH SEAT RECLINING ADJUSTER INSIDE COVER	71875G	-	-	-
11	LH SEAT RECLINING ADJUSTER INSIDE COVER	71876G	-	-	-
12	FRONT SEAT WIRE	82192	-	-	-
13	SEAT CUSHION CLIMATE CONTROL BLOWER ASSEMBLY	85860A	-	-	-

*A	w/ Climate Control Seat System	*B	for LH Side
*C	for RH Side	-	-
*1	FRONT SEAT ADJUSTER ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

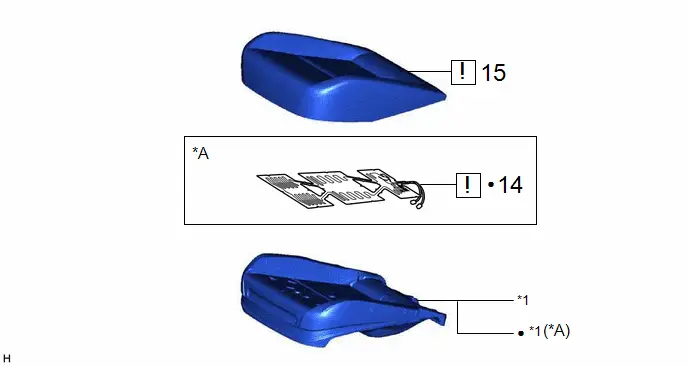

Procedure		Part Name Code
14	FRONT SEAT CUSHION HEATER ASSEMBLY	87510L		-	-
15	SEPARATE TYPE FRONT SEAT CUSHION COVER	71072S		-	-

*A	w/ Seat Heater System	-	-
*1	SEPARATE TYPE FRONT SEAT CUSHION PAD	-	-
●	Non-reusable part	-	-

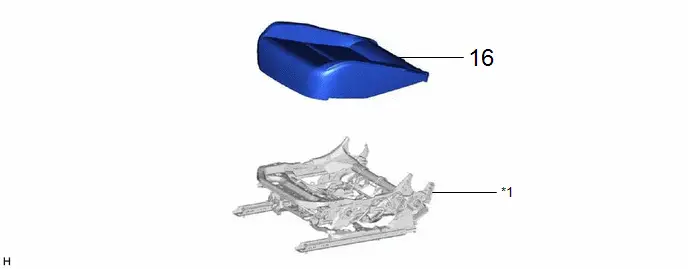

Procedure		Part Name Code
16	SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD	-	-	-	-

SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY

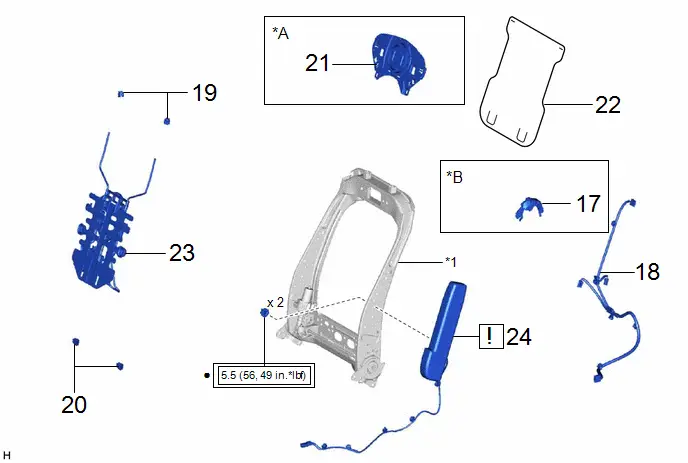

Procedure		Part Name Code
17	NO. 2 RECLINING COVER PROTECTOR	72554M	-	-	-
18	FRONT SEAT NO. 2 WIRE	8219B	-	-	-
19	FRONT NO. 2 SEATBACK HOOK	71759D	-	-	-
20	FRONT NO. 2 SEATBACK EDGE PROTECTOR	71588	-	-	-
21	SEATBACK CLIMATE CONTROL BLOWER	85867A	-	-	-
22	FRONT SEATBACK FELT	79977H	-	-	-
23	LUMBAR SUPPORT ADJUSTER ASSEMBLY	72760D	-	-	-
24	FRONT SEAT AIRBAG ASSEMBLY	73920A		-	-

*A	w/ Climate Control Seat System	*B	w/ Occupant Classification System
*1	FRONT SEATBACK FRAME SUB-ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic Toyota Prius vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	●	Non-reusable part

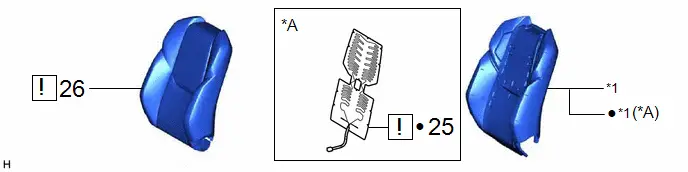

Procedure		Part Name Code
25	FRONT SEATBACK HEATER ASSEMBLY	87510N		-	-
26	SEPARATE TYPE FRONT SEATBACK COVER	71074S		-	-

*A	w/ Seat Heater System	-	-
*1	SEPARATE TYPE FRONT SEATBACK PAD	-	-
●	Non-reusable part	-	-

Procedure		Part Name Code
27	SEPARATE TYPE FRONT SEATBACK COVER WITH PAD	-	-	-	-
28	FRONT SEAT HEADREST SUPPORT	71931	-	-	-

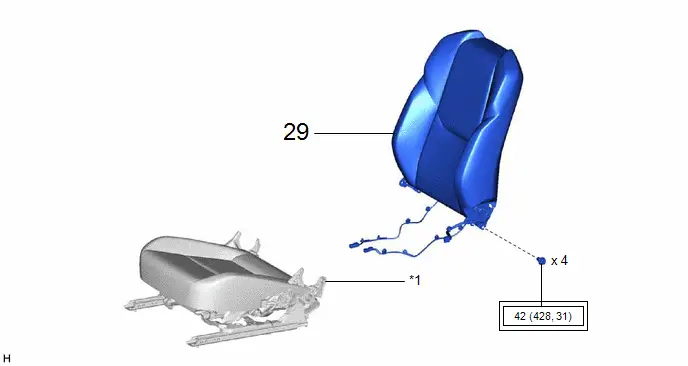

Procedure		Part Name Code
29	SEPARATE TYPE FRONT SEATBACK ASSEMBLY	-	-	-	-

*1	SEPARATE TYPE FRONT SEAT CUSHION ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic Toyota Prius vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-

Procedure		Part Name Code
30	NO. 4 LOWER SEAT TRACK SPACER	72136C	-	-	-
31	NO. 3 LOWER SEAT TRACK SPACER	72136B	-	-	-
32	FRONT POWER SEAT SWITCH	84922C	-	-	-
33	SEAT ADJUSTER SHIELD CLAMP BRACKET	72714	-	-	-
34	RECLINING POWER SEAT SWITCH KNOB	-	-	-	-
35	SLIDE AND VERTICAL POWER SEAT SWITCH KNOB	-	-	-	-
36	FRONT SEAT INNER CUSHION SHIELD	71862	-	-	-
37	FRONT SEAT CUSHION SHIELD	71812D	-	-	-
38	FRONT SEAT FRONT CUSHION SHIELD	71868N	-	-	-

w/ Occupant Classification System

Procedure		Part Name Code
39	POSITION CONTROL ECU ASSEMBLY	89710D	-	-	-
40	SEAT HEATER CONTROL SUB-ASSEMBLY	87501B	-	-	-
41	FRONT SEAT INNER BELT ASSEMBLY	73240		-	-

*A	w/ Seat Heater System	*B	w/ Seat Position Memory System
*1	FRONT SEAT BELT ANCHOR PLATE	-	-
	Tightening torque for "Major areas involving basic Toyota Prius vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-

Procedure		Part Name Code
42	CONNECT SEPARATE TYPE FRONT SEATBACK COVER	71074S	-	-	-

PROCEDURE

1. INSTALL UPPER SEAT TRACK RAIL SUB-ASSEMBLY

Click here

2. INSTALL POWER SEAT TILT MOTOR ASSEMBLY

Click here

3. INSTALL POWER SEAT LIFTER MOTOR ASSEMBLY

Click here

4. INSTALL UPPER NO. 3 SEAT TRACK COVER

5. INSTALL SEAT TRACK UPPER RAIL COVER

6. INSTALL FRONT SEAT LOWER CUSHION SHIELD LH

7. INSTALL FRONT SEAT CUSHION WIRE HARNESS HOLDER

8. INSTALL FRONT SEAT CUSHION SPRING SUB-ASSEMBLY

9. INSTALL FRONT SEAT LOWER CUSHION SHIELD

10. INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER (for RH Side)

11. INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER (for LH Side)

12. INSTALL FRONT SEAT WIRE

13. INSTALL SEAT CUSHION CLIMATE CONTROL BLOWER ASSEMBLY (w/ Climate Control Seat System)

Torque:

3.2 N·m {33 kgf·cm, 28 in·lbf}

14. INSTALL FRONT SEAT CUSHION HEATER ASSEMBLY (w/ Seat Heater System)

Click here

15. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER

NOTICE:

Be careful not to damage the separate type front seat cushion cover.
When installing a separate type front seat cushion cover, refer to Precaution in order to prevent wrinkles from forming.
Click here

16. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

17. INSTALL NO. 2 RECLINING COVER PROTECTOR (w/ Occupant Classification System)

18. INSTALL FRONT SEAT NO. 2 WIRE

19. INSTALL FRONT NO. 2 SEATBACK HOOK

20. INSTALL FRONT NO. 2 SEATBACK EDGE PROTECTOR

21. INSTALL SEATBACK CLIMATE CONTROL BLOWER (w/ Climate Control Seat System)

22. INSTALL FRONT SEATBACK FELT

23. INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY

24. INSTALL FRONT SEAT AIRBAG ASSEMBLY

Click here

25. INSTALL FRONT SEATBACK HEATER ASSEMBLY (w/ Seat Heater System)

Click here

26. INSTALL SEPARATE TYPE FRONT SEATBACK COVER

NOTICE:

Be careful not to damage the separate type front seatback cover.
When installing a separate type front seatback cover, refer to Precaution in order to prevent wrinkles from forming.

27. INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

28. INSTALL FRONT SEAT HEADREST SUPPORT

29. INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY

Torque:

42 N·m {428 kgf·cm, 31 ft·lbf}

30. INSTALL NO. 4 LOWER SEAT TRACK SPACER (w/ Occupant Classification System)

31. INSTALL NO. 3 LOWER SEAT TRACK SPACER (w/ Occupant Classification System)

32. INSTALL FRONT POWER SEAT SWITCH

33. INSTALL SEAT ADJUSTER SHIELD CLAMP BRACKET

34. INSTALL RECLINING POWER SEAT SWITCH KNOB

35. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

36. INSTALL FRONT SEAT INNER CUSHION SHIELD

37. INSTALL FRONT SEAT CUSHION SHIELD

38. INSTALL FRONT SEAT FRONT CUSHION SHIELD

39. INSTALL POSITION CONTROL ECU ASSEMBLY (w/ Seat Position Memory System)

40. INSTALL SEAT HEATER CONTROL SUB-ASSEMBLY (w/ Seat Heater System)

41. INSTALL FRONT SEAT INNER BELT ASSEMBLY

Click here

42. CONNECT SEPARATE TYPE FRONT SEATBACK COVER

Installation

INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:

Be sure to read Precaution thoroughly before servicing.
Click here
Wear protective gloves. Sharp areas on the parts may injure your hands.

NOTICE:

After replacing the position control ECU assembly, make sure to perform Send Toyota Prius vehicle information.

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	FRONT SEAT ASSEMBLY	-		-	-
2	INNER SEAT TRACK BRACKET COVER	72158	-	-	-
3	REAR OUTER SEAT TRACK BRACKET COVER	72138N	-	-	-
4	FRONT INNER SEAT TRACK BRACKET COVER	72128A	-	-	-
5	FRONT OUTER SEAT TRACK BRACKET COVER	72124	-	-	-
6	FRONT SEAT HEADREST ASSEMBLY	71910A	-	-	-
7	INITIALIZATION OF SEAT ECU	-	-	-
8	INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL	-	-	-
9	INSPECT FRONT SEAT ASSEMBLY	-	-	-
10	INSPECT SRS WARNING LIGHT	-	-	-
11	INSPECT SEAT BELT WARNING SYSTEM	-	-	-
12	CHECK SEAT HEATER	-	-	-
13	INSPECT CLIMATE CONTROL SEAT SYSTEM	-	-	-

*A	w/ Seat Position Memory System	*B	w/ Seat Heater System
*C	w/ Climate Control Seat System	-	-
	Tightening torque for "Major areas involving basic Toyota Prius vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-

PROCEDURE

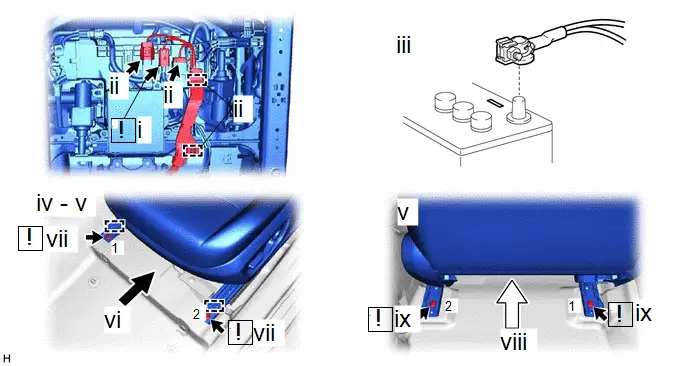

1. INSTALL FRONT SEAT ASSEMBLY

(1) Place the front seat assembly in the cabin.

NOTICE:

Be careful not to damage the Toyota Prius vehicle body.

(1) Connect the front seat airbag assembly connector under the front seat assembly.

NOTICE:

When connecting any airbag connector, take care not to damage the airbag wire harness.

HINT:

Refer to How to Connect or Disconnect Airbag Connector.

Click here

(2) Connect each connector and engage each clamp under the front seat assembly.

(3) Connect the cable to the negative (-) auxiliary battery terminal.

M20A-FXS: Click here

2ZR-FXE: Click here

(4) Insert the location pin of the front seat assembly on the seat rail front side into the hole on the Toyota Prius vehicle side.

(5) Temporarily install the front seat assembly with the 4 bolts.

(6) Operate the slide and vertical power seat switch knob and move the front seat assembly to the rearmost position.

(7) Using a T50 "TORX" socket wrench, tighten the 2 bolts on the front side of the front seat assembly.

Torque:

37 N·m {377 kgf·cm, 27 ft·lbf}

NOTICE:

Tighten the bolts in the order shown in the illustration.

(8) Operate the slide and vertical power seat switch knob and move the front seat assembly to the foremost position.

(9) Using a T50 "TORX" socket wrench, tighten the 2 bolts on the rear side of the front seat assembly.

Torque:

37 N·m {377 kgf·cm, 27 ft·lbf}

NOTICE:

Tighten the bolts in the order shown in the illustration.

2. INSTALL INNER SEAT TRACK BRACKET COVER

3. INSTALL REAR OUTER SEAT TRACK BRACKET COVER

4. INSTALL FRONT INNER SEAT TRACK BRACKET COVER

5. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER

6. INSTALL FRONT SEAT HEADREST ASSEMBLY

7. INITIALIZATION OF SEAT ECU (w/ Seat Position Memory System)

Click here

8. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click here
