Toyota Prius: Front Passenger Side Power Window Switch
Removal
REMOVAL
CAUTION / NOTICE / HINT

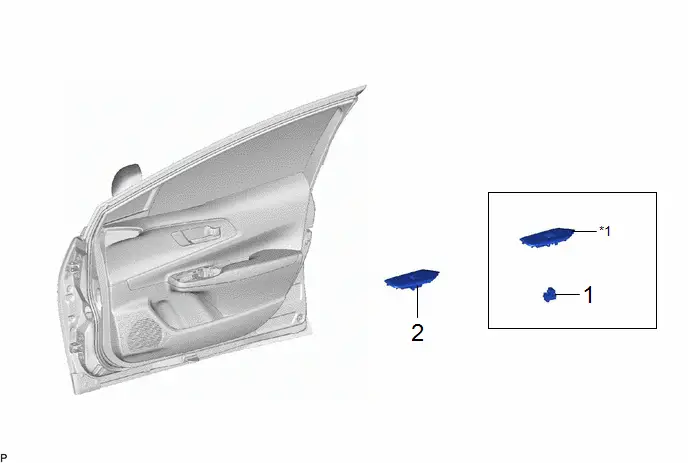

COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL | - |
| - | - |
| 2 | POWER WINDOW REGULATOR SWITCH ASSEMBLY | 84810 |
| - | - |
| *1 | FRONT DOOR UPPER ARMREST BASE PANEL | - | - |
PROCEDURE
1. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL
| Click here
|
2. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY

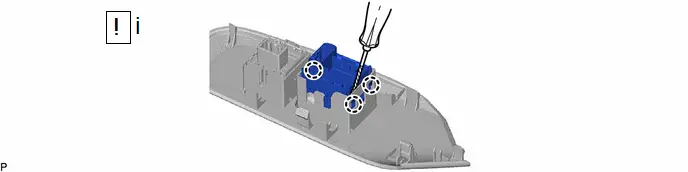

(1) Using a screwdriver with its tip wrapped with protective tape, disengage the 3 claws to remove the power window regulator switch assembly.
Inspection
INSPECTION
PROCEDURE
1. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY

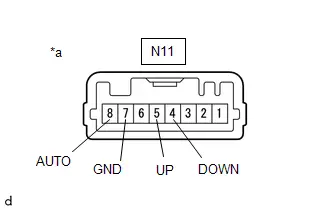

| (a) Check the switch function. (1) Measure the resistance according to the value(s) in the table below. Standard Resistance:  Click Location & Routing(N11) Click Connector(N11)
If the result is not as specified, replace the power window regulator switch assembly. |
|
(b) Check that the LED illuminates.

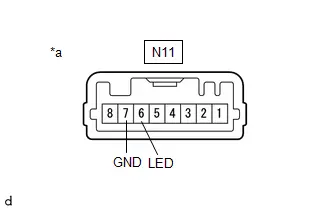

| (1) Apply auxiliary battery voltage to the power window regulator switch assembly and check that the LED illuminates. OK:
If the result is not as specified, replace the power window regulator switch assembly. |
|
Installation
INSTALLATION
CAUTION / NOTICE / HINT
COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | POWER WINDOW REGULATOR SWITCH ASSEMBLY | 84810 | - | - | - |
| 2 | POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL | - | - | - | - |
| *1 | FRONT DOOR UPPER ARMREST BASE PANEL | - | - |
PROCEDURE
1. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY
2. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL
Toyota Prius (XW60) 2023-2025 Service Manual
