Toyota Prius: Front Disc Brake Pad

Toyota Prius (XW60) 2023-2025 Service Manual / General / Maintenance / Front Disc Brake Pad

Removal
Installation

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front disc brake pad removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
1: Also necessary after performing a tire rotation. 2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location. *3: The vehicle height changes because of tire replacement.
Tires	Initialization12 Tire Position Identification12	Tire Pressure Warning System	Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System)
	Rear television camera assembly optical axis (Back camera position setting)*3	Parking Assist Monitor System
	Parking assist ECU initialization*3	Panoramic View Monitor System
	Parking assist ECU initialization*3	Advanced Park

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Items for which learning is completed by driving the vehicle

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Front Camera System	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.

Items for which learning is completed by operating the vehicle normally

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
1: w/o Power Back Door System 2: w/ Power Back Door System
Power Door Lock Control System*1 Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Power Back Door System*2	Reset back door close position
Air Conditioning System	for HEV Model: After the ignition switch is turned to ON, the servo motor standard position is recognized. for PHEV Model: After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized.	-

CAUTION / NOTICE / HINT

NOTICE:

Immediately after installing the brake pads, the braking performance may be reduced. Always perform a road test in a safe place while paying attention to the surroundings.
After replacing the front disc brake pads, the brake pedal may feel soft due to clearance between the front disc brake pads and front disc. Depress the brake pedal several times until the brake pedal feels firm.
After replacing the front disc brake pads, always perform a road test to check the braking performance and check for vibrations.
While the auxiliary battery is connected, even if the ignition switch is off, the brake control system activates when the brake pedal is depressed or any door courtesy switch turns on. Therefore, when servicing the brake system components, do not operate the brake pedal or open/close the doors while the auxiliary battery is connected.
When the brake pedal is first depressed after replacing the brake pads or pushing back the disc brake piston, DTCs may be stored. As there is no malfunction, clear the DTC.

HINT:

Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.

CAUTION / NOTICE / HINT

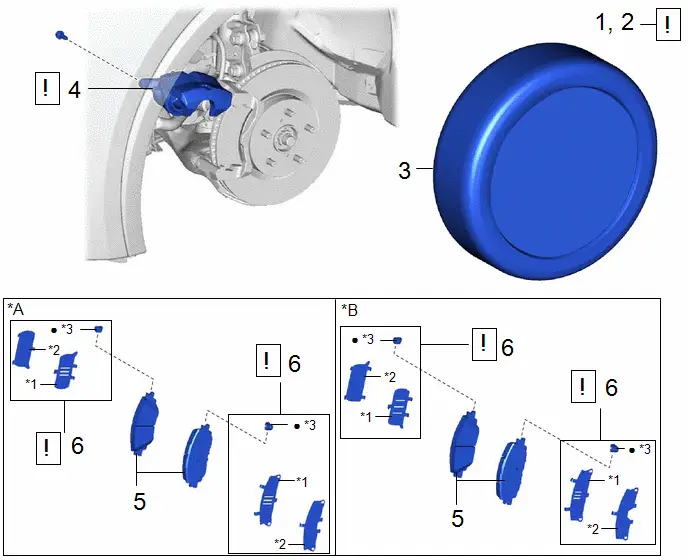

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	PRECAUTION	-		-	-
2	DISABLE BRAKE CONTROL	-		-	-
3	FRONT WHEEL	-	-	-	-
4	FRONT DISC BRAKE CYLINDER ASSEMBLY	-		-	-
5	FRONT DISC BRAKE PAD	-	-	-	-
6	FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT	04945		-	-

*A	for HEV Model AWD, PHEV Model	*B	for HEV Model 2WD
*1	FRONT NO. 1 DISC BRAKE ANTI-SQUEAL SHIM	*2	FRONT NO. 2 DISC BRAKE ANTI-SQUEAL SHIM
*3	FRONT DISC BRAKE PAD WEAR INDICATOR PLATE	-	-
●	Non-reusable part	-	-

PROCEDURE

1. PRECAUTION

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click here

2. DISABLE BRAKE CONTROL

Click here

3. REMOVE FRONT WHEEL

Click here

4. REMOVE FRONT DISC BRAKE CYLINDER ASSEMBLY

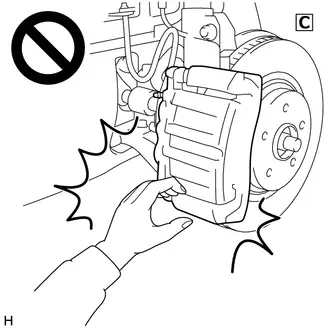

CAUTION:

Be careful not to get pinched by the front disc brake cylinder assembly or other parts when removing the front disc brake pads.
After lifting up the front disc brake cylinder assembly, secure it in place before performing any work on it.
The front disc brake cylinder assembly could fall, pinching hands or fingers and causing injury.

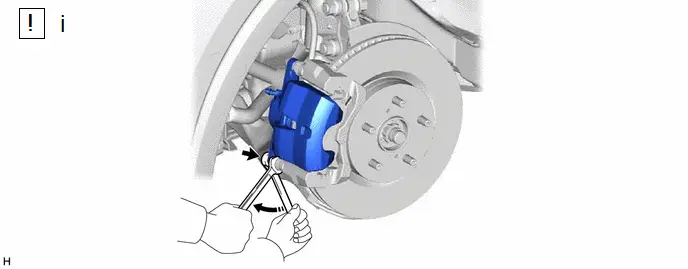

(1) Hold the front disc brake cylinder slide pin (lower side) and remove the bolt.

NOTICE:

Do not kink or damage the brake line.

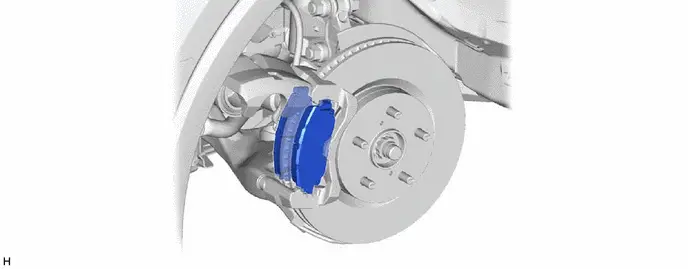

5. REMOVE FRONT DISC BRAKE PAD

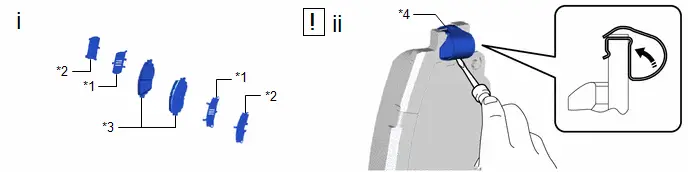

6. REMOVE FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT

*1	Front No. 1 Disc Brake Anti-squeal Shim	*2	Front No. 2 Disc Brake Anti-squeal Shim
*3	Front Disc Brake Pad	*4	Front Disc Brake Pad Wear Indicator Plate

(1) Remove the front No. 1 disc brake anti-squeal shim and front No. 2 disc brake anti-squeal shim from each front disc brake pad.

(2) Using a screwdriver, remove the front disc brake pad wear indicator plate from each front disc brake pad.

Installation

INSTALLATION

CAUTION / NOTICE / HINT

NOTICE:

Immediately after installing the front disc brake pads, the braking performance may be reduced. Always perform a road test in a safe place while paying attention to the surroundings.
After replacing the front disc brake pads, the brake pedal may feel soft due to clearance between the front disc brake pads and front disc. Depress the brake pedal several times until the brake pedal feels firm.
After replacing the front disc brake pads, always perform a road test to check the braking performance and check for vibrations.
While the auxiliary battery is connected, even if the ignition switch is off, the brake control system activates when the brake pedal is depressed or any door courtesy switch turns on. Therefore, when servicing the brake system components, do not operate the brake pedal or open/close the doors while the auxiliary battery is connected.
When the brake pedal is first depressed after replacing the brake pads or pushing back the disc brake piston, DTCs may be stored. As there is no malfunction, clear the DTC.

HINT:

Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.

CAUTION / NOTICE / HINT

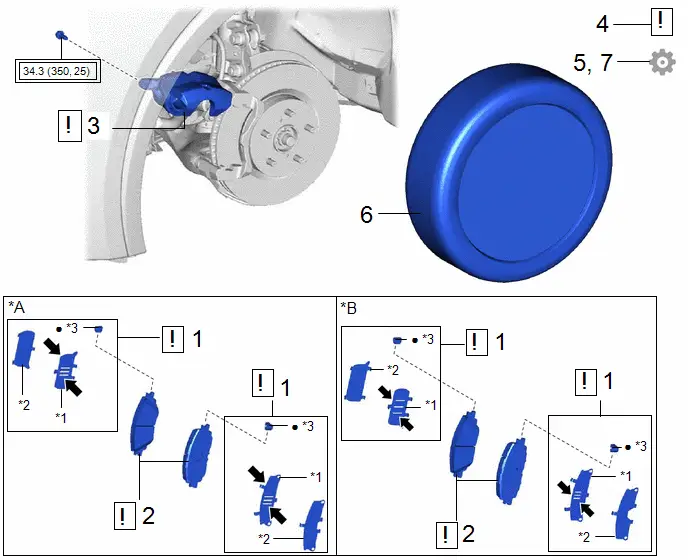

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT	04945		-	-
2	FRONT DISC BRAKE PAD	-		-	-
3	FRONT DISC BRAKE CYLINDER ASSEMBLY	-		-	-
4	CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL	-		-	-
5	INSPECT BRAKE FLUID LEVEL IN RESERVOIR	-	-	-
6	FRONT WHEEL	-	-	-	-
7	INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL	-	-	-

*A	for HEV Model AWD, PHEV Model	*B	for HEV Model 2WD
*1	FRONT NO. 1 DISC BRAKE ANTI-SQUEAL SHIM	*2	FRONT NO. 2 DISC BRAKE ANTI-SQUEAL SHIM
*3	FRONT DISC BRAKE PAD WEAR INDICATOR PLATE	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	●	Non-reusable part
	Brake shim grease (Part No. 08887-80409)	-	-

PROCEDURE

1. INSTALL FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT

NOTICE:

When replacing worn front disc brake pads, the front disc brake anti-squeal shims and front disc brake pad wear indicator plates must be replaced together with the front disc brake pads.
Do not apply lubricants to the lining surface of the brake pad.
Install the front disc brake pad wear indicator plates in the correct position and direction.
Install the front disc brake anti-squeal shims in the correct position and direction.

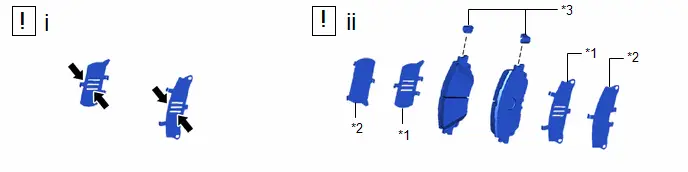

(a) for HEV Model AWD, PHEV Model:

*1	Front No. 1 Disc Brake Anti-squeal Shim	*2	Front No. 2 Disc Brake Anti-squeal Shim
*3	Front Disc Brake Pad Wear Indicator Plate	-	-
	Brake Shim Grease (Part No. 08887-80409)	-	-

(1) Apply brake shim grease (Part No. 08887-80409) to both sides of each front No. 1 disc brake anti-squeal shim as shown in the illustration.

(2) Install the front No. 1 disc brake anti-squeal shim and front No. 2 disc brake anti-squeal shim to each front disc brake pad.

(3) Install a new front disc brake pad wear indicator plate to each front disc brake pad.

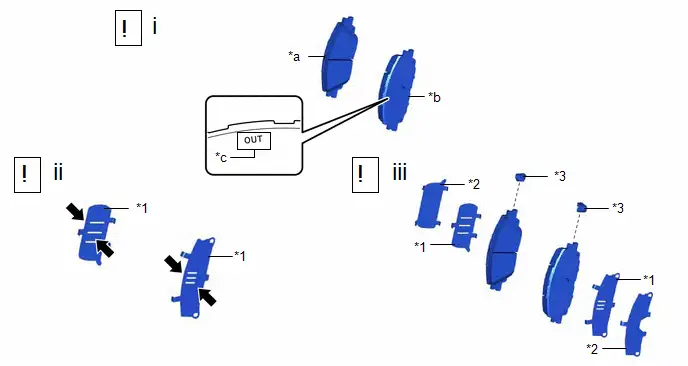

(b) for HEV Model 2WD:

*1	Front No. 1 Disc Brake Anti-squeal Shim	*2	Front No. 2 Disc Brake Anti-squeal Shim
*3	Front Disc Brake Pad Wear Indicator Plate	-	-
*a	Front Disc Brake Pad (Inner Side of the Vehicle)	*b	Front Disc Brake Pad (Outer Side of the Vehicle)
*c	Identification Mark	-	-
	Brake Shim Grease (Part No. 08887-80409)	-	-

(1) Check the front disc brake pad.

HINT:

If the front disc brake pad (outer side) has an identification mark, be sure to confirm the installation location.

(2) Install the front No. 1 disc brake anti-squeal shim and front No. 2 disc brake anti-squeal shim to each front disc brake pad.

(3) Install a new front disc brake pad wear indicator plate to each front disc brake pad.

2. INSTALL FRONT DISC BRAKE PAD

CAUTION:

Be careful not to get pinched by the front disc brake cylinder assembly or other parts when installing the front disc brake pads.
After lifting up the front disc brake cylinder assembly, secure it in place before performing any work on it.
The front disc brake cylinder assembly could fall, pinching hands or fingers and causing injury.

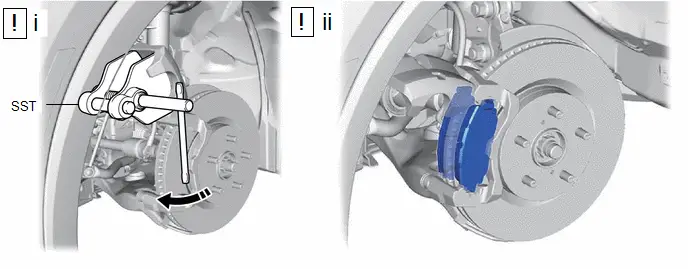

(1) Using SST, push in the front disc brake piston.

SST: 09719-77020

NOTICE:

Make sure that the brake fluid does not overflow from the reservoir.
Do not forcibly push in the front disc brake pistons.

(2) Install the 2 front disc brake pads to the front disc brake cylinder mounting.

NOTICE:

Keep the friction surfaces of the front disc brake pads and front disc free from oil and grease.
Install the front disc brake pad so that the pad wear indicator plate is mounted on the upper side of the vehicle.

3. INSTALL FRONT DISC BRAKE CYLINDER ASSEMBLY

Torque:

34.3 N·m {350 kgf·cm, 25 ft·lbf}

4. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

Click here

5. INSPECT BRAKE FLUID LEVEL IN RESERVOIR

Click here

6. INSTALL FRONT WHEEL

Click here

7. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click here
