Toyota Prius: Floor Carpet

• Removal
• Installation

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front floor carpet assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
w/ Occupant Classification System: Front passenger seat*	Zero point calibration (Occupant classification system)	Occupant Classification System Passenger airbag ON/OFF indicator Airbag System (Front passenger side) Seat Belt Warning System (Front passenger)

CAUTION:

Be sure to read Precaution thoroughly before servicing.

Click here

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click here

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when Toyota Prius vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Front Camera System	Drive the Toyota Prius vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*1: w/o Power Back Door System *2: w/ Power Back Door System
Power Door Lock Control System*1 Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Power Back Door System*2	Reset back door close position
Air Conditioning System	for HEV Model: After the ignition switch is turned to ON, the servo motor standard position is recognized. for PHEV Model: After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized.	-

CAUTION / NOTICE / HINT

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	FRONT SEAT ASSEMBLY LH	-	-	-	-
2	FRONT SEAT ASSEMBLY RH	-	-	-	-
3	REAR CONSOLE BOX ASSEMBLY	-	-	-	-
4	REAR SEAT CUSHION ASSEMBLY	-		-	-
5	REAR SEAT CUSHION LOCK HOOK	72693	-	-	-

●

Non-reusable part

-

-

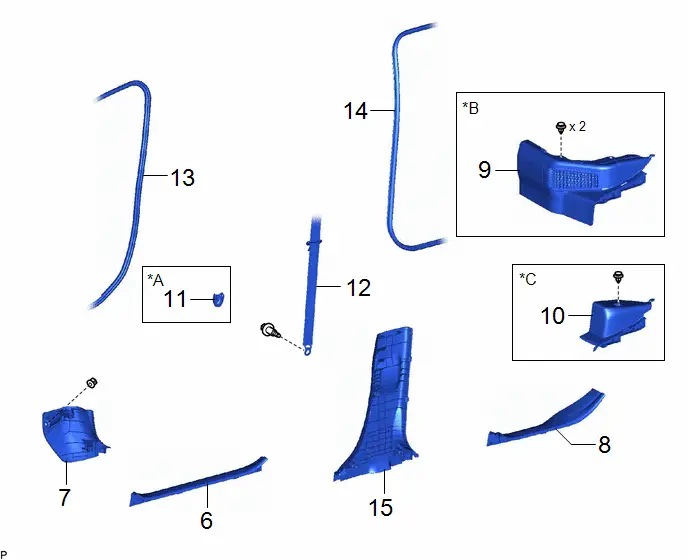

Procedure		Part Name Code
6	FRONT DOOR SCUFF PLATE LH	67914	-	-	-
7	COWL SIDE TRIM BOARD LH	62112	-	-	-
8	REAR DOOR SCUFF PLATE INSIDE LH	67918F	-	-	-
9	REAR UNDER SIDE COVER LH	76974E	-	-	-
10	REAR SEAT CUSHION COVER LH	72998	-	-	-
11	LAP BELT OUTER ANCHOR COVER	73233	-	-	-
12	FRONT SEAT OUTER BELT ASSEMBLY LH	73220	-	-	-
13	FRONT DOOR OPENING TRIM WEATHERSTRIP LH	62312B	-	-	-
14	REAR DOOR OPENING TRIM WEATHERSTRIP LH	62332A	-	-	-
15	CENTER PILLAR LOWER GARNISH LH	62414A	-	-	-

*A	for LH Side	*B	for HEV Model
*C	for PHEV Model	-	-

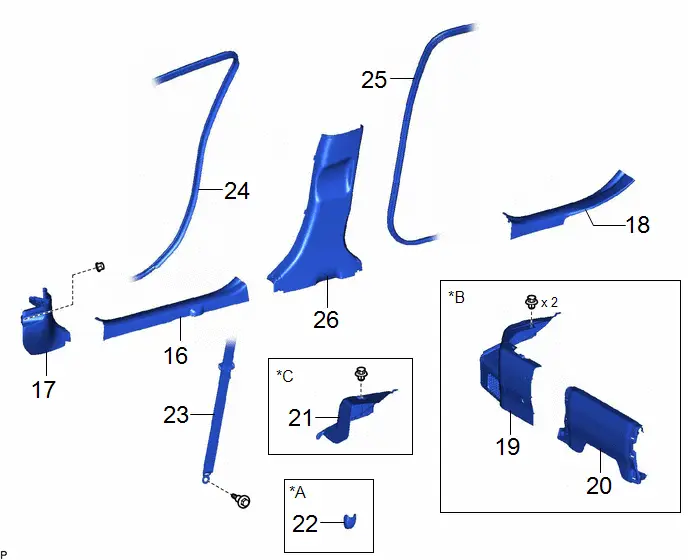

Procedure		Part Name Code
16	FRONT DOOR SCUFF PLATE RH	67913	-	-	-
17	COWL SIDE TRIM BOARD RH	62111C	-	-	-
18	REAR DOOR SCUFF PLATE INSIDE RH	67917F	-	-	-
19	REAR UNDER SIDE COVER RH	76973E	-	-	-
20	REAR UNDER COVER	76971F	-	-	-
21	REAR SEAT CUSHION COVER RH	72955	-	-	-
22	LAP BELT OUTER ANCHOR COVER	73233	-	-	-
23	FRONT SEAT OUTER BELT ASSEMBLY RH	73210	-	-	-
24	FRONT DOOR OPENING TRIM WEATHERSTRIP RH	62311B	-	-	-
25	REAR DOOR OPENING TRIM WEATHERSTRIP RH	62331A	-	-	-
26	CENTER PILLAR LOWER GARNISH RH	61413A	-	-	-

*A	for RH Side	*B	for HEV Model
*C	for PHEV Model	-	-

Procedure		Part Name Code
27	ACCELERATOR PEDAL (WITH SENSOR) ROD ASSEMBLY	78110K	-	-	-
28	FRONT FLOOR CARPET ASSEMBLY	58510D		-	-

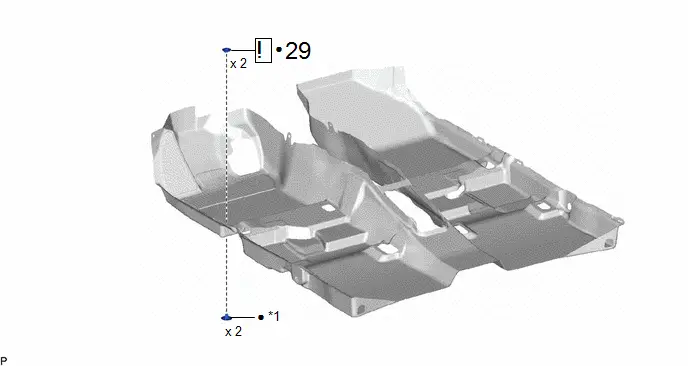

Procedure		Part Name Code
29	MAT SET UPPER PLATE	58694B		-	-

*1	MAT SET LOWER PLATE	-	-
●	Non-reusable part	-	-

PROCEDURE

1. REMOVE FRONT SEAT ASSEMBLY LH

(a) for Manual Seat:

Click here

(b) for Power Seat:

Click here

2. REMOVE FRONT SEAT ASSEMBLY RH

(a) Use the same procedure as for the LH side.

3. REMOVE REAR CONSOLE BOX ASSEMBLY

Click here

4. REMOVE REAR SEAT CUSHION ASSEMBLY

Click here

5. REMOVE REAR SEAT CUSHION LOCK HOOK

Click here

6. REMOVE FRONT DOOR SCUFF PLATE LH

Click here

7. REMOVE COWL SIDE TRIM BOARD LH

Click here

8. REMOVE REAR DOOR SCUFF PLATE INSIDE LH

Click here

9. REMOVE REAR UNDER SIDE COVER LH (for HEV Model)

Click here

10. REMOVE REAR SEAT CUSHION COVER LH (for PHEV Model)

11. REMOVE LAP BELT OUTER ANCHOR COVER (for LH Side)

Click here

12. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH

Click here

13. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH

Click here

14. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

Click here

15. REMOVE CENTER PILLAR LOWER GARNISH LH

Click here

16. REMOVE FRONT DOOR SCUFF PLATE RH

(a) Use the same procedure as for the LH side.

17. REMOVE COWL SIDE TRIM BOARD RH

(a) Use the same procedure as for the LH side.

18. REMOVE REAR DOOR SCUFF PLATE INSIDE RH

(a) Use the same procedure as for the LH side.

19. REMOVE REAR UNDER SIDE COVER RH (for HEV Model)

(a) Use the same procedure as for the LH side.

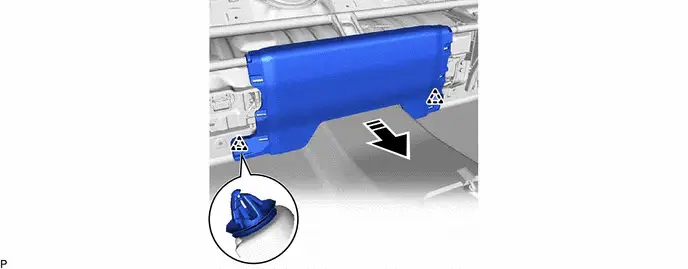

20. REMOVE REAR UNDER COVER (for HEV Model)

Remove in this Direction

-

-

21. REMOVE REAR SEAT CUSHION COVER RH (for PHEV Model)

(a) Use the same procedure as for the LH side.

22. REMOVE LAP BELT OUTER ANCHOR COVER (for RH Side)

(a) Use the same procedure as for the LH side.

23. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY RH

(a) Use the same procedure as for the LH side.

24. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH

(a) Use the same procedure as for the LH side.

25. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH

(a) Use the same procedure as for the LH side.

26. REMOVE CENTER PILLAR LOWER GARNISH RH

(a) Use the same procedure as for the LH side.

27. REMOVE ACCELERATOR PEDAL (WITH SENSOR) ROD ASSEMBLY

Click here

28. REMOVE FRONT FLOOR CARPET ASSEMBLY

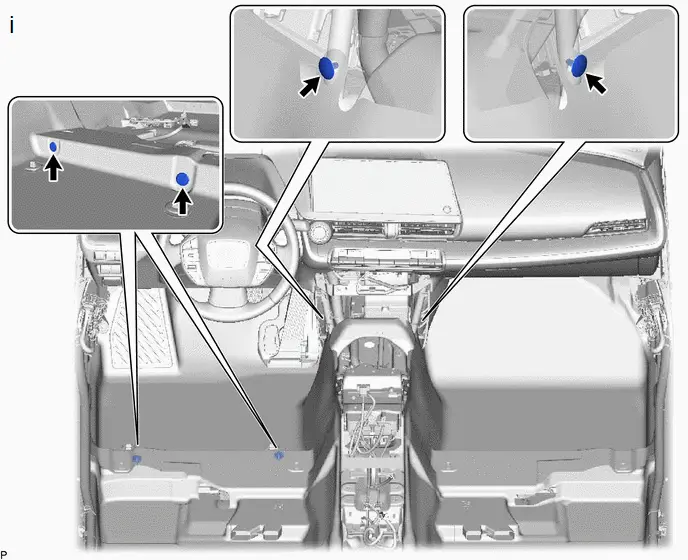

(1) Remove the 4 clips.

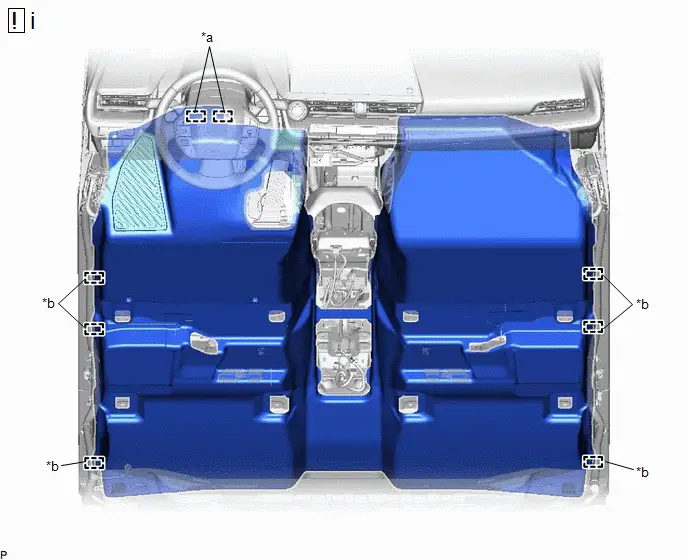

*a

Fastener

*b

Guide

(1) Disengage the 2 fasteners and 6 guides to remove the front floor carpet assembly.

NOTICE:

Do not pull the slit part of the front floor carpet assembly strongly because there is a risk of damage.

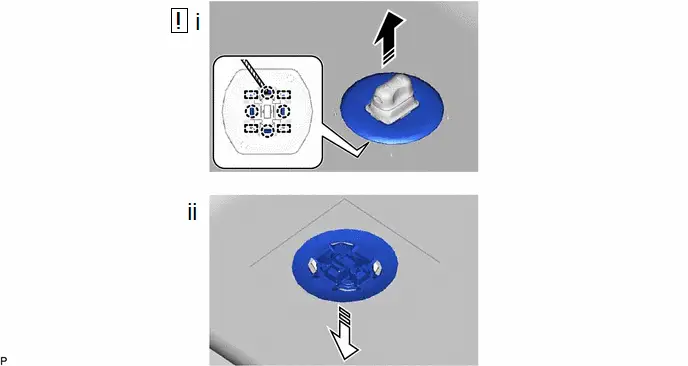

29. REMOVE MAT SET UPPER PLATE

NOTICE: Do not forcefully pull the front floor carpet assembly as it may deform the installation holes of the mat set plate. Do not remove the reinforcements on the back of the mat set plate mounting holes of the front floor carpet assembly. If the mat set plate mounting holes of the front floor carpet assembly are damaged or deformed, replace the front floor carpet assembly. HINT: Perform this procedure only when replacement of the mat set plate is necessary.

Remove in this Direction (1)

Remove in this Direction (2)

(1) Using a screwdriver with its tip wrapped in protective tape, disengage the 4 claws and 4 guides to remove the mat set upper plate from the mat set lower plate and front floor carpet assembly as shown in the illustration.

(2) Remove the mat set lower plate as shown in the illustration.

(b) Use the same procedure for the opposite side.

Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

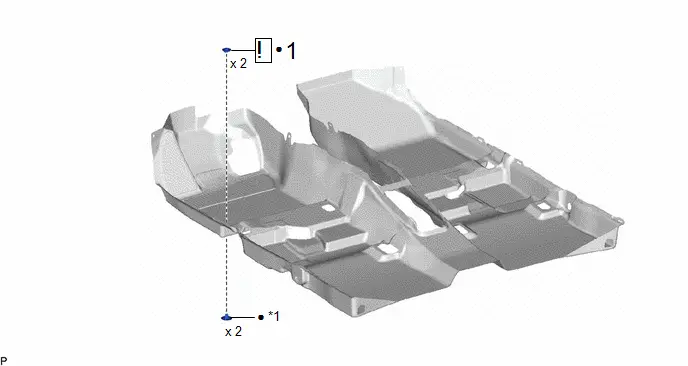

Procedure		Part Name Code
1	MAT SET UPPER PLATE	58694B		-	-

*1	MAT SET LOWER PLATE	-	-
●	Non-reusable part	-	-

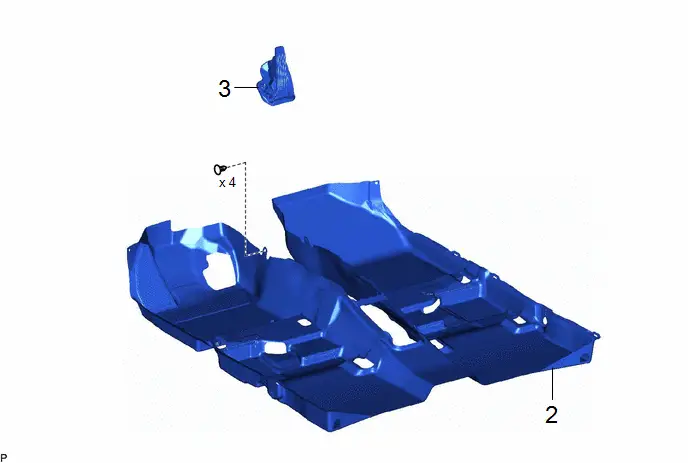

Procedure		Part Name Code
2	FRONT FLOOR CARPET ASSEMBLY	58510D	-	-	-
3	ACCELERATOR PEDAL (WITH SENSOR) ROD ASSEMBLY	78110k	-	-	-

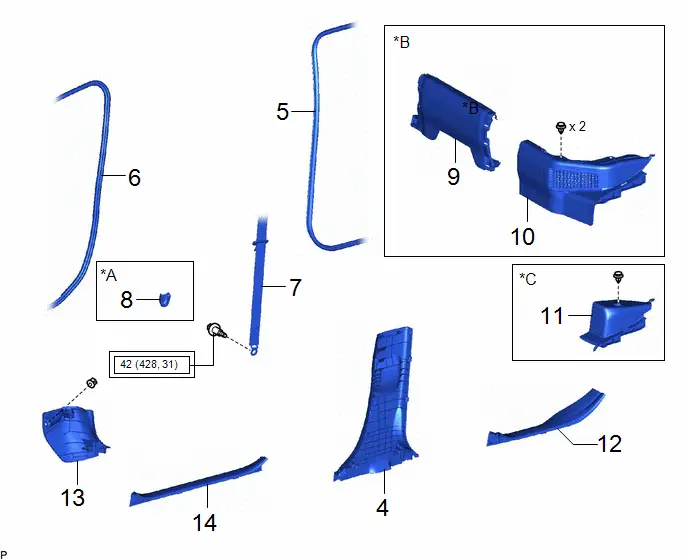

Procedure		Part Name Code
4	CENTER PILLAR LOWER GARNISH LH	62414A	-	-	-
5	REAR DOOR OPENING TRIM WEATHERSTRIP LH	62332A	-	-	-
6	FRONT DOOR OPENING TRIM WEATHERSTRIP LH	62312B	-	-	-
7	FRONT SEAT OUTER BELT ASSEMBLY LH	73220	-	-	-
8	LAP BELT OUTER ANCHOR COVER	73233	-	-	-
9	REAR UNDER COVER	76971F	-	-	-
10	REAR UNDER SIDE COVER LH	76974E	-	-	-
11	REAR SEAT CUSHION COVER LH	72998	-	-	-
12	REAR DOOR SCUFF PLATE INSIDE LH	67918F	-	-	-
13	COWL SIDE TRIM BOARD LH	62112	-	-	-
14	FRONT DOOR SCUFF PLATE LH	67914	-	-	-

*A	for LH Side	*B	for HEV Model
*C	for PHEV Model	-	-
	Tightening torque for "Major areas involving basic Toyota Prius vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	-	-

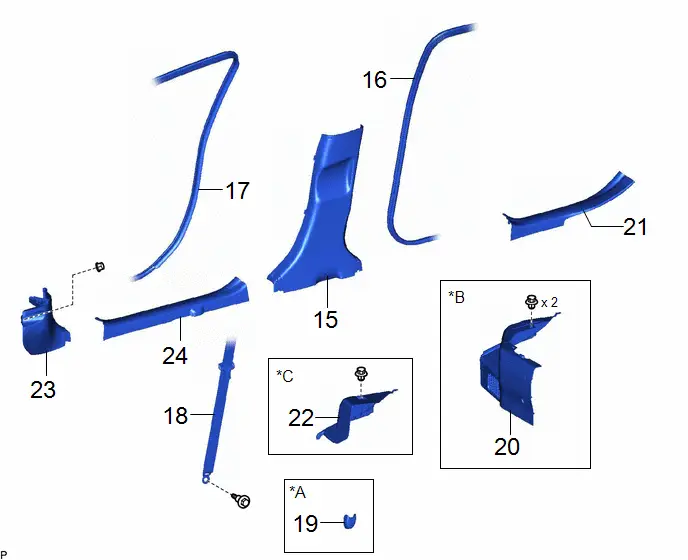

Procedure		Part Name Code
15	CENTER PILLAR LOWER GARNISH RH	62413A	-	-	-
16	REAR DOOR OPENING TRIM WEATHERSTRIP RH	62331A	-	-	-
17	FRONT DOOR OPENING TRIM WEATHERSTRIP RH	62311B	-	-	-
18	FRONT SEAT OUTER BELT ASSEMBLY RH	73210	-	-	-
19	LAP BELT OUTER ANCHOR COVER	73233	-	-	-
20	REAR UNDER SIDE COVER RH	76973E	-	-	-
21	REAR DOOR SCUFF PLATE INSIDE RH	67917F	-	-	-
22	REAR SEAT CUSHION COVER RH	72995	-	-	-
23	COWL SIDE TRIM BOARD RH	62111C	-	-	-
24	FRONT DOOR SCUFF PLATE RH	67913	-	-	-

*A	for RH Side	*B	for HEV Model
*C	for PHEV Model	-	-
	Tightening torque for "Major areas involving basic Toyota Prius vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	-	-

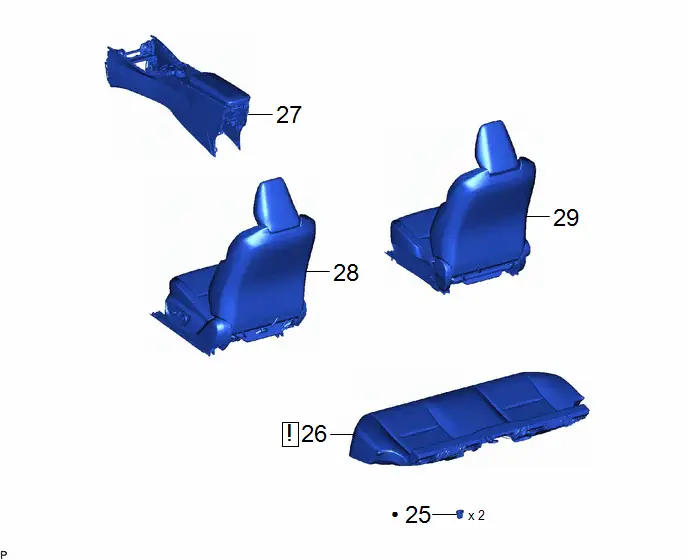

Procedure		Part Name Code
25	REAR SEAT CUSHION LOCK HOOK	72693	-	-	-
26	REAR SEAT CUSHION ASSEMBLY	-		-	-
27	REAR CONSOLE BOX ASSEMBLY	-	-	-	-
28	FRONT SEAT ASSEMBLY LH	-	-	-	-
29	FRONT SEAT ASSEMBLY RH	-	-	-	-

●

Non-reusable part

-

-

PROCEDURE

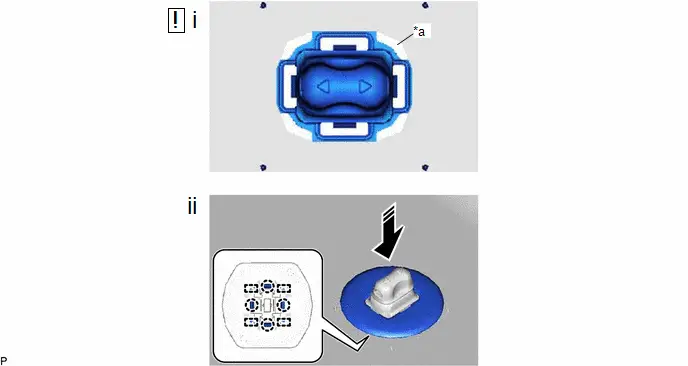

1. INSTALL MAT SET UPPER PLATE

NOTICE: If the mat set plate mounting holes of the front floor carpet assembly are damaged or deformed, replace the front floor carpet assembly. Do not remove the reinforcements on the back of the mat set plate mounting holes of the front floor carpet assembly. HINT: Perform this procedure only when replacement of the mat set plate is necessary.

*a	Mounting Hole	-	-
	Install in this Direction	-	-

(1) Temporarily install the new mat set lower plate to the front floor carpet assembly.

NOTICE:

Align the new mat set lower plate to the mat set plate mounting holes of the front floor carpet assembly.

(2) Engage the 4 guides and 4 claws to install the new mat set upper plate to the new mat set lower plate and front floor carpet assembly as shown in the illustration.

(b) Use the same procedure for the opposite side.

2. INSTALL FRONT FLOOR CARPET ASSEMBLY

3. INSTALL ACCELERATOR PEDAL (WITH SENSOR) ROD ASSEMBLY

Click here

4. INSTALL CENTER PILLAR LOWER GARNISH LH

5. CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

6. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH

7. CONNECT FRONT SEAT OUTER BELT ASSEMBLY LH

Click here

8. INSTALL LAP BELT OUTER ANCHOR COVER (for LH Side)

9. INSTALL REAR UNDER COVER (for HEV Model)

10. INSTALL REAR UNDER SIDE COVER LH (for HEV Model)

11. INSTALL REAR SEAT CUSHION COVER LH (for PHEV Model)

12. INSTALL REAR DOOR SCUFF PLATE INSIDE LH

13. INSTALL COWL SIDE TRIM BOARD LH

14. INSTALL FRONT DOOR SCUFF PLATE LH

15. INSTALL CENTER PILLAR LOWER GARNISH RH

16. CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH

17. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH

18. CONNECT FRONT SEAT OUTER BELT ASSEMBLY RH

(a) Use the same procedure as for the LH side.

19. INSTALL LAP BELT OUTER ANCHOR COVER (for RH Side)

20. INSTALL REAR UNDER SIDE COVER RH (for HEV Model)

21. INSTALL REAR SEAT CUSHION COVER RH (for PHEV Model)

22. INSTALL REAR DOOR SCUFF PLATE INSIDE RH

23. INSTALL COWL SIDE TRIM BOARD RH

24. INSTALL FRONT DOOR SCUFF PLATE RH

25. INSTALL REAR SEAT CUSHION LOCK HOOK

26. INSTALL REAR SEAT CUSHION ASSEMBLY

Click here

27. INSTALL REAR CONSOLE BOX ASSEMBLY

Click here

28. INSTALL FRONT SEAT ASSEMBLY LH

(a) for Manual Seat:

Click here

(b) for Power Seat:

Click here

29. INSTALL FRONT SEAT ASSEMBLY RH

(a) Use the same procedure as for the LH side.
