Toyota Prius: Electric Parking Brake Switch

Removal

REMOVAL

CAUTION / NOTICE / HINT

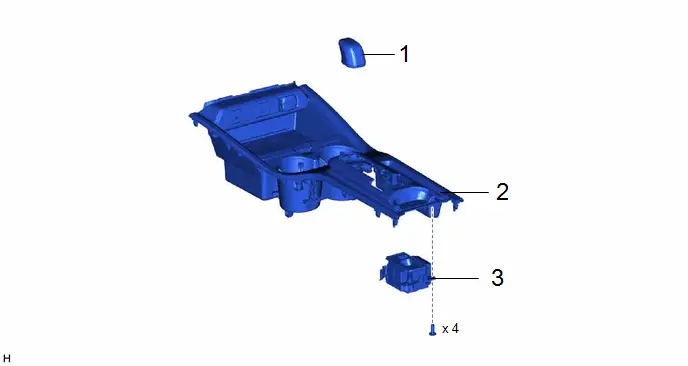

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	SHIFT LEVER KNOB SUB-ASSEMBLY	33504F	-	-	-
2	UPPER CONSOLE PANEL SUB-ASSEMBLY	58804A	-	-	-
3	ELECTRIC PARKING BRAKE SWITCH ASSEMBLY	84390B	-	-	-

PROCEDURE

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

Click here

2. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

Click here

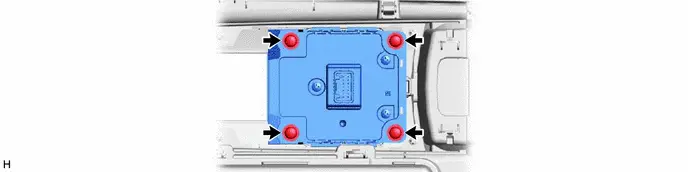

3. REMOVE ELECTRIC PARKING BRAKE SWITCH ASSEMBLY

Installation

INSTALLATION

CAUTION / NOTICE / HINT

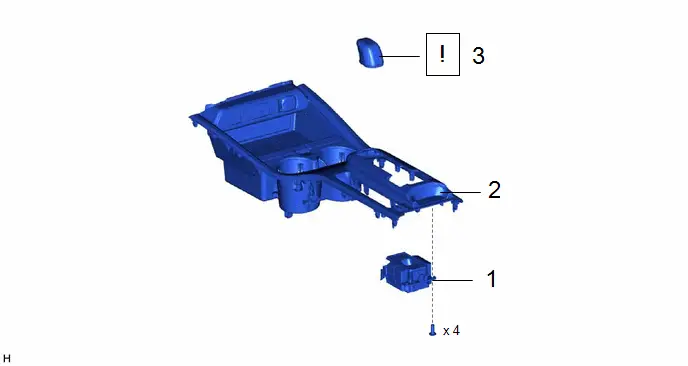

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	ELECTRIC PARKING BRAKE SWITCH ASSEMBLY	84390B	-	-	-
2	UPPER CONSOLE PANEL SUB-ASSEMBLY	58804A	-	-	-
3	SHIFT LEVER KNOB SUB-ASSEMBLY	33504F	-	-	-

PROCEDURE

1. INSTALL ELECTRIC PARKING BRAKE SWITCH ASSEMBLY

2. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY

3. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

Click here
