Toyota Prius: Door Control Switch
Removal
REMOVAL
CAUTION / NOTICE / HINT

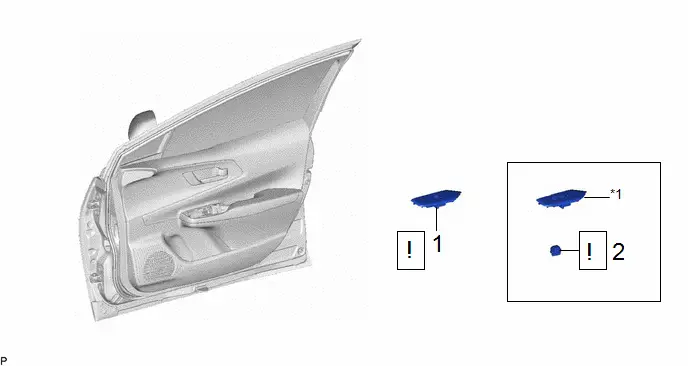

COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL | - |
| - | - |
| 2 | DOOR CONTROL SWITCH ASSEMBLY | 84930 |
| - | - |
| *1 | FRONT UPPER ARMREST BASE PANEL RH | - | - |
PROCEDURE
1. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL
| Click here
|
2. REMOVE DOOR CONTROL SWITCH ASSEMBLY

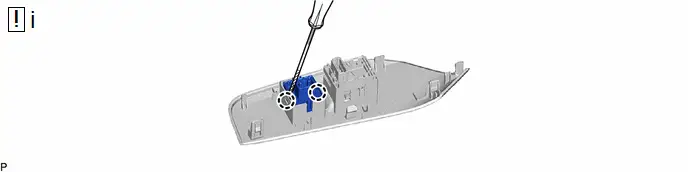

(1) Using a screwdriver, disengage the 2 claws and remove the door control switch assembly as shown in the illustration.
Inspection
INSPECTION
PROCEDURE
1. INSPECT DOOR CONTROL SWITCH ASSEMBLY

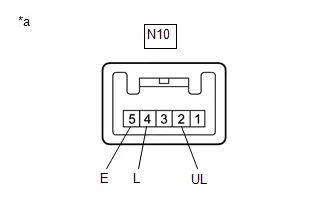

| (a) Measure the resistance according to the value(s) in the table below. Standard Resistance:  Click Location & Routing(N10) Click Connector(N10)
If the result is not as specified, replace the door control switch assembly. |
|
(b) Inspect the switch illumination.

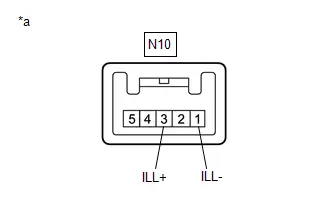

| (1) Apply auxiliary battery voltage to the door control switch assembly and check that the switch illuminates. OK:  Click Location & Routing(N10) Click Connector(N10)
If the result is not as specified, replace the door control switch assembly. |
|
Installation
INSTALLATION
CAUTION / NOTICE / HINT

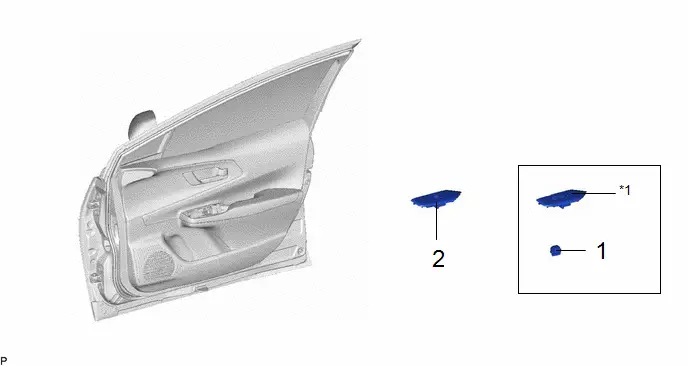

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | DOOR CONTROL SWITCH ASSEMBLY | 84930 | - | - | - |
| 2 | POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL | - | - | - | - |
| *1 | FRONT UPPER ARMREST BASE PANEL RH | - | - |
PROCEDURE
1. INSTALL DOOR CONTROL SWITCH ASSEMBLY
2. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL
Toyota Prius (XW60) 2023-2025 Service Manual
