Toyota Prius: Door Control Receiver
Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during electrical key and tire pressure monitoring system receiver assembly removal/installation are shown below.
CAUTION / NOTICE / HINT
CAUTION:
Be sure to read Precaution thoroughly before servicing.
Click here
CAUTION / NOTICE / HINT
NOTICE:
-
When replacing the tire pressure warning ECU and receiver, read the transmitter IDs stored in the old ECU using the GTS and write them down before removal.
Click here
-
After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
Click here
CAUTION / NOTICE / HINT
HINT:
-
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
-
Learning completes when Toyota Prius vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
Front Camera System
Drive the Toyota Prius vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.
-
Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
*1: w/o Power Back Door System *2: w/ Power Back Door System
Power Door Lock Control System*1
- Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Power Back Door System*2
Reset back door close position
Air Conditioning System
for HEV Model:- After the ignition switch is turned to ON, the servo motor standard position is recognized.
for PHEV Model:- After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized.
-
-
Learning completes when Toyota Prius vehicle is driven
CAUTION / NOTICE / HINT

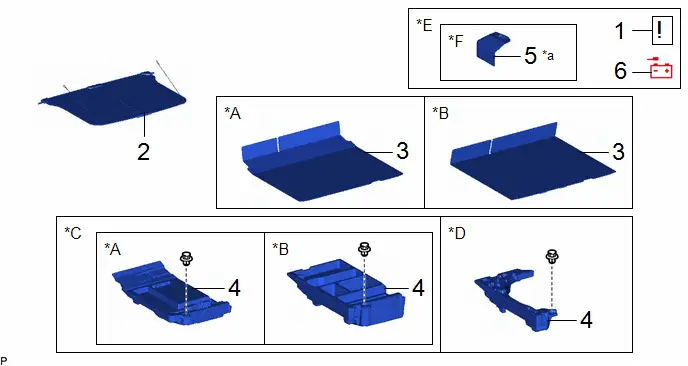

COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | PRECAUTION | - |
| - | - |
| 2 | TONNEAU COVER ASSEMBLY | 64910J | - | - | - |
| 3 | DECK BOARD ASSEMBLY | 58410B | - | - | - |
| 4 | DECK FLOOR BOX LH | 64997 | - | - | - |
| 5 | BATTERY SERVICE HOLE COVER ASSEMBLY | 58440 | - | - | - |
| 6 | DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL | - | - | - | - |
| *A | for Type A | *B | for Type B |
| *C | w/o Spare Tire | *D | w/ Spare Tire |
| *E | w/ Rear Seat Side Airbag | *F | for M20A-FXS |
| *a | HINT: As the illustration shown is an example, the actual details may differ. | - | - |

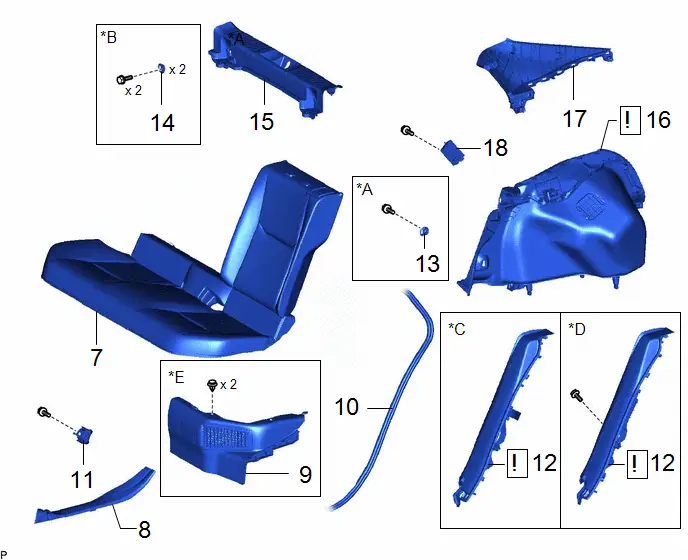

| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 7 | REAR SEAT CUSHION ASSEMBLY | - | - | - | - |
| 8 | REAR DOOR SCUFF PLATE INSIDE LH | 67918F | - | - | - |
| 9 | REAR UNDER SIDE COVER LH | 76974E | - | - | - |
| 10 | REAR DOOR OPENING TRIM WEATHERSTRIP LH | 62332A | - | - | - |
| 11 | REAR SEATBACK HINGE SUB-ASSEMBLY LH | 71304C | - | - | - |
| 12 | REAR SEAT SIDE GARNISH LH | 62552F |
| - | - |
| 13 | LUGGAGE HOLD BELT STRIKER ASSEMBLY | 58460D | - | - | - |
| 14 | LUGGAGE HOLD BELT STRIKER ASSEMBLY | 58460D | - | - | - |
| 15 | REAR DECK TRIM COVER | 64716D | - | - | - |
| 16 | DECK TRIM SIDE PANEL ASSEMBLY LH | 64740C |
| - | - |
| 17 | ROOF SIDE INNER GARNISH ASSEMBLY LH | 62480A | - | - | - |
| 18 | ELECTRICAL KEY AND TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY | 897B0A | - | - | - |
| *A | for LH Side | *B | for Rear Side |
| *C | w/o Rear Seat Side Airbag | *D | w/ Rear Seat Side Airbag |
| *E | for HEV Model | - | - |
PROCEDURE
1. PRECAUTION (w/ Rear Seat Side Airbag)
| NOTICE: After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal. Click here
|
2. REMOVE TONNEAU COVER ASSEMBLY
Click here
3. REMOVE DECK BOARD ASSEMBLY
Click here
4. REMOVE DECK FLOOR BOX LH
Click here
5. REMOVE BATTERY SERVICE HOLE COVER ASSEMBLY (w/ Rear Seat Side Airbag)
(a) for M20A-FXS:
Click here
6. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL (w/ Rear Seat Side Airbag)
(a) for M20A-FXS:
Click here
(b) for 2ZR-FXE:
Click here
7. REMOVE REAR SEAT CUSHION ASSEMBLY
Click here
8. REMOVE REAR DOOR SCUFF PLATE INSIDE LH
Click here
9. REMOVE REAR UNDER SIDE COVER LH (for HEV Model)
Click here
10. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH
Click here
11. REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY LH
Click here
12. REMOVE REAR SEAT SIDE GARNISH LH
| Click here
|
13. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY (for LH Side)
Click here
14. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY (for Rear Side)
Click here
15. REMOVE REAR DECK TRIM COVER
Click here
16. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
| Click here
|
17. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH
Click here

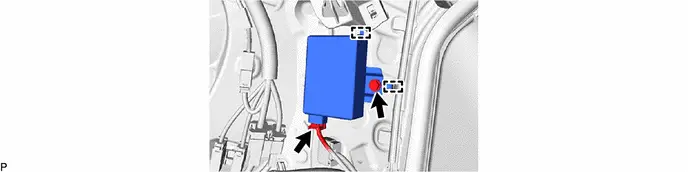

18. REMOVE ELECTRICAL KEY AND TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY
HINT:
The illustration shown is an example only. The illustration may differ from the actual parts according to the model.
Installation
INSTALLATION
CAUTION / NOTICE / HINT

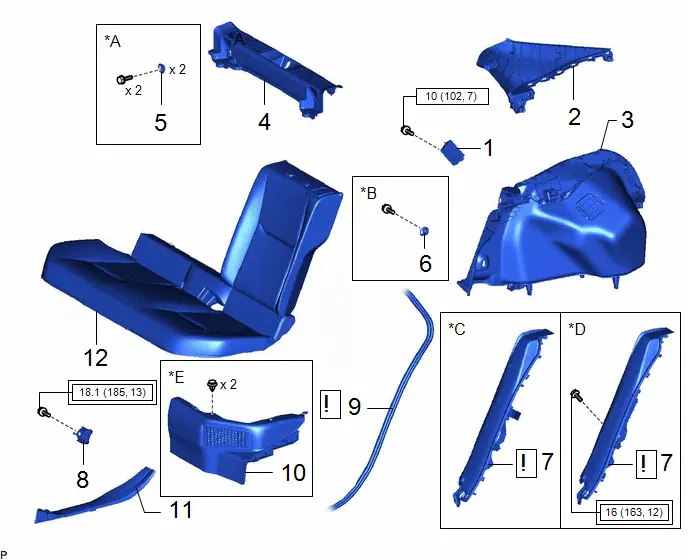

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | ELECTRICAL KEY AND TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY | 897B0A | - | - | - |
| 2 | ROOF SIDE INNER GARNISH ASSEMBLY LH | 62480A | - | - | - |
| 3 | DECK TRIM SIDE PANEL ASSEMBLY LH | 64740C | - | - | - |
| 4 | REAR DECK TRIM COVER | 64716D | - | - | - |
| 5 | LUGGAGE HOLD BELT STRIKER ASSEMBLY | 58460D | - | - | - |
| 6 | LUGGAGE HOLD BELT STRIKER ASSEMBLY | 58460D | - | - | - |
| 7 | REAR SEAT SIDE GARNISH LH | 62552F |
| - | - |
| 8 | REAR SEATBACK HINGE SUB-ASSEMBLY LH | 71304C | - | - | - |
| 9 | REAR DOOR OPENING TRIM WEATHERSTRIP LH | 62332A |
| - | - |
| 10 | REAR UNDER SIDE COVER LH | 76974E | - | - | - |
| 11 | REAR DOOR SCUFF PLATE INSIDE LH | 67918F | - | - | - |
| 12 | REAR SEAT CUSHION ASSEMBLY | - | - | - | - |
| *A | for Rear Side | *B | for LH Side |
| *C | w/o Rear Seat Side Airbag | *D | w/ Rear Seat Side Airbag |
| *E | for HEV Model | - | - |
| Tightening torque for "Major areas involving basic Toyota Prius vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
| N*m (kgf*cm, ft.*lbf): Specified torque |

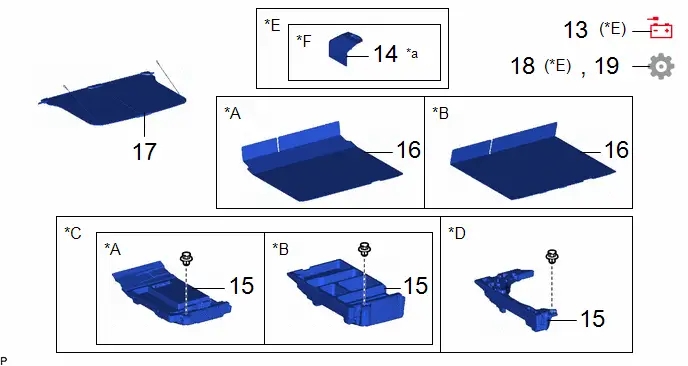

| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 13 | CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL | - | - | - | - |
| 14 | BATTERY SERVICE HOLE COVER ASSEMBLY | 58440 | - | - | - |
| 15 | DECK FLOOR BOX LH | 64997 | - | - | - |
| 16 | DECK BOARD ASSEMBLY | 58410B | - | - | - |
| 17 | TONNEAU COVER ASSEMBLY | 64910J | - | - | - |
| 18 | INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL | - | - | - |
|
| 19 | PERFORM INITIALIZATION | - | - | - |
|
| *A | for Type A | *B | for Type B |
| *C | w/o Spare Tire | *D | w/ Spare Tire |
| *E | w/ Rear Seat Side Airbag | *F | for M20A-FXS |
| *a | HINT: As the illustration shown is an example, the actual details may differ. | - | - |
PROCEDURE
1. INSTALL ELECTRICAL KEY AND TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY
Torque:
10 N·m {102 kgf·cm, 7 ft·lbf}
2. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH
3. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH
4. INSTALL REAR DECK TRIM COVER
5. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY (for Rear Side)
6. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY (for LH Side)
7. INSTALL REAR SEAT SIDE GARNISH LH
| Click here
|
8. INSTALL REAR SEATBACK HINGE SUB-ASSEMBLY LH
Click here
9. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
| Click here
|
10. INSTALL REAR UNDER SIDE COVER LH (for HEV Model)
11. INSTALL REAR DOOR SCUFF PLATE INSIDE LH
12. INSTALL REAR SEAT CUSHION ASSEMBLY
Click here
13. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL (w/ Rear Seat Side Airbag)
(a) for M20A-FXS:
Click here
(b) for 2ZR-FXE:
Click here
14. INSTALL BATTERY SERVICE HOLE COVER ASSEMBLY (w/ Rear Seat Side Airbag)
15. INSTALL DECK FLOOR BOX LH
16. INSTALL DECK BOARD ASSEMBLY
17. INSTALL TONNEAU COVER ASSEMBLY
18. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL (w/ Rear Seat Side Airbag)
Click here
HINT:
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
Click here
19. PERFORM INITIALIZATION
Click here
HINT:
Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System).
