Toyota Prius: Curtain Shield Airbag Assembly

• Removal
• Installation
• Disposal

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during curtain shield airbag assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
w/ Occupant Classification System: Front passenger seat*	Zero point calibration (Occupant classification system)	Occupant Classification System Passenger airbag ON/OFF indicator Airbag System (Front passenger side) Seat Belt Warning System (Front passenger)

CAUTION / NOTICE / HINT

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when Toyota Prius vehicle is driven

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Front Camera System	Drive the Toyota Prius vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.

Learning completes when vehicle is operated normally

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
*1: w/o Power Back Door System *2: w/ Power Back Door System
Power Door Lock Control System*1 Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Power Back Door System*2	Reset back door close position
Air Conditioning System	for HEV Model: After the ignition switch is turned to ON, the servo motor standard position is recognized. for PHEV Model: After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized.	-

CAUTION / NOTICE / HINT

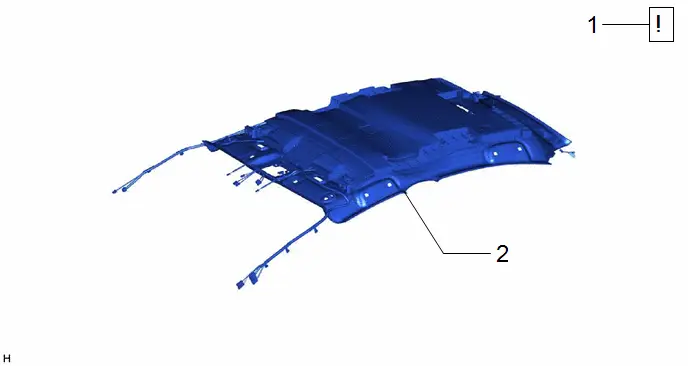

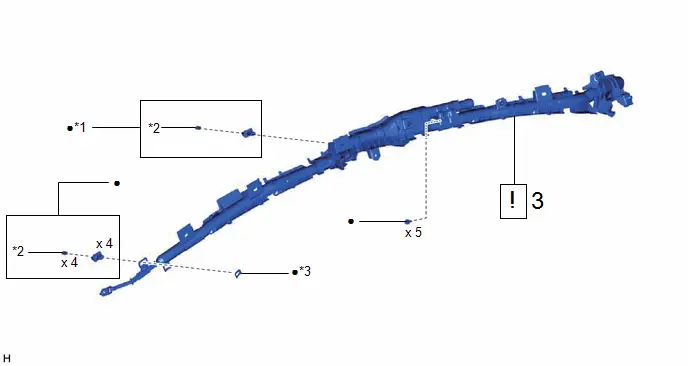

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	PRECAUTION	-		-	-
2	ROOF HEADLINING ASSEMBLY	-	-	-	-

Procedure		Part Name Code
3	CURTAIN SHIELD AIRBAG ASSEMBLY	62180A		-	-

*1	ROOF SIDE INNER GARNISH CLIP	*2	PIN
*3	SPACER	-	-
●	Non-reusable part	-	-

PROCEDURE

1. PRECAUTION

CAUTION: Be sure to read Precaution thoroughly before servicing. Click here NOTICE: After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal. Click here

2. REMOVE ROOF HEADLINING ASSEMBLY

Click here

3. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY

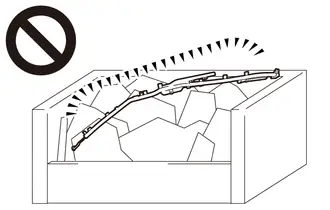

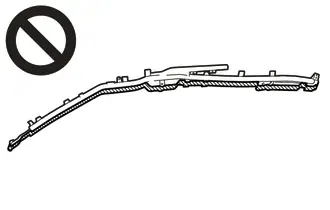

CAUTION: When storing the curtain shield airbag assembly, keep the airbag deployment side facing upward. NOTICE: When removing the curtain shield airbag assembly, have assistants hold it to prevent it from bending.

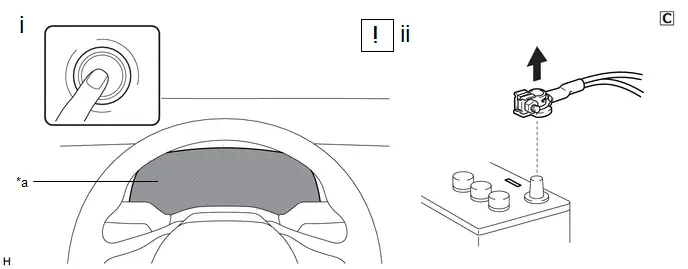

*a

Illumination off

-

-

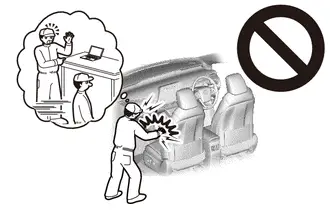

(1) Check that the ignition switch is off.

(2) Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:

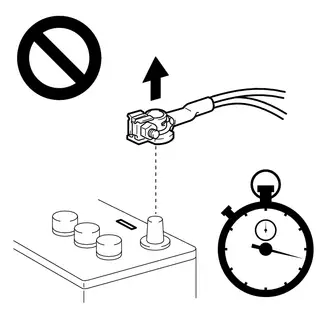

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

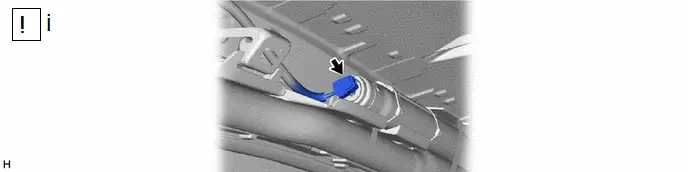

(1) Disconnect the airbag connector.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:

Refer to How to Connect or Disconnect Airbag Connector.

Click here

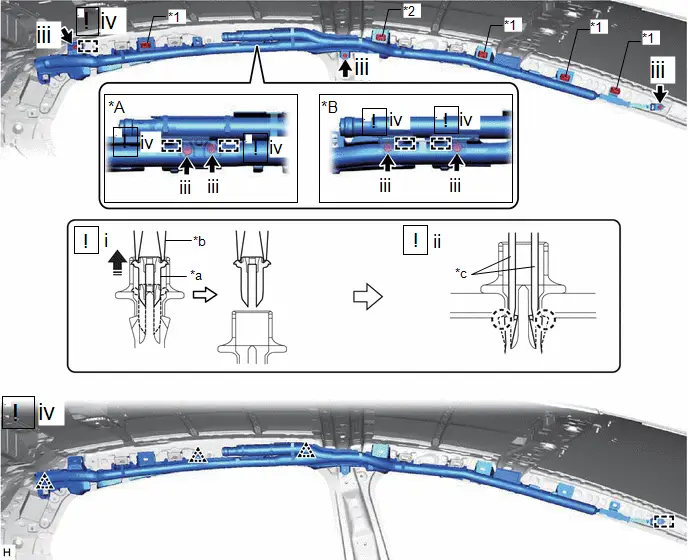

*A	w/o Occupant Classification System	*B	w/ Occupant Classification System
*1	Clip	*2	Roof Side Inner Garnish Clip
*a	Pin	*b	Needle-nose Pliers No. 2
*c	Thin Screwdriver	-	-
	Remove in this Direction	-	-

(1) Using a needle-nose pliers No. 2 or equivalent, remove the 5 pins from the 4 clips and roof side inner garnish clip.

(2) Using 2 thin screwdrivers, disengage the 2 claws of the 4 clips and roof side inner garnish clip, and separate the 4 clips and roof side inner garnish clip from the Toyota Prius vehicle body as shown in the illustration.

HINT:

Separate the 4 clips, roof side inner garnish clip and curtain shield airbag assembly from the vehicle body as a unit.

(3) Remove the 5 bolts.

(4) While holding the curtain shield airbag assembly, disengage the 3 clips and 4 hooks to remove the curtain shield airbag assembly.

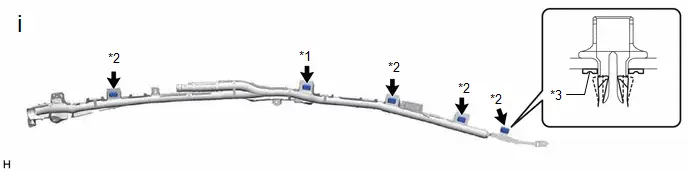

*1	Roof Side Inner Garnish Clip	*2	Clip
*3	Spacer	-	-

(1) Remove the 4 clips, roof side inner garnish clip and the spacer from the curtain shield airbag assembly.

Installation

INSTALLATION

CAUTION / NOTICE / HINT

CAUTION / NOTICE / HINT

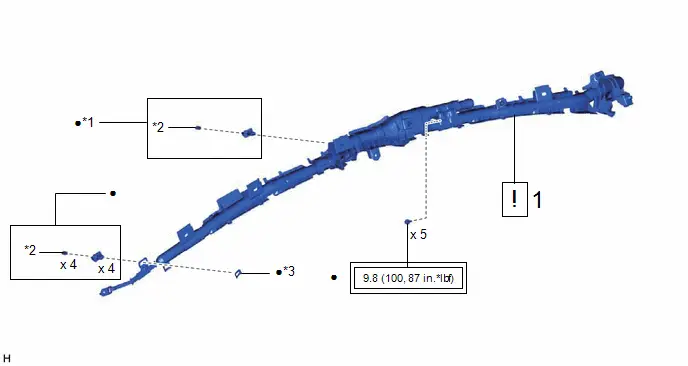

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	CURTAIN SHIELD AIRBAG ASSEMBLY	62180A		-	-

*1	ROOF SIDE INNER GARNISH CLIP	*2	PIN
*3	SPACER	-	-
	Tightening torque for "Major areas involving basic Toyota Prius vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	●	Non-reusable part

Procedure		Part Name Code
2	ROOF HEADLINING ASSEMBLY	-	-	-	-

PROCEDURE

1. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY

NOTICE: When installing a curtain shield airbag assembly, have assistants hold it to prevent it from bending.

*a

Illumination off

-

-

(1) Check that the ignition switch is off.

(2) Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

*1	Roof Side Inner Garnish Clip	*2	Clip
*3	Spacer	-	-

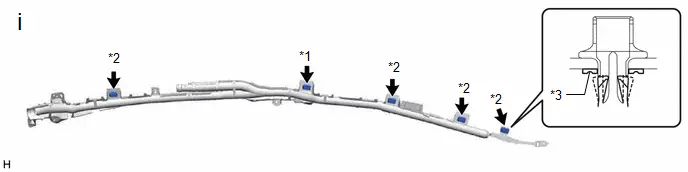

(1) Install 4 new clips, a new roof side inner garnish clip and a new spacer to the curtain shield airbag assembly.

(1) Connect the airbag connector.

NOTICE:

When connecting any airbag connector, take care not to damage the airbag wire harness.

HINT:

Refer to How to Connect or Disconnect Airbag Connector.

Click here

*A	w/o Occupant Classification System	*B	w/ Occupant Classification System
*1	Clip	*2	Roof Side Inner Garnish Clip
*a	Pin	*b	Needle-nose Pliers No. 2
	Installation in this Direction	-	-

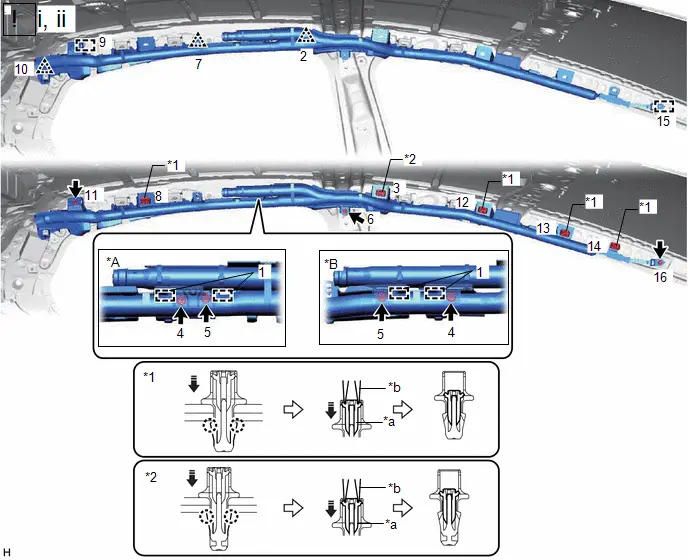

(1) Install the curtain shield airbag assembly with 5 new bolts, the 4 clips with pins, roof side inner garnish clip with pin, the 4 hooks and the 3 clips in the order shown in the illustration.

Torque:

9.8 N·m {100 kgf·cm, 87 in·lbf}

NOTICE:

Do not twist the curtain shield airbag assembly when installing it.

HINT:

Engage the 2 claws to install the 4 clips and roof side inner garnish clip.

(2) Using a needle-nose pliers No. 2 or equivalent, push the 5 pins into the 4 clips and roof side inner garnish clip.

2. INSTALL ROOF HEADLINING ASSEMBLY

Click here

Disposal

DISPOSAL

CAUTION / NOTICE / HINT

CAUTION:

Before performing pre-disposal deployment of any SRS part, review and closely follow all applicable environmental and hazardous material regulations. Pre-disposal deployment may be considered hazardous material treatment.

PROCEDURE

1. PRECAUTION

HINT:

When scrapping a Toyota Prius vehicle equipped with an SRS or disposing of the curtain shield airbag assembly, be sure to deploy the airbag first in accordance with the following procedure. If any abnormality occurs with the airbag deployment, contact the Service Department of the distributor.

2. DISPOSE OF CURTAIN SHIELD AIRBAG ASSEMBLY (When Installed to Toyota Prius Vehicle)

HINT:

Prepare an auxiliary battery as the power source to deploy the airbag.

(a) Check the function of SST. Click here SST: 09082-00700

(b) Refer to Precaution.

Click here

(c) Disconnect the cable from the negative (-) auxiliary battery terminal.

CAUTION:

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

(d) Remove the roof headlining assembly.

Click here

(e) Disconnect the curtain shield airbag assembly connector.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:

Refer to How to Connect or Disconnect Airbag Connector.

Click here

(f) Install SST.

CAUTION:

Check that there is no looseness in the curtain shield airbag assembly.

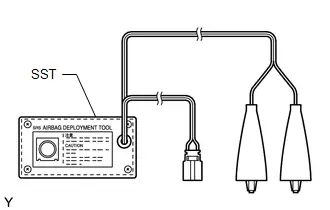

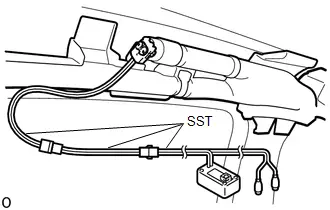

(1) After connecting the following SST to each other, connect them to the curtain shield airbag assembly. SST: 09082-00700 SST: 09082-00802 09082-10801 09082-20801 NOTICE: To avoid damaging the SST connector or wire harness, do not lock the secondary lock of the twin lock.

(2) Move SST at least 10 m (32.8 ft.) away from the rear side window of the Toyota Prius vehicle.

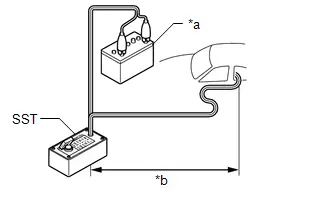

*a Auxiliary Battery *b 10 m (32.8 ft.) or more

(3) Maintaining sufficient clearance for the SST wire harness in the rear side window, close all doors and windows of the Toyota Prius vehicle.

NOTICE:

Take care not to damage the SST wire harness.

(4) Connect the red clip of SST to the positive ( ) auxiliary battery terminal and the black clip of SST to the negative (-) auxiliary battery terminal.

(g) Deploy the airbag.

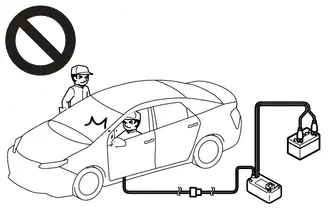

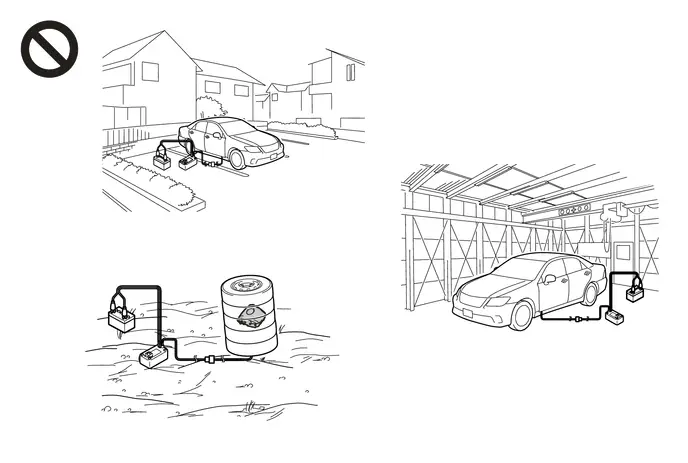

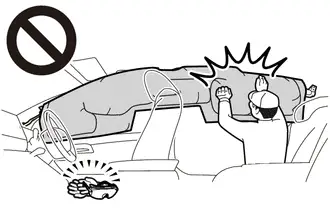

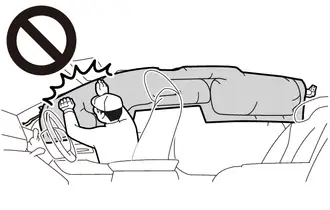

(1) Check that no one is inside the Toyota Prius vehicle or within a 10 m (32.8 ft.) radius of the vehicle.

(2) Press the SST activation switch to deploy the airbag.

HINT:

The airbag is deployed as the LED of the SST activation switch comes on.

3. DISPOSE OF CURTAIN SHIELD AIRBAG ASSEMBLY (When not Installed to Toyota Prius Vehicle)

NOTICE:

Be sure to perform the following procedure when deploying the airbag.

HINT:

Prepare an auxiliary battery as the power source to deploy the airbag.

(a) Check the function of SST. Click here SST: 09082-00700

(b) Remove the curtain shield airbag assembly.

Click here

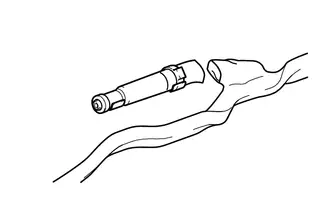

(c) Cut off the deployment section of the curtain shield airbag assembly.

(d) Using braided wire, tie down the curtain shield airbag assembly to an unneeded tire.

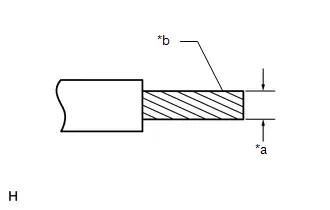

*a	Wire Diameter
*b	Stripped Wire Cross Sectional Area

Wire:

Stripped Wire Cross Sectional Area

1.25 mm2 (0.0019 in.2) or more

CAUTION:

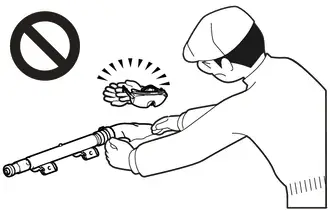

If the wire is too thin or an alternative object is used to tie down the curtain shield airbag assembly, it may snap when the airbag is deployed. Always use a wire for Toyota Prius vehicle use with a cross sectional area of at least 1.25 mm2 (0.0019 in.2).

HINT:

To calculate the cross sectional area of the stripped wire:

Cross sectional area = 3.14 x (Diameter)2 / 4

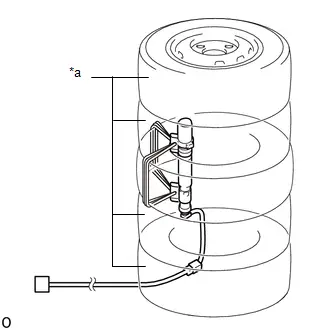

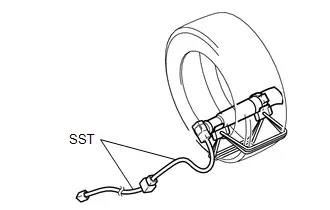

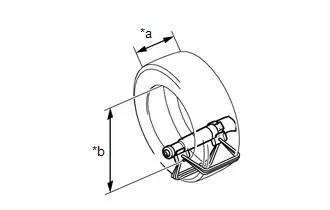

(1) Position the curtain shield airbag assembly inside the tire as shown in the illustration. Minimum Tire Size: Width 185 mm (7.28 in.) Inner Diameter 360 mm (1.18 ft.) CAUTION: Make sure that the wires are tight. If there is slack in the wires, the curtain shield airbag assembly may break loose when the airbag is deployed. NOTICE: The tire may be damaged by the airbag deployment, so use an unneeded tire.

*a Width *b Inner Diameter

(e) Install SST.

(1) After connecting the following SST to each other, connect them to the curtain shield airbag assembly. SST: 09082-00802 09082-10801 09082-20801

(f) Place the tires.

CAUTION:

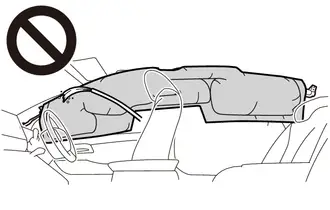

Do not face the deployment side of the curtain shield airbag assembly toward the ground.

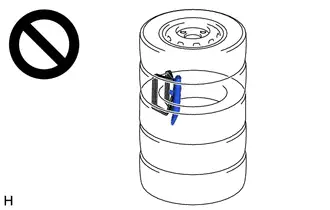

(1) Place at least 2 tires under the tire to which the curtain shield airbag assembly is tied. Minimum Tire Size: Width 185 mm (7.28 in.) Inner Diameter 360 mm (1.18 ft.) NOTICE: Do not place the SST connector under the tire because it could be damaged.

*a Tires (2 or more)

(2) Place at least 2 tires onto the tire to which the curtain shield airbag assembly is tied. The top tire should have a wheel installed.

NOTICE:

The wheel and tires may be damaged by the airbag deployment, so use an unneeded wheel and tires.

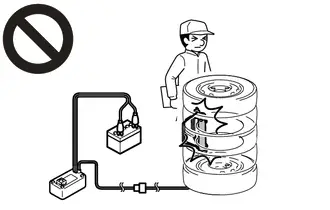

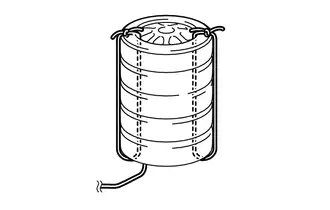

(3) Tie the tires together with 2 wires. CAUTION: Make sure that the wires are tight. Looseness in the wires will result in the tires breaking loose when the airbag is deployed.

(g) Install SST.

(1) Connect the SST connector. SST: 09082-00700 NOTICE: To avoid damaging the SST connector or wire harness, do not lock the secondary lock of the twin lock. Also, secure some slack for the SST wire harness inside the tire.

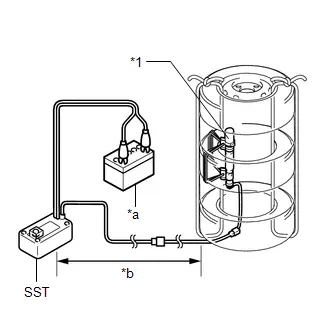

*1 Curtain Shield Airbag Assembly *a Auxiliary Battery *b 10 m (32.8 ft.) or more

(2) Move SST at least 10 m (32.8 ft.) away from the airbag tied down to the tire.

(h) Deploy the airbag.

(1) Connect the red clip of SST to the positive ( ) auxiliary battery terminal and the black clip of SST to the negative (-) auxiliary battery terminal.

(2) Check that no one is within a 10 m (32.8 ft.) radius of the tire to which the curtain shield airbag assembly is tied.

(3) Press the SST activation switch to deploy the airbag.

CAUTION:

Before deployment, make sure that no one is near the airbag.

HINT:

The airbag is deployed as the LED of the SST activation switch comes on.

(i) Dispose of the curtain shield airbag assembly.

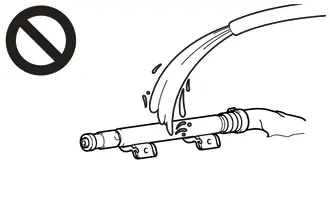

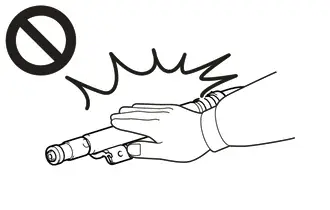

(1) Remove the curtain shield airbag assembly from the tire.

(2) Place the curtain shield airbag assembly in a plastic bag, tie it tightly, and dispose of it according to local regulations.
