Toyota Prius: Child Restraint Seat Anchor Bracket

Removal

REMOVAL

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands

CAUTION / NOTICE / HINT

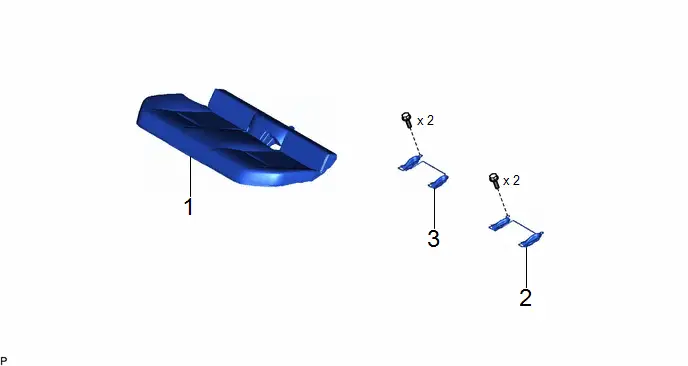

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	REAR SEAT ASSEMBLY	-	-	-	-
2	CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH	73706	-	-	-
3	CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH	73705	-	-	-

PROCEDURE

1. REMOVE REAR SEAT ASSEMBLY

Click here

2. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

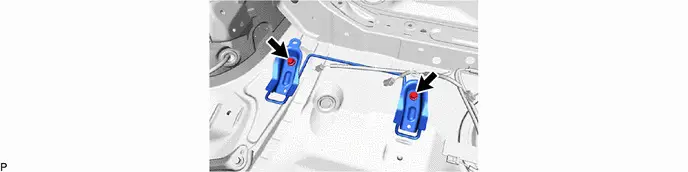

3. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH

Installation

INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

CAUTION / NOTICE / HINT

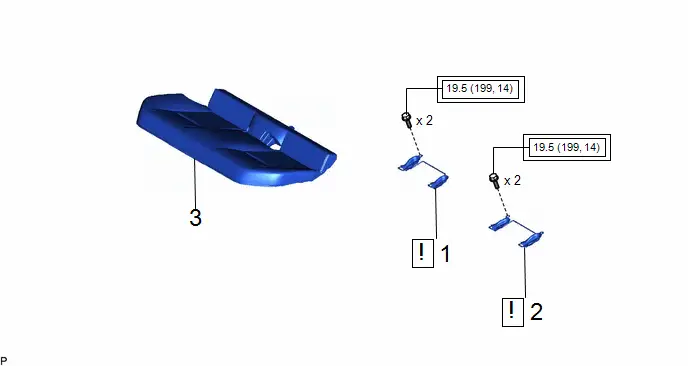

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH	73705		-	-
2	CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH	73706		-	-
3	REAR SEAT ASSEMBLY	-	-	-	-

Tightening torque for "Major areas involving basic Toyota Prius vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-

PROCEDURE

1. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH

(1) Temporarily install the child restraint seat anchor bracket sub-assembly RH with the 2 bolts.

(2) Install the child restraint seat anchor bracket sub-assembly RH with the 2 bolts.

Torque:

19.5 N·m {199 kgf·cm, 14 ft·lbf}

HINT:

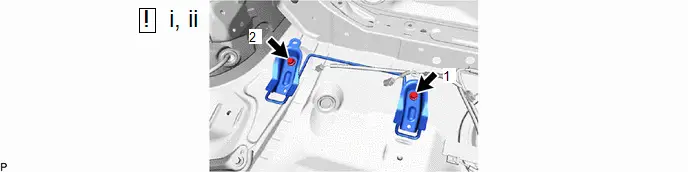

Tighten the bolts in the order shown in the illustration.

2. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

(1) Temporarily install the child restraint seat anchor bracket sub-assembly LH with the 2 bolts.

(2) Install the child restraint seat anchor bracket sub-assembly LH with the 2 bolts.

Torque:

19.5 N·m {199 kgf·cm, 14 ft·lbf}

HINT:

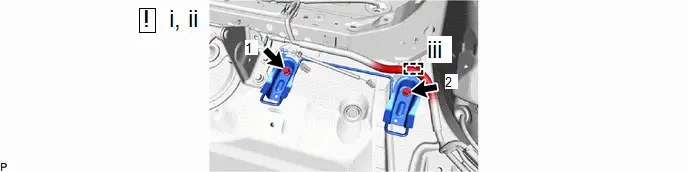

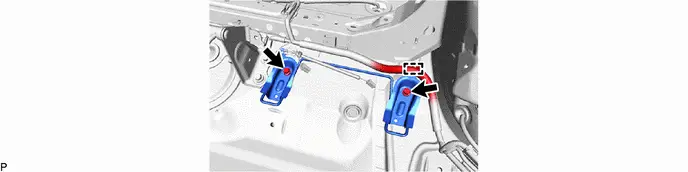

Tighten the bolts in the order shown in the illustration.

(3) Engage the clamp.

3. INSTALL REAR SEAT ASSEMBLY

Click here
