Toyota Prius: Back-up Battery

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during back-up battery removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Back-up battery	Perform the reset back-up battery condition	Safety Connect System

CAUTION / NOTICE / HINT

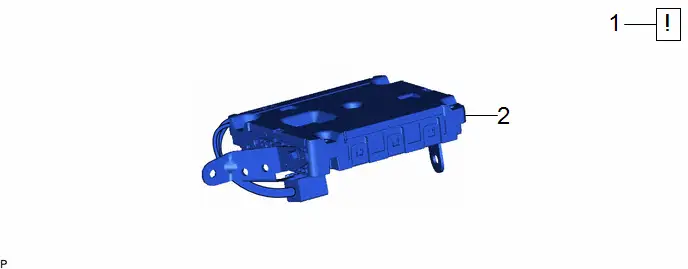

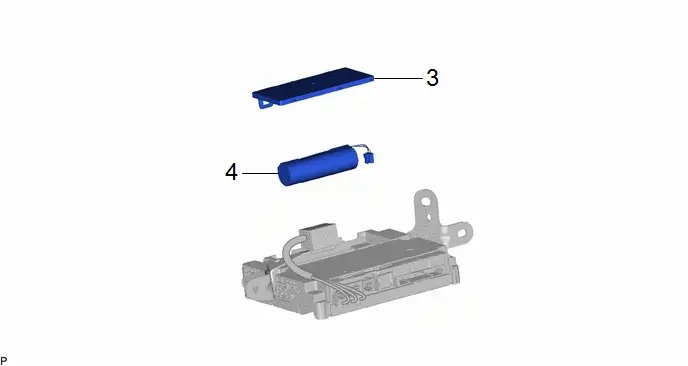

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	PRECAUTION	-		-	-
2	DCM (TELEMATICS TRANSCEIVER) WITH BRACKET	-	-	-	-

Procedure		Part Name Code
3	TRANSCEIVER COVER	86742	-	-	-
4	BACK-UP BATTERY	86725	-	-	-

PROCEDURE

1. PRECAUTION

Click here

2. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET

Click here

3. REMOVE TRANSCEIVER COVER

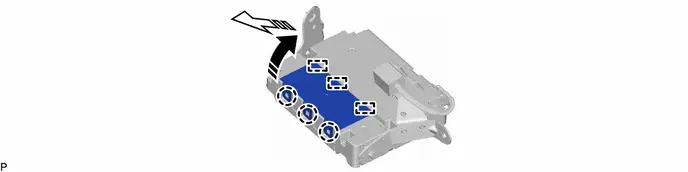

Remove in this Direction (1)

Remove in this Direction (2)

4. REMOVE BACK-UP BATTERY

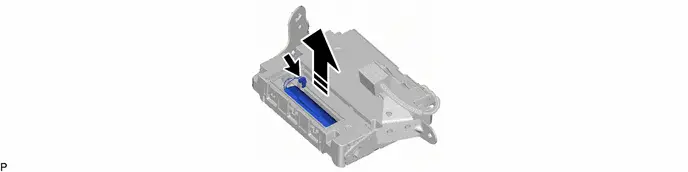

Remove in this Direction (1)

-

-

Installation

INSTALLATION

CAUTION / NOTICE / HINT

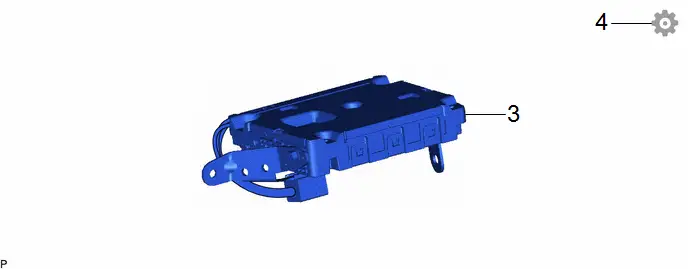

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	BACK-UP BATTERY	86725	-	-	-
2	TRANSCEIVER COVER	86742	-	-	-

Procedure		Part Name Code
3	DCM (TELEMATICS TRANSCEIVER) WITH BRACKET	-	-	-	-
4	PERFORM INITIALIZATION	-	-	-

PROCEDURE

1. INSTALL BACK-UP BATTERY

2. INSTALL TRANSCEIVER COVER

3. INSTALL DCM (TELEMATICS TRANSCEIVER) WITH BRACKET

Click here

4. PERFORM INITIALIZATION

Click here
