Toyota Prius: Amplifier Antenna
Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during No. 1 amplifier antenna assembly removal/installation are shown below.
CAUTION:
Be sure to read Precaution thoroughly before servicing.
Click here
NOTICE:
-
After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
Click here
HINT:
-
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used. Learning completes when Toyota Prius vehicle is driven
Learning completes when vehicle is operated normally *1: w/o Power Back Door SystemEffect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
Front Camera System
Drive the Toyota Prius vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
*1: w/o Power Back Door System *2: w/ Power Back Door System
Power Door Lock Control System*1
- Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Power Back Door System*2
Reset back door close position
Air Conditioning System
for HEV Model:- After the ignition switch is turned to ON, the servo motor standard position is recognized.
for PHEV Model:- After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized.
-
CAUTION / NOTICE / HINT

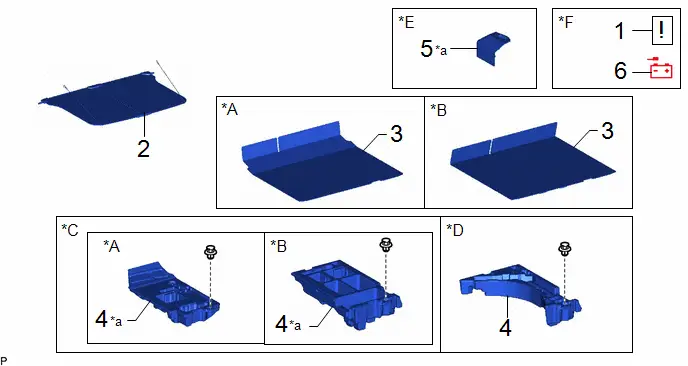

COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|

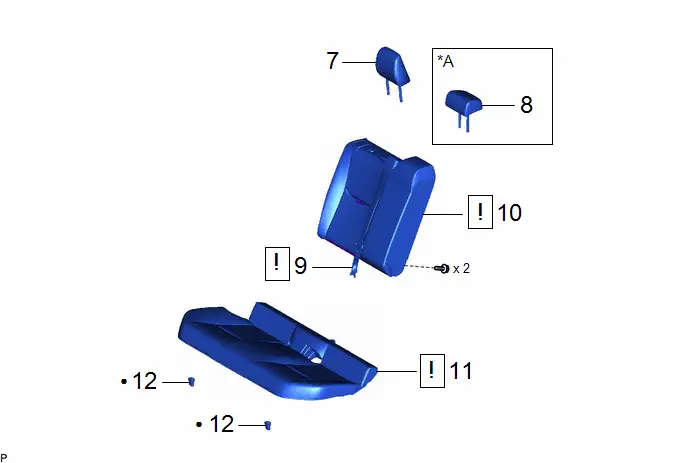

| |
|---|---|---|---|---|---|
| 1 | PRECAUTION | - |
| - | - |
| 2 | TONNEAU COVER ASSEMBLY | 64910J | - | - | - |
| 3 | DECK BOARD ASSEMBLY | 58410B | - | - | - |
| 4 | DECK FLOOR BOX RH | 64995 | - | - | - |
| 5 | BATTERY SERVICE HOLE COVER ASSEMBLY | 58440 | - | - | - |
| 6 | DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL | - | - | - | - |
| *A | for Type A | *B | for Type B |
| *C | w/o Spare Tire | *D | w/ Spare Tire |
| *E | for M20A-FXS | *F | w/ Rear Seat Side Airbag |
| *a | HINT: As the illustration shown is an example, the actual details may differ. | - | - |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 7 | REAR SEAT HEADREST ASSEMBLY | 71940A | - | - | - |
| 8 | REAR SEAT CENTER HEADREST ASSEMBLY | 71960B | - | - | - |
| 9 | REAR CENTER SEAT OUTER BELT ASSEMBLY | 73350C |
| - | - |
| 10 | REAR SEATBACK ASSEMBLY RH | - |
| - | - |
| 11 | REAR SEAT CUSHION ASSEMBLY | - |
| - | - |
| 12 | REAR SEAT CUSHION LOCK HOOK | 72693 | - | - | - |
| *A | w/ Center Headrest | - | - |
| ● | Non-reusable part | - | - |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 13 | REAR DOOR SCUFF PLATE INSIDE RH | 67917F | - | - | - |
| 14 | REAR UNDER SIDE COVER RH | 76973E | - | - | - |
| 15 | REAR DOOR OPENING TRIM WEATHERSTRIP RH | 62331A | - | - | - |
| 16 | REAR SEATBACK HINGE SUB-ASSEMBLY RH | 71303C | - | - | - |
| 17 | REAR SEAT SIDE GARNISH RH | 62551F |
| - | - |
| 18 | LUGGAGE HOLD BELT STRIKER ASSEMBLY | 58460D | - | - | - |
| 19 | REAR DECK TRIM COVER | 64716D | - | - | - |
| *A | for Rear Side | *B | w/o Rear Seat Side Airbag |
| *C | w/ Rear Seat Side Airbag | *D | for HEV Model |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 20 | LUGGAGE HOLD BELT STRIKER ASSEMBLY | 58460D | - | - | - |
| 21 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY | 81330 |
| - | - |
| 22 | DECK TRIM SIDE PANEL ASSEMBLY RH | 64730B |
| - | - |
| 23 | ROOF SIDE INNER GARNISH ASSEMBLY RH | 62470A | - | - | - |
| 24 | NO. 1 AMPLIFIER ANTENNA ASSEMBLY | 86300B | - | - | - |
| *A | for RH Side | - | - |
PROCEDURE
1. PRECAUTION (w/ Rear Seat Side Airbag)
| NOTICE: After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal. Click here
|
2. REMOVE TONNEAU COVER ASSEMBLY
Click here
3. REMOVE DECK BOARD ASSEMBLY
Click here
4. REMOVE DECK FLOOR BOX RH
Click here
5. REMOVE BATTERY SERVICE HOLE COVER ASSEMBLY (for M20A-FXS)
Click here
6. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL (w/ Rear Seat Side Airbag)
(a) for M20A-FXS:
Click here
(b) for 2ZR-FXE:
Click here
7. REMOVE REAR SEAT HEADREST ASSEMBLY
Click here
8. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY (w/ Center Headrest)
Click here
9. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
| Click here
|
10. REMOVE REAR SEATBACK ASSEMBLY RH
| Click here
|
11. REMOVE REAR SEAT CUSHION ASSEMBLY
| Click here
|
12. REMOVE REAR SEAT CUSHION LOCK HOOK
Click here
13. REMOVE REAR DOOR SCUFF PLATE INSIDE RH
(a) Use the same procedure as for the LH side.
Click here
14. REMOVE REAR UNDER SIDE COVER RH (for HEV Model)
(a) Use the same procedure as for the LH side.
Click here
15. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH
(a) Use the same procedure as for the LH side.
Click here
16. REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY RH
(a) Use the same procedure as for the LH side.
Click here
17. REMOVE REAR SEAT SIDE GARNISH RH
|
|
18. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY (for Rear Side)
Click here
19. REMOVE REAR DECK TRIM COVER
Click here
20. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY (for RH Side)
(a) Use the same procedure as for the LH side.
Click here
21. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
| Click here
|
22. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
|
|
23. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH
(a) Use the same procedure as for the LH side.
Click here

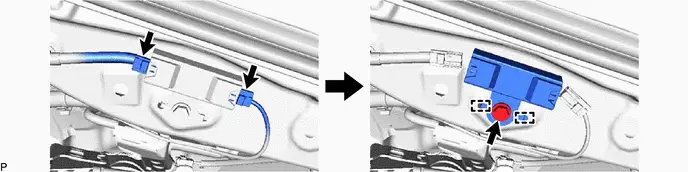

24. REMOVE NO. 1 AMPLIFIER ANTENNA ASSEMBLY
Installation
INSTALLATION
CAUTION / NOTICE / HINT

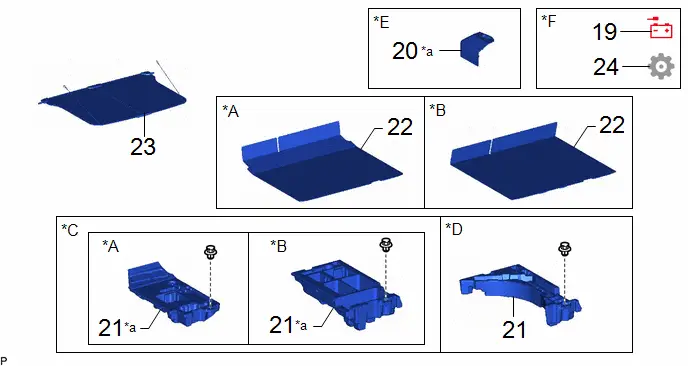

COMPONENTS (INSTALLATION)

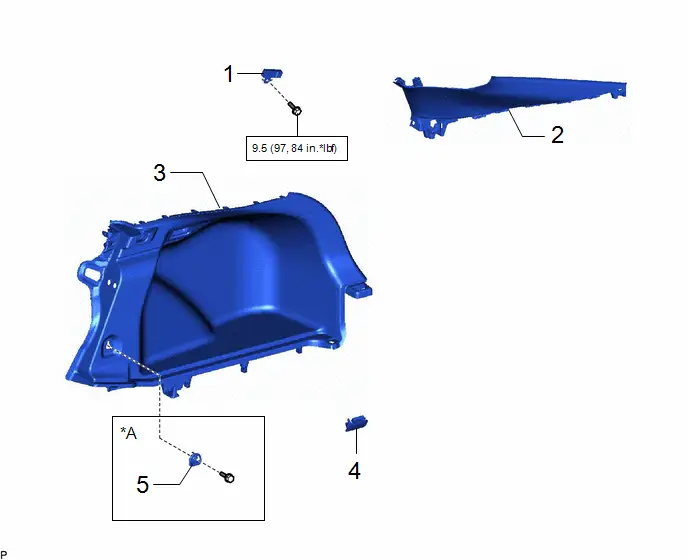

| Procedure | Part Name Code |
|
|

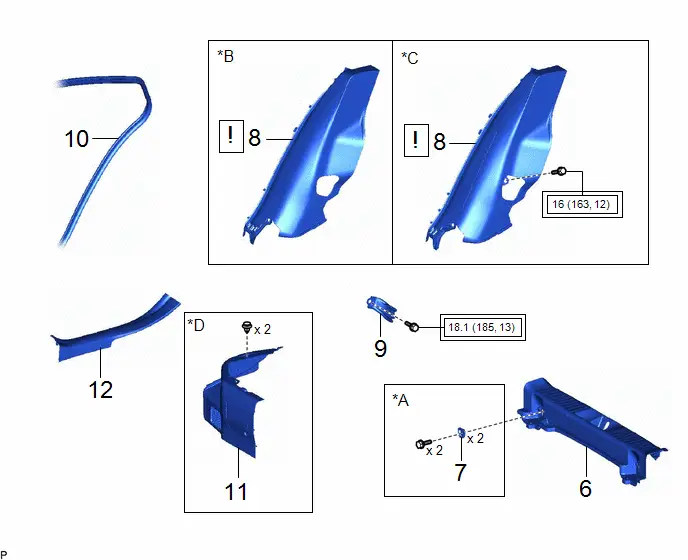

| |
|---|---|---|---|---|---|
| 1 | NO. 1 AMPLIFIER ANTENNA ASSEMBLY | 86300B | - | - | - |
| 2 | ROOF SIDE INNER GARNISH ASSEMBLY RH | 62470A | - | - | - |
| 3 | DECK TRIM SIDE PANEL ASSEMBLY RH | 64730B | - | - | - |
| 4 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY | 81330 | - | - | - |
| 5 | LUGGAGE HOLD BELT STRIKER ASSEMBLY | 58460D | - | - | - |
| *A | for RH Side | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 6 | REAR DECK TRIM COVER | 64716D | - | - | - |
| 7 | LUGGAGE HOLD BELT STRIKER ASSEMBLY | 58460D | - | - | - |
| 8 | REAR SEAT SIDE GARNISH RH | 62551F |
| - | - |
| 9 | REAR SEATBACK HINGE SUB-ASSEMBLY RH | 71303C | - | - | - |
| 10 | REAR DOOR OPENING TRIM WEATHERSTRIP RH | 62331A | - | - | - |
| 11 | REAR UNDER SIDE COVER RH | 76973E | - | - | - |
| 12 | REAR DOOR SCUFF PLATE INSIDE RH | 67917F | - | - | - |
| *A | for Rear Side | *B | w/o Rear Seat Side Airbag |
| *C | w/ Rear Seat Side Airbag | *D | for HEV Model |
| Tightening torque for "Major areas involving basic Toyota Prius vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 13 | REAR SEAT CUSHION LOCK HOOK | 72693 | - | - | - |
| 14 | REAR SEAT CUSHION ASSEMBLY | - |
| - | - |
| 15 | REAR SEATBACK ASSEMBLY RH | - |
| - | - |
| 16 | REAR CENTER SEAT OUTER BELT ASSEMBLY | 73350C | - | - | - |
| 17 | REAR SEAT CENTER HEADREST ASSEMBLY | 71960B | - | - | - |
| 18 | REAR SEAT HEADREST ASSEMBLY | 71940A | - | - | - |
| *A | w/ Center Headrest | - | - |
| Tightening torque for "Major areas involving basic Toyota Prius vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 19 | CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL | - | - | - | - |
| 20 | BATTERY SERVICE HOLE COVER ASSEMBLY | 58440 | - | - | - |
| 21 | DECK FLOOR BOX RH | 64995 | - | - | - |
| 22 | DECK BOARD ASSEMBLY | 58410B | - | - | - |
| 23 | TONNEAU COVER ASSEMBLY | 64910J | - | - | - |
| 24 | INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL | - | - | - |
|
| *A | for Type A | *B | for Type B |
| *C | w/o Spare Tire | *D | w/ Spare Tire |
| *E | for M20A-FXS | *F | w/ Rear Seat Side Airbag |
| *a | HINT: As the illustration shown is an example, the actual details may differ. | - | - |
PROCEDURE
1. INSTALL NO.1 AMPLIFIER ANTENNA ASSEMBLY
Torque:
10 N·m {102 kgf·cm, 7 ft·lbf}
2. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH
3. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH
4. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
5. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY (for RH Side)
6. INSTALL REAR DECK TRIM COVER
7. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY (for Rear Side)
8. INSTALL REAR SEAT SIDE GARNISH RH
|
|
9. INSTALL REAR SEATBACK HINGE SUB-ASSEMBLY RH
(a) Use the same procedure as for the LH side.
Click here
10. CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH
11. INSTALL REAR UNDER SIDE COVER RH (for HEV Model)
12. INSTALL REAR DOOR SCUFF PLATE INSIDE RH
13. INSTALL REAR SEAT CUSHION LOCK HOOK
14. INSTALL REAR SEAT CUSHION ASSEMBLY
| Click here
|
15. INSTALL REAR SEATBACK ASSEMBLY RH
| Click here
|
16. CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
17. INSTALL REAR SEAT CENTER HEADREST ASSEMBLY (w/ Center Headrest)
18. INSTALL REAR SEAT HEADREST ASSEMBLY
19. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL (w/ Rear Seat Side Airbag)
(a) for M20A-FXS:
Click here
(b) for 2ZR-FXE:
Click here
20. INSTALL BATTERY SERVICE HOLE COVER ASSEMBLY (for M20A-FXS)
21. INSTALL DECK FLOOR BOX RH
22. INSTALL DECK BOARD ASSEMBLY
23. INSTALL TONNEAU COVER ASSEMBLY
24. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL (w/ Rear Seat Side Airbag)
HINT:
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
Click here
Toyota Prius (XW60) 2023-2025 Service Manual
Amplifier Antenna
