Toyota Prius: Advanced Park Main Switch

Removal

REMOVAL

CAUTION / NOTICE / HINT

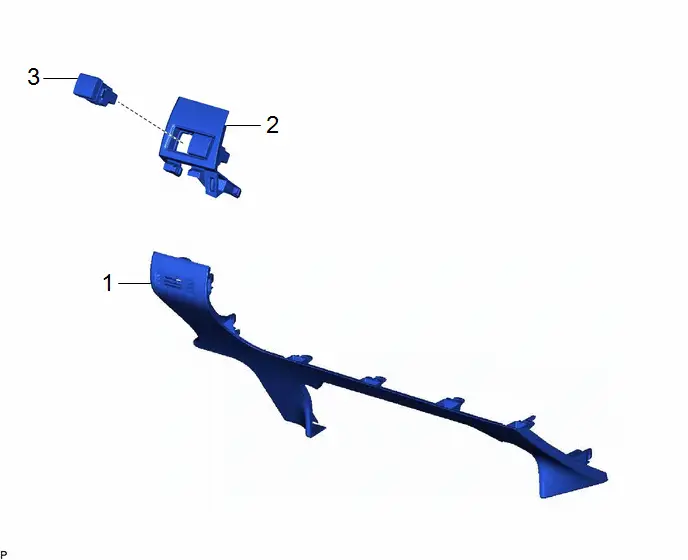

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	LOWER CENTER INSTRUMENT PANEL FINISH PANEL	55434B	-	-	-
2	LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY	55406B	-	-	-
3	IPA MAIN SWITCH ASSEMBLY	84490D	-	-	-

PROCEDURE

1. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Click here

2. REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

Click here

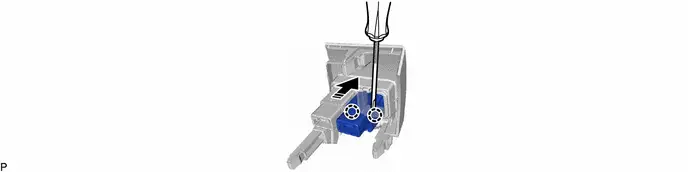

3. REMOVE IPA MAIN SWITCH ASSEMBLY

Remove in this Direction

Inspection

INSPECTION

PROCEDURE

1. INSPECT IPA MAIN SWITCH ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Click Location & Routing(K34) Click Connector(K34)

Tester Connection	Switch Condition	Specified Condition	Result
K34-5 (IG) - K34-2 (E)	IPA main switch assembly ON	0 to 20 Ω	Ω
K34-5 (IG) - K34-2 (E)	IPA main switch assembly OFF	10 kΩ or higher	kΩ

If the result is not as specified, replace the IPA main switch assembly.

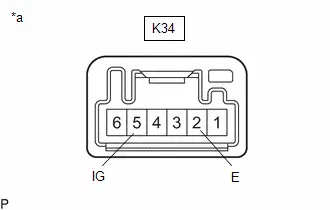

*a	Component without harness connected (IPA Main Switch Assembly)

(b) Check that the switch illumination illuminates.

(1) Apply auxiliary battery voltage to the IPA main switch assembly and check that the switch illumination illuminates.

OK:

Click Location & Routing(K34) Click Connector(K34)

Tester Connection

Specified Condition

Auxiliary battery positive ( ) → K34-6 (ILL )

Auxiliary battery negative (-) → K34-1 (ILL-)

Illuminates

If the result is not as specified, replace the IPA main switch assembly.

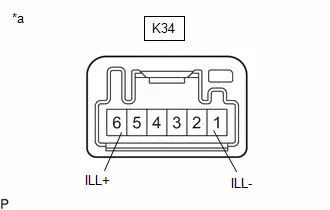

*a	Component without harness connected (IPA Main Switch Assembly)

Installation

INSTALLATION

CAUTION / NOTICE / HINT

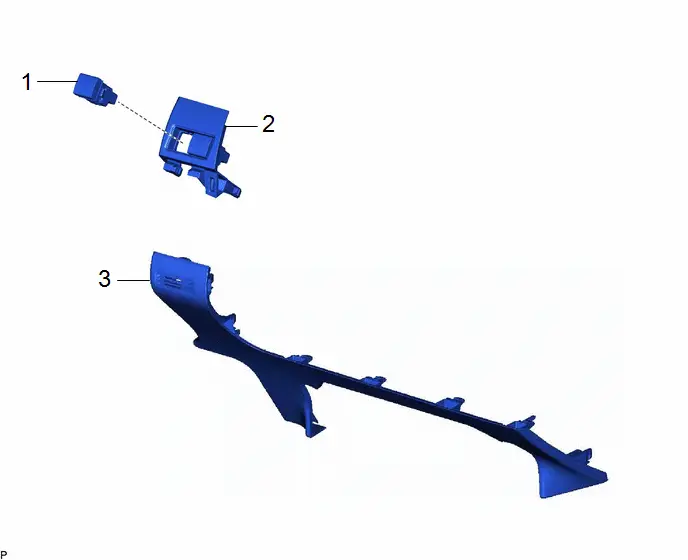

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	IPA MAIN SWITCH ASSEMBLY	84490D	-	-	-
2	LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY	55406B	-	-	-
3	LOWER CENTER INSTRUMENT PANEL FINISH PANEL	55434B	-	-	-
