Toyota Prius: Vehicle Approaching Speaker
Removal
REMOVAL
CAUTION / NOTICE / HINT

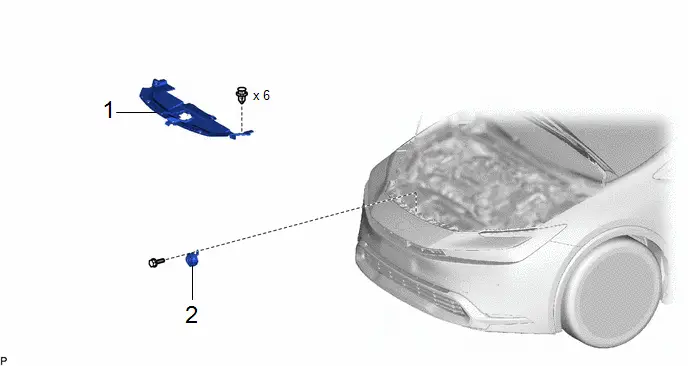

COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | RADIATOR SUPPORT OPENING COVER | 53289A | - | - | - |
| 2 | Toyota Prius Vehicle APPROACHING SPEAKER ASSEMBLY | 86570 | - | - | - |
PROCEDURE
1. REMOVE RADIATOR SUPPORT OPENING COVER
Click here

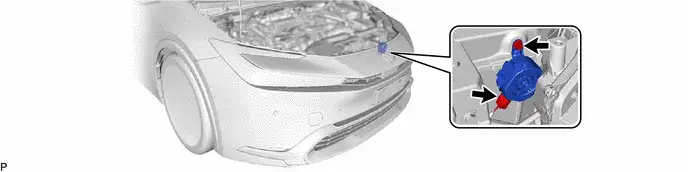

2. REMOVE Toyota Prius Vehicle APPROACHING SPEAKER ASSEMBLY
Inspection
INSPECTION
PROCEDURE
1. INSPECT VEHICLE APPROACHING SPEAKER ASSEMBLY

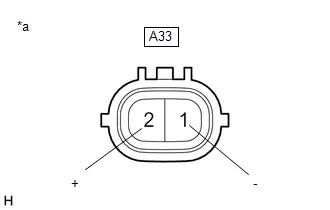

| (a) Measure the resistance according to the value(s) in the table below. Standard Resistance:  Click Location & Routing(A33) Click Connector(A33)
HINT: Make sure that there are no problems such as looseness or play with the installation of the Toyota Prius vehicle approaching speaker assembly. If the result is not as specified, replace the vehicle approaching speaker assembly. |
|
Installation
INSTALLATION
CAUTION / NOTICE / HINT

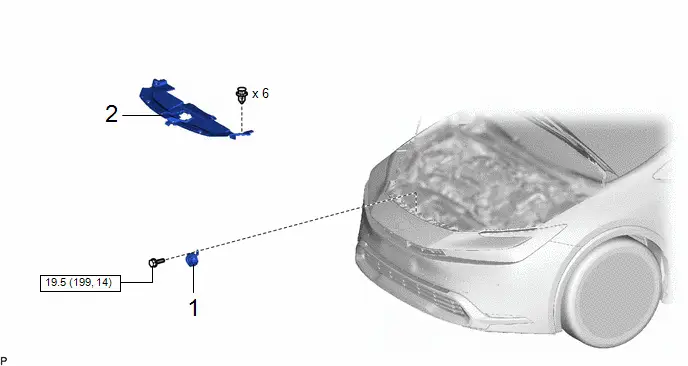

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | Toyota Prius Vehicle APPROACHING SPEAKER ASSEMBLY | 86570 | - | - | - |
| 2 | RADIATOR SUPPORT OPENING COVER | 53289A | - | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
PROCEDURE
1. INSTALL Toyota Prius Vehicle APPROACHING SPEAKER ASSEMBLY
Torque:
19.5 N·m {199 kgf·cm, 14 ft·lbf}
2. INSTALL RADIATOR SUPPORT OPENING COVER
