Toyota Prius: Tire And Wheel System
How To Proceed With Troubleshooting
PROCEDURE
| 1. | CHECK TIRE AND WHEEL SYSTEM |
| DIAGNOSIS OF IRREGULAR TIRE WEAR |
| GO TO STEP 11 |
|
| 2. | TIGHTEN WHEEL NUTS |
Click here
|
| 3. | INSPECT TIRES |
(a) Inspect the tires for wear and proper inflation pressure.
Click here
(b) Check the runout of the tires.
Click here
| NG |
| GO TO STEP 10 |
|
| 4. | INSPECT AND/OR ADJUST WHEEL BALANCE |
Click here
|
| 5. | INSPECT FRONT AXLE HUB BEARING LOOSENESS AND AXLE HUB RUNOUT |
Click here
| NG |
| GO TO STEP 9 |
|
| 6. | INSPECT REAR AXLE HUB BEARING LOOSENESS AND AXLE HUB RUNOUT |
for 2WD: Click here
for AWD: Click here
| NG |
| GO TO STEP 8 |
|
| 7. | PERFORM ROAD TEST |
| NEXT |
| RETURN Toyota Prius Vehicle TO CUSTOMER |
| 8. | REPAIR REAR AXLE HUB BEARING LOOSENESS AND AXLE HUB RUNOUT |
for 2WD: Click here
for AWD: Click here
| NEXT |
| GO TO STEP 7 |
| 9. | REPAIR FRONT AXLE HUB BEARING LOOSENESS AND AXLE HUB RUNOUT |
Click here
| NEXT |
| GO TO STEP 6 |
| 10. | REPAIR OR REPLACE TIRE(S) |
| NEXT |
| GO TO STEP 4 |
| 11. | INSPECT TIRES |
(a) Inspect the tires for wear and proper inflation pressure.
Click here
(b) Check the runout of the tires.
Click here
|
| 12. | REPAIR OR REPLACE TIRE(S) |
|
| 13. | INSPECT AND/OR ADJUST FRONT WHEEL ALIGNMENT |
Click here
|
| 14. | INSPECT AND/OR ADJUST REAR WHEEL ALIGNMENT |
Click here
|
| 15. | PERFORM ROAD TEST |
| NEXT |
| RETURN Toyota Prius Vehicle TO CUSTOMER |
Inspection
INSPECTION
PROCEDURE
1. INSPECT TIRES
Pre-procedure1
(a) None
Procedure1

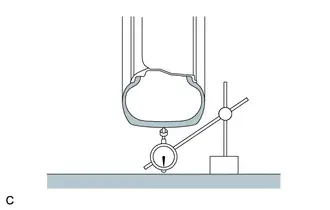

| (b) Using a dial indicator, check the runout of the tires. HINT: Measure the runout with the wheel assembly removed from the Toyota Prius vehicle. Maximum Tire Runout:
|
|
Post-procedure1
(c) None
Toyota Prius (XW60) 2023-2025 Service Manual
