Toyota Prius: Sub Radiator
Toyota Prius (XW60) 2023-2025 Service Manual / Engine/Hybrid System / Hybrid / Battery Control / Sub Radiator
Removal
REMOVAL
CAUTION / NOTICE / HINT

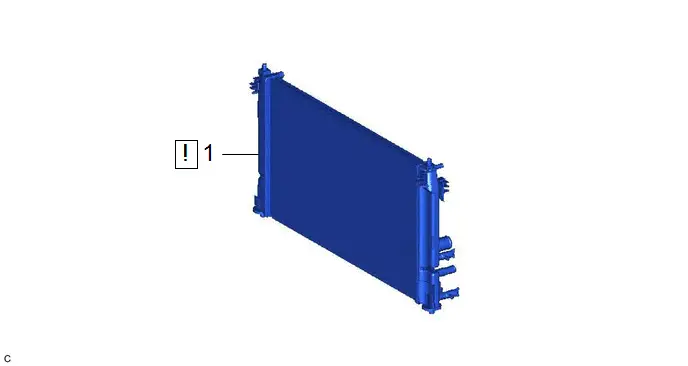

COMPONENTS(REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | RADIATOR ASSEMBLY | 16400 |
| - | - |
PROCEDURE
1. REMOVE RADIATOR ASSEMBLY
| HINT: The radiator (for inverter coolant) is part of the radiator (for Engine). If the radiator (for inverter coolant) needs to be replaced, replace the radiator assembly. |
(a) Remove the radiator assembly.
-
for 2ZR-FXE:
Click here
-
for M20A-FXS HEV Model:
Click here
-
for M20A-FXS PHEV Model:
Click here
