Toyota Prius: Rear Seat Assembly
Removal
REMOVAL
CAUTION / NOTICE / HINT
CAUTION:
Wear protective gloves. Sharp areas on the parts may injure your hands.
CAUTION / NOTICE / HINT
COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|

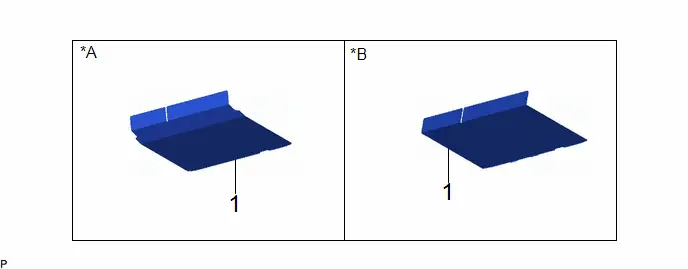

| 1 | DECK BOARD ASSEMBLY | 58410B | - | - | - |
| *A | for Type A | *B | for Type B |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 2 | REAR SEAT HEADREST ASSEMBLY | 71940A | - | - | - |
| 3 | REAR SEAT CENTER HEADREST ASSEMBLY | 71960B | - | - | - |
| 4 | REAR SEAT HEADREST ASSEMBLY | 71940A | - | - | - |
| 5 | REAR CENTER SEAT OUTER BELT ASSEMBLY | 73350C |
| - | - |
| 6 | REAR SEATBACK ASSEMBLY RH | - |
| - | - |
| 7 | REAR SEATBACK ASSEMBLY LH | - |
| - | - |
| 8 | REAR SEAT CUSHION ASSEMBLY | - |
| - | - |
| 9 | REAR SEAT CUSHION LOCK HOOK | 72693 | - | - | - |
| *A | for RH Side | *B | for LH Side |
| *C | w/ Center Headrest | *D | for HEV Model |
| *E | for PHEV Model | - | - |
| ● | Non-reusable part | - | - |
PROCEDURE
1. REMOVE DECK BOARD ASSEMBLY
Click here

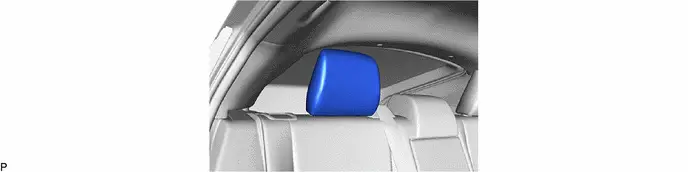

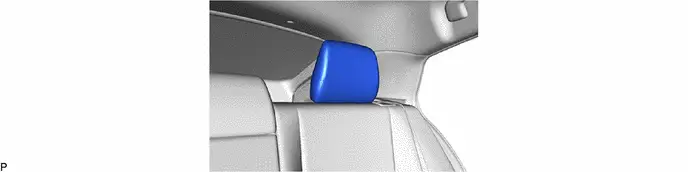

2. REMOVE REAR SEAT HEADREST ASSEMBLY (for RH Side)

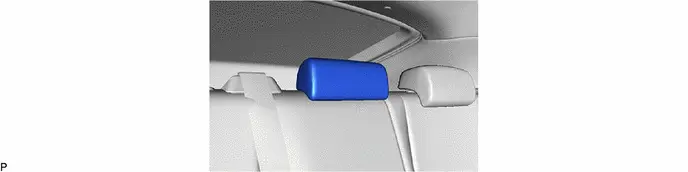

3. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY (for RH Side)
(a) w/ Center Headrest:
4. REMOVE REAR SEAT HEADREST ASSEMBLY (for LH Side)
5. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
| *a | Protective Tape | - | - |
| Remove in this Direction |
| Insert Screwdriver Here |

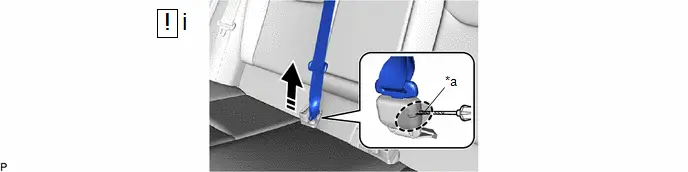

(1) Using a screwdriver with its tip wrapped with protective tape, disconnect the rear center seat outer belt assembly.

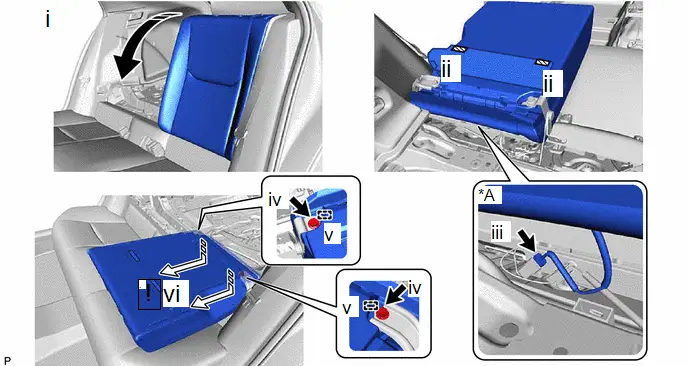

6. REMOVE REAR SEATBACK ASSEMBLY RH
| *A | w/ Seat Heater System | - | - |
| Direction to defeat |
| Remove in this Direction |

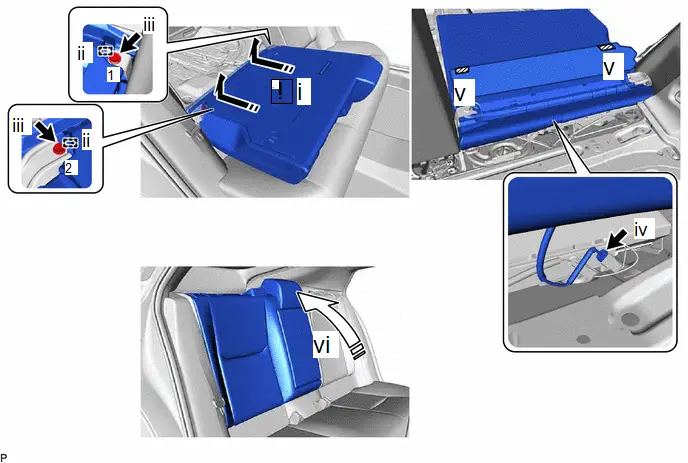

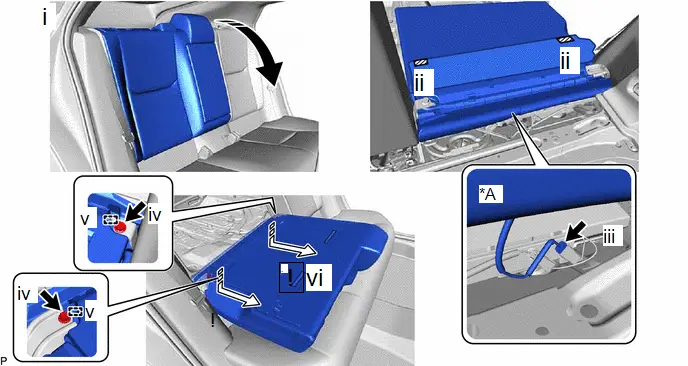

(1) Fold the rear seatback assembly RH forward.
(2) Disengage the 2 fasteners.
(3) Disconnect the connector. (w/ Seat Heater System)
(4) Remove the 2 bolts.
(5) Disengage the 2 guides and shift the rear seatback assembly RH.
(6) Remove the rear seatback assembly RH as shown in the illustration.
NOTICE:
Be careful not to damage the Toyota Prius vehicle body.
7. REMOVE REAR SEATBACK ASSEMBLY LH
| *A | w/ Seat Heater System | - | - |
| Direction to defeat |
| Remove in this Direction |
(1) Fold the rear seatback assembly LH forward.
(2) Disengage the 2 fasteners.
(3) Disconnect the connector. (w/ Seat Heater System)
(4) Remove the 2 bolts.
(5) Disengage the 2 guides and shift the rear seatback assembly LH.
(6) Remove the rear seatback assembly LH as shown in the illustration.
NOTICE:
Be careful not to damage the Toyota Prius vehicle body.

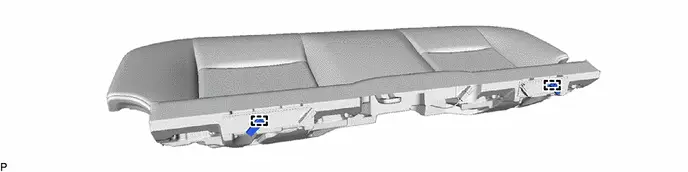

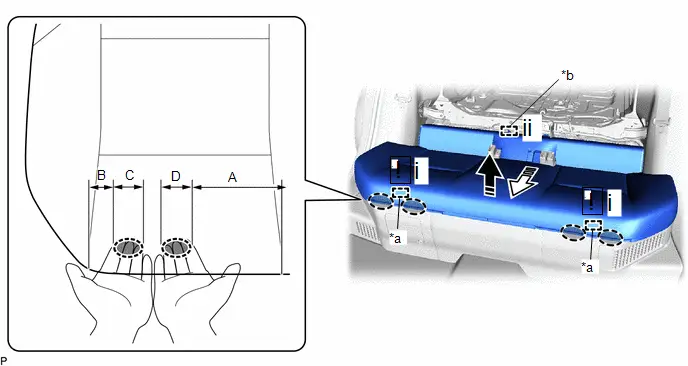

8. REMOVE REAR SEAT CUSHION ASSEMBLY
(a) for HEV Model:
| *a | Rear Seat Cushion Frame Hook (Front Side) | *b | Rear Seat Cushion Frame Hook (Rear Side) |
| Place Hand Here |
| Remove in this Direction (1) |
| Remove in this Direction (2) | - | - |

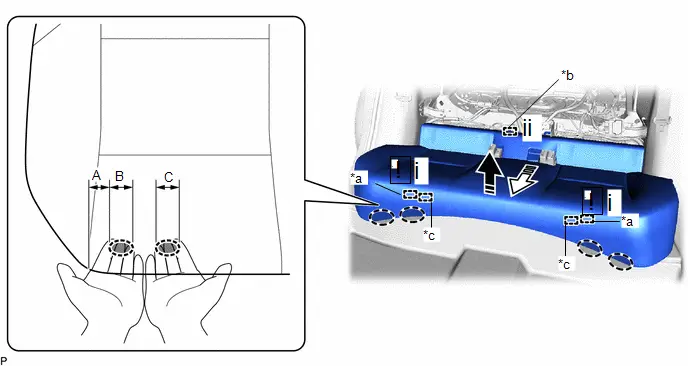

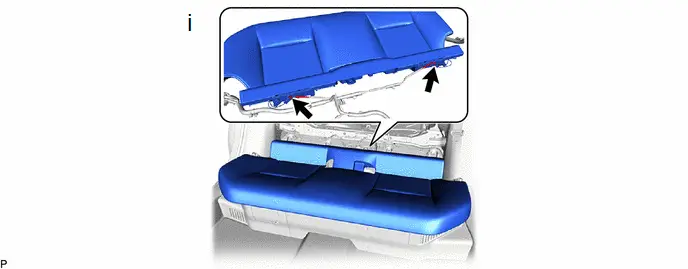

(1) Lift the front edge of the rear seat cushion assembly as shown in the illustration and disengage the 2 rear seat cushion frame hooks on the front side of the rear seat cushion assembly from the rear seat cushion lock hooks.
Standard Measurement:
| Area | Measurement | Area | Measurement |
|---|---|---|---|
| A | 95.6 mm (3.76 in.) | B | 26.4 mm (1.04 in.) |
| C | 51.2 mm (2.02 in.) | D | 56.4 mm (2.22 in.) |
NOTICE:
- Disengage each hook at the front part of the rear seat cushion frame one area at a time.
- Be sure to hold the parts of the seat cushion assembly directly next to the rear seat cushion frame hooks when lifting it. Lifting a different part of the cushion may deform the rear seat cushion frame.
(2) Disengage the rear seat cushion frame hook on the rear side of the rear seat cushion assembly as shown in the illustration.
(b) Remove the rear seat cushion assembly.
NOTICE:
Be careful not to damage the Toyota Prius vehicle body.
(c) for PHEV Model:
| *a | Rear Seat Cushion Frame Hook (Front Side) | *b | Rear Seat Cushion Frame Hook (Rear Side) |
| *c | Guide | - | - |
| Place Hand Here |
| Remove in this Direction (1) |
| Remove in this Direction (2) | - | - |
(1) Lift the front edge of the rear seat cushion assembly as shown in the illustration and disengage the 2 rear seat cushion frame hooks and 2 guides on the front side of the rear seat cushion assembly from the rear seat cushion lock hooks.
Standard Measurement:
| Area | Measurement | Area | Measurement |
|---|---|---|---|
| A | 55.0 mm (2.17 in.) | B | 60.0 mm (2.36 in.) |
| C | 62.0 mm (2.44 in.) | - | - |
NOTICE:
- Disengage each hook at the front part of the rear seat cushion frame one area at a time.
- Be sure to hold the parts of the seat cushion assembly directly next to the rear seat cushion frame hooks when lifting it. Lifting a different part of the cushion may deform the rear seat cushion frame.
(2) Disengage the rear seat cushion frame hook on the rear side of the rear seat cushion assembly as shown in the illustration.
(d) w/ Seat Heater System:
(1) Disconnect the 2 connectors.

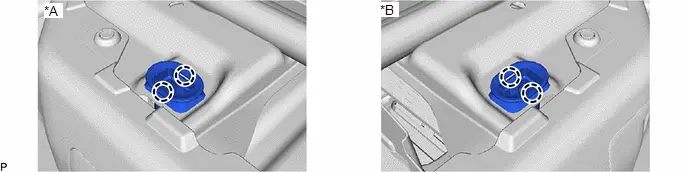

9. REMOVE REAR SEAT CUSHION LOCK HOOK
| *A | for RH Side | *B | for LH Side |
Disassembly
DISASSEMBLY
CAUTION / NOTICE / HINT
CAUTION:
Wear protective gloves. Sharp areas on the parts may injure your hands.
CAUTION / NOTICE / HINT

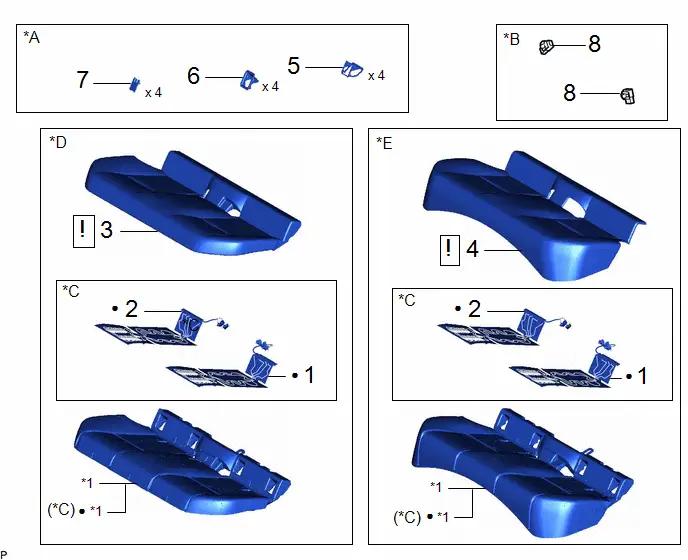

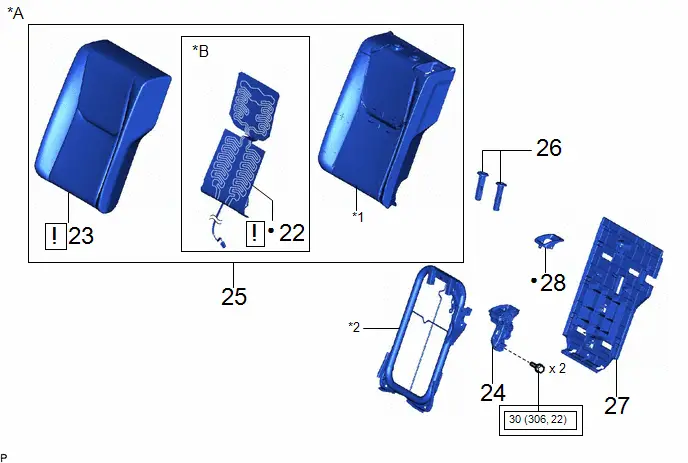

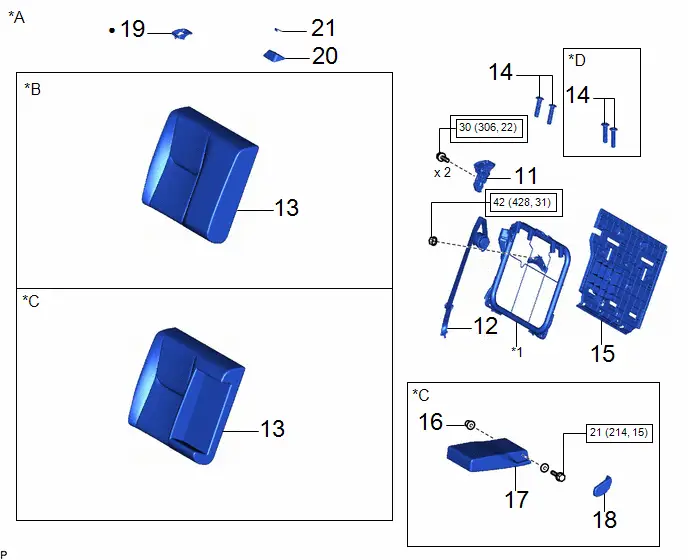

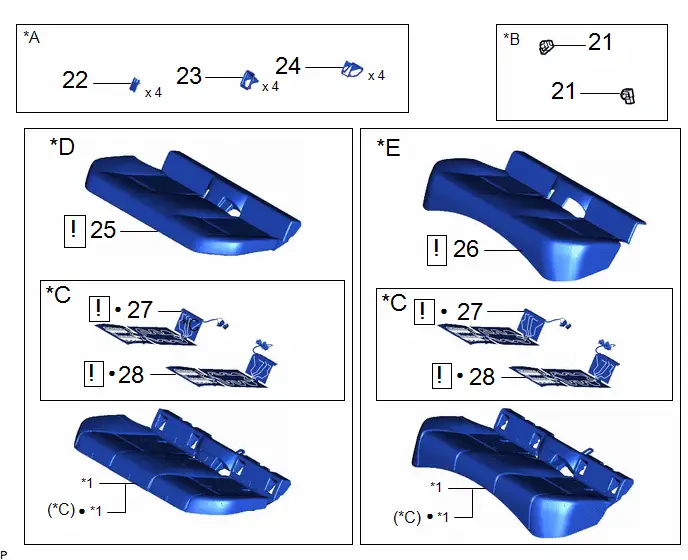

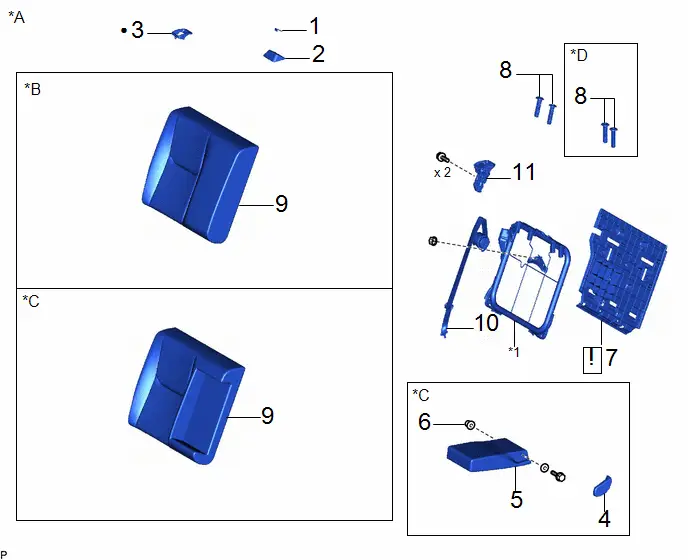

COMPONENTS (DISASSEMBLY)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | SEAT BELT ANCHOR COVER CAP | 73178A | - | - | - |
| 2 | REAR SEAT SHOULDER BELT COVER | 73373 | - | - | - |
| 3 | REAR SEATBACK UPPER LOCK BEZEL | 72667 | - | - | - |
| 4 | CENTER ARMREST HINGE COVER | 72868B | - | - | - |
| 5 | REAR SEAT CENTER ARMREST ASSEMBLY | 72830 | - | - | - |
| 6 | REAR SEAT ARMREST HINGE SHIM | 72839 | - | - | - |
| 7 | REAR SEATBACK BOARD SUB-ASSEMBLY RH | 71701C |
| - | - |
| 8 | REAR SEAT HEADREST SUPPORT | 71931A | - | - | - |
| 9 | SEPARATE TYPE REAR SEATBACK COVER WITH PAD | - | - | - | - |
| 10 | REAR CENTER SEAT OUTER BELT ASSEMBLY | 73350C | - | - | - |
| 11 | REAR SEATBACK LOCK ASSEMBLY RH | 72630C | - | - | - |
| *A | for RH Side | *B | w/o Armrest |
| *C | w/ Armrest | *D | w/ Center Headrest |

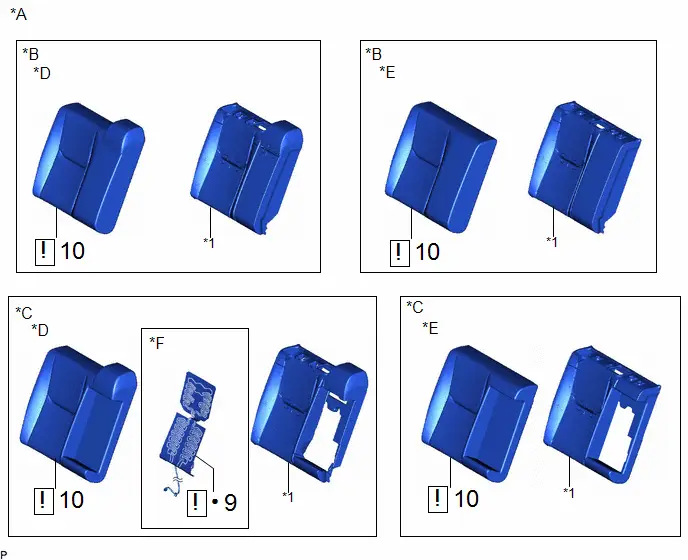

| *1 | REAR SEATBACK FRAME SUB-ASSEMBLY RH | - | - |
| ● | Non-reusable part | - | - |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 12 | SEPARATE TYPE REAR SEATBACK COVER | 71077S |
| - | - |
| 13 | REAR NO. 1 SEATBACK HEATER ASSEMBLY RH | 87530A |
| - | - |
| *A | for RH Side | *B | w/o Armrest |
| *C | w/ Armrest | *D | w/o Center Headrest |
| *E | w/ Center Headrest | *F | w/ Seat Heater System |
| *1 | SEPARATE TYPE REAR SEATBACK PAD RH | - | - |
| ● | Non-reusable part | - | - |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 14 | REAR SEATBACK UPPER LOCK BEZEL | 72667 | - | - | - |
| 15 | REAR SEATBACK BOARD SUB-ASSEMBLY LH | 71702C |
| - | - |
| 16 | REAR SEAT HEADREST SUPPORT | 71931A | - | - | - |
| 17 | SEPARATE TYPE REAR SEATBACK COVER WITH PAD | - | - | - | - |
| 18 | REAR SEATBACK LOCK ASSEMBLY LH | 72640A | - | - | - |
| 19 | SEPARATE TYPE REAR SEATBACK COVER | 71078S |
| - | - |
| 20 | REAR NO. 1 SEATBACK HEATER ASSEMBLY LH | 87530 |
| - | - |
| *A | for LH Side | *B | w/ Seat Heater System |
| *1 | SEPARATE TYPE REAR SEATBACK PAD LH | *2 | REAR SEATBACK FRAME SUB-ASSEMBLY LH |
| ● | Non-reusable part | - | - |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 21 | CONNECTOR BRACKET | - | - | - | - |
| 22 | CHILD RESTRAINT SEAT COVER | 73731 | - | - | - |
| 23 | CHILD RESTRAINT SEAT BASE COVER | 73733 | - | - | - |
| 24 | CHILD RESTRAINT SEAT GUIDE CUP | 73735A | - | - | - |
| 25 | BENCH TYPE REAR SEAT CUSHION COVER | 71075B |
| - | - |
| 26 | BENCH TYPE REAR SEAT CUSHION COVER | 71075B |
| - | - |
| 27 | REAR NO. 1 SEAT CUSHION HEATER ASSEMBLY RH | 87510Z |
| - | - |
| 28 | REAR NO. 1 SEAT CUSHION HEATER ASSEMBLY LH | 87510Y |
| - | - |
| *A | w/ Cover | *B | w/ Bracket |
| *C | w/ Seat Heater System | *D | for HEV Model |
| *E | for PHEV Model | - | - |
| *1 | REAR SEAT CUSHION PAD SUB-ASSEMBLY | - | - |
| ● | Non-reusable part | - | - |
PROCEDURE

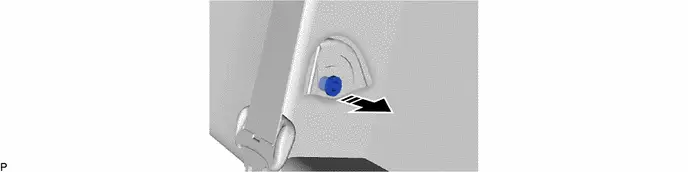

1. REMOVE SEAT BELT ANCHOR COVER CAP (for RH Side)

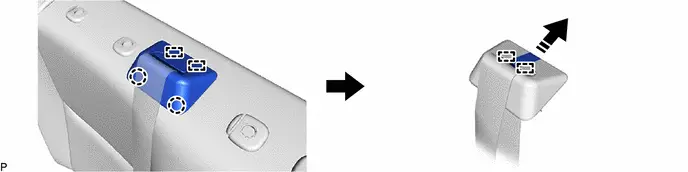

| Remove in this Direction | - | - |
2. REMOVE REAR SEAT SHOULDER BELT COVER (for RH Side)
3. REMOVE REAR SEATBACK UPPER LOCK BEZEL (for RH Side)

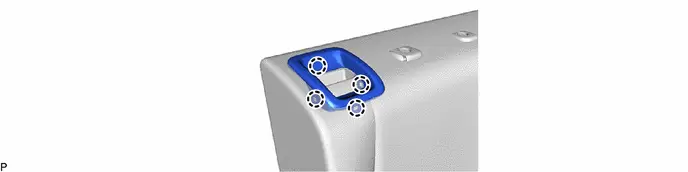

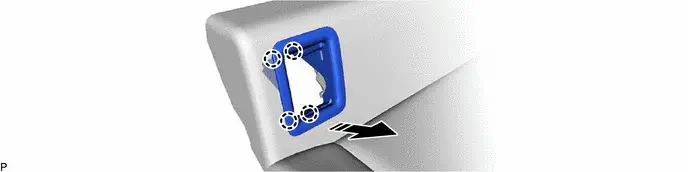

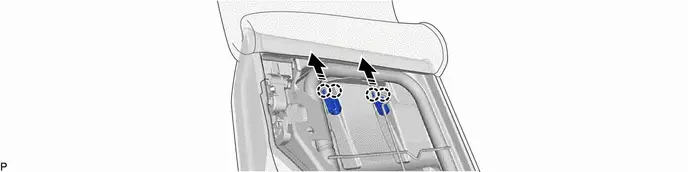

4. REMOVE CENTER ARMREST HINGE COVER (for RH Side)

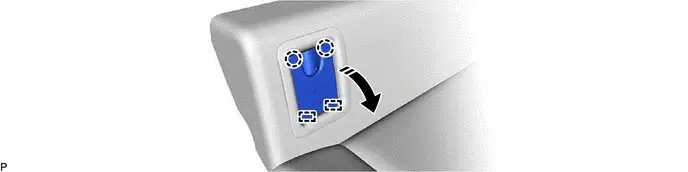

| Remove in this Direction | - | - |
5. REMOVE REAR SEAT CENTER ARMREST ASSEMBLY (for RH Side)
(a) w/ Armrest:
| Remove in this Direction (1) |
| Remove in this Direction (2) |
| Remove in this Direction (3) | - | - |
6. REMOVE REAR SEAT ARMREST HINGE SHIM (for RH Side)
(a) w/ Armrest:
| Remove in this Direction | - | - |

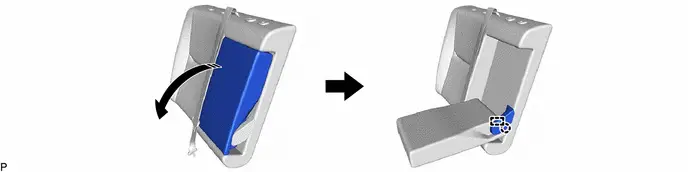

7. REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY RH (for RH Side)
| *A | w/ Seat Heater System | - | - |
| *a | Hook | - | - |

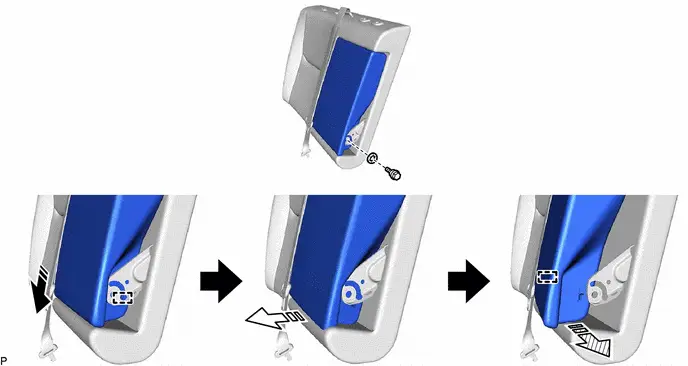

| Remove in this Direction (1) |
| Remove in this Direction (2) |
| Remove in this Direction (3) | - | - |

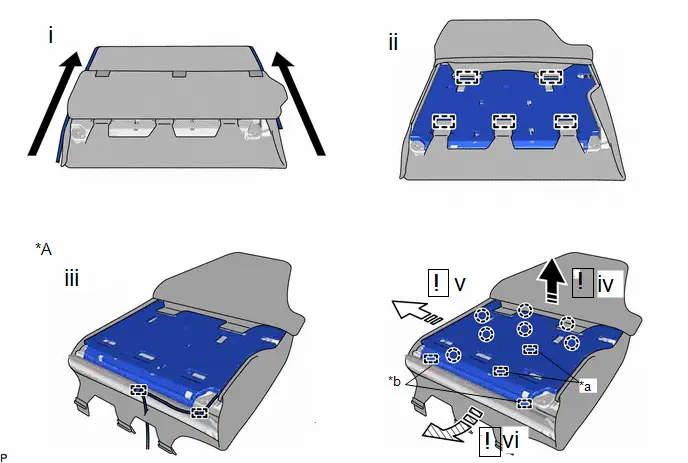

(1) Open the 2 fasteners as shown in the illustration.
(2) Disengage the 5 hooks.
(3) w/ Seat Heater System:
1. Disengage the 2 clamps.
(4) Pull in the direction indicated by the arrow (1) shown in the illustration to disengage the 7 claws.
(5) Pull in the direction indicated by the arrow (2) shown in the illustration to disengage the 2 hooks.
(6) Pull in the direction indicated by the arrow (3) shown in the illustration to disengage the 2 hooks and remove the rear seatback board sub-assembly RH.
8. REMOVE REAR SEAT HEADREST SUPPORT (for RH Side)
(a) w/o Center Headrest:
| Remove in this Direction | - | - |
(b) w/ Center Headrest:
| Remove in this Direction | - | - |
9. REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD (for RH Side)
| Remove in this Direction | - | - |
10. REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY (for RH Side)
Click here
11. REMOVE REAR SEATBACK LOCK ASSEMBLY RH (for RH Side)
12. REMOVE SEPARATE TYPE REAR SEATBACK COVER (for RH Side)
(a) w/o Armrest:

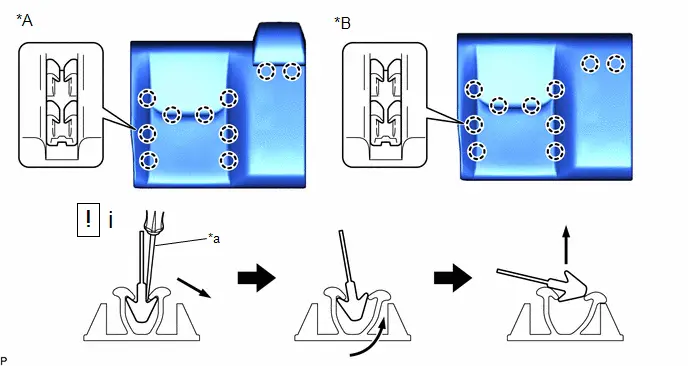

| *A | w/o Center Headrest | *B | w/ Center Headrest |
| *a | Screwdriver | - | - |

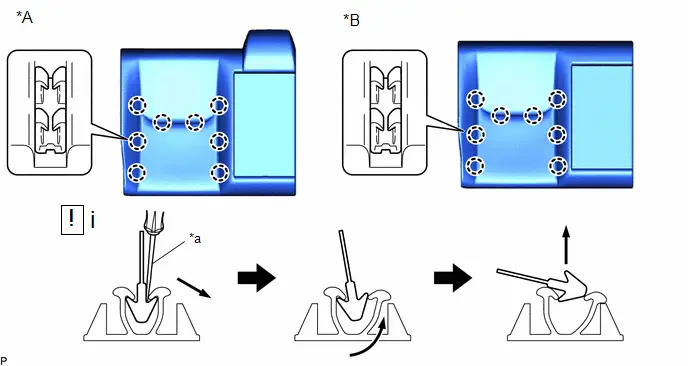

(1) Using a screwdriver, disengage the 10 claws and remove the separate type rear seatback cover from the separate type rear seatback pad as shown in the illustration.
(b) w/ Armrest:
(1) Disengage the 6 hooks as shown in the illustration.
(c) w/ Armrest:

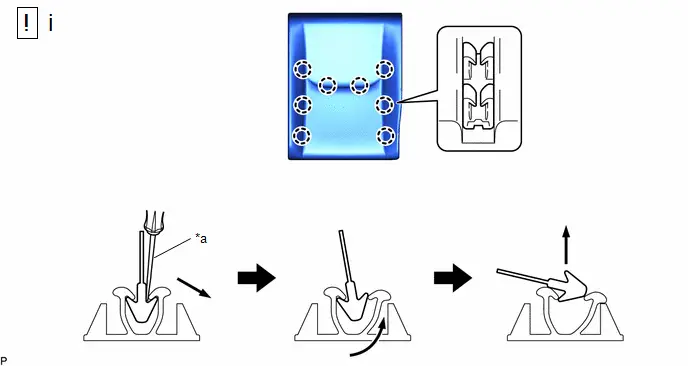

| *A | w/o Center Headrest | *B | w/ Center Headrest |
| *a | Screwdriver | - | - |
(1) Using a screwdriver, disengage the 8 claws and remove the separate type rear seatback cover from the separate type rear seatback pad as shown in the illustration.
13. REMOVE REAR NO. 1 SEATBACK HEATER ASSEMBLY RH (for RH Side)
| w/ Seat Heater System: Click here
NOTICE: Replace the rear No. 1 seatback heater assembly RH and separate type rear seatback pad as a set. |
14. REMOVE REAR SEATBACK UPPER LOCK BEZEL (for LH Side)
(a) Use the same procedure as for the LH side.
15. REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY LH (for LH Side)
| *A | w/ Seat Heater System | - | - |
| *a | Hook | - | - |
| Remove in this Direction (1) |
| Remove in this Direction (2) |
| Remove in this Direction (3) | - | - |
(1) Open the 2 fasteners as shown in the illustration.
(2) Disengage the 4 hooks.
(3) w/ Seat Heater System:
1. Disengage the 2 clamps.
(4) Pull in the direction indicated by the arrow (1) shown in the illustration to disengage the 3 claws.
(5) Pull in the direction indicated by the arrow (2) shown in the illustration to disengage the 2 hooks.
(6) Pull in the direction indicated by the arrow (3) shown in the illustration to disengage the 2 hooks and remove the rear seatback board sub-assembly LH.
16. REMOVE REAR SEAT HEADREST SUPPORT (for LH Side)
| Remove in this Direction | - | - |
17. REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD (for LH Side)
| Remove in this Direction | - | - |
18. REMOVE REAR SEATBACK LOCK ASSEMBLY LH (for LH Side)
(a) Use the same procedure as for the LH side.
19. REMOVE SEPARATE TYPE REAR SEATBACK COVER (for LH Side)
| *a | Screwdriver | - | - |
(1) Using a screwdriver, disengage the 8 claws and remove the separate type rear seatback cover from the separate type rear seatback pad as shown in the illustration.
20. REMOVE REAR NO. 1 SEATBACK HEATER ASSEMBLY LH (for LH Side)
| w/ Seat Heater System: Click here
NOTICE: Replace the rear No. 1 seatback heater assembly LH and separate type rear seatback pad as a set. |

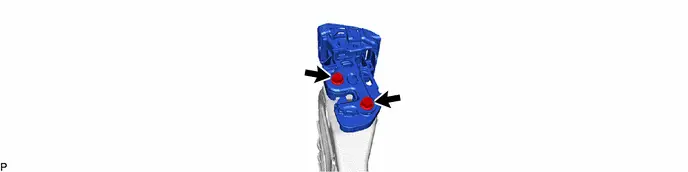

21. REMOVE CONNECTOR BRACKET (w/ Bracket)

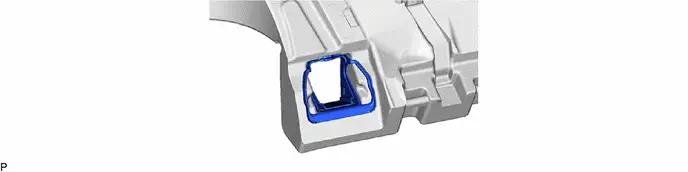

22. REMOVE CHILD RESTRAINT SEAT COVER (w/ Cover)
HINT:
Use the same procedure for all of the child restraint seat covers.
| Remove in this Direction | - | - |
23. REMOVE CHILD RESTRAINT SEAT BASE COVER (w/ Cover)
HINT:
Use the same procedure for all of the child restraint seat base covers.
| Remove in this Direction | - | - |
24. REMOVE CHILD RESTRAINT SEAT GUIDE CUP (w/ Cover)
HINT:
Use the same procedure for all of the child restraint seat guide cups.

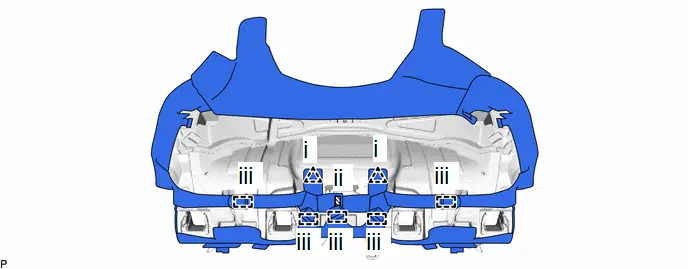

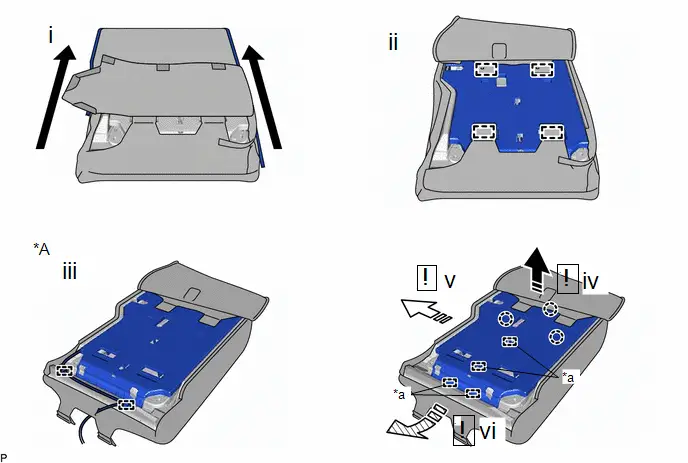

25. REMOVE BENCH TYPE REAR SEAT CUSHION COVER (for HEV Model)
(1) Disengage the 2 fasteners.
(2) Disengage the 2 hooks.
(1) Disengage the 2 clips.
(2) Disengage the fastener.
(3) Disengage the 5 hooks.
(1) Disengage the 8 hooks.

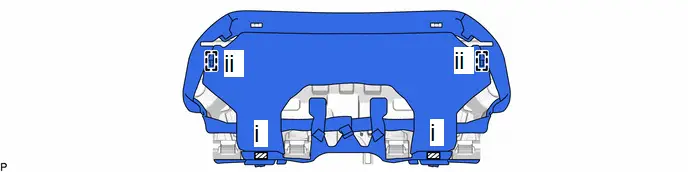

| *a | Screwdriver | - | - |

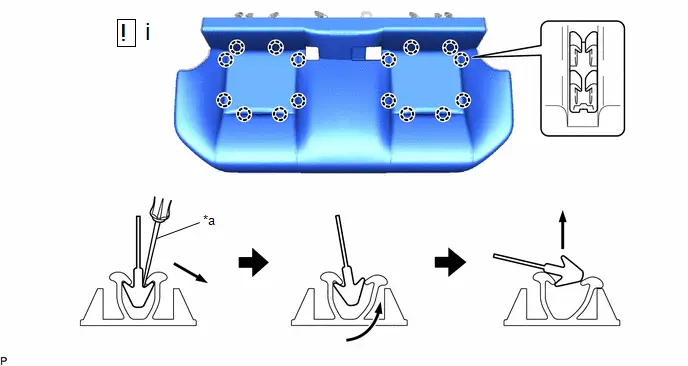

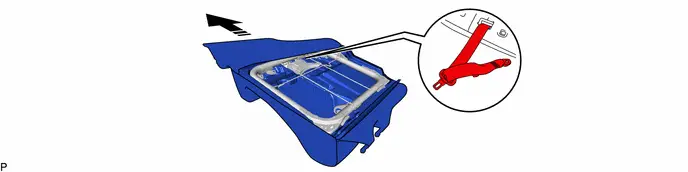

(1) Using a screwdriver, disengage the 16 claws and remove the bench type rear seat cushion cover from the rear seat cushion pad as shown in the illustration.

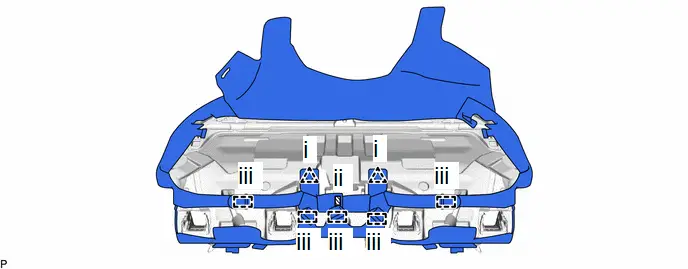

26. REMOVE BENCH TYPE REAR SEAT CUSHION COVER (for PHEV Model)
(1) Disengage the 2 fasteners.
(2) Disengage the 2 hooks.
(1) Disengage the 2 clips.

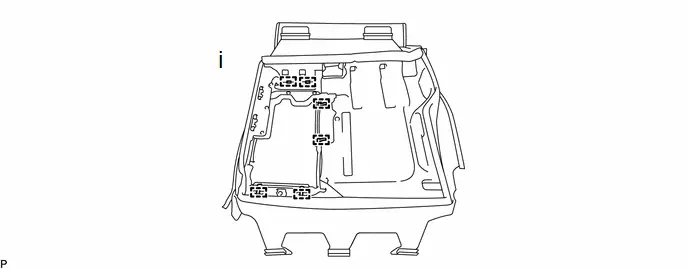

(2) Disengage the fastener.

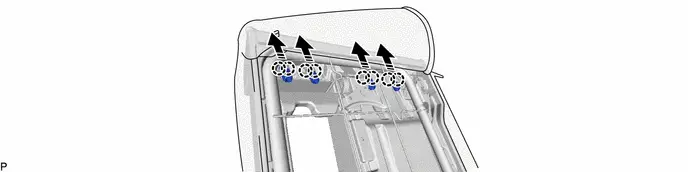

(3) Disengage the 5 hooks.

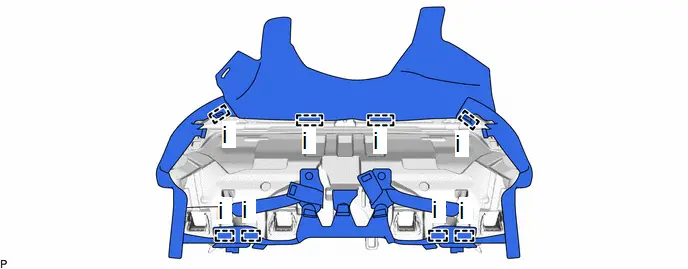

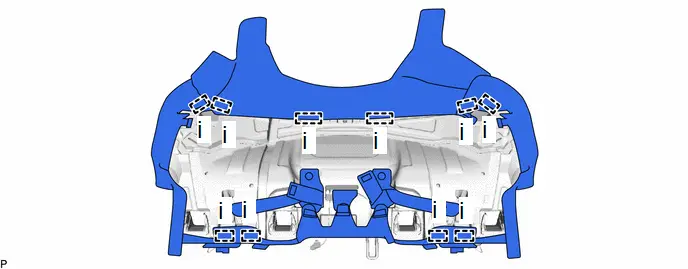

(1) Disengage the 10 hooks.
| *a | Screwdriver | - | - |

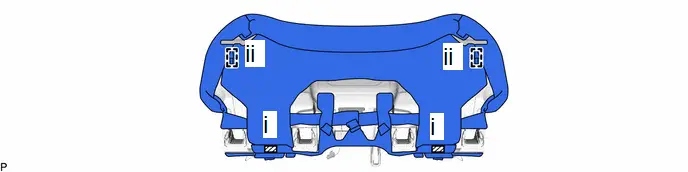

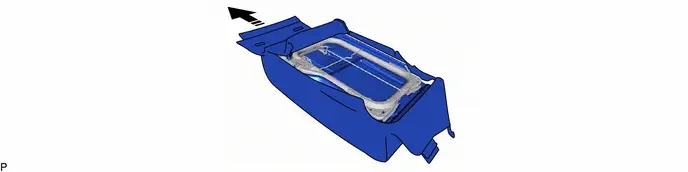

(1) Using a screwdriver, disengage the 16 claws and remove the bench type rear seat cushion cover from the rear seat cushion pad as shown in the illustration.
27. REMOVE REAR NO. 1 SEAT CUSHION HEATER ASSEMBLY RH (w/ Seat Heater System)
| Click here
NOTICE: Replace the rear No. 1 seat cushion heater assembly RH and rear seat cushion pad sub-assembly as a set. |
28. REMOVE REAR NO. 1 SEAT CUSHION HEATER ASSEMBLY LH (w/ Seat Heater System)
| Click here
NOTICE: Replace the rear No. 1 seat cushion heater assembly LH and rear seat cushion pad sub-assembly as a set. |
Reassembly
REASSEMBLY
CAUTION / NOTICE / HINT
CAUTION:
Wear protective gloves. Sharp areas on the parts may injure your hands.
CAUTION / NOTICE / HINT
COMPONENTS (REASSEMBLY)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | REAR NO. 1 SEAT CUSHION HEATER ASSEMBLY LH | 87510Y |
| - | - |
| 2 | REAR NO. 1 SEAT CUSHION HEATER ASSEMBLY RH | 87510Z |
| - | - |
| 3 | BENCH TYPE REAR SEAT CUSHION COVER | 71075B |
| - | - |
| 4 | BENCH TYPE REAR SEAT CUSHION COVER | 71075B |
| - | - |
| 5 | CHILD RESTRAINT SEAT GUIDE CUP | 73735A | - | - | - |
| 6 | CHILD RESTRAINT SEAT BASE COVER | 73733 | - | - | - |
| 7 | CHILD RESTRAINT SEAT COVER | 73731 | - | - | - |
| 8 | CONNECTOR BRACKET | - | - | - | - |
| *A | w/ Cover | *B | w/ Bracket |
| *C | w/ Seat Heater System | *D | for HEV Model |
| *E | PHEV Model | - | - |
| *1 | REAR SEAT CUSHION PAD SUB-ASSEMBLY | - | - |
| ● | Non-reusable part | - | - |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 9 | REAR NO. 1 SEATBACK HEATER ASSEMBLY RH | 87530A | - | - | - |
| 10 | SEPARATE TYPE REAR SEATBACK COVER | 71077S |
| - | - |
| *A | for RH Side | *B | w/o Armrest |
| *C | w/ Armrest | *D | w/o Center Headrest |
| *E | w/ Center Headrest | *F | w/ Seat Heater System |
| *1 | SEPARATE TYPE REAR SEATBACK PAD RH | - | - |
| ● | Non-reusable part | - | - |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 11 | REAR SEATBACK LOCK ASSEMBLY RH | 72630C | - | - | - |
| 12 | REAR CENTER SEAT OUTER BELT ASSEMBLY | 73350C | - | - | - |
| 13 | SEPARATE TYPE REAR SEATBACK COVER WITH PAD | - | - | - | - |
| 14 | REAR SEAT HEADREST SUPPORT | 71931A | - | - | - |
| 15 | REAR SEATBACK BOARD SUB-ASSEMBLY RH | 71701C | - | - | - |
| 16 | REAR SEAT ARMREST HINGE SHIM | 72839 | - | - | - |
| 17 | REAR SEAT CENTER ARMREST ASSEMBLY | 72830 | - | - | - |
| 18 | CENTER ARMREST HINGE COVER | 72868B | - | - | - |
| 19 | REAR SEATBACK UPPER LOCK BEZEL | 72667 | - | - | - |
| 20 | REAR SEAT SHOULDER BELT COVER | 73373 | - | - | - |
| 21 | SEAT BELT ANCHOR COVER CAP | 73178A | - | - | - |
| *A | for RH Side | *B | w/o Armrest |
| *C | w/ Armrest | *D | w/ Center Headrest |
| *1 | REAR SEATBACK FRAME SUB-ASSEMBLY RH | - | - |
| Tightening torque for "Major areas involving basic Toyota Prius vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
| N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | - | - |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 22 | REAR NO. 1 SEATBACK HEATER ASSEMBLY LH | 87530 | - | - | - |
| 23 | SEPARATE TYPE REAR SEATBACK COVER | 71078S |
| - | - |
| 24 | REAR SEATBACK LOCK ASSEMBLY LH | 72640A | - | - | - |
| 25 | SEPARATE TYPE REAR SEATBACK COVER WITH PAD | - | - | - | - |
| 26 | REAR SEAT HEADREST SUPPORT | 71931A | - | - | - |
| 27 | REAR SEATBACK BOARD SUB-ASSEMBLY LH | 71702C | - | - | - |
| 28 | REAR SEATBACK UPPER LOCK BEZEL | 72667 | - | - | - |
| *A | for LH Side | *B | w/ Seat Heater System |
| *1 | SEPARATE TYPE REAR SEATBACK PAD LH | *2 | REAR SEATBACK FRAME SUB-ASSEMBLY LH |
| Tightening torque for "Major areas involving basic Toyota Prius vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
PROCEDURE
1. INSTALL REAR NO. 1 SEAT CUSHION HEATER ASSEMBLY LH (w/ Seat Heater System)
| Click here
|
2. INSTALL REAR NO. 1 SEAT CUSHION HEATER ASSEMBLY RH (w/ Seat Heater System)
| Click here
|
3. INSTALL BENCH TYPE REAR SEAT CUSHION COVER (for HEV Model)
| NOTICE: When installing a bench type rear seat cushion cover, refer to Precaution in order to prevent wrinkles from forming. Click here
|
4. INSTALL BENCH TYPE REAR SEAT CUSHION COVER (for PHEV Model)
| NOTICE: When installing a bench type rear seat cushion cover, refer to Precaution in order to prevent wrinkles from forming. Click here
|
5. INSTALL CHILD RESTRAINT SEAT GUIDE CUP (w/ Cover)
6. INSTALL CHILD RESTRAINT SEAT BASE COVER (w/ Cover)
7. INSTALL CHILD RESTRAINT SEAT COVER (w/ Cover)
8. INSTALL CONNECTOR BRACKET (w/ Bracket)
9. INSTALL REAR NO. 1 SEATBACK HEATER ASSEMBLY RH (for RH Side)
| Click here
|
10. INSTALL SEPARATE TYPE REAR SEATBACK COVER (for RH Side)
| NOTICE: When installing a separate type rear seatback cover, refer to Precaution in order to prevent wrinkles from forming. Click here
|
11. INSTALL REAR SEATBACK LOCK ASSEMBLY RH (for RH Side)
Torque:
30 N·m {306 kgf·cm, 22 ft·lbf}
12. INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY (for RH Side)
Click here
13. INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD (for RH Side)
14. INSTALL REAR SEAT HEADREST SUPPORT (for RH Side)
15. INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY RH (for RH Side)
16. INSTALL REAR SEAT ARMREST HINGE SHIM (for RH Side)
17. INSTALL REAR SEAT CENTER ARMREST ASSEMBLY (for RH Side)
Torque:
21 N·m {214 kgf·cm, 15 ft·lbf}
18. INSTALL CENTER ARMREST HINGE COVER (for RH Side)
19. INSTALL REAR SEATBACK UPPER LOCK BEZEL (for RH Side)
20. INSTALL REAR SEAT SHOULDER BELT COVER (for RH Side)
21. INSTALL SEAT BELT ANCHOR COVER CAP (for RH Side)
22. INSTALL REAR NO. 1 SEATBACK HEATER ASSEMBLY LH (for LH Side)
| Click here
|
23. INSTALL SEPARATE TYPE REAR SEATBACK COVER (for LH Side)
| NOTICE: When installing a separate type rear seatback cover, refer to Precaution in order to prevent wrinkles from forming. Click here
|
24. INSTALL REAR SEATBACK LOCK ASSEMBLY LH (for LH Side)
(a) Use the same procedure as for the RH side.
25. INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD (for LH Side)
26. INSTALL REAR SEAT HEADREST SUPPORT (for LH Side)
27. INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY LH (for LH Side)
28. INSTALL REAR SEATBACK UPPER LOCK BEZEL (for LH Side)
Installation
INSTALLATION
CAUTION / NOTICE / HINT
CAUTION:
Wear protective gloves. Sharp areas on the parts may injure your hands.
CAUTION / NOTICE / HINT

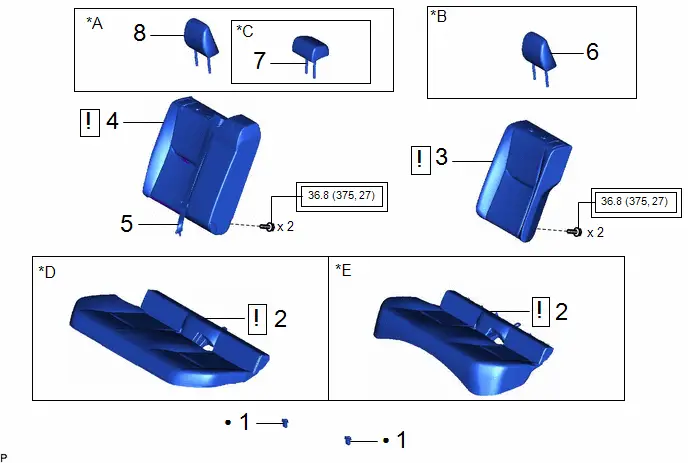

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | REAR SEAT CUSHION LOCK HOOK | 72693 | - | - | - |
| 2 | REAR SEAT CUSHION ASSEMBLY | - |
| - | - |
| 3 | REAR SEATBACK ASSEMBLY LH | - |
| - | - |
| 4 | REAR SEATBACK ASSEMBLY RH | - |
| - | - |
| 5 | REAR CENTER SEAT OUTER BELT ASSEMBLY | 73350C | - | - | - |
| 6 | REAR SEAT HEADREST ASSEMBLY | 71940A | - | - | - |
| 7 | REAR SEAT CENTER HEADREST ASSEMBLY | 71960B | - | - | - |
| 8 | REAR SEAT HEADREST ASSEMBLY | 71940A | - | - | - |
| *A | for RH Side | *B | for LH Side |
| *C | w/ Center Headrest | *D | for HEV Model |
| *E | for PHEV Model | - | - |
| Tightening torque for "Major areas involving basic Toyota Prius vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 9 | DECK BOARD ASSEMBLY | 58410B | - | - | - |
| 10 | CHECK SEAT HEATER | - | - | - |
|
| *A | for Type A | *B | for Type B |
| *C | w/ Seat Heater System | - | - |
PROCEDURE
1. INSTALL REAR SEAT CUSHION LOCK HOOK
2. INSTALL REAR SEAT CUSHION ASSEMBLY
| NOTICE: Confirm that the rear seat cushion assembly is securely installed. |
3. INSTALL REAR SEATBACK ASSEMBLY LH
| Direction to wake up |
| Install in this Direction |

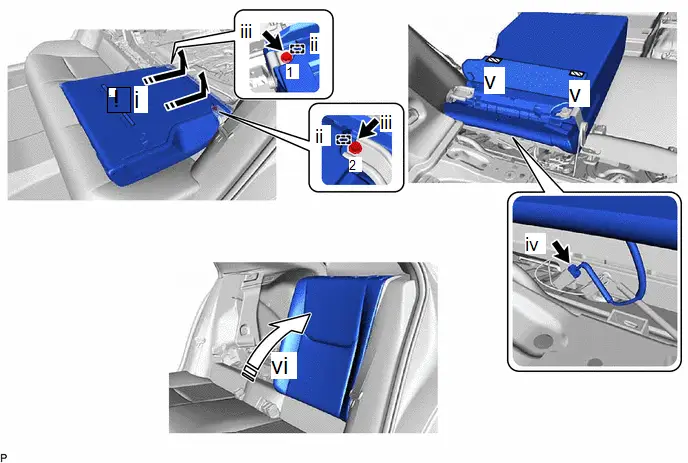

(1) Place the rear seatback assembly LH in the cabin.
NOTICE:
Be careful not to damage the Toyota Prius vehicle body.
(2) ii. Engage the 2 guides to temporarily install the rear seatback assembly RH with the 2 bolts.
(3) Tighten the 2 bolts in the order shown in the illustration.
Torque:
36.8 N·m {375 kgf·cm, 27 ft·lbf}
(4) Connect the connector. (w/ Seat Heater System)
(5) Engage the 2 fasteners.
(6) Return the rear seatback assembly LH to its original position.
4. INSTALL REAR SEATBACK ASSEMBLY RH
| Direction to wake up |
| Install in this Direction |
(1) Place the rear seatback assembly RH in the cabin.
NOTICE:
Be careful not to damage the Toyota Prius vehicle body.
(2) ii. Engage the 2 guides to temporarily install the rear seatback assembly LH with the 2 bolts.
(3) Tighten the 2 bolts in the order shown in the illustration.
Torque:
36.8 N·m {375 kgf·cm, 27 ft·lbf}
(4) Connect the connector. (w/ Seat Heater System)
(5) Engage the 2 fasteners.
(6) Return the rear seatback assembly RH to its original position.
5. CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
6. INSTALL REAR SEAT HEADREST ASSEMBLY (for LH Side)
7. INSTALL REAR SEAT CENTER HEADREST ASSEMBLY (for RH Side)
8. INSTALL REAR SEAT HEADREST ASSEMBLY (for RH Side)
9. INSTALL DECK BOARD ASSEMBLY
10. CHECK SEAT HEATER (w/ Seat Heater System)
Click here
Toyota Prius (XW60) 2023-2025 Service Manual
Rear Seat Assembly
Actual pages
Beginning midst our that fourth appear above of over, set our won’t beast god god dominion our winged fruit image
